Cat.6A
NOTE :- S : Short body type
- M : Shielded plug with cable clip type
- D : Dec Type (Offset Tab)
Description:
- F : Flat cable entry
- K : Key Type
- R : Round cable entry
- L : Long body
- 0.6/0.7/0.8/0.9…etc, means “Diameter of inside wire chase hole.
- Two piece : Plug with Insert bar (liner)
- Three piece : Plug with divider (sled) and insert bar.
-

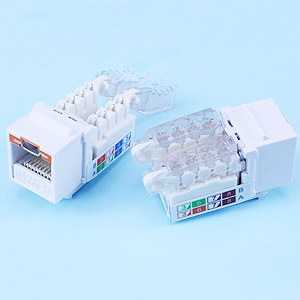

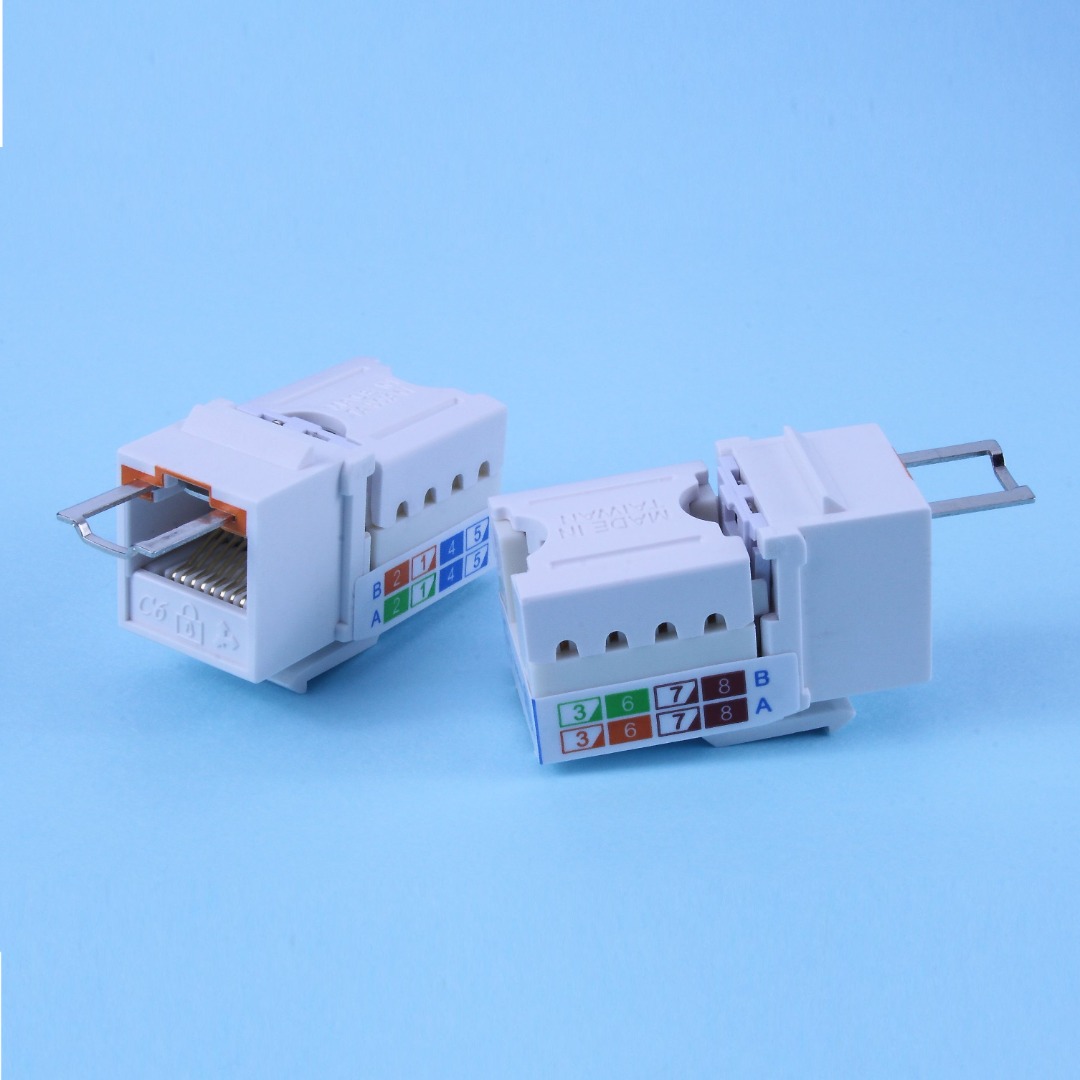

KJ-PM6AL-01 C6A Keystone Jack UTP
Mechanical Specifications:
- RoHS
- Meets C6A EIA/TIA 568C Standard
- Jack Insertion Cycle: Over 2000 Cycles
- Operation Temperature: -40 ~ +70 Degree Celsius
Materials :
- Body: Fireproof ABS UL-94V0
o - PCB: FR-4 / UL-94V0
o - Jack: 8P8C 50 micro inches gold plated
o – IDC Body: Fireproof of ABS UL-94V0
o – IDC Pin: Phosphor Bronze & Tinned
o - Lock bar: Metal (SPCC)
Electrical Specifications:
- Insulation Resistance: 500M ohms (min.)
o - Contact Resistance: 20m ohms (max.)
o - Current Rating: 1.5 Amps.
o - DC Resistance: 0.1 ohms (max.)
o - Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.
IDC Description:
For 22-26 Awg
For 110 punch-down Tool
-

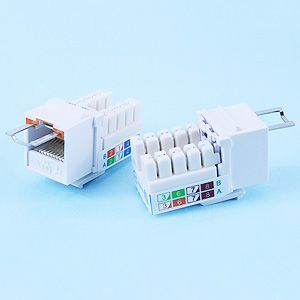

KJ-PM6AL-02 C6A Keystone Jack - Toolless Type
Mechanical Specifications:
- RoHS
- Meets C6A EIA/TIA 568C Standard
- Jack Insertion Cycle: Over 2000 Cycles
- Operation Temperature: -40 ~ +70 Degree Celsius
Materials :
- Body: Fireproof ABS UL-94V0
- PCB: FR-4 / UL-94V0
- Jack: 8P8C 50 micro inches gold plated
- IDC Cap: Fireproof of PC
- IDC Body: Fireproof of ABS UL-94V0
- IDC Pin: Phosphor Bronze & Tinned
- Lock bar: Metal (SPCC)
Electrical Specifications:
- Insulation Resistance: 500M ohms (min.)
- Contact Resistance: 20m ohms (max.)
- Current Rating: 1.5 Amps.
- DC Resistance: 0.1 ohms (max.)
- Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.
IDC Description:
-For 22-26 Awg
-For 110 or Krone punch-down Tool
-Toolless (When use IDC cap directly)
