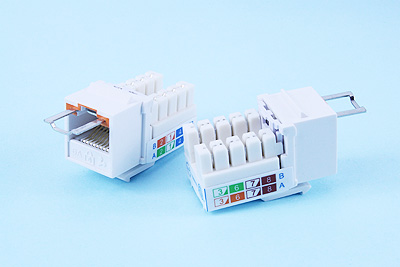

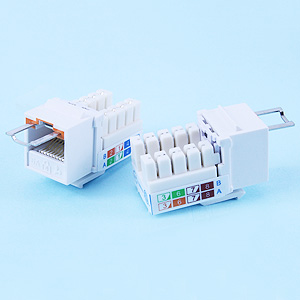

KJ-PM6AL-01 C6A Keystone Jack UTP

Mechanical Specifications:

-  RoHS

 - Meets C6A EIA/TIA 568C Standard
- Jack Insertion Cycle: Over 2000 Cycles
- Operation Temperature: -40 ~ +70 Degree Celsius

Materials :

- Body: Fireproof ABS UL-94V0

o    - PCB: FR-4 / UL-94V0

o    - Jack: 8P8C 50 micro inches gold plated

o    – IDC Body: Fireproof of ABS UL-94V0

o    – IDC Pin: Phosphor Bronze & Tinned

o    - Lock bar: Metal (SPCC)

Electrical Specifications:

- Insulation Resistance: 500M ohms (min.)

o    - Contact Resistance: 20m ohms (max.)

o    - Current Rating: 1.5 Amps.

o    - DC Resistance: 0.1 ohms (max.)

o    - Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.

IDC Description:

For 22-26 Awg

For 110 punch-down Tool
