• Arc Latch

    Description:


    Cable entry hole:

    • R : Radiused Entry for Round or Flat cable.
    • F : Rectangular Entry for Flat cable.
      　

    Body type:

    • K : Key Type
    • D : Dec Type (Offset Tab)
    • L : Long body or Long latch
    • S: Short body
    • Shielded: STP/FTP Plug
      　

    Wire hole arrangement :

    • One layer : Standard
    • Two Layers: 2-level comes with long pin and short pin (Up and down)
      　

    Combination :

    • Single Part : Plug without any inserts.
    • Two pieces : Plug with load bar (liner)
    • Three pieces : Plug with divider and insert (liner)


    Note :

    •   0.6/0.7/0.8/0.9…etc, means “Diameter of inside wire chase hole.

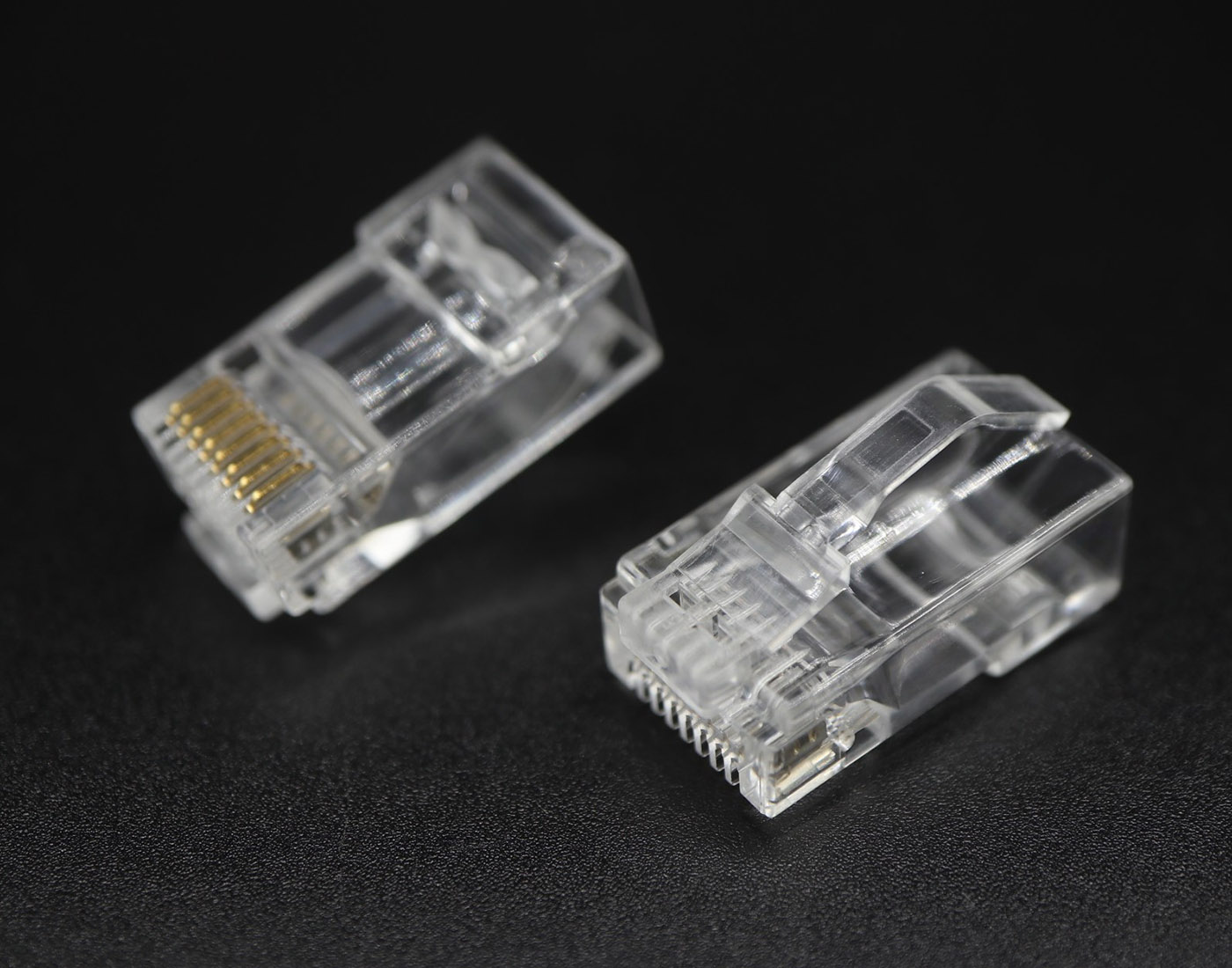

  • RJ45 Modular Plug Cat.6 UTP FAST (Pass Through) with Arc Latch 8P8C-2R-V

    P8-029-3 RJ45 Modular Plug Cat.6 UTP FAST (Pass Through) with Arc Latch 8P8C-2R-V

    Features  :

    Arc Latch Design :

    - No extra tangled problem to break off latch.

    - Prevent broken latch by reverse action of latch end.



    Pass Through Design :

    - Speed Up Assembly!

    - 1 piece design , Insert wires through the connector and out the front and easy to set up, highly compatible, and reliable . Let the installer enhance the production performance and simplify the installation steps.



    Other Advantages :

    - 3 Prong Blades-Support both stranded and solid wires.

    - To use our specific Fast tool , it can trim/crimp the plug at one time, easier and faster for DIY assembling.

    - Component Level Pass.

    - Compatible with Short boot and long boot ( SR-033 – 6.0/6.5 mm )  and  (SR-024- 6.5/6.8mm.).

    WARNING: PMC FAST-EASY-PASS THROUGH RJ45 connectors and crimp tools are designed to work as a system.
    TOOL #PM-3008R is NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty.
    Plug Master is not responsible for any unintended uses of its products.


    Compare
    Specification Drawing Test

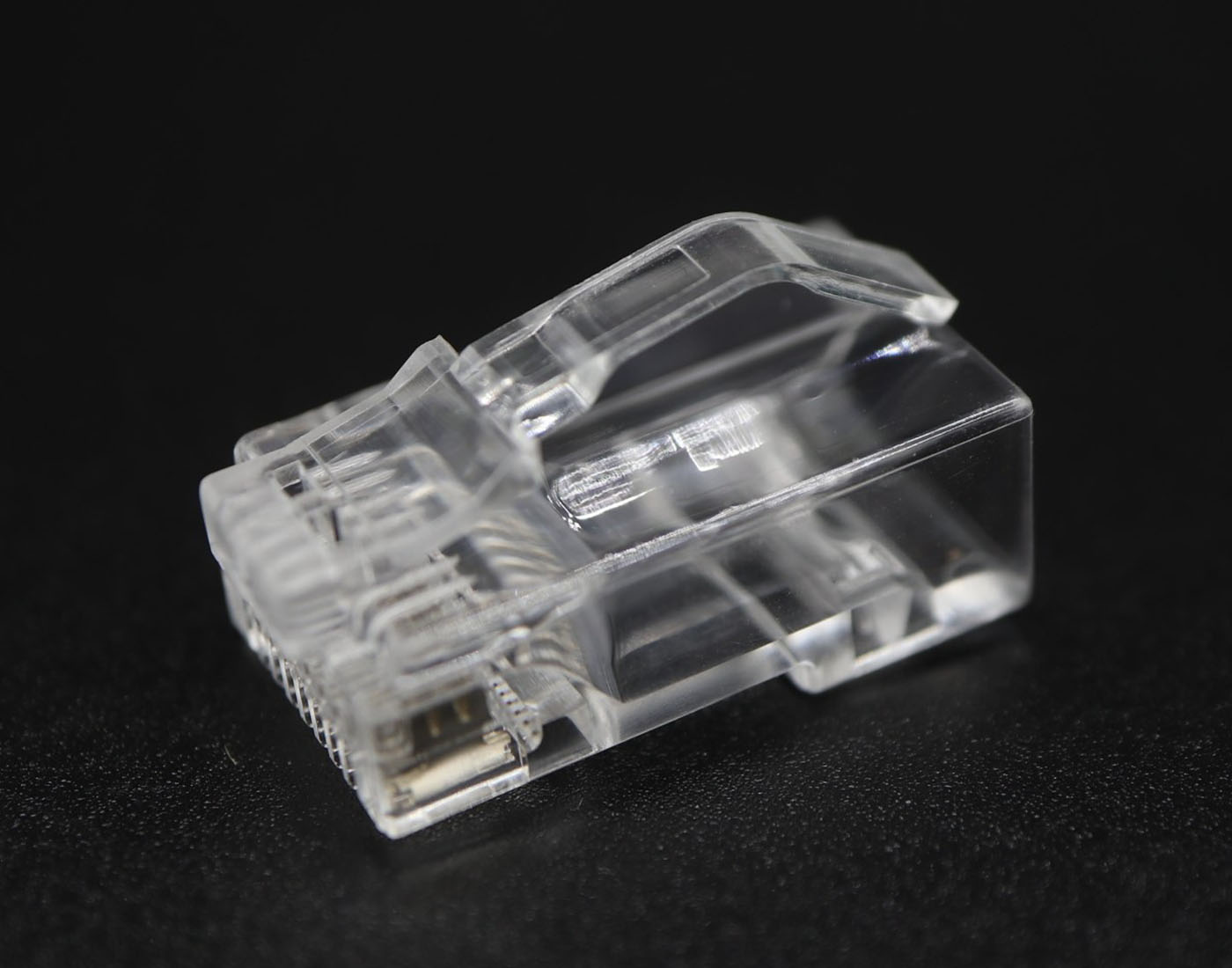

  • RJ45 Modular Plug Cat.6A UTP FAST (Pass Through) with Arc Latch 8P8C-2R-V 2 Rows

    P8-029-5 RJ45 Modular Plug Cat.6A UTP FAST (Pass Through) with Arc Latch 8P8C-2R-V 2 Rows

    Features  :

    Arc Latch Design :

    - No extra tangled problem to break off latch.

    - Prevent broken latch by reverse action of latch end.



    Pass Through Design :

    - Speed Up Assembly!

    - 1 piece design , Insert wires through the connector and out the front and easy to set up, highly compatible, and reliable . Let the installer enhance the production performance and simplify the installation steps.



    Other Advantages :

    - 3 Prong Blades-Support both stranded and solid wires.

    - To use our specific Fast tool , it can trim/crimp the plug at one time, easier and faster for DIY assembling.

    - Component Level Pass.

    - Compatible with Short boot and long boot ( SR-033 – 6.0/6.5 mm )  and  (SR-024- 6.5/6.8mm.).

    WARNING: PMC FAST-EASY-PASS THROUGH RJ45 connectors and crimp tools are designed to work as a system.
    TOOL #PM-3008R is NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty.
    Plug Master is not responsible for any unintended uses of its products.

    Compare
    Specification Test-1 Test-2
View Compare
Total of 2 results
