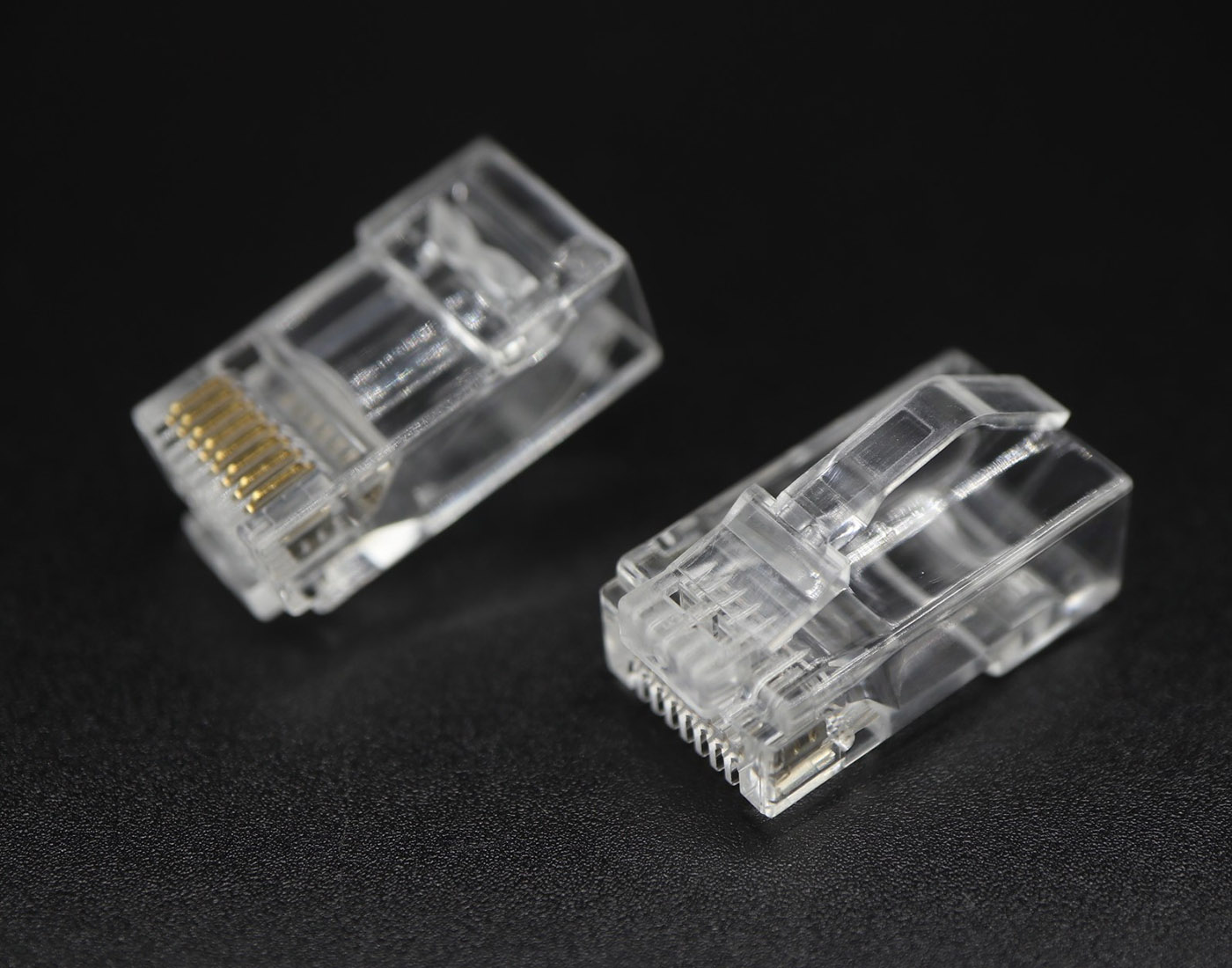

P8-029-3 RJ45 Modular Plug Cat.6 UTP FAST (Pass Through) with Arc Latch 8P8C-2R-V
Features :
Arc Latch Design :
- No extra tangled problem to break off latch.
- Prevent broken latch by reverse action of latch end.

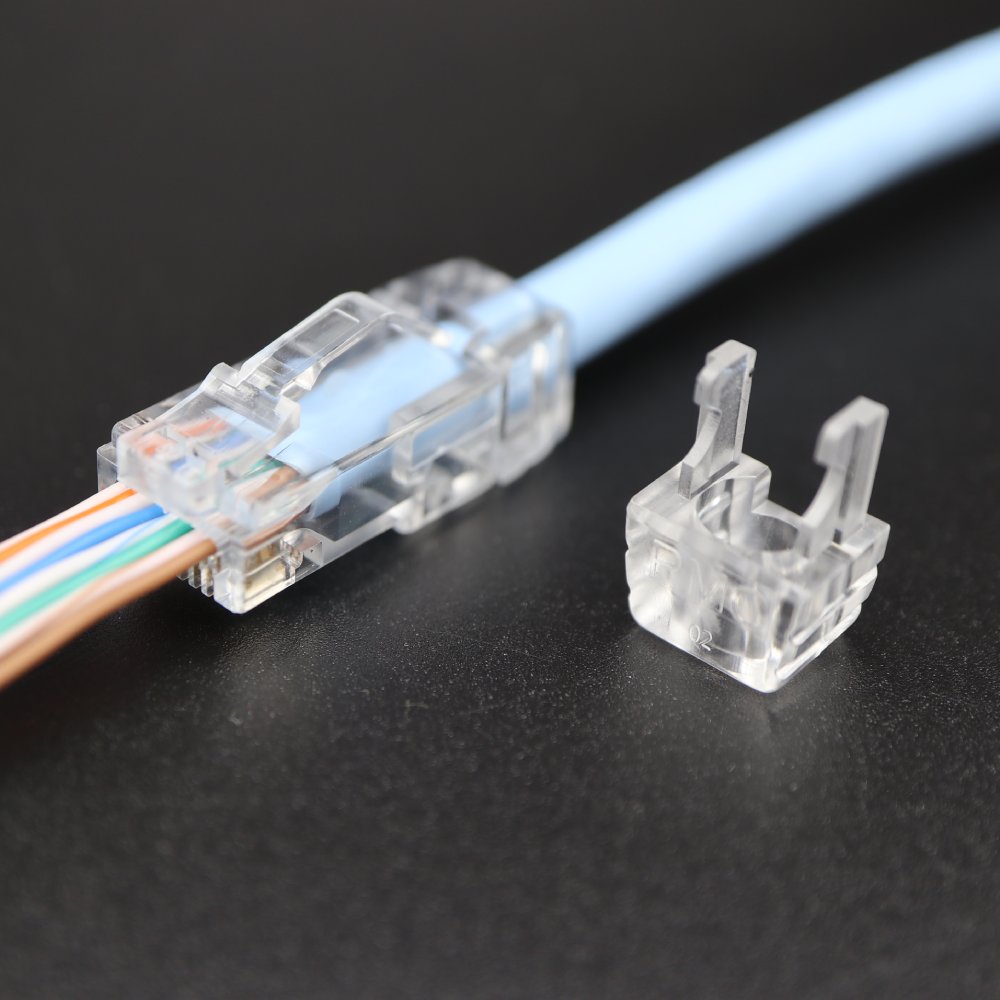

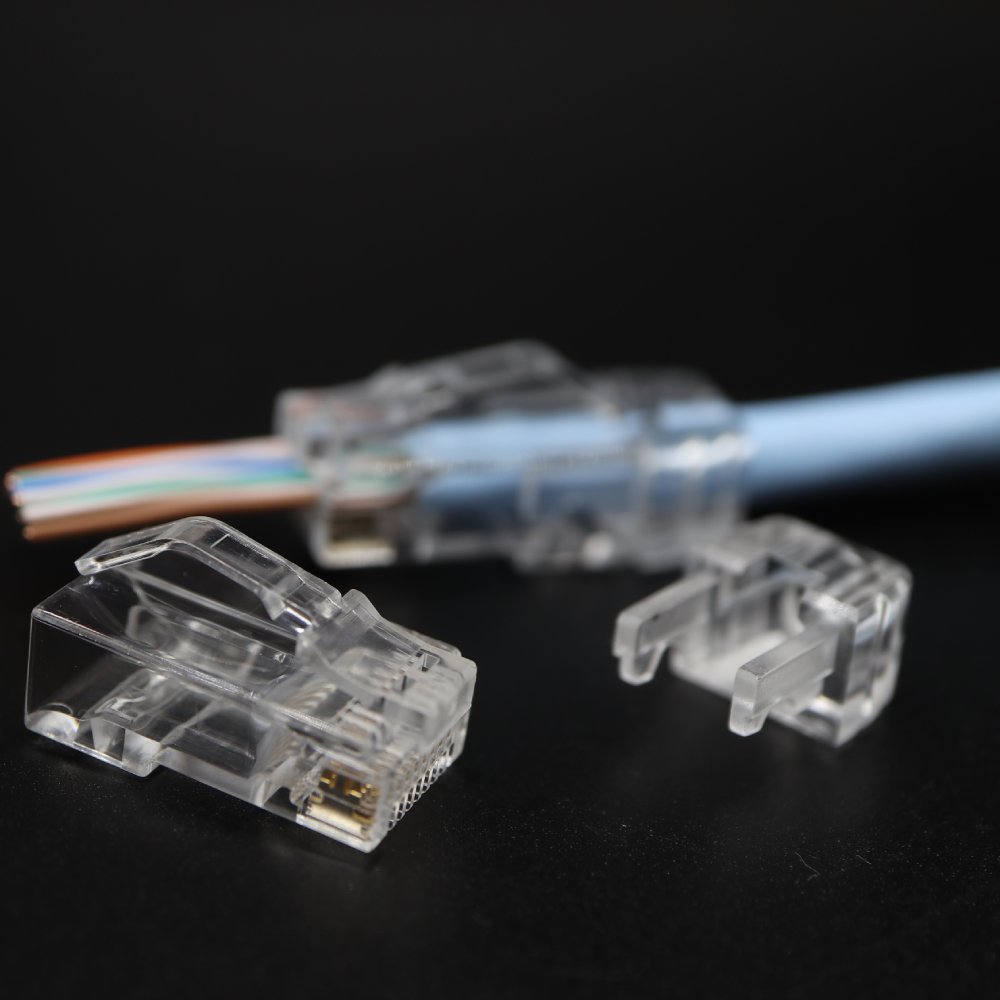

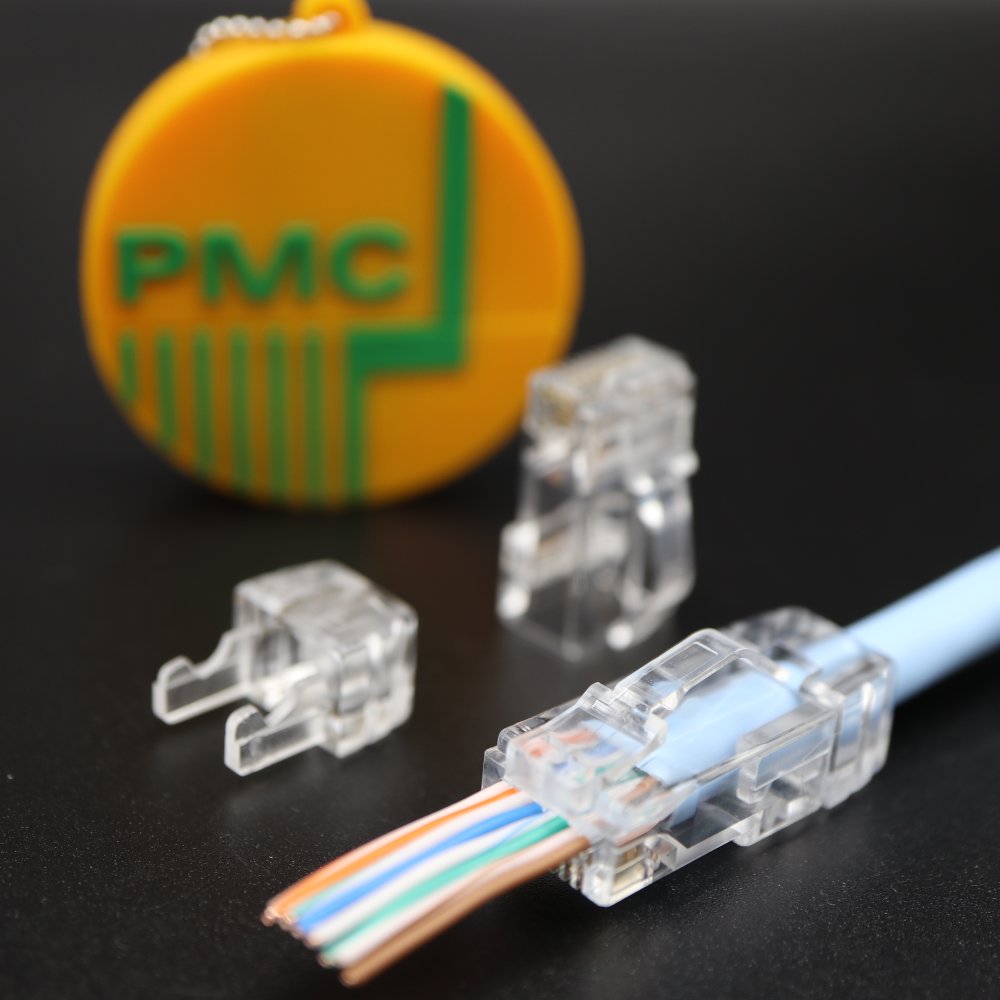

Pass Through Design :
- Speed Up Assembly!
- 1 piece design , Insert wires through the connector and out the front and easy to set up, highly compatible, and reliable . Let the installer enhance the production performance and simplify the installation steps.
Other Advantages :
- 3 Prong Blades-Support both stranded and solid wires.
- To use our specific Fast tool , it can trim/crimp the plug at one time, easier and faster for DIY assembling.
- Component Level Pass.
- Compatible with Short boot and long boot ( SR-033 – 6.0/6.5 mm ) and (SR-024- 6.5/6.8mm.).
WARNING: PMC FAST-EASY-PASS THROUGH RJ45 connectors and crimp tools are designed to work as a system.
TOOL #PM-3008R is NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty.
Plug Master is not responsible for any unintended uses of its products.
| Part No. |
P8-029-3
RJ45 Modular Plug Cat.6 UTP FAST (Pass Through) with Arc Latch 8P8C-2R-V |
| Category | C6 UTP |
| Description | 8P8C-2R-V FAST UTP C6 |
| Cable entry hole | 2R-V |
| Loading bar Diameter | N/A |
| Conductor hole | 1.0mm |
| Shielded Material | Non-Shielded |
| Max. Cable Outer Dia. | For Round Cable |
| Conductor type | Solid | Stranded |
| Plug Housing Material | UL 94V-0 or 94V2 rated clear Polycarbonate (PC) |
| Contact Blades Material | Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating |
| Operating Temperature | -10°c to 60°c |
| Storage temperature | -40℃ ~ 70℃ |
| Compliance | Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant |
| Compatible boot | SR-024 SR-033 |
| Related Crimping Tools | PM-3008R Updated Version |
