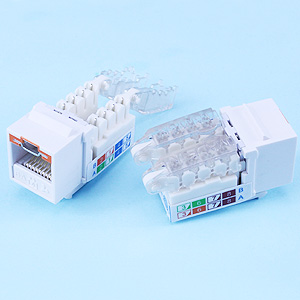

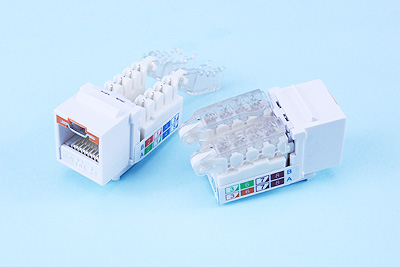

KJ-PM6AL-02 C6A Keystone Jack - Toolless Type

Mechanical Specifications:

- RoHS

 - Meets C6A EIA/TIA 568C Standard
- Jack Insertion Cycle: Over 2000 Cycles
- Operation Temperature: -40 ~ +70 Degree Celsius

Materials :

 - Body: Fireproof ABS UL-94V0

 - PCB: FR-4 / UL-94V0

 - Jack: 8P8C 50 micro inches gold plated

 - IDC Cap: Fireproof of PC

 - IDC Body: Fireproof of ABS UL-94V0

 - IDC Pin: Phosphor Bronze & Tinned

 - Lock bar: Metal (SPCC)

Electrical Specifications:

- Insulation Resistance: 500M ohms (min.)

- Contact Resistance: 20m ohms (max.)

- Current Rating: 1.5 Amps.

- DC Resistance: 0.1 ohms (max.)

- Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.

IDC Description:

-For 22-26 Awg

-For 110 or Krone punch-down Tool

-Toolless (When use IDC cap directly)
