• P8-069-15 RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) with External Ground 8P8C-F 2 Rows 1.4mm for cable OD 7.2±0.5mm
    P8-069-15 RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) with External Ground 8P8C-F 2 Rows 1.4mm for cable OD 7.2±0.5mm P8-069-15 RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) with External Ground 8P8C-F 2 Rows 1.4mm for cable OD 7.2±0.5mm P8-069-15 RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) with External Ground 8P8C-F 2 Rows 1.4mm for cable OD 7.2±0.5mm P8-069-15 RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) with External Ground 8P8C-F 2 Rows 1.4mm for cable OD 7.2±0.5mm P8-069-15 RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) with External Ground 8P8C-F 2 Rows 1.4mm for cable OD 7.2±0.5mm P8-069-15 RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) with External Ground 8P8C-F 2 Rows 1.4mm for cable OD 7.2±0.5mm P8-069-15 RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) with External Ground 8P8C-F 2 Rows 1.4mm for cable OD 7.2±0.5mm

    P8-069-15 RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) with External Ground 8P8C-F 2 Rows 1.4mm for cable OD 7.2±0.5mm

    ✽✽Also available for bigger cable Jacket OD 8.2±0.5mm ,  P8-069-16

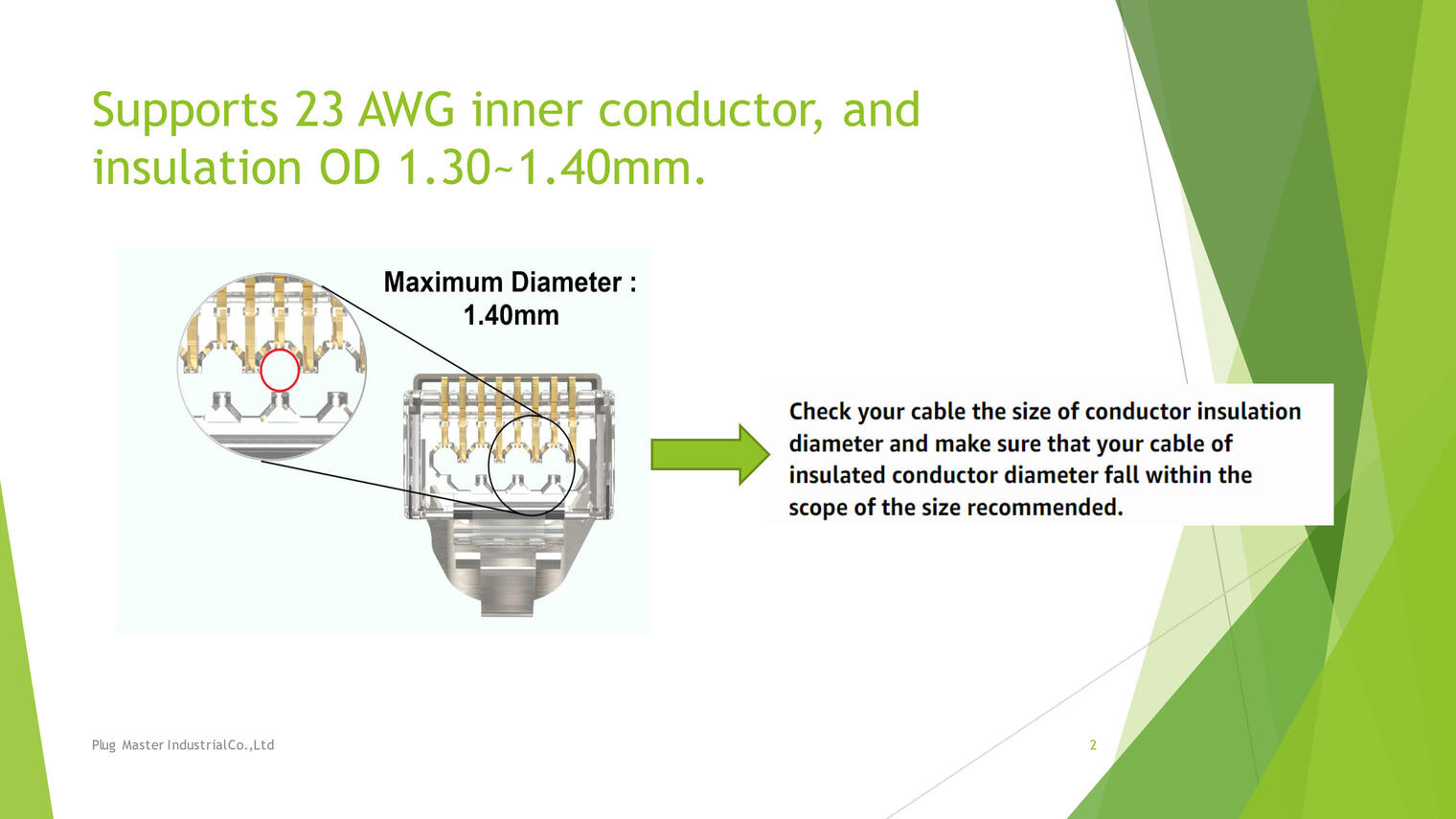

    u  Supports 23 AWG inner conductor, and insulation OD 1.30~1.40mm.



    u  Fixed network cable: Firm and not loose

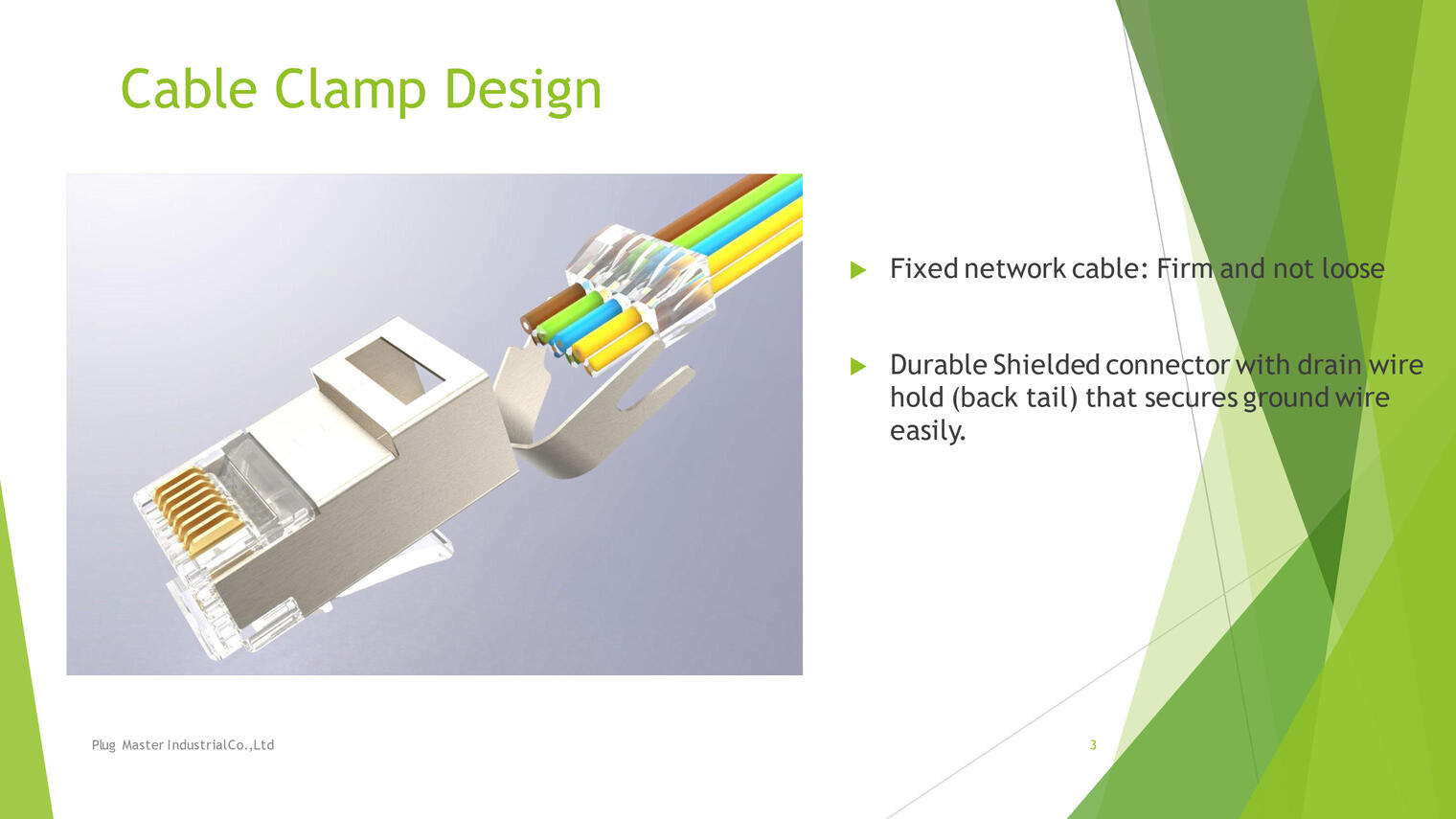

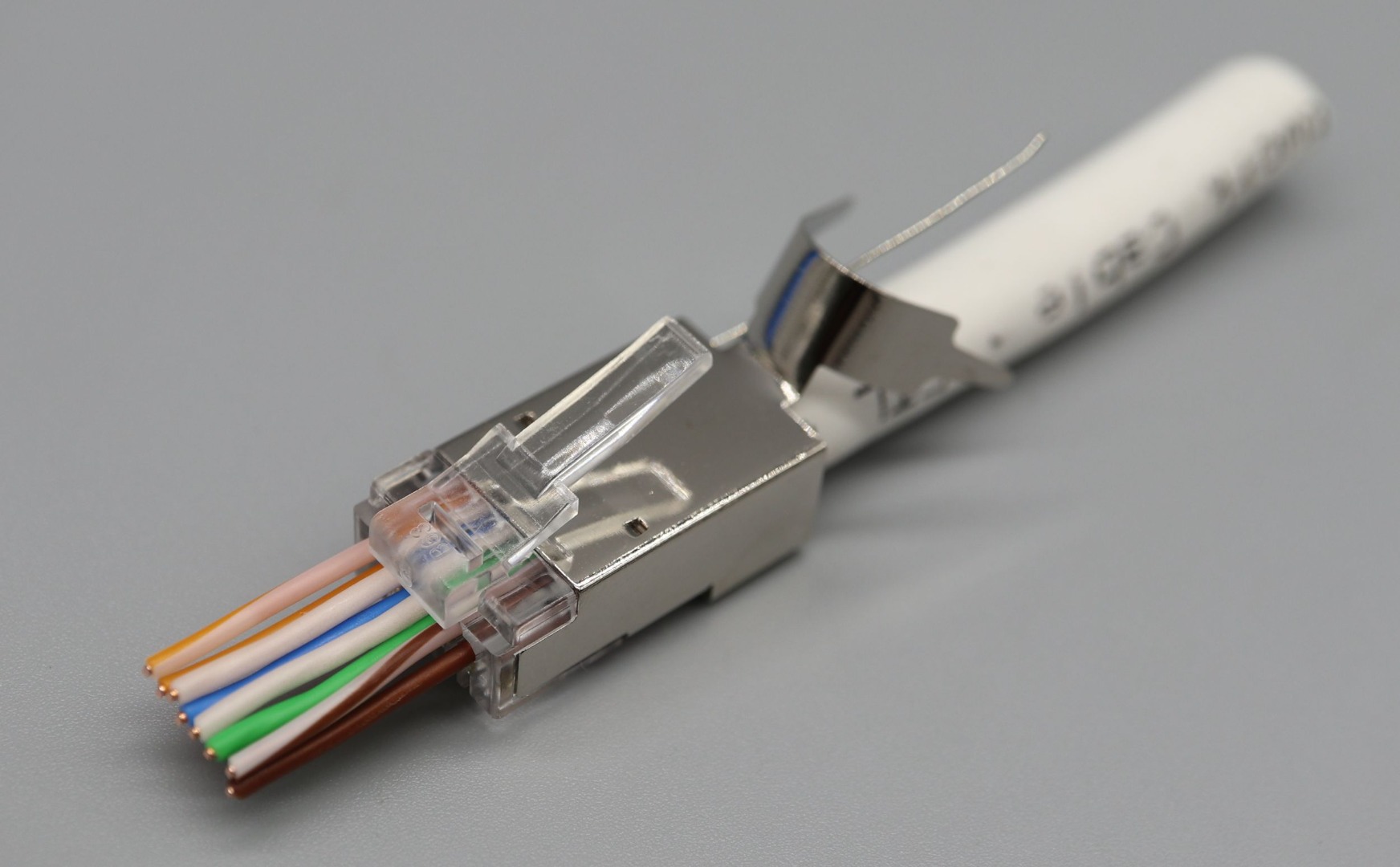

    u  Durable Shielded connector with drain wire hold (back tail) that secures ground wire easily.

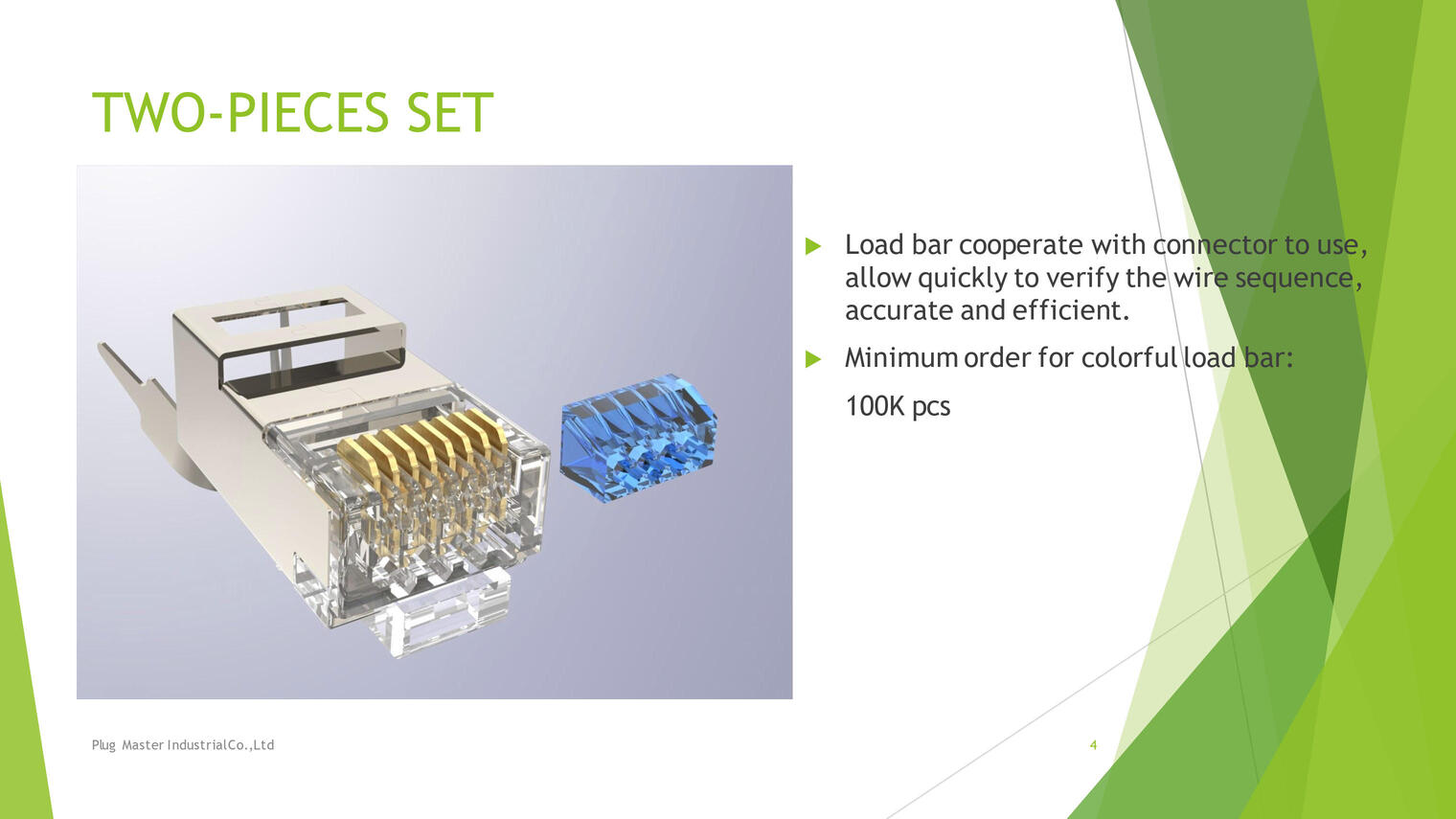

    u  Load bar cooperate with connector to use, allow quickly to verify the wire sequence, accurate and efficient.



    u  Colorful load bar is available.

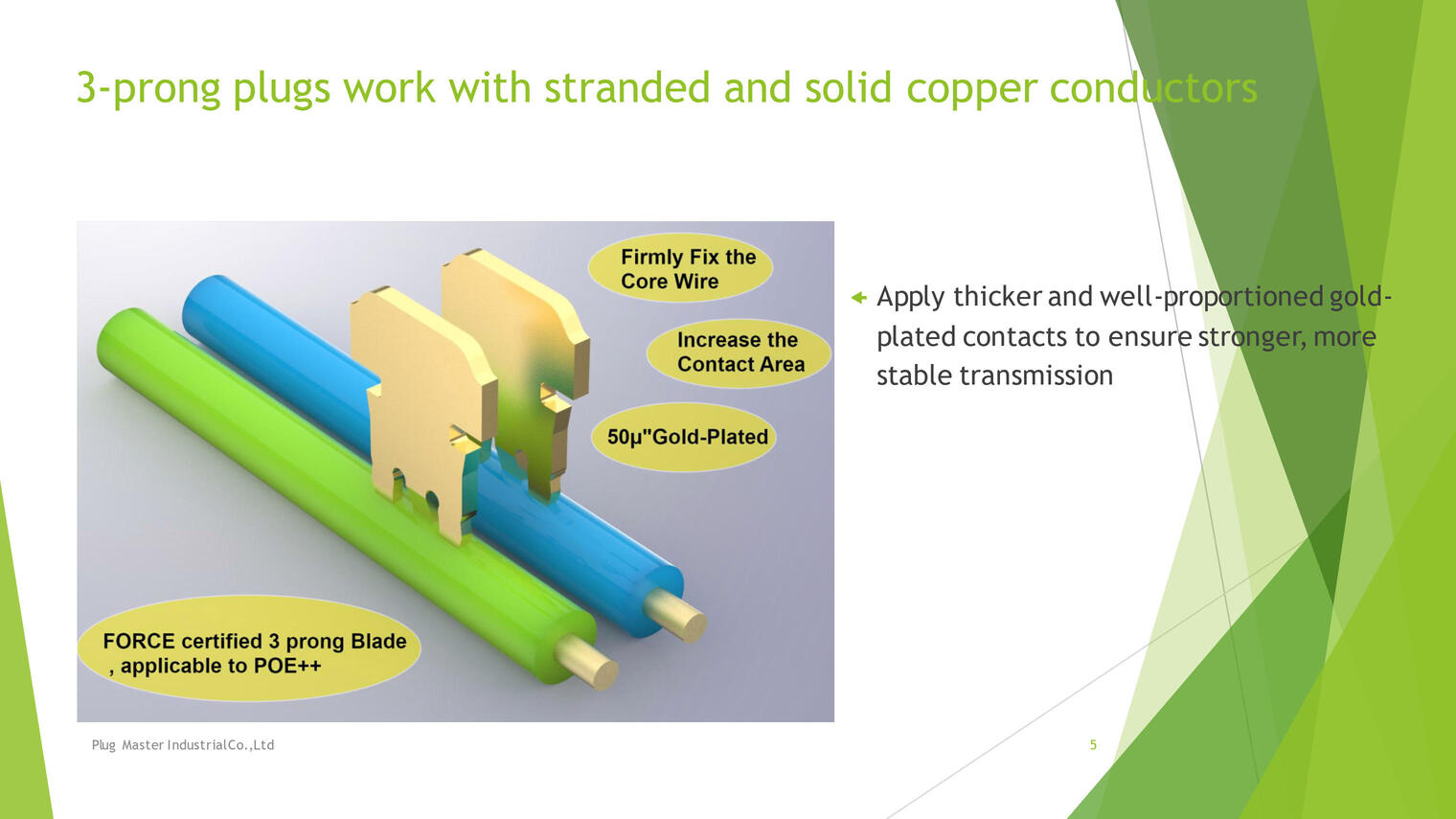

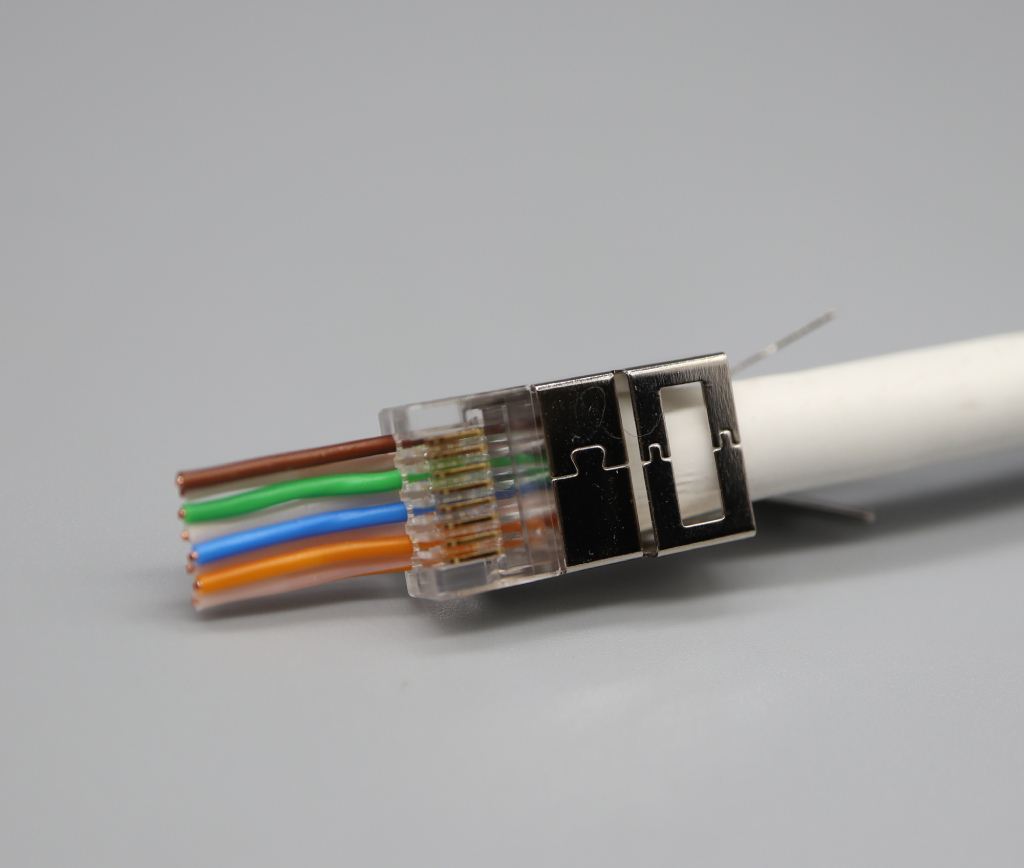

    u  Apply thicker and well-proportioned gold-plated contacts to ensure stronger, more stable transmission.



    u Assembling Video

       (P8-069-15 + SR-014-1 + PM-3008R + PM-5042)
    　

    WARNING: PMC FAST-EASY-PASS THROUGH RJ45 connectors and crimp tools are designed to work as a system. TOOL #PM-3008R is NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty. Plug Master is not responsible for any unintended uses of its products.

Test-1 Test-2 Guide

Part No. P8-069-15
RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) with External Ground 8P8C-F 2 Rows 1.4mm for cable OD 7.2±0.5mm
Category C6A STP
Description 8P8C-F FAST 2 rows Shielded with cable clamp and outer sheath crimp capabilities.1.4mm , C6A
Cable entry hole F
Loading bar Diameter 1.40mm
Conductor hole

1.40mm

Max. Cable Outer Dia. For Flat Cable
Shielded Material Brass with nickel plated
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Conductor type Solid | Stranded
Operating Temperature - 10°C to 60°C
Storage temperature - 40℃ ~ 70℃
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating

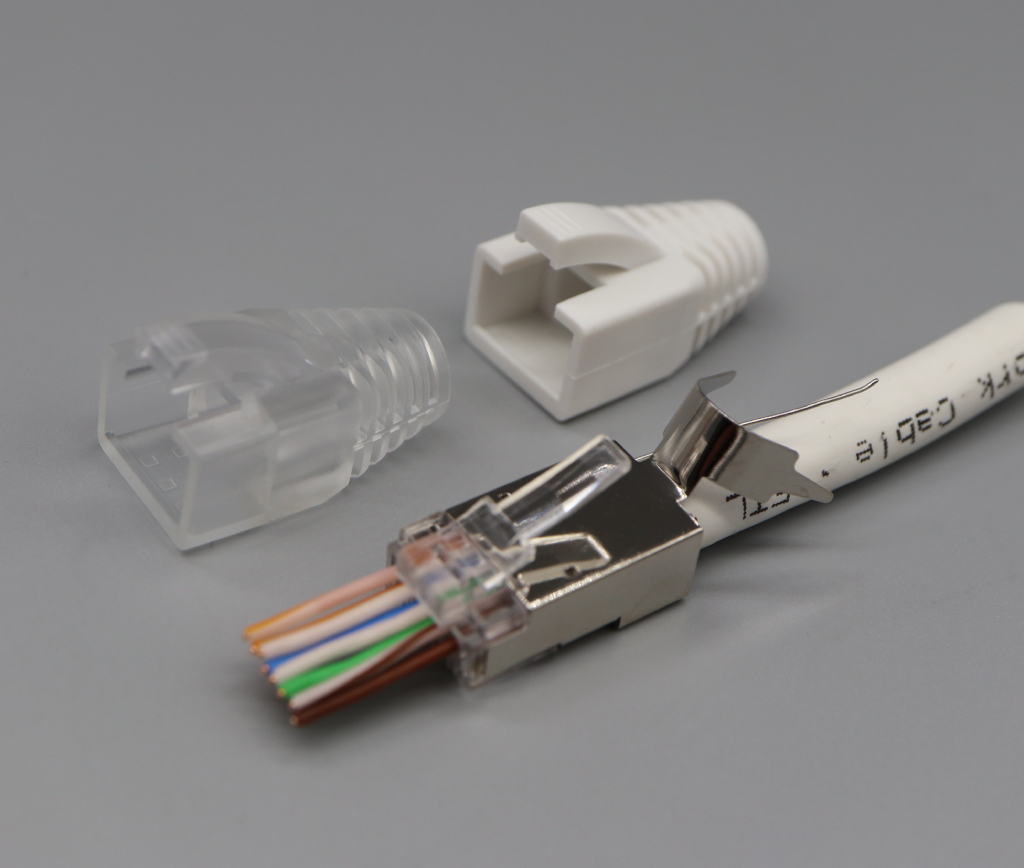

Compatible boot SR-014-1

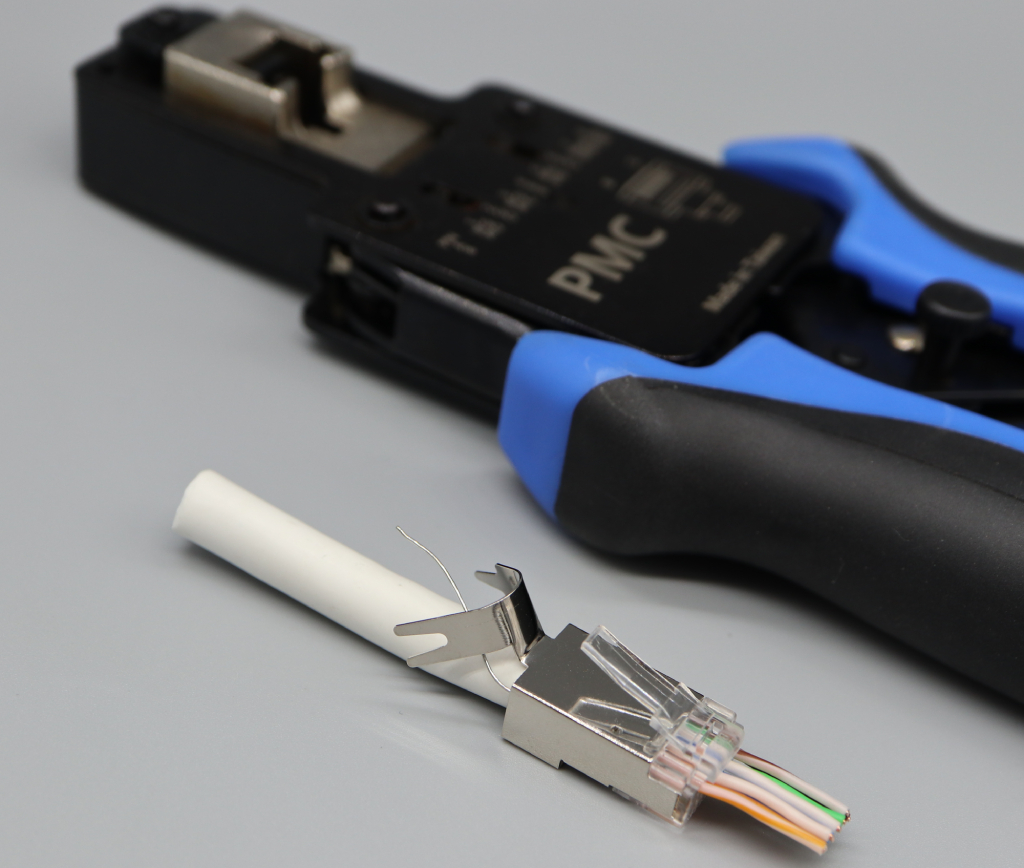

Related Crimping Tools Crimping tool : PM-3008R
External Ground Crimping Tool : PM-5042

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Part No. P8-069-15
Housing Material
Contact Type
Gold Plating
Packaging Quantity
Housing Color: Clear or other colors are available.
Other Remark (OEM logo ,Small packing)
