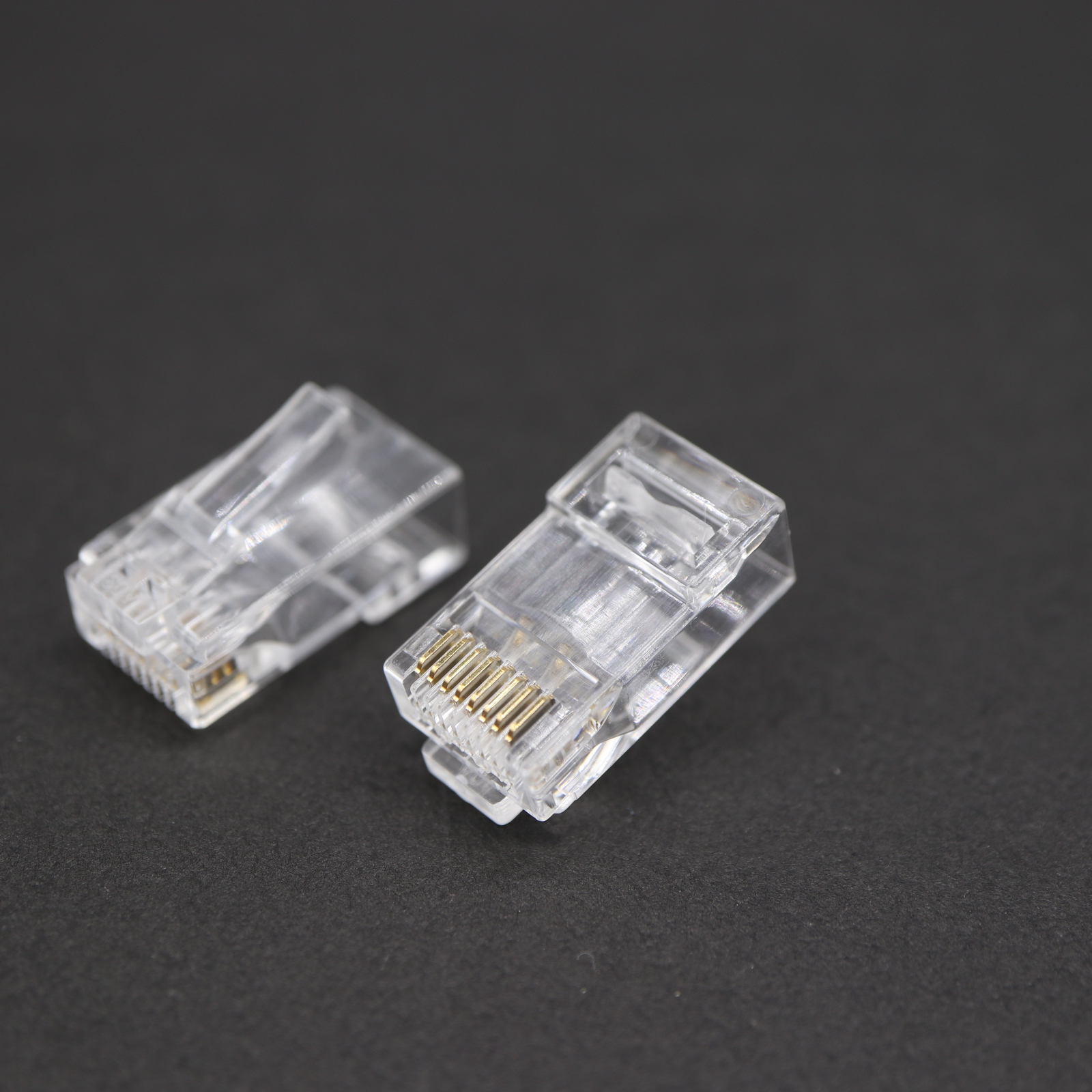

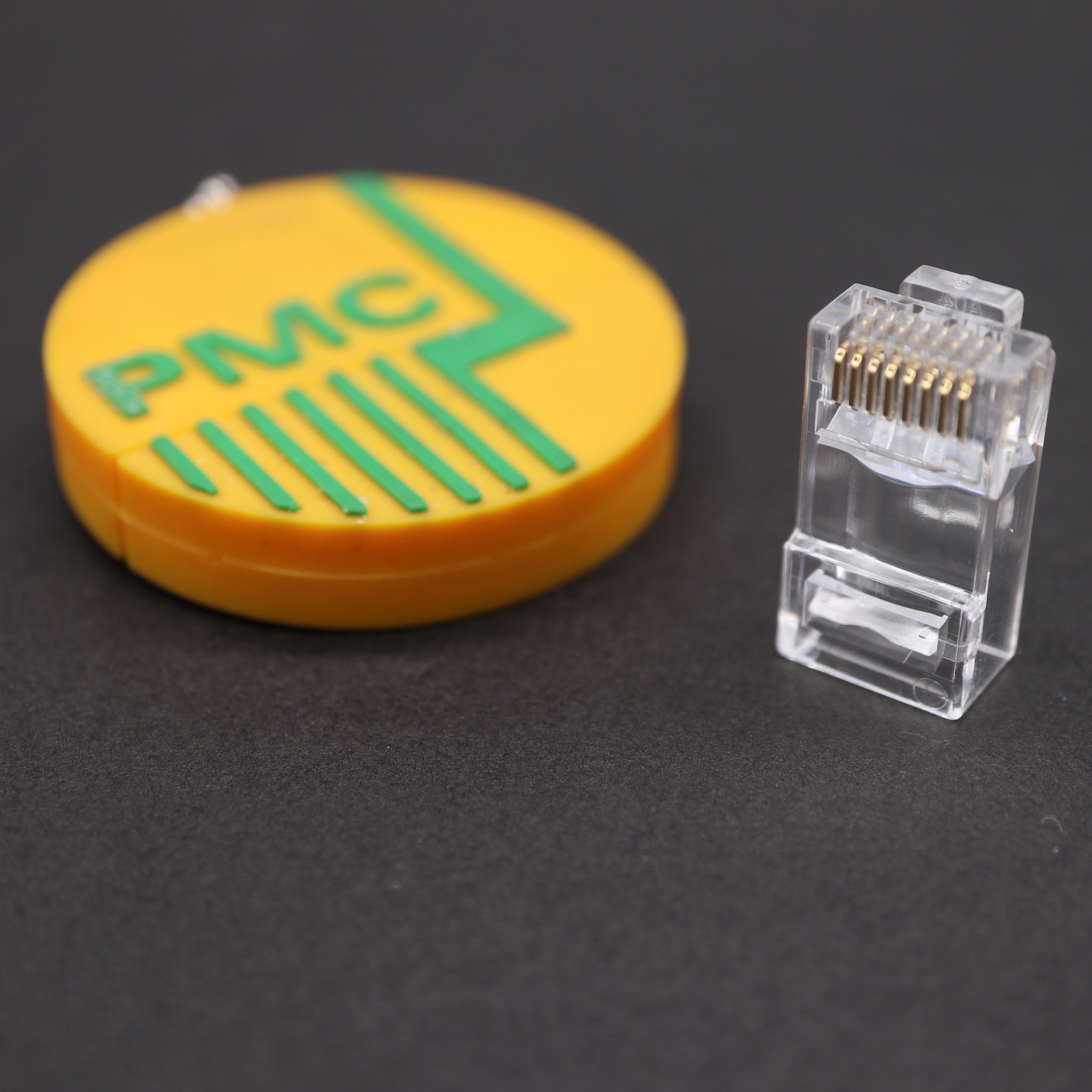

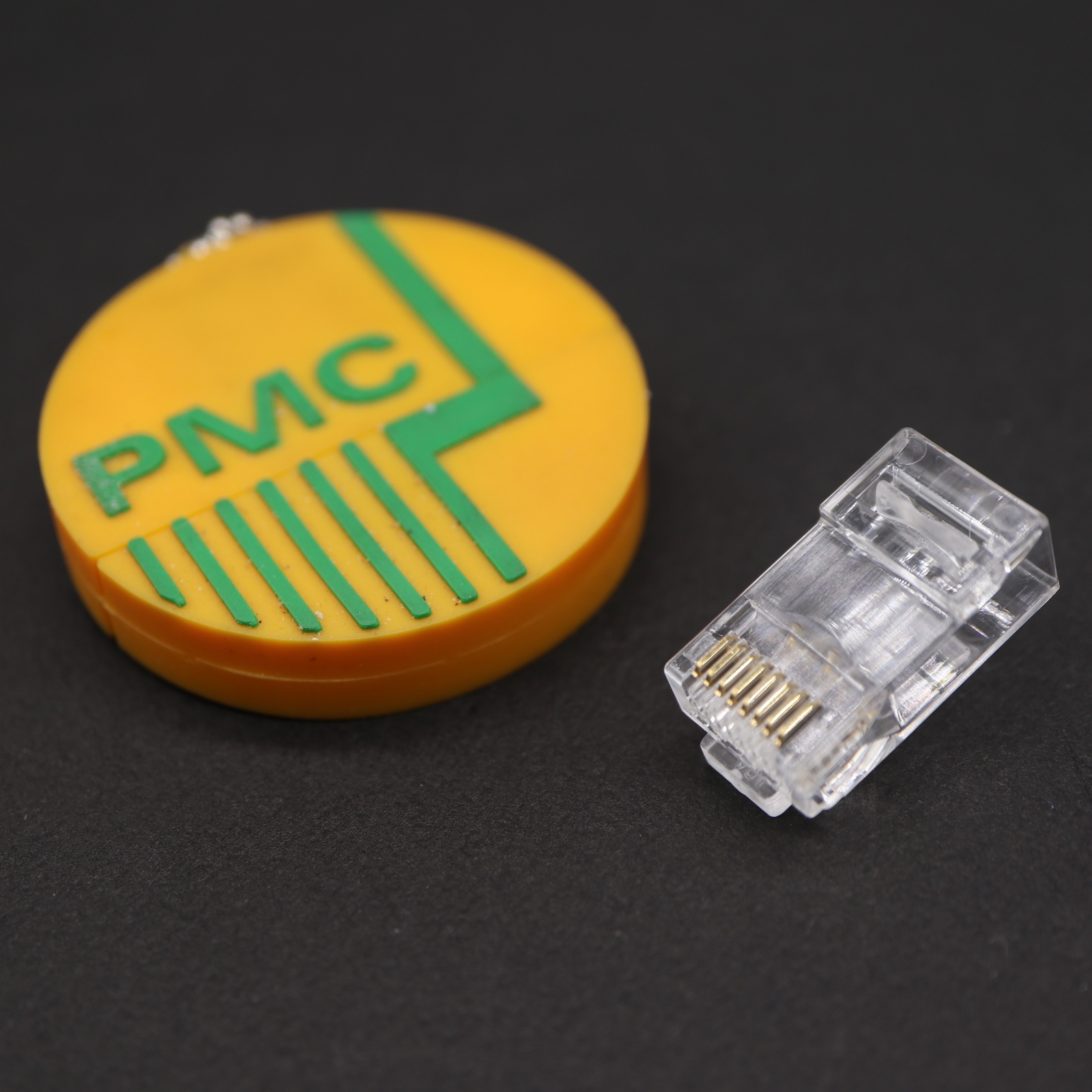

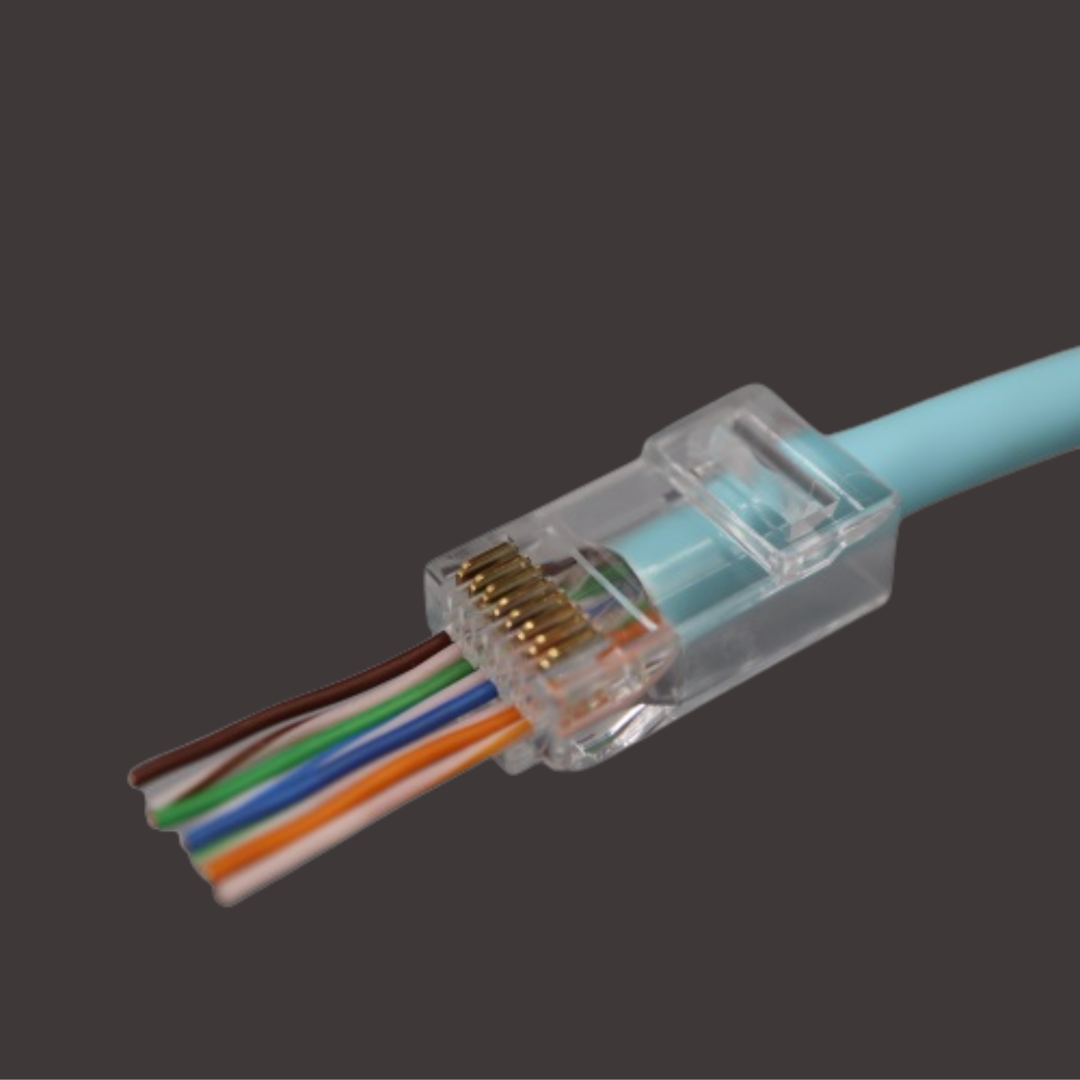

P8-071-2 RJ45 Modular Plug Cat.6A UTP FAST (Pass Through) 8P8C-2R-V 2 Rows
WARNING: PMC FAST-EASY-PASS THROUGH RJ45 connectors and crimp tools are designed to work as a system.
TOOL #PM-3008R is NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty.
Plug Master is not responsible for any unintended uses of its products.
Fluke test - with PCNET C6A CABLE 1M Fluke test-with PCNET C6A CABLE 2M Fluke test-with WONDERFUL C6A CABLE 1M Fluke test-with WONDERFUL C6A CABLE 2M Assembling manual
| Part No. |
P8-071-2
RJ45 Modular Plug Cat.6A UTP FAST (Pass Through) 8P8C-2R-V 2 Rows |
| Performance Category | Cat. 6A UTP |
| Description | 8P8C--2R-V FAST 2 rows UTP C6A |
| Cable entry hole | 2R-V |
| Loading bar Diameter | N/A |
| Maximum Insulation Diameter | 1.0mm |
| Shielded Material | Non-Shielded. |
| Max. Cable Outer Dia. | For Round Cable |
| Conductor type | Solid | Stranded |
| Plug Housing Material | UL 94V-0 or 94V2 rated clear Polycarbonate (PC) |
| Contact Blades Material | Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating |
| Operating Temperature | -10°C to 60°C |
| Storage temperature | - 40℃ ~ 70℃ |
| Compliance | Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant |
| Compatible boot | SR-032M |
| Related Crimping Tools | PM-3008R |
