Unshielded
Description:
Cable entry hole:- R : Radiused Entry for Round or Flat cable.
- F : Rectangular Entry for Flat cable.
Body type:
- K : Key Type
- D : Dec Type (Offset Tab)
- L : Long body or Long latch
- S: Short body
- Shielded: STP/FTP Plug
Wire hole arrangement :
- One layer : Standard
- Two Layers: 2-level comes with long pin and short pin (Up and down)
Combination :
- Single Part : Plug without any inserts.
- Two pieces : Plug with load bar (liner)
- Three pieces : Plug with divider and insert (liner)
Note :
- 0.6/0.7/0.8/0.9…etc, means “Diameter of inside wire chase hole.
-

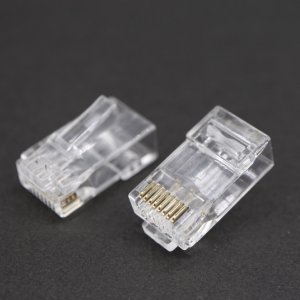

P8-071-2 RJ45 Modular Plug Cat.6A UTP FAST (Pass Through) 8P8C-2R-V 2 Rows
WARNING: PMC FAST-EASY-PASS THROUGH RJ45 connectors and crimp tools are designed to work as a system.
TOOL #PM-3008R is NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty.
Plug Master is not responsible for any unintended uses of its products. -
P8-071-4 RJ45 Modular Plug Cat.6A UTP FAST (Pass Through) 8P8C-2R-V 0.70mm
Total of 2 results
