    P8-001-11 RJ45 Modular Plug Cat.6 8P8C-F UTP - 1.1mm

Drawing

Part No. P8-001-11
RJ45 Modular Plug Cat.6 8P8C-F UTP - 1.1mm
Performance Category Cat.6
Description 8P8C-F 2 Layers 1 . 3 .5 .7 short pin with conductor 1.1mm
Cable entry hole F
Loading bar Diameter N/A

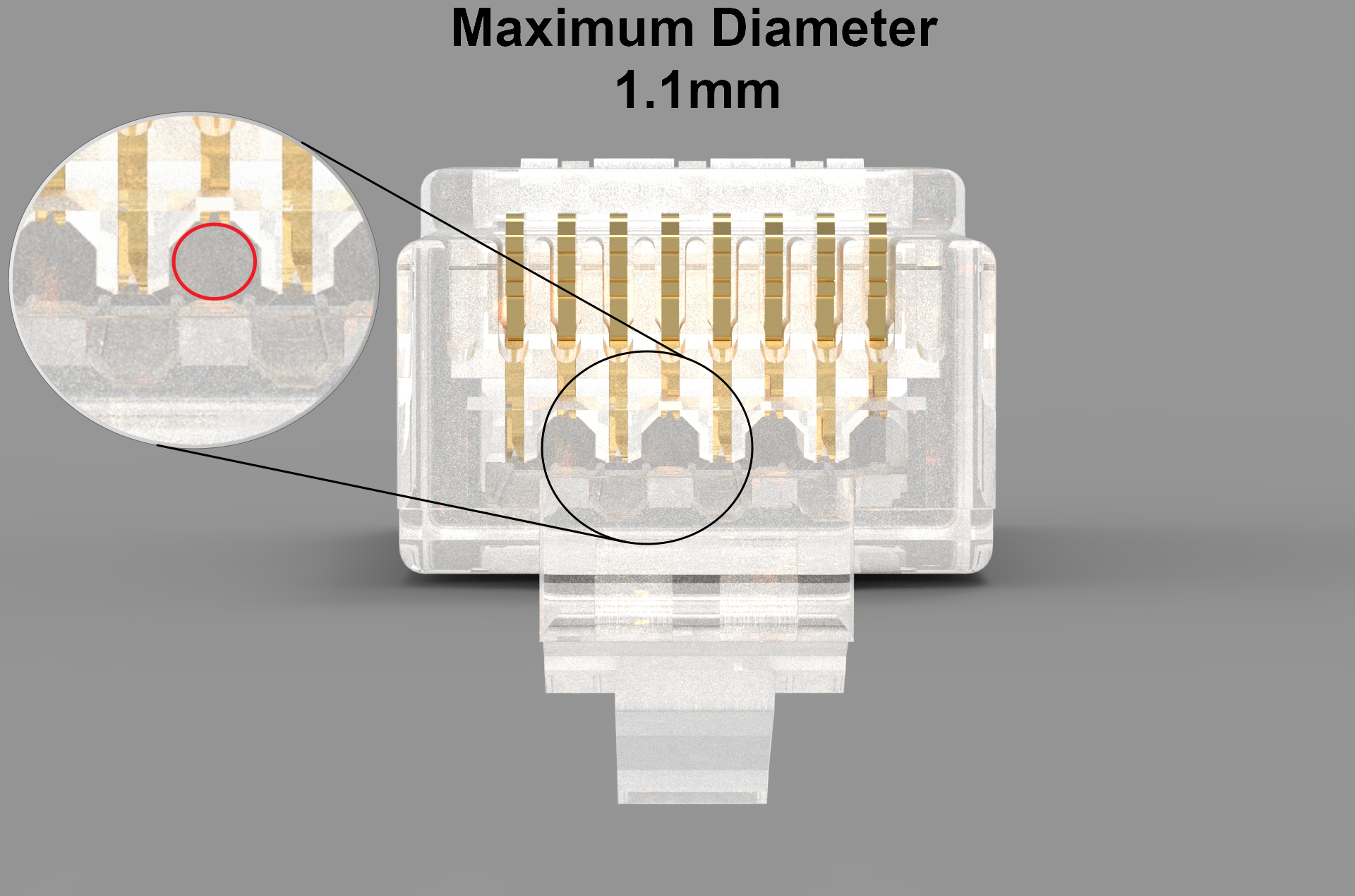

Wire Insert Diameter 1.1mm
Maximum Cable O.D. Size Supported For Flat Cable
Maximum conductor W/insulation O.D. Size 1.1mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature  - 10℃ ~60 ℃
Storage temperature  - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant

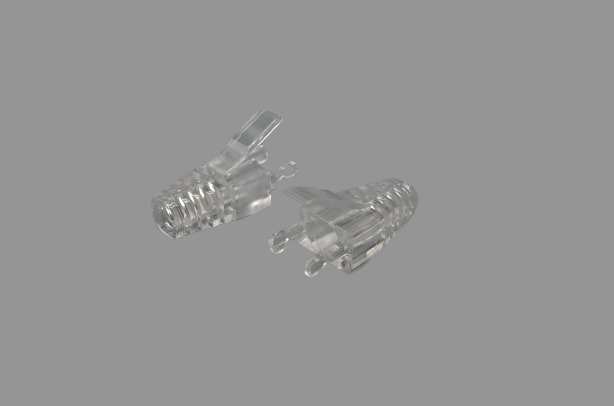

Related Accessories SR-032F
Related Crimping Tools PM-3008R Updated Version
