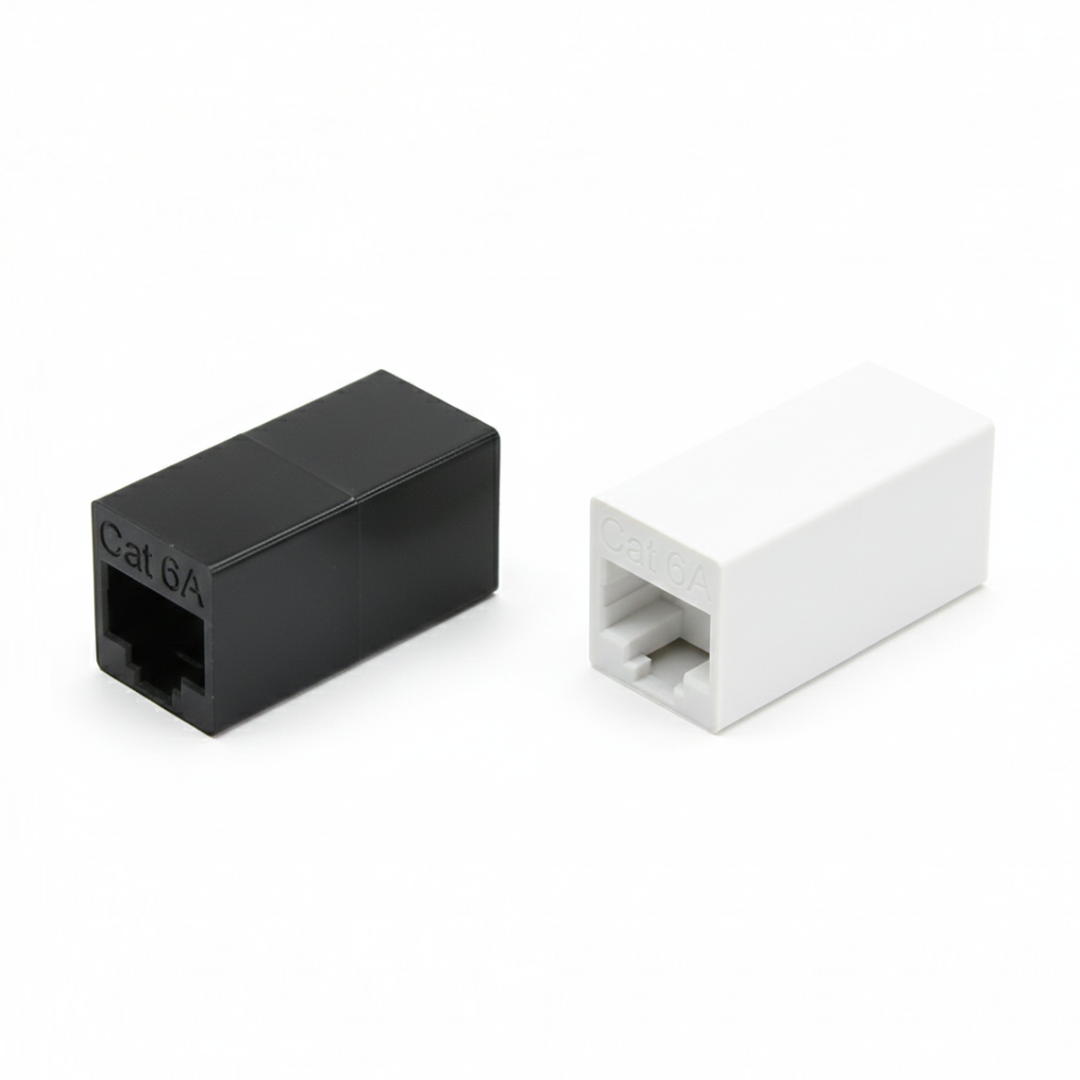

  • C6A Inline Coupler UTP

    IC-PM06A C6A Inline Coupler UTP


    Mechanical Specifications:

    - RoHS
    - Meets C6A ANSI/TIA 568.2-D Standard
    - Jack Insertion Cycle: 750 Mating Cycles with FCC Compliant 8P Plug
    - Operation Temperature: -10 ~ +60 Degree Celsius

    Materials :

    - Housing: ABS, UL-94V0
    - Conact Holder: ABS, UL-94V0
    - Jack Contacts: Phosphor Bronze, 50U" gold plated

    Electrical Specifications:

    - Insulation Resistance: 500M ohms (min.)
    - Contact Resistance: 20m ohms (max.)
    - Current Rating: 1.5 Amps.
    - Input to Output D. C. Resistance: 100m ohms (max.)
    - Voltage Proof (Contact to Contact) : 1000V AC.



    Color Available: White , Black

    Compare
    Specification Drawing

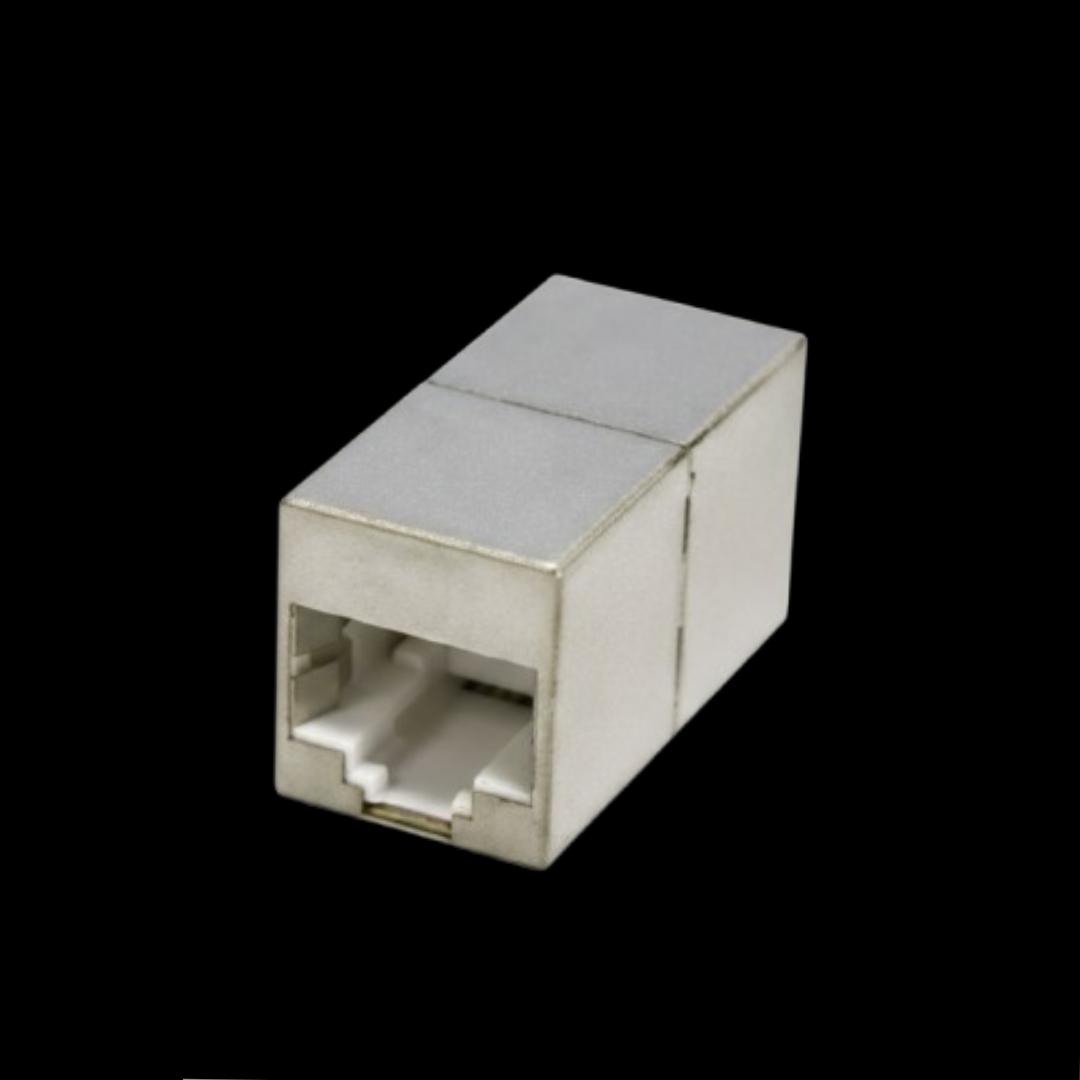

  • C6A Inline Coupler STP

    IC-PM06AS C6A Inline Coupler STP


    Mechanical Specifications:

    - RoHS
    - Meets C6A ANSI/TIA 568-C.2 Standard
    - Jack Insertion Cycle: 750 Mating Cycles with FCC Compliant 8P Plug
    - Operation Temperature: -10 ~ +60 Degree Celsius

    Materials :

    - Shielded Case: Brass, Nickel Plated
    - Housing: ABS, UL-94V0
    - Conact Holder: ABS, UL-94V0
    - Jack Contacts: Phosphor Bronze, 50U" gold plated

    Electrical Specifications:

    - Insulation Resistance: 500M ohms (min.)
    - Contact Resistance: 20m ohms (max.)
    - Current Rating: 1.5 Amps.
    - DC Resistance: 0.1 ohms (max.)
    - Dielectric with  Standing Voltage: 1000V AC.



    Color Available: White , Black

    Compare
    Specification Drawing

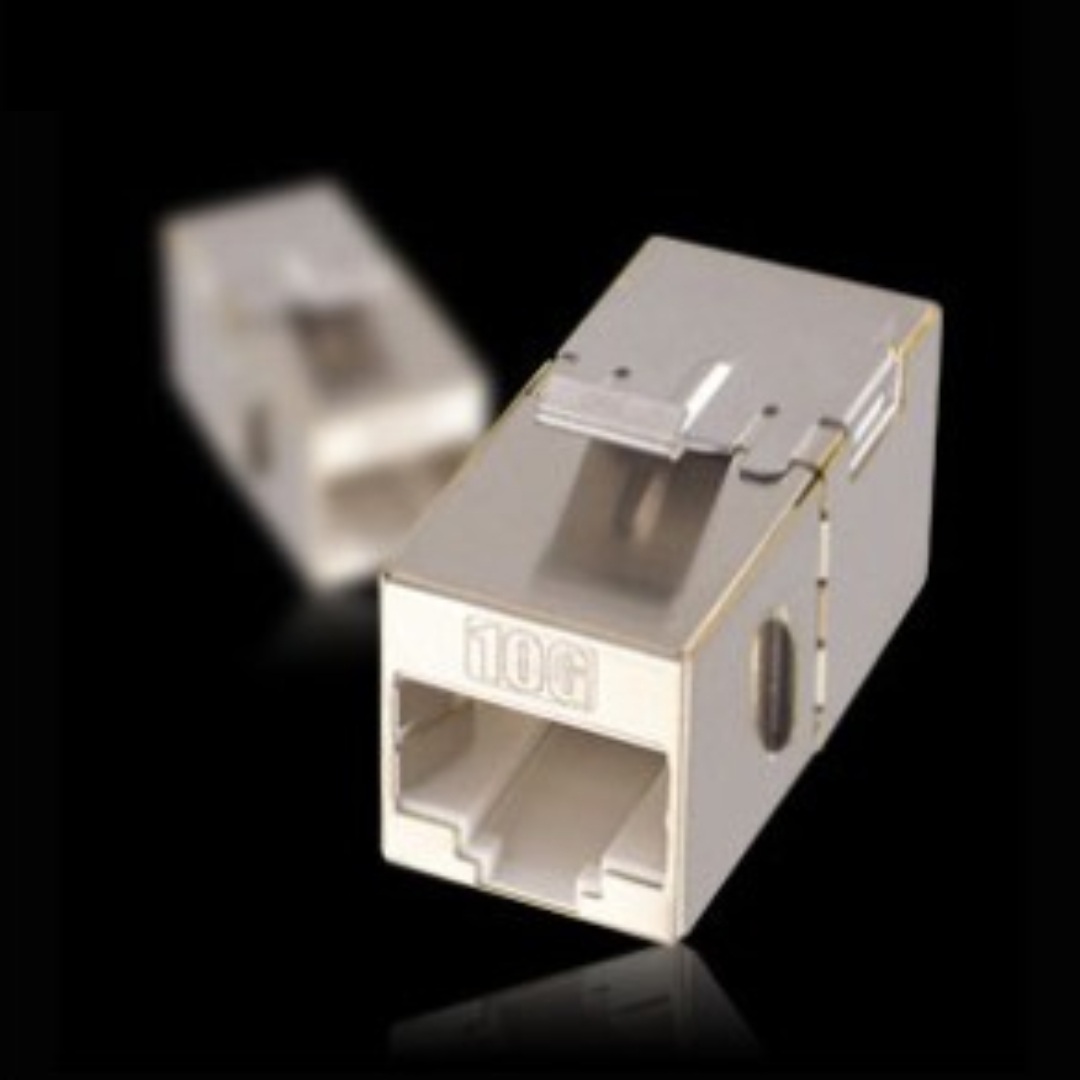

  • IC-PM06AS-01

    C6A Inline Coupler STP W/Latch IC-PM06AS-01


    Mechanical Specifications:

    - RoHS
    - Meets C6A ANSI/TIA 568.2-D Standard
    - Jack Insertion Cycle: 750 Mating Cycles with FCC Compliant 8P Plug
    - Operation Temperature: -10 ~ +60 Degree Celsius

    Materials :

    - Shielded Case: Brass, Nickel Plated
    - Latch: SUS 304.
    - Housing: ABS, UL-94V0
    - Conact Holder: ABS, UL-94V0
    - Jack Contacts: Phosphor Bronze, 50U" gold plated

    Electrical Specifications:

    - Insulation Resistance: 500M ohms (min.)
    - Contact Resistance: 20m ohms (max.)
    - Current Rating: 1.5 Amps.
    - Voltage Proof (Contact TO Contact) : 1000V  D.C. OR  A.C. PEAK.
    - Voltage Proof (Contact TO Shield) : 1500V D.C.



    Color Available: White , Black

    Compare
    Specification Drawing
