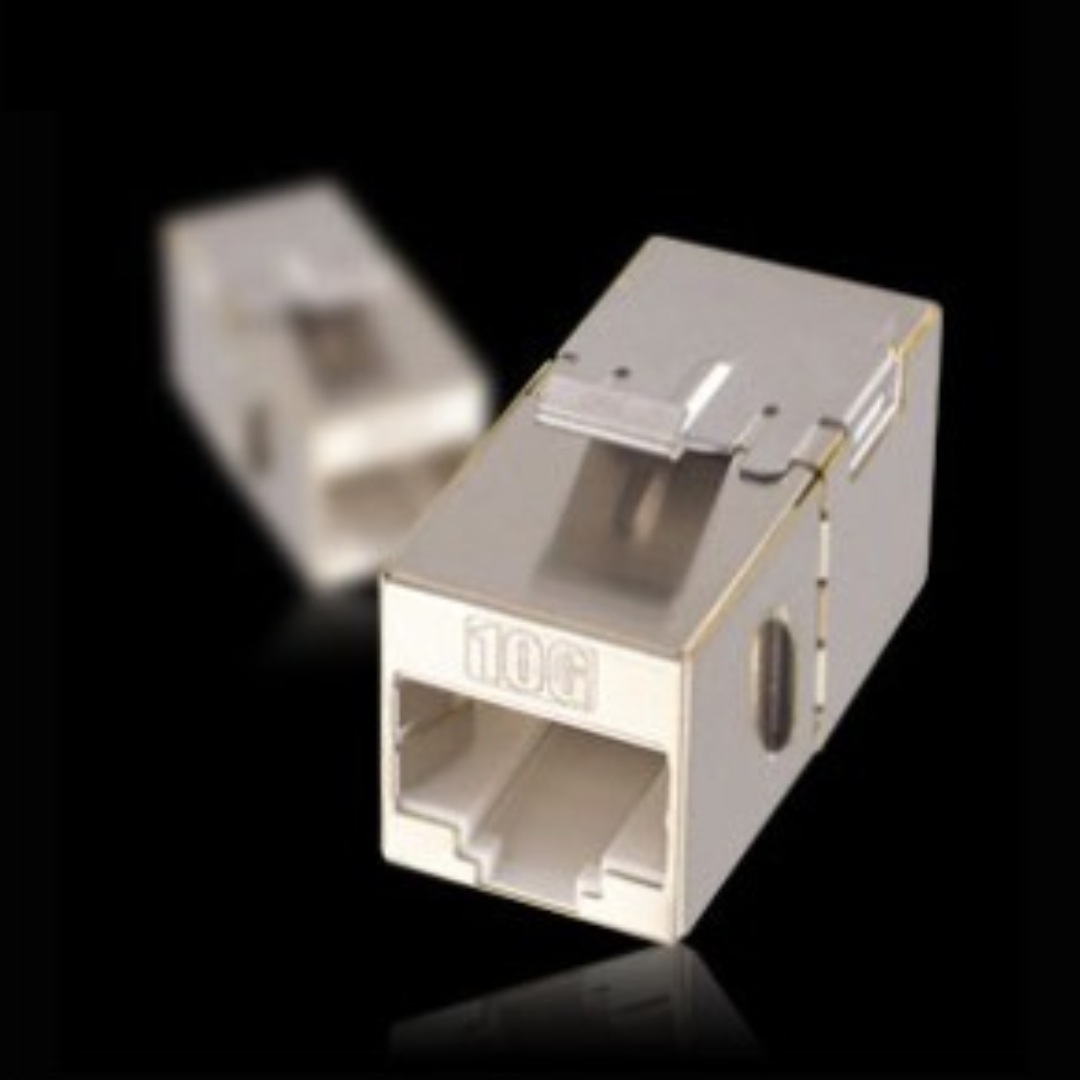

  C6A Inline Coupler STP W/Latch IC-PM06AS-01




  Mechanical Specifications:

  - RoHS

  - Meets C6A ANSI/TIA 568.2-D Standard
  - Jack Insertion Cycle: 750 Mating Cycles with FCC Compliant 8P Plug

  - Operation Temperature: -10 ~ +60 Degree Celsius



  Materials :



  - Shielded Case: Brass, Nickel Plated

  - Latch: SUS 304.

  - Housing: ABS, UL-94V0

  - Conact Holder: ABS, UL-94V0

  - Jack Contacts: Phosphor Bronze, 50U" gold plated



  Electrical Specifications:



  - Insulation Resistance: 500M ohms (min.)

  - Contact Resistance: 20m ohms (max.)

  - Current Rating: 1.5 Amps.

  - Voltage Proof (Contact TO Contact) : 1000V  D.C. OR  A.C. PEAK.

  - Voltage Proof (Contact TO Shield) : 1500V D.C.



  Color Available: White , Black
