• C6

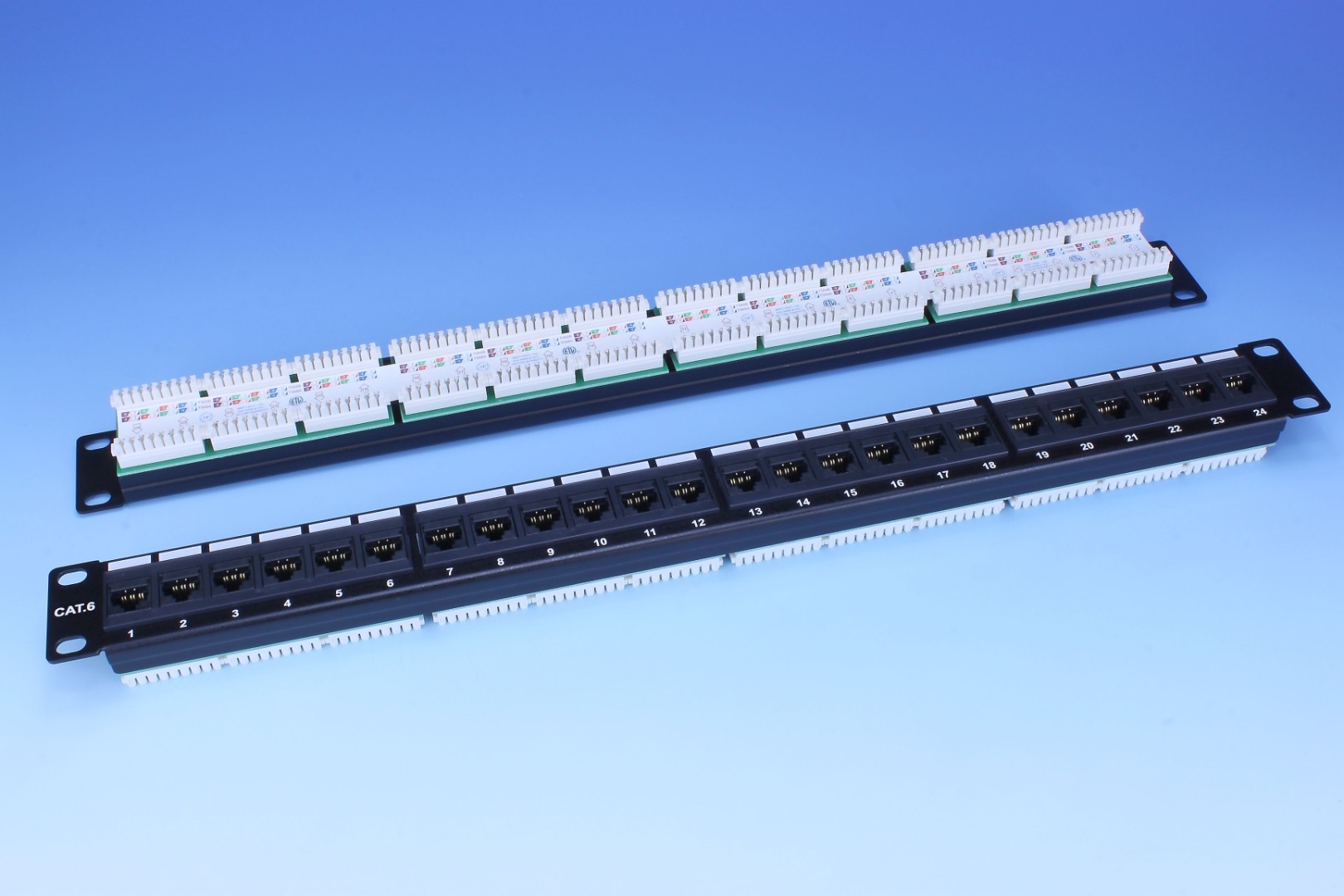

  • C6 24-Port Patch Panel 19" 1U - UTP

    PP-PM06-02 C6 24-Port Patch Panel 19" 1U - UTP

    Cat.6 24-port patch panel 1U-UTP , 110/krone dual IDC, w/cableman


    Material

    Panel : SPCC.
    Plastic Frame : ABS, UL94V-0.
    Jack Contacts : Phosphor Bronze, 50u" Gold Plated.
    Idc Plastic : PC, UL94V-0.
    Idc Contact : Phosphor Bronze,Tin Over Nickel Undercoat
    Wire Management : SPCC.



    Physical Characteristics

    Suitable Impact Tool：110/Krone Style Punch Down Tool.

    Insertion Life : 750 Mating Cycles With FCC Compliant 8p Plug.

    Plug Retention Force : 11 Lbf Min.

    Durability : 200 Termination Cycles.

    Contact Compatibility : Accommodates 22 To 24 Awg Solid.

    Operating Temperature Range : -10 °C To 60 °C.

    Storage Temperature Range : -40 °C To 68 °C.

    Humidity : 10% To 90% Rh (Non-Condensing)



    Electrical

    Insulation Resistance : 500 MΩ Minimum.

    Dc Current Rating : 1.5 Amps.

    Input To Output D.C. Resistance : 200 mΩ Maximum.

    Contact Resistance : 20 mΩ Maximum.

    Voltage Proof (Contact To Contact) : 1000 V Ac.



    Note

    ˙ ONLY ACCEPT RJ-45 8P8C PLUG.


    Compare
    Specification

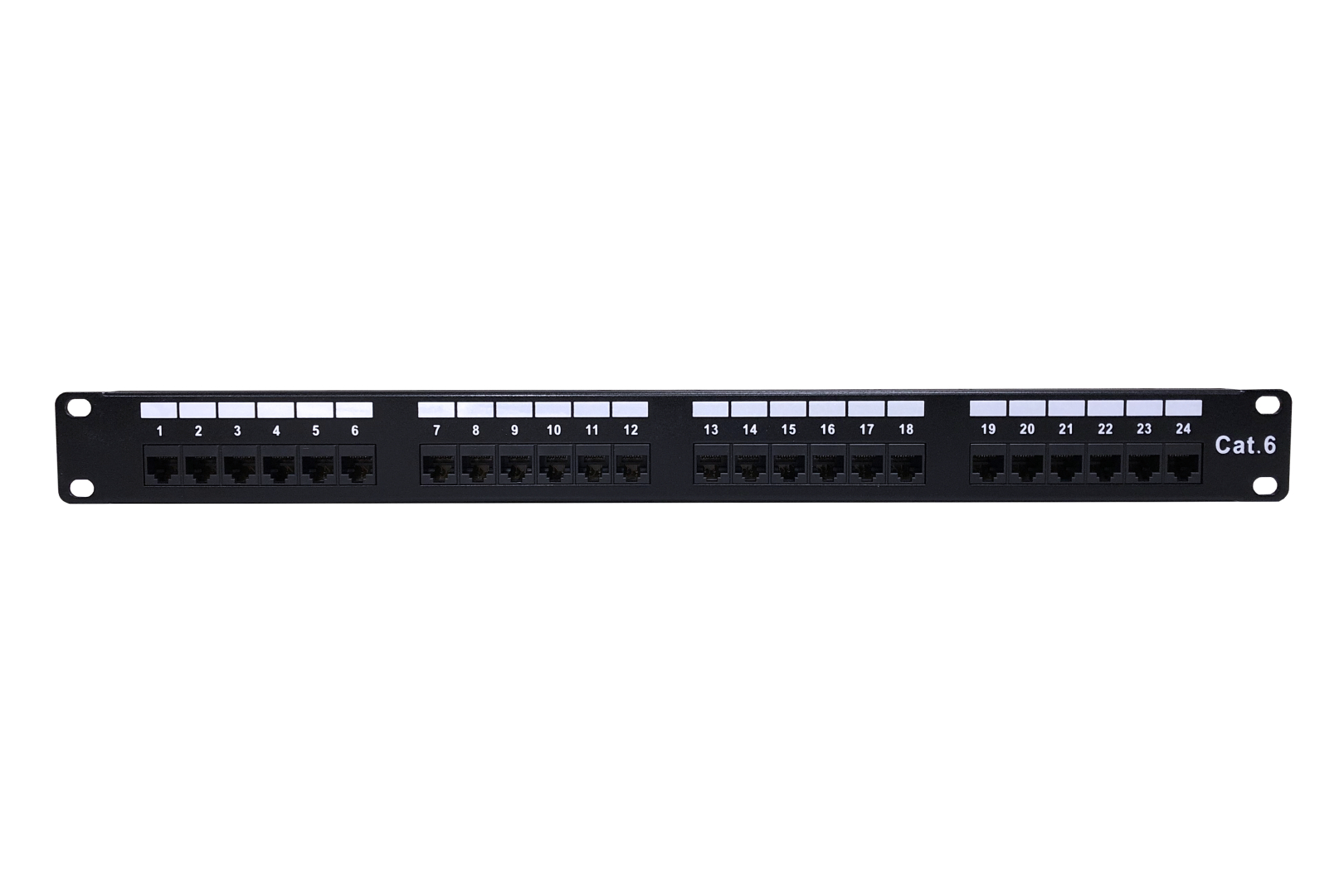

  • C6 Patch Panel 19" 1U - UTP

    PP-PM06-01 C6 Patch Panel 19" 1U - UTP

    C6 Horizontal 19" - 1U Patch Cord , H type, UTP, 24 ports,
    IDC : Dual, w/o cap
    Color available : Black or Ivory
    Port available :  12 / 16 / 24 / 32 /48 ports



    Mechanical Specifications:

    - RoHS
    - Meets C6 EIA/TIA 568B Standard
    - Jack Insertion Cycle : Over 2000 Cycles (min)
    - IDC Punch down cycle : Over 250 Cycles (min)
    - Operation Temperature : -40 ~ +70 Degree Celsius


    Materials :

    - Front Plate : Fireproof ABS UL-94V0
    - Panel : Metal (SPCC)
    - Jack : 8P8C 50 micro inches gold plated
    - PCB: FR-4 / UL-94V0
    - IDC Body : Fireproof ABS UL-94V0
    - IDC Pin : Bronze & Tinned

    IDC : For 22  -26 AWG
    For 110 or Krone punch down tool

    Electrical Specifications:

    - Insulation Resistance : 500M ohms (min.)
    - Contact Resistance : 20m ohms (max.)
    - Current Rating : 1.5 Amps.
    - DC Resistance : 0.1 ohms (max.)
    - Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min
