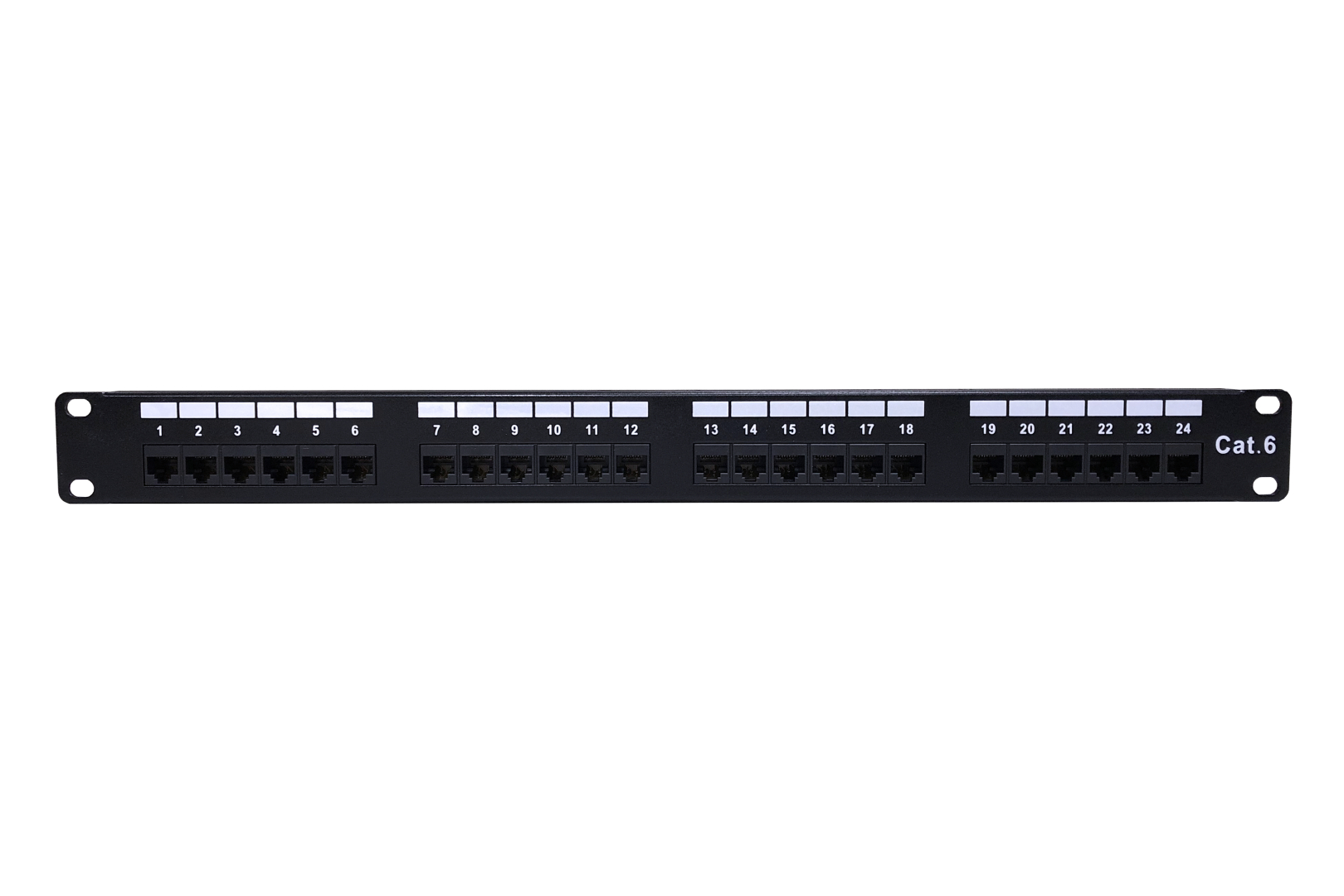

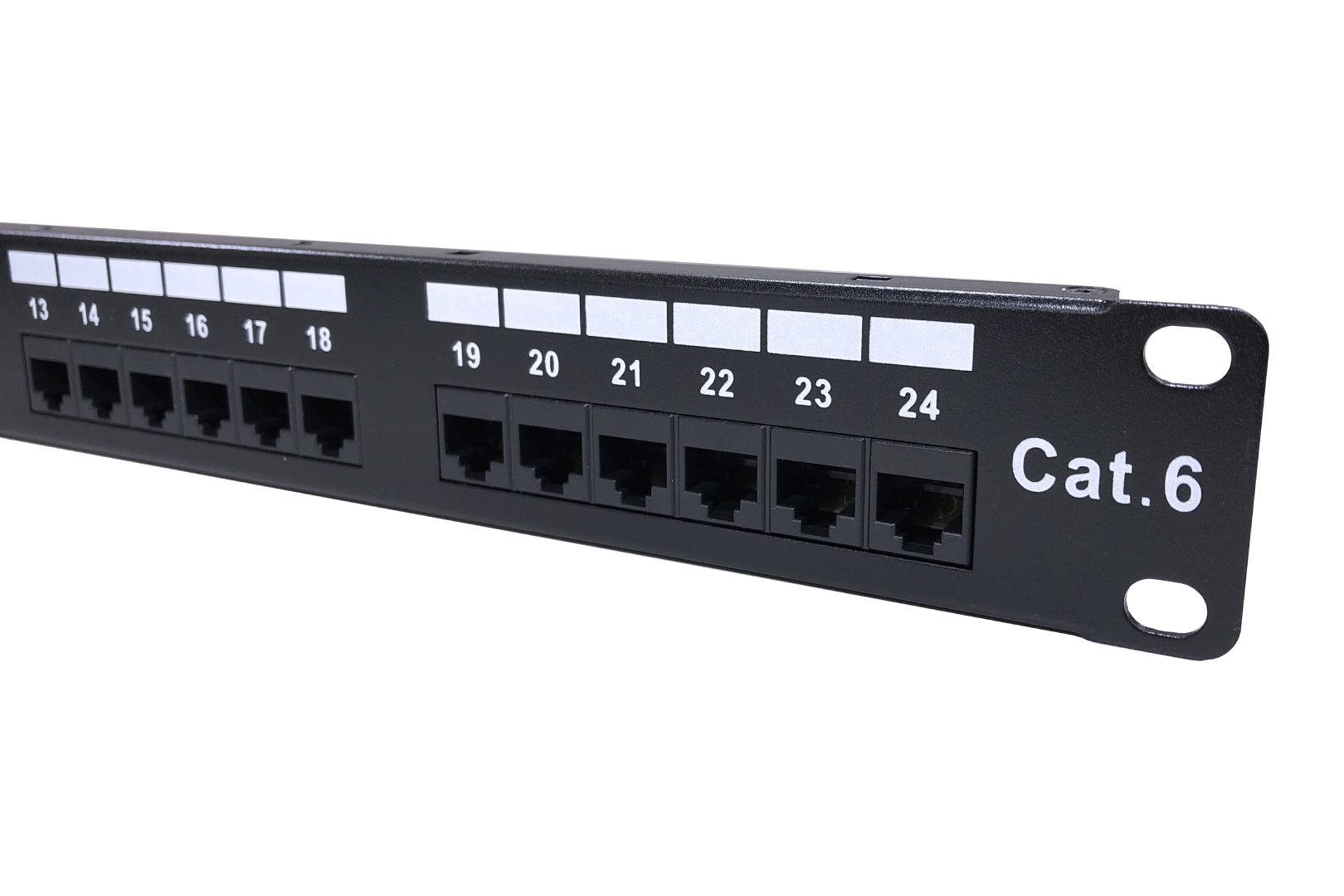

PP-PM06-02 C6 24-Port Patch Panel 19" 1U - UTP

Cat.6 24-port patch panel 1U-UTP , 110/krone dual IDC, w/cableman

Material

Panel : SPCC.
Plastic Frame : ABS, UL94V-0.
Jack Contacts : Phosphor Bronze, 50u" Gold Plated.
Idc Plastic : PC, UL94V-0.
Idc Contact : Phosphor Bronze,Tin Over Nickel Undercoat
Wire Management : SPCC.

Physical Characteristics

Suitable Impact Tool：110/Krone Style Punch Down Tool.

Insertion Life : 750 Mating Cycles With FCC Compliant 8p Plug.

Plug Retention Force : 11 Lbf Min.

Durability : 200 Termination Cycles.

Contact Compatibility : Accommodates 22 To 24 Awg Solid.

Operating Temperature Range : -10 °C To 60 °C.

Storage Temperature Range : -40 °C To 68 °C.

Humidity : 10% To 90% Rh (Non-Condensing)

Electrical

Insulation Resistance : 500 MΩ Minimum.

Dc Current Rating : 1.5 Amps.

Input To Output D.C. Resistance : 200 mΩ Maximum.

Contact Resistance : 20 mΩ Maximum.

Voltage Proof (Contact To Contact) : 1000 V Ac.

Note

˙ ONLY ACCEPT RJ-45 8P8C PLUG.
