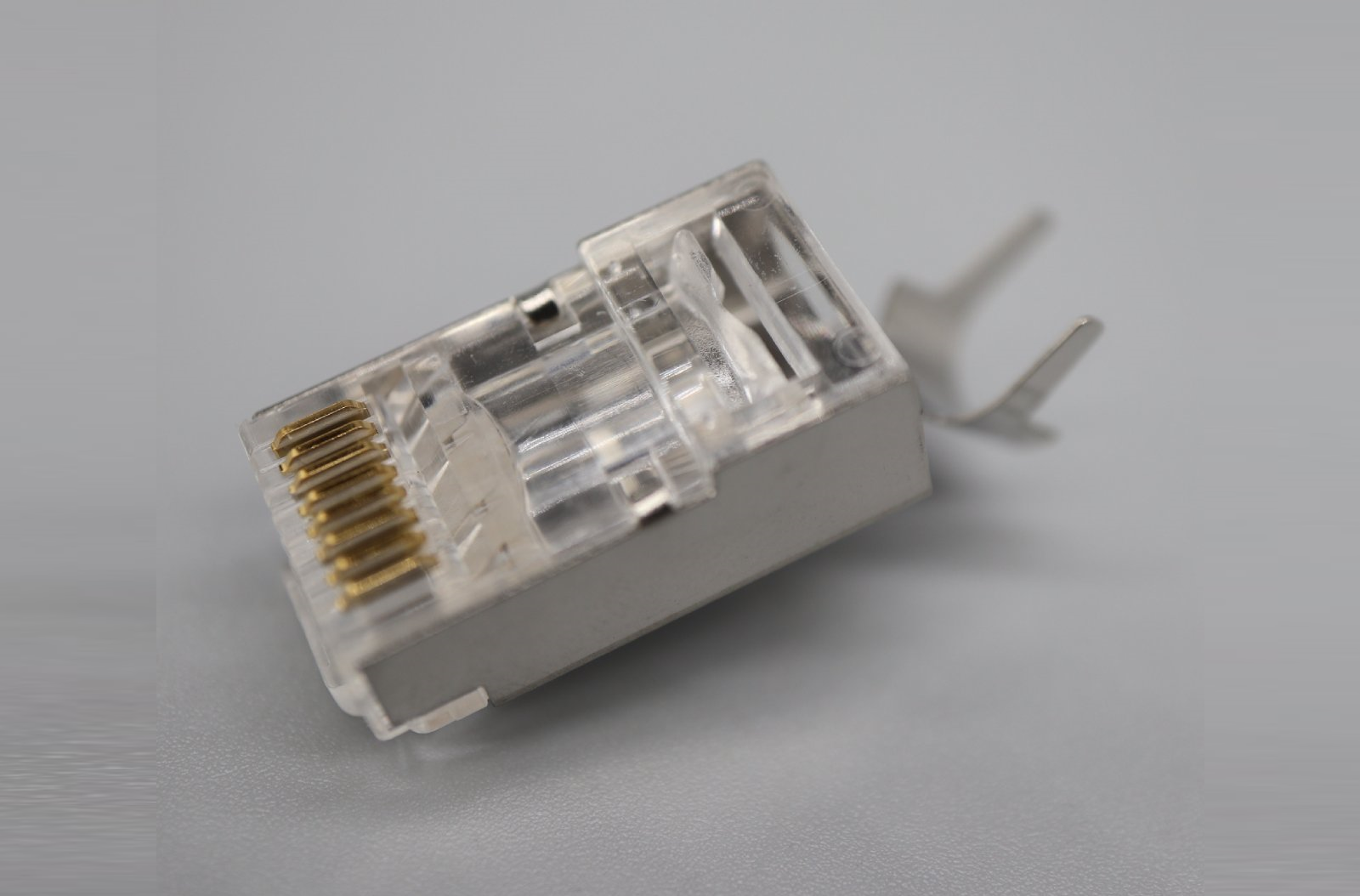

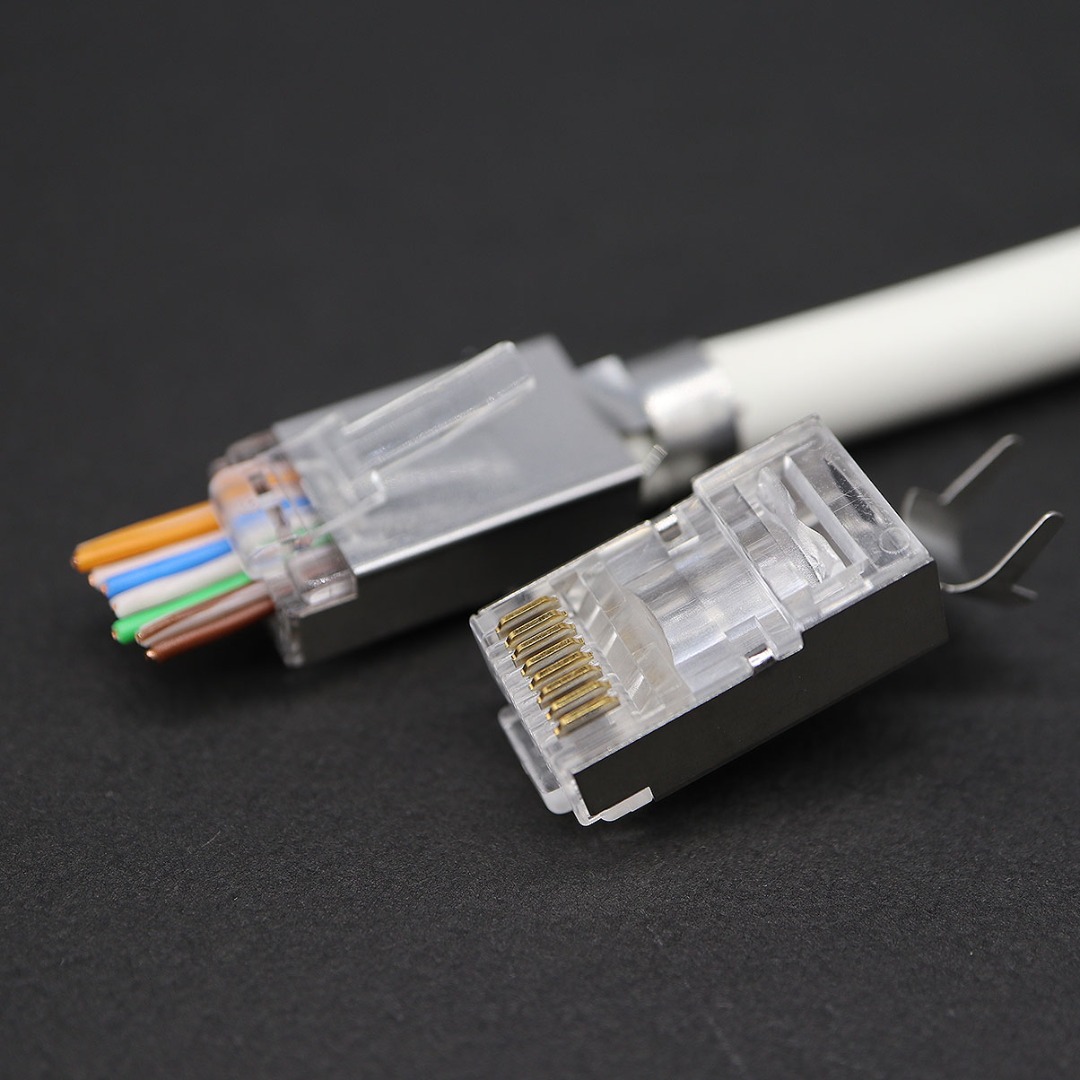

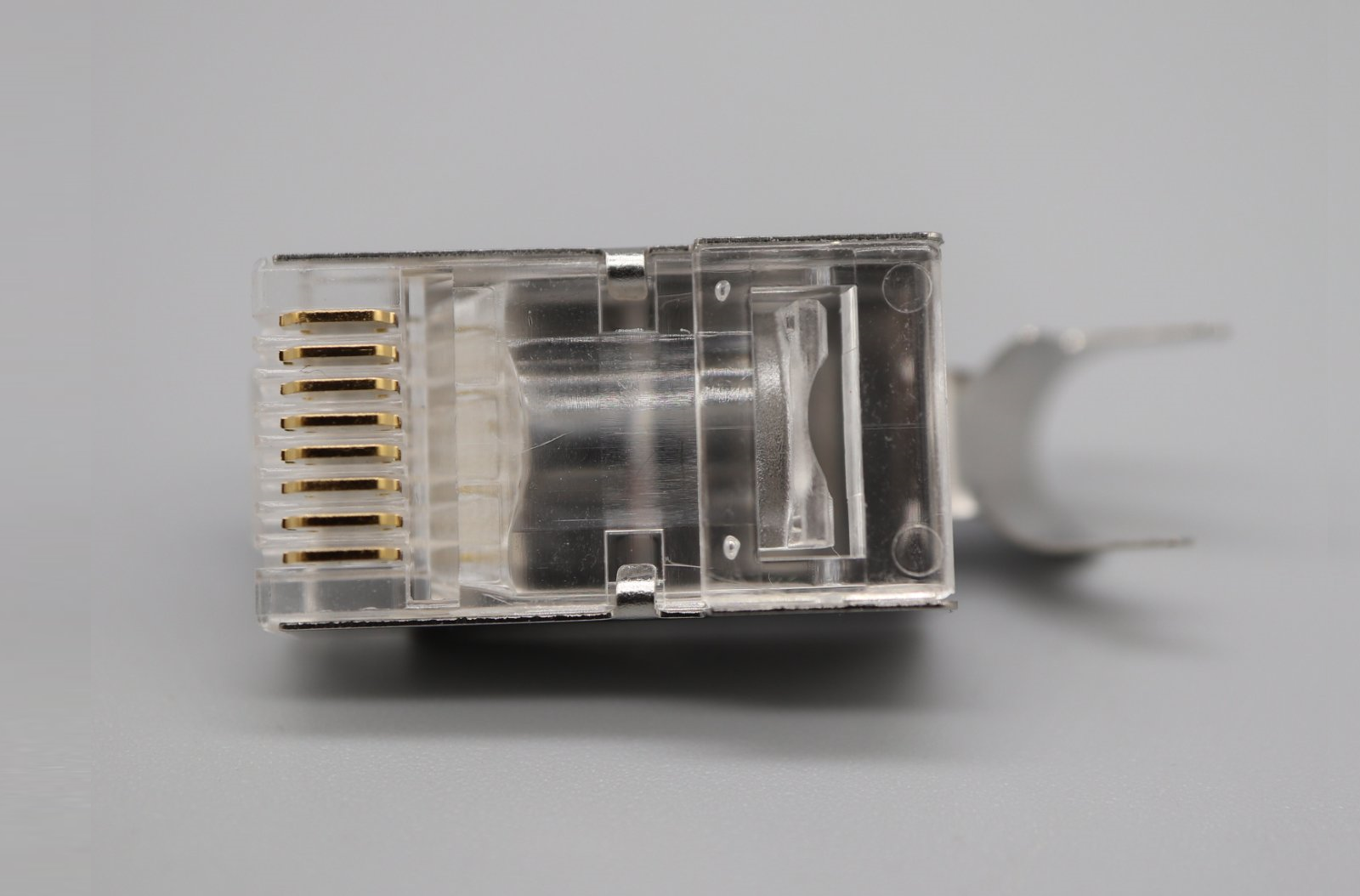

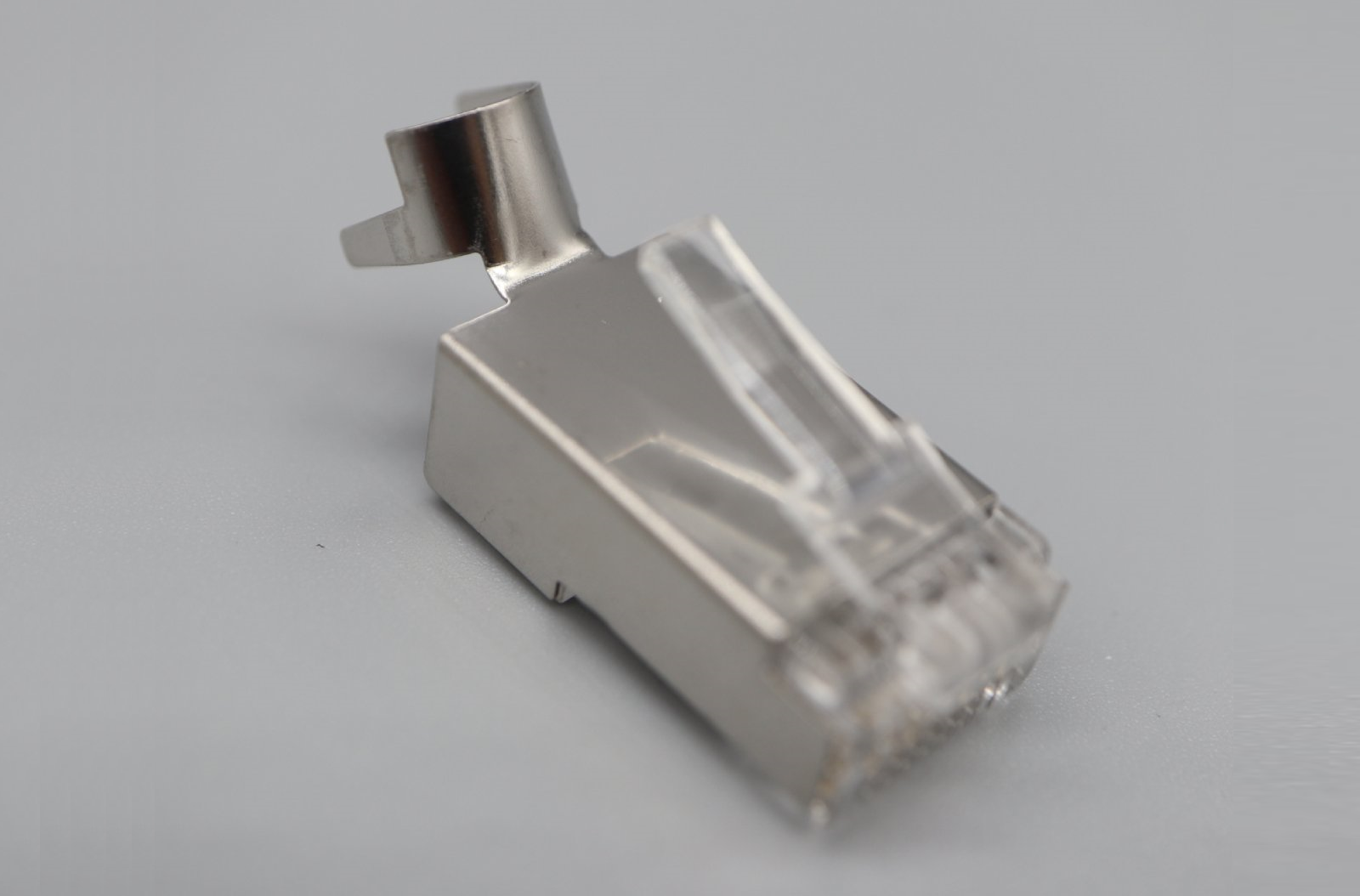

P8-020-19 RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) with External Ground 8P8C F-RV 2 Rows 1.10mm
WARNING: PMC FAST-EASY-PASS THROUGH RJ45 connectors and crimp tools are designed to work as a system.TOOL #PM-3008R is NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty.Plug Master is not responsible for any unintended uses of its products.
| Part No. |
P8-020-19
RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) with External Ground 8P8C F-RV 2 Rows 1.10mm |
| Category | C6A STP |
| Description | 8P8C-F FAST 2 rows Shielded with cable clamp and outer sheath crimp capabilities.1.1mm , C6A |
| Cable entry hole | F-RV |
| Loading bar Diameter | N/A |
| Maximum Insulation Diameter | 1.10mm |
| Max. Cable Outer Dia. | For Flat Cable |
| Shielded Material | Stainless Steel |
| Conductor type | Solid | Stranded |
| Plug Housing Material | UL 94V-0 or 94V2 rated clear Polycarbonate (PC) |
| Compliance | Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant |
| Operating Temperature | -10°C to 60°C. |
| Contact Blades Material | Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating |
| Storage temperature | - 40℃ ~ 70℃ |
| Compatible boot | |
| Related Crimping Tools |
