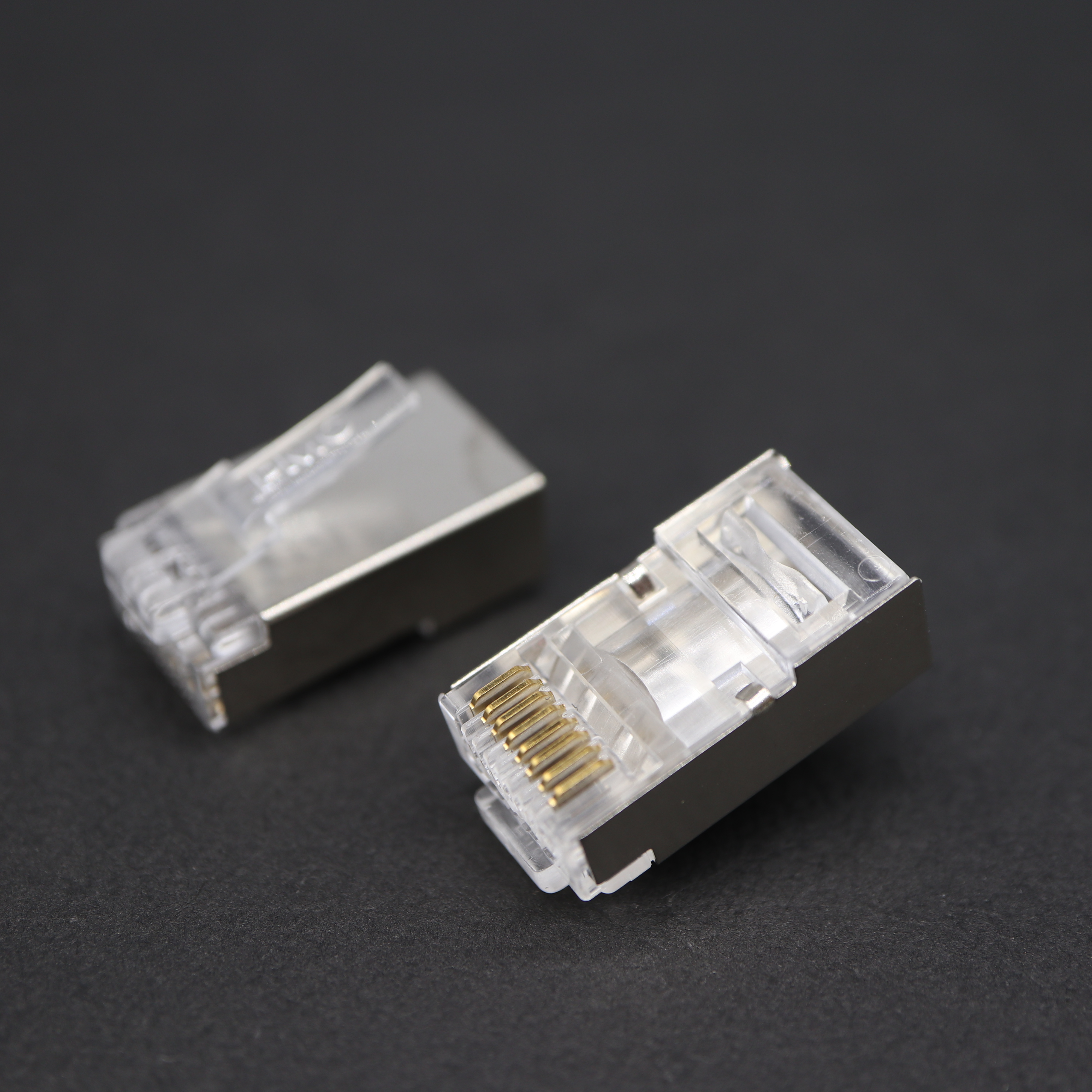

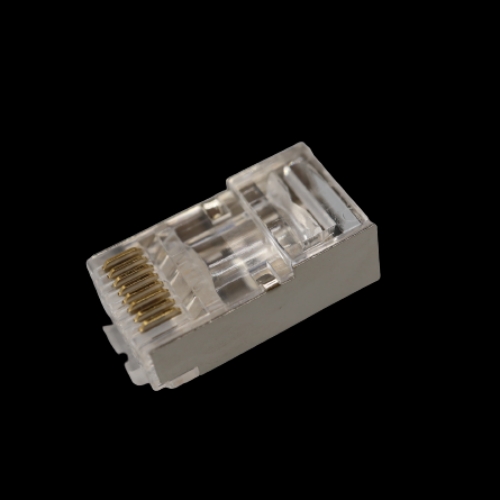

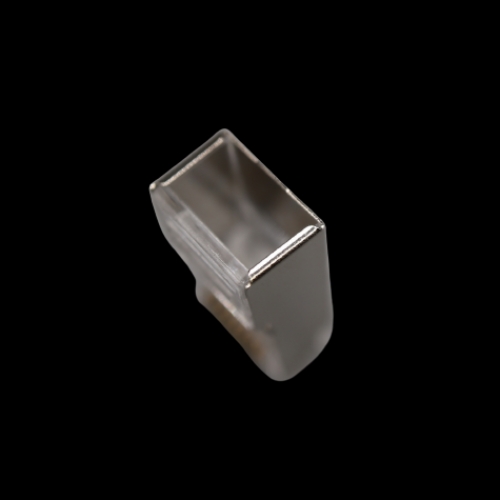

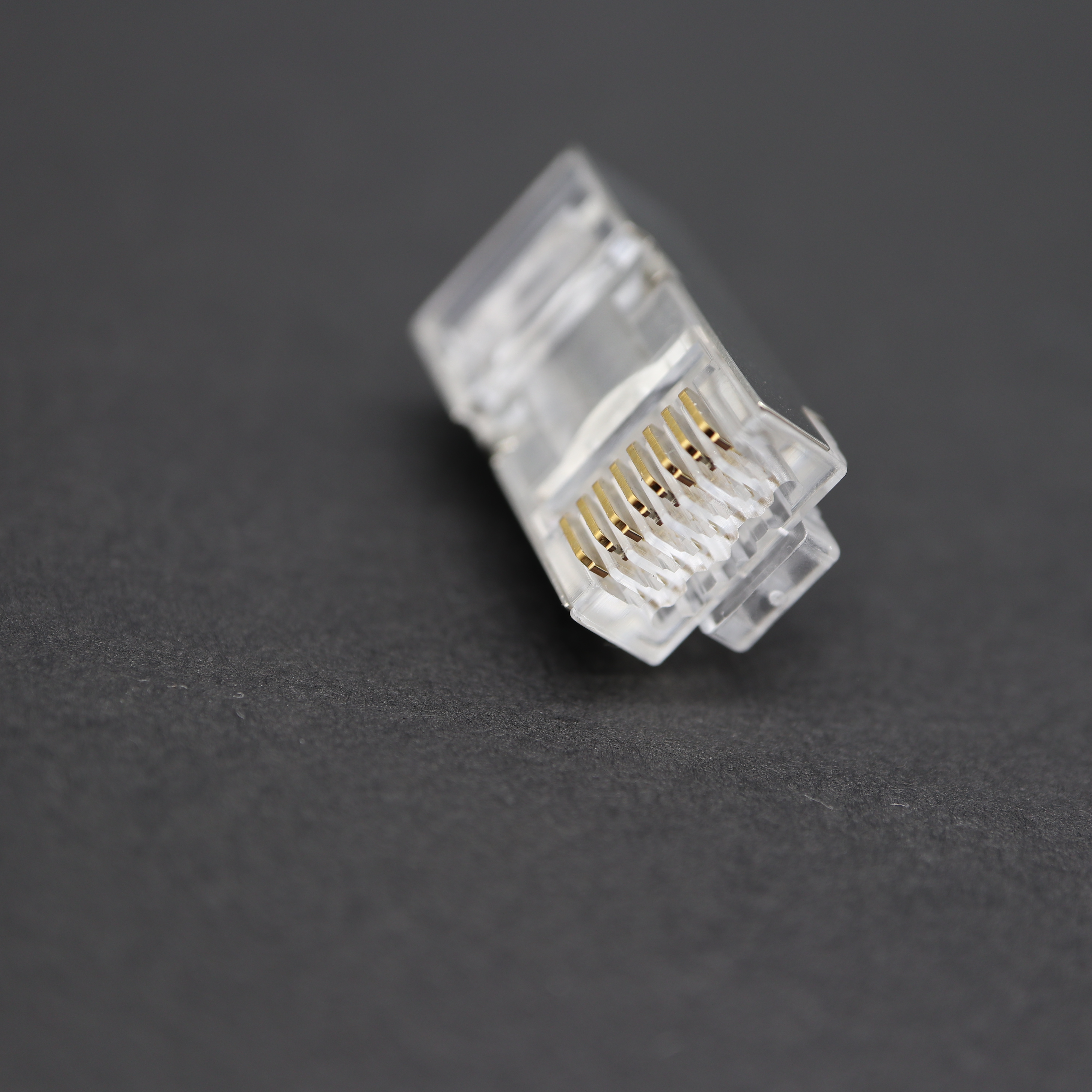

P8-020-16 RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) 8P8C F-RV 2 Rows 1.20mm
WARNING: PMC FAST-EASY-PASS THROUGH RJ45 connectors and crimp tools are designed to work as a system.
TOOL #PM-3008R is NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty.
Plug Master is not responsible for any unintended uses of its products.
| Part No. |
P8-020-16
RJ45 Modular Plug Cat.6A Shielded FAST (Pass Through) 8P8C F-RV 2 Rows 1.20mm |
| Category | C6A STP |
| Description | 8P8C-F FAST 2 rows Shielded Fast 1.2mm, C6A |
| Cable entry hole | F-RV |
| Loading bar Diameter | N/A |
| Max. Cable Outer Dia. | For Flat Cable |
| Conductor hole | 1.20mm |
| Shielded Material | Brass with nickel plated |
| Conductor type | Solid | Stranded |
| Plug Housing Material | UL 94V-0 or 94V2 rated clear Polycarbonate (PC) |
| Contact Blades Material | Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating |
| Storage temperature | - 40℃ ~ 70℃ |
| Operating Temperature | -10°C to 60°C. |
| Compliance | Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant |
| Related Crimping Tools | PM-3008R |
| Compatible boot | SR-014 |
