• WARNING: PMC FAST-EASY-PASS THROUGH RJ45 connectors and crimp tools are designed to work as a system.
    TOOL #PM-3008R is NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty.
    Plug Master is not responsible for any unintended uses of its products.

Drawing Guide Test 1M -1 Test 1M -2

Part No. P8-005-24

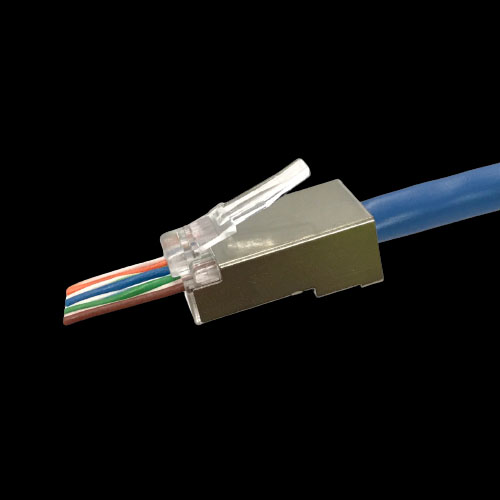

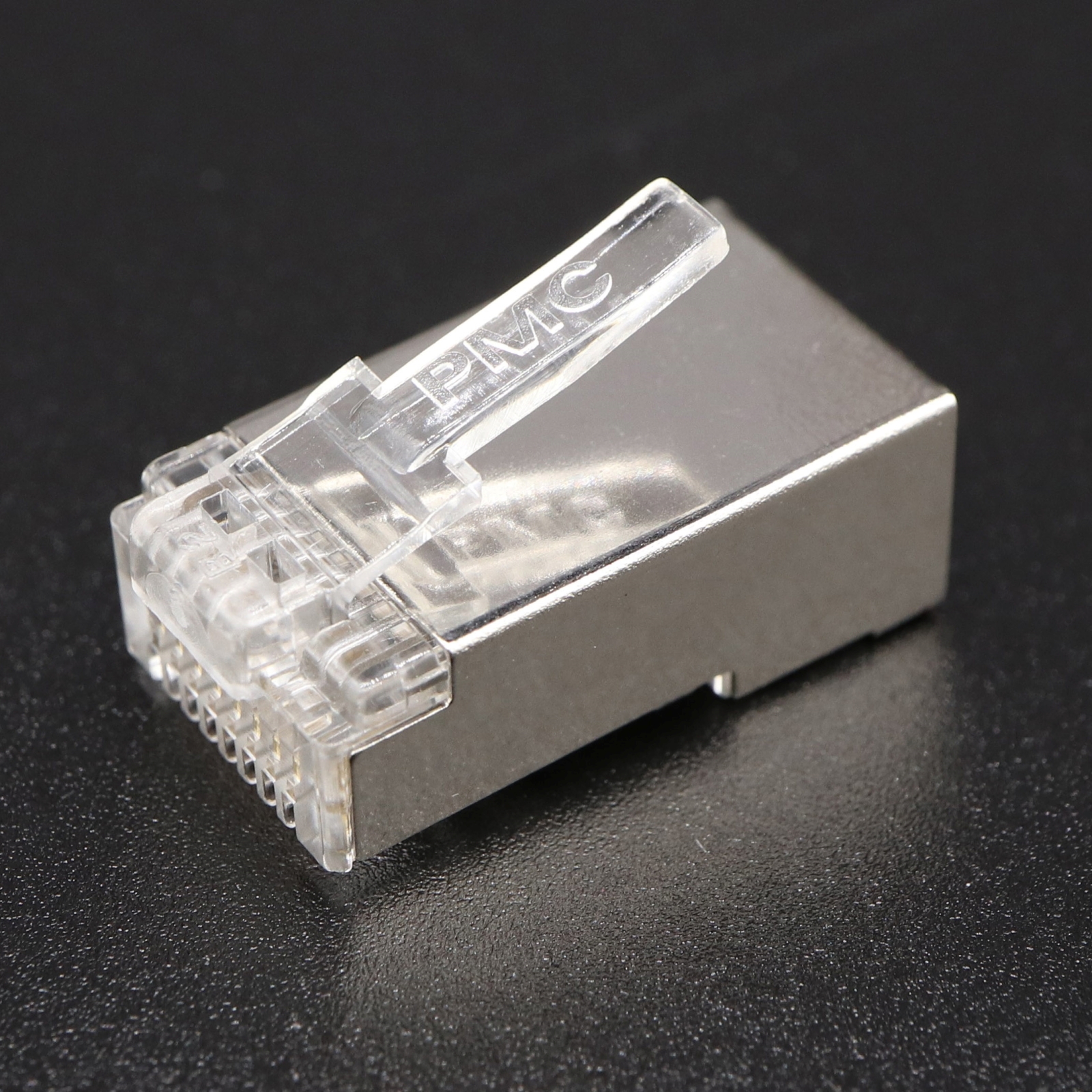

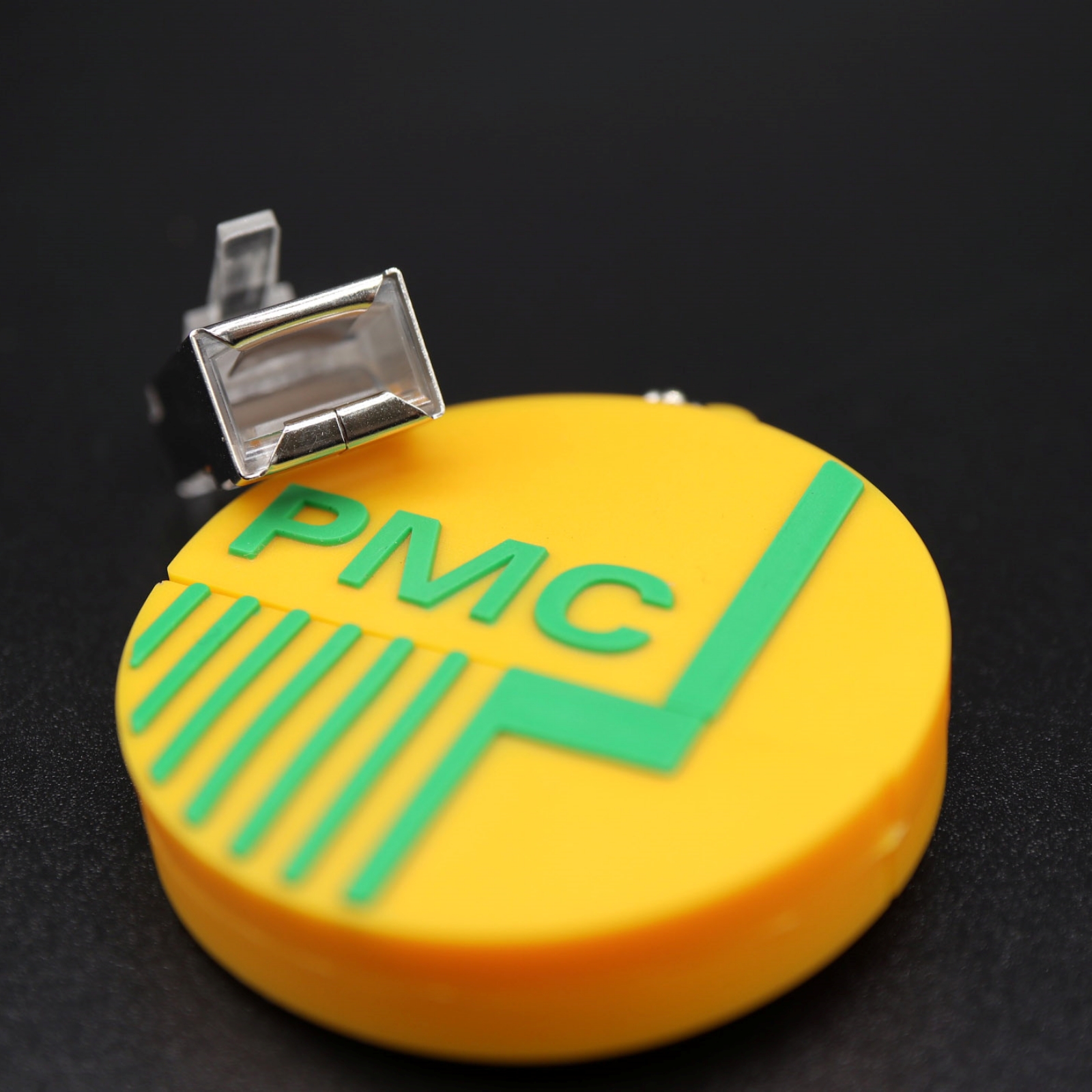

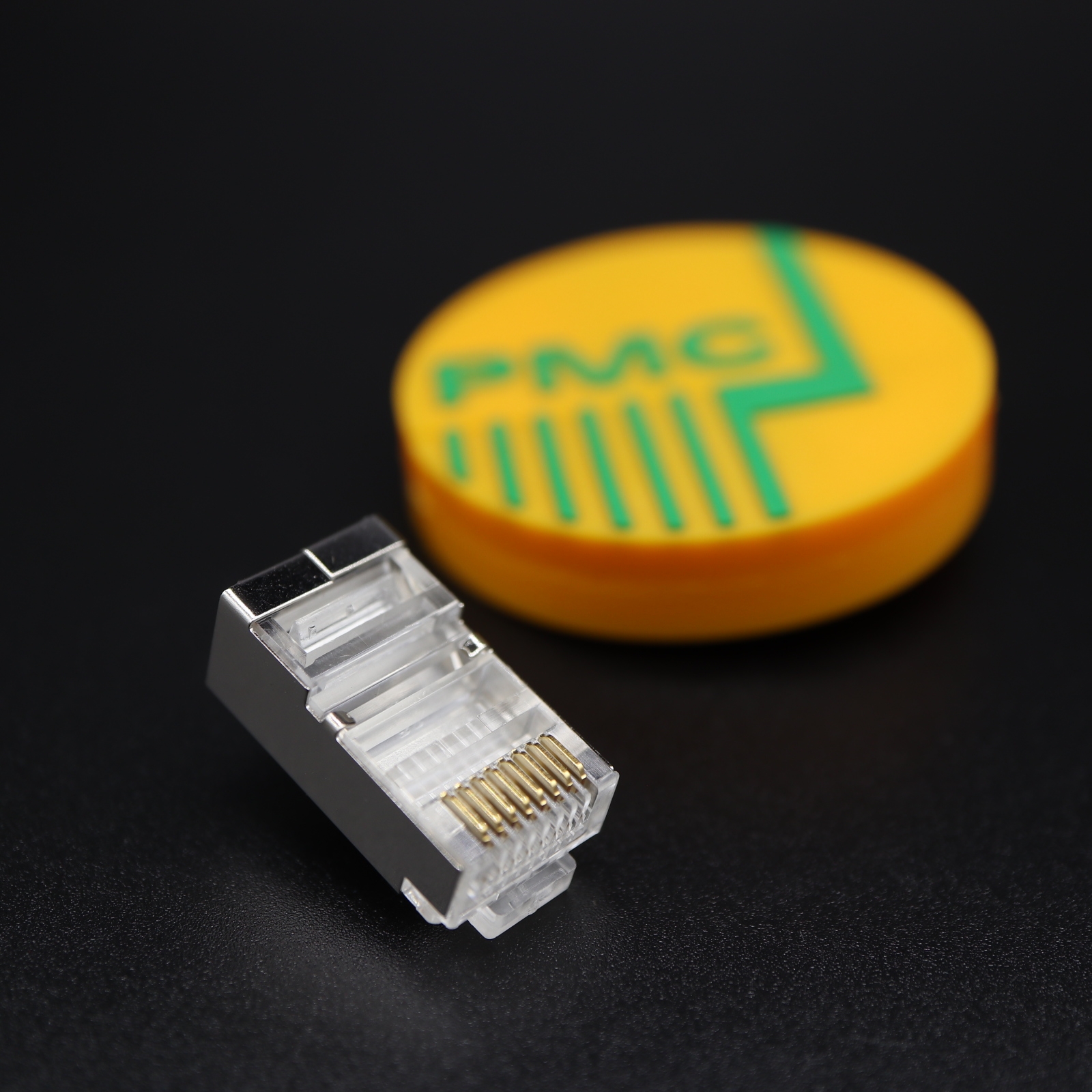

RJ45 Modular Plug Cat.6 Shielded FAST (Pass Through) 8P8C F-RV
Category Cat. 6
Description 8P8C F-RV Shielded FAST C6
Cable entry hole F-RV
Loading bar Diameter N/A
Maximum Insulation Diameter 1.0mm
Shielded Material Brass with nickel plated
Maximum Cable O.D. Size Supported For Flat Cable
Conductor type Solid | Stranded
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operating Temperature -10°c to 60°c
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Compatible boot SR-032M
Related Crimping Tools PM-3008R
