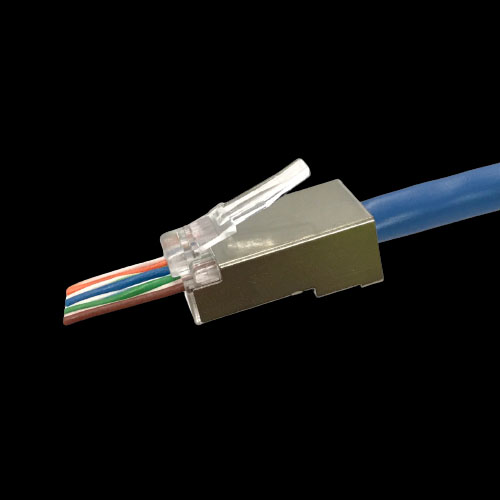

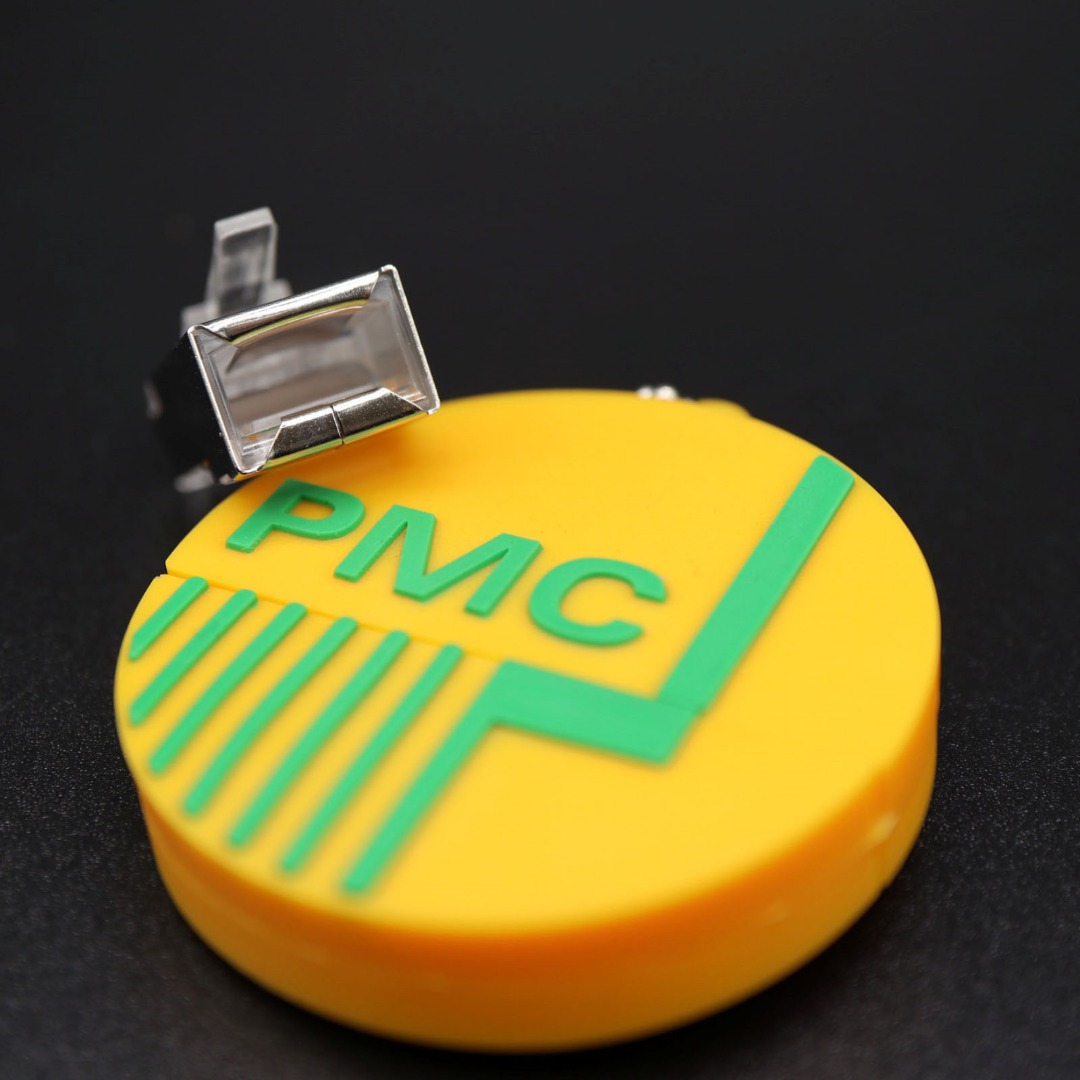

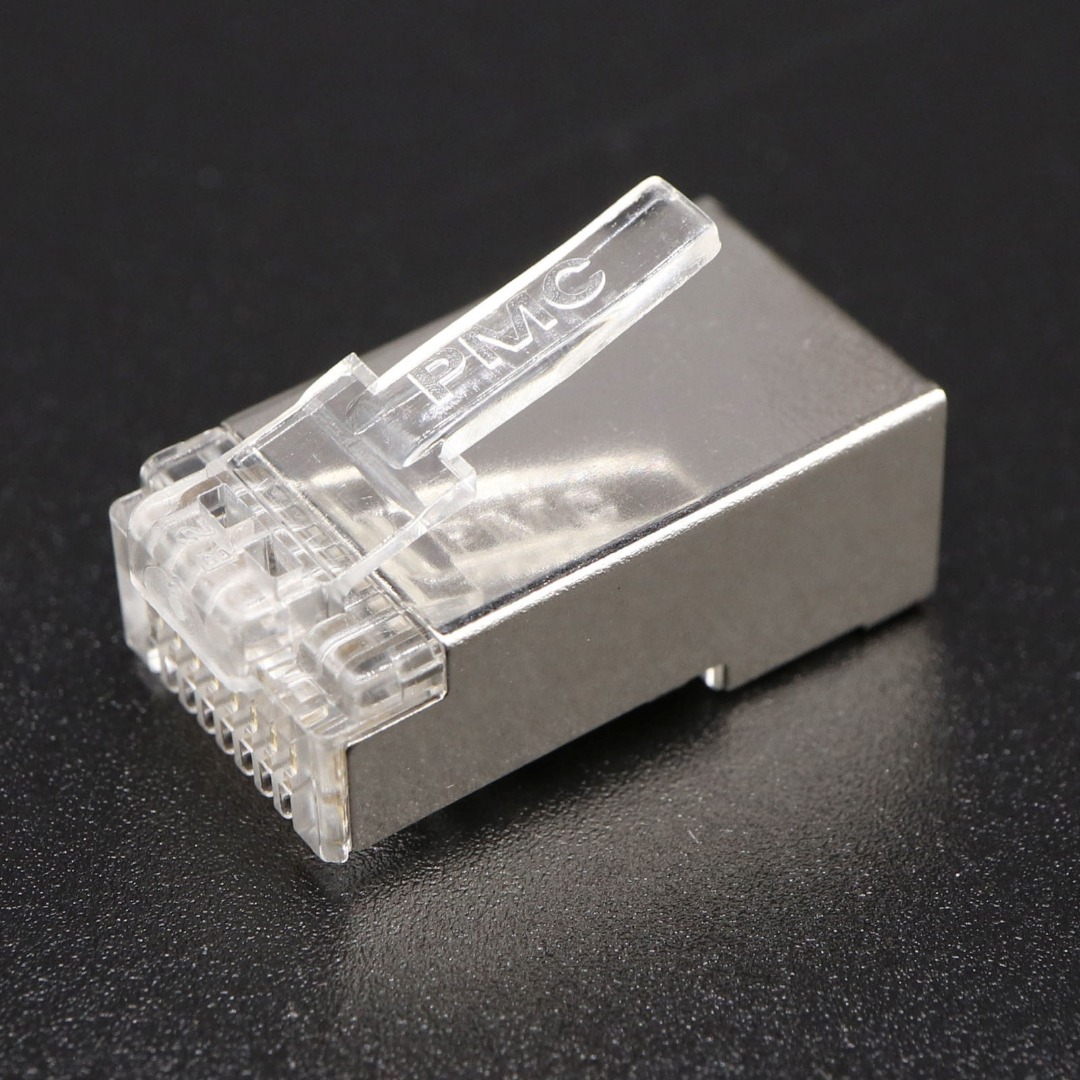

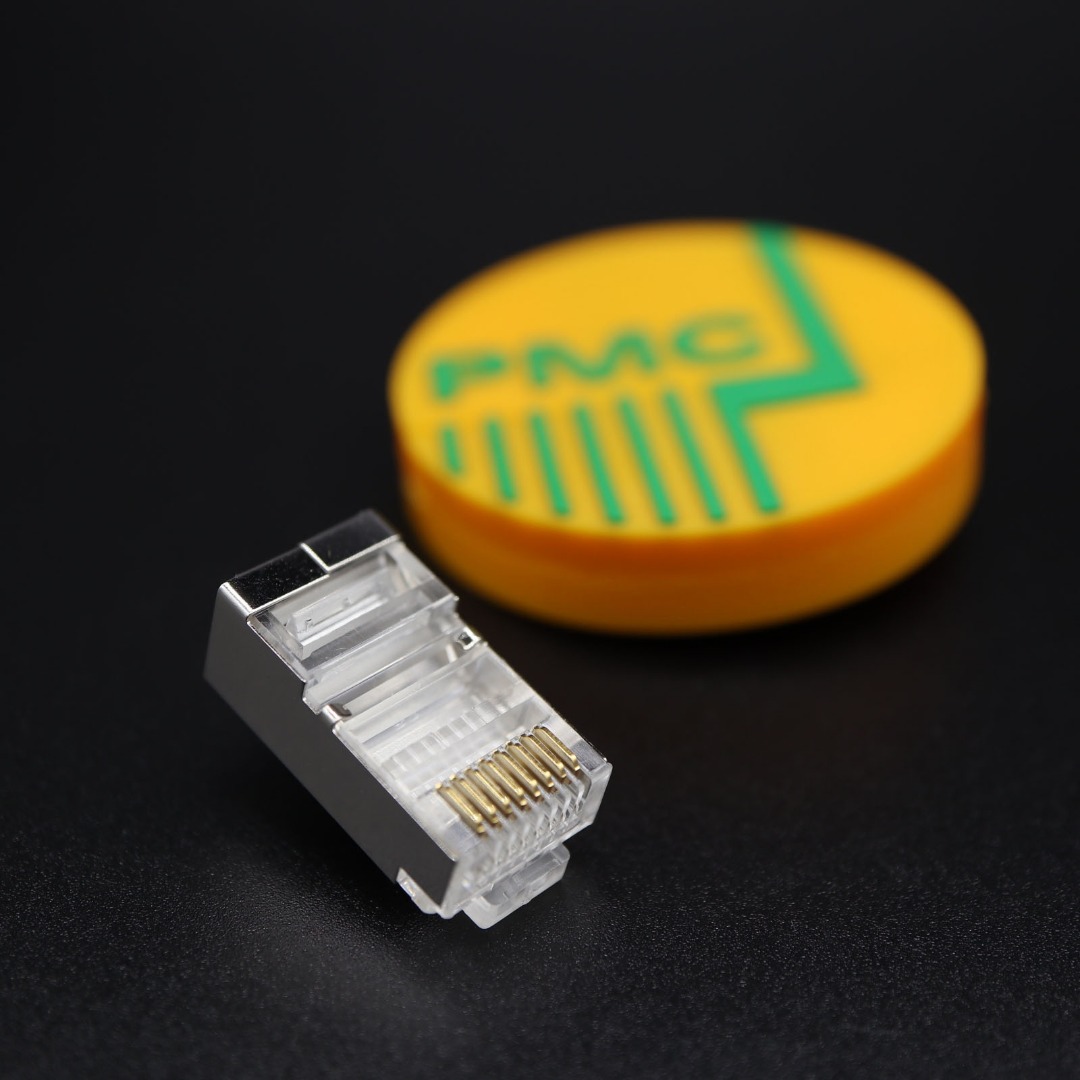

P8-005-27 RJ45 Modular Plug Cat.5e Shielded FAST (Pass Through) 8P8C-F-RV
WARNING: PMC FAST-EASY-PASS THROUGH RJ45 connectors and crimp tools are designed to work as a system.
TOOL #PM-3008R is NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty.
Plug Master is not responsible for any unintended uses of its products.
| Part No. |
P8-005-27
RJ45 Modular Plug Cat.5e Shielded FAST (Pass Through) 8P8C-F-RV |
| Category | C5E STP |
| Description | 8P8C-F-RV Shielded FAST C5E |
| Cable entry hole | F-RV |
| Loading bar Diameter | N/A |
| Maximum Insulation Diameter | 1.0mm |
| Shielded Material | Brass with nickel plated |
| Maximum Cable O.D. Size Supported | For Flat Cable |
| Conductor type | Solid | Stranded |
| Plug Housing Material | UL 94V-0 or 94V2 rated clear Polycarbonate (PC) |
| Contact Blades Material | Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating |
| Operating Temperature | Temperature:-10°C to 60°C |
| Storage temperature | - 40℃ ~ 70℃ |
| Compliance | Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant |
| Compatible boot | SR-032M |
| Related Crimping Tools | PM-3008R |
