Part No. P8-039-20

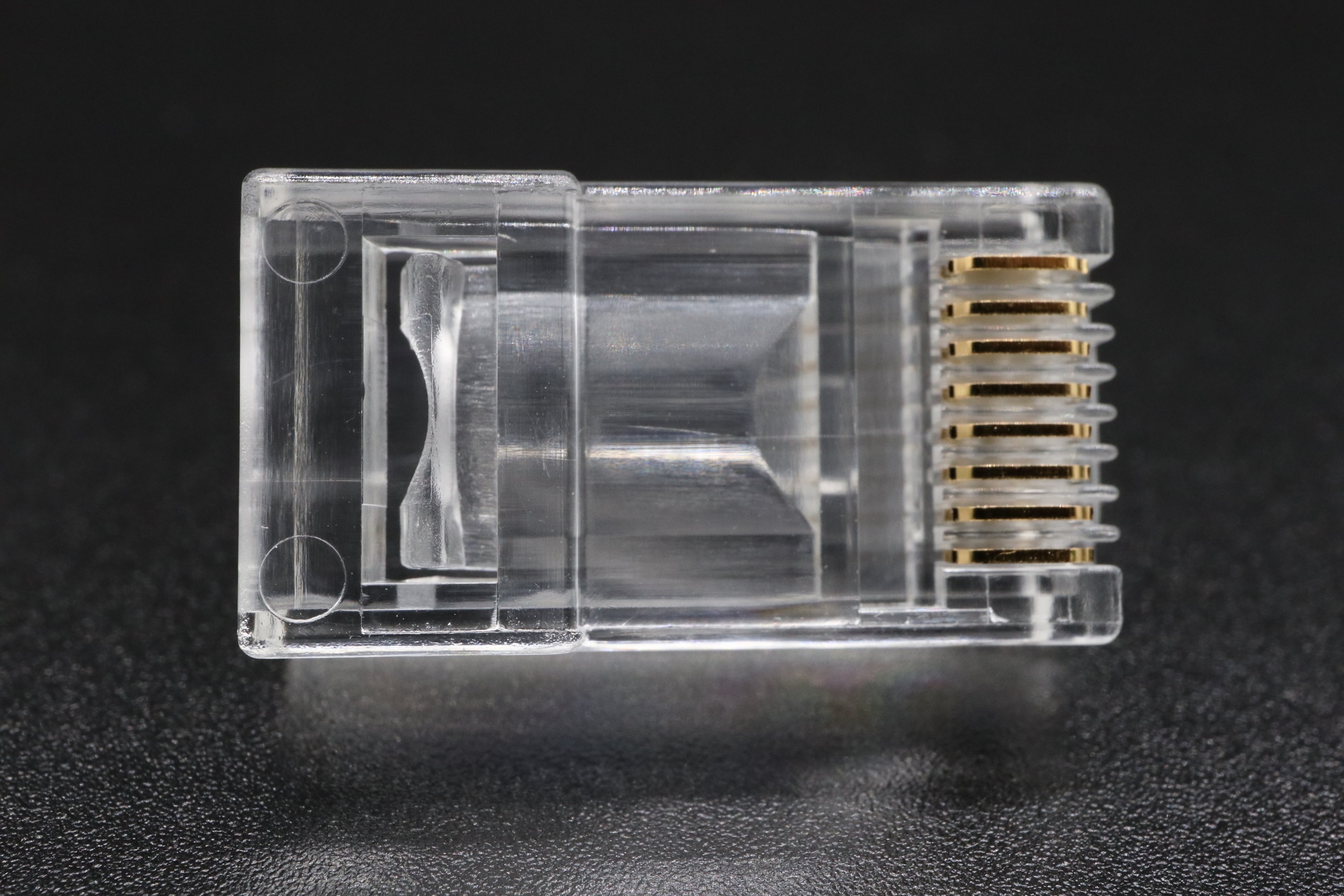

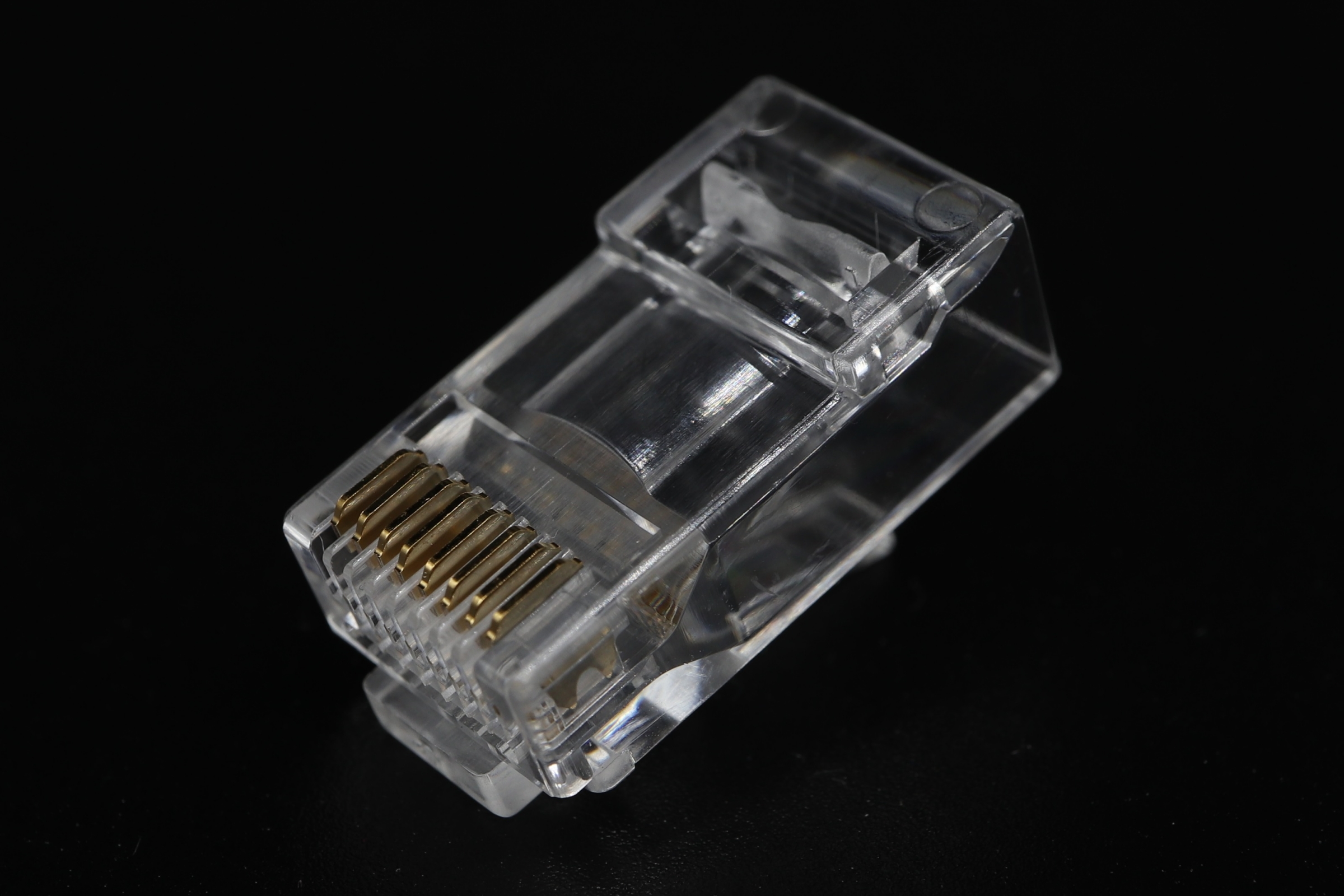

RJ45 Modular Plug Cat.6A UTP 2 Rows 8P8C-2R-V 1.14mm
Performance Category Cat.6A

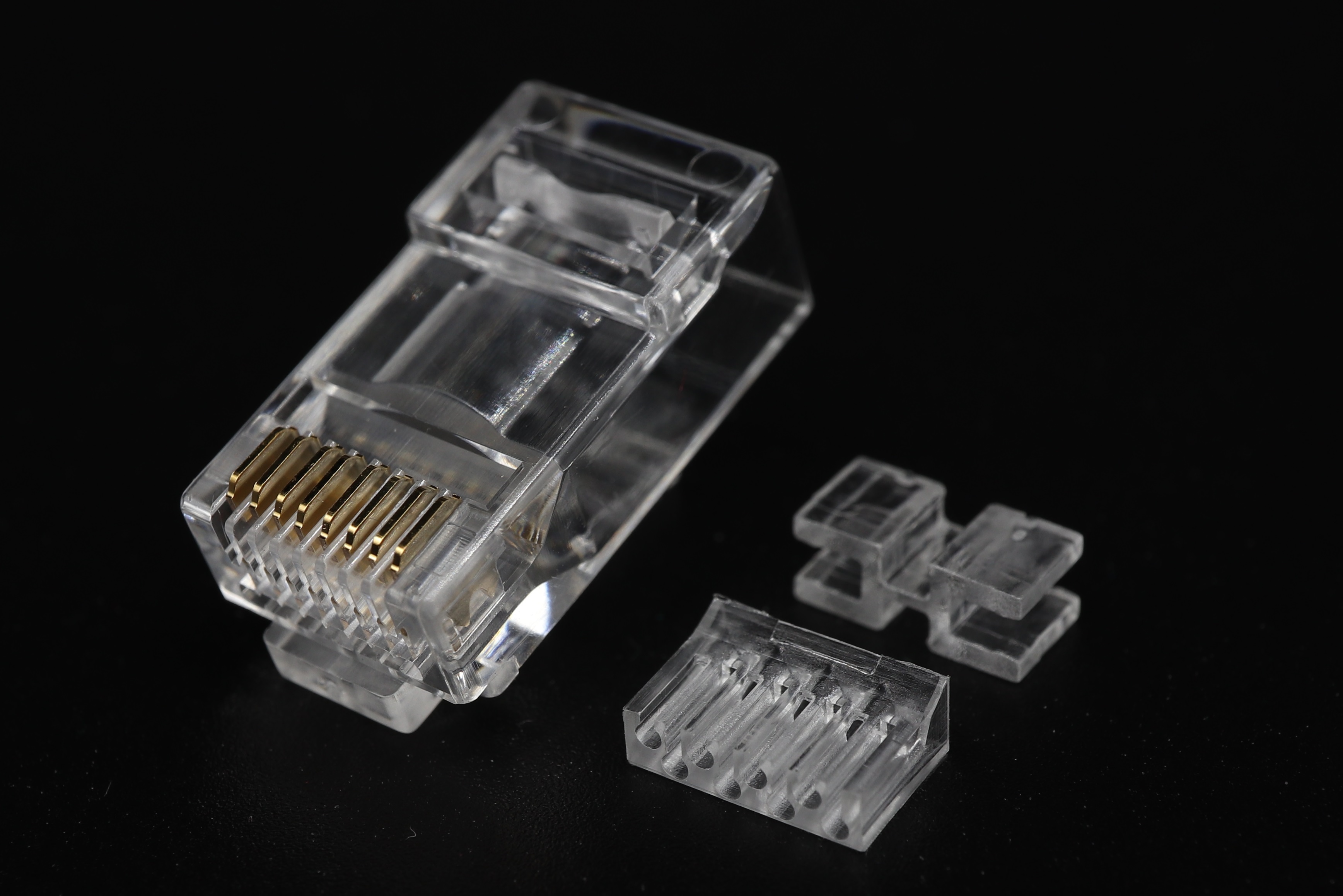

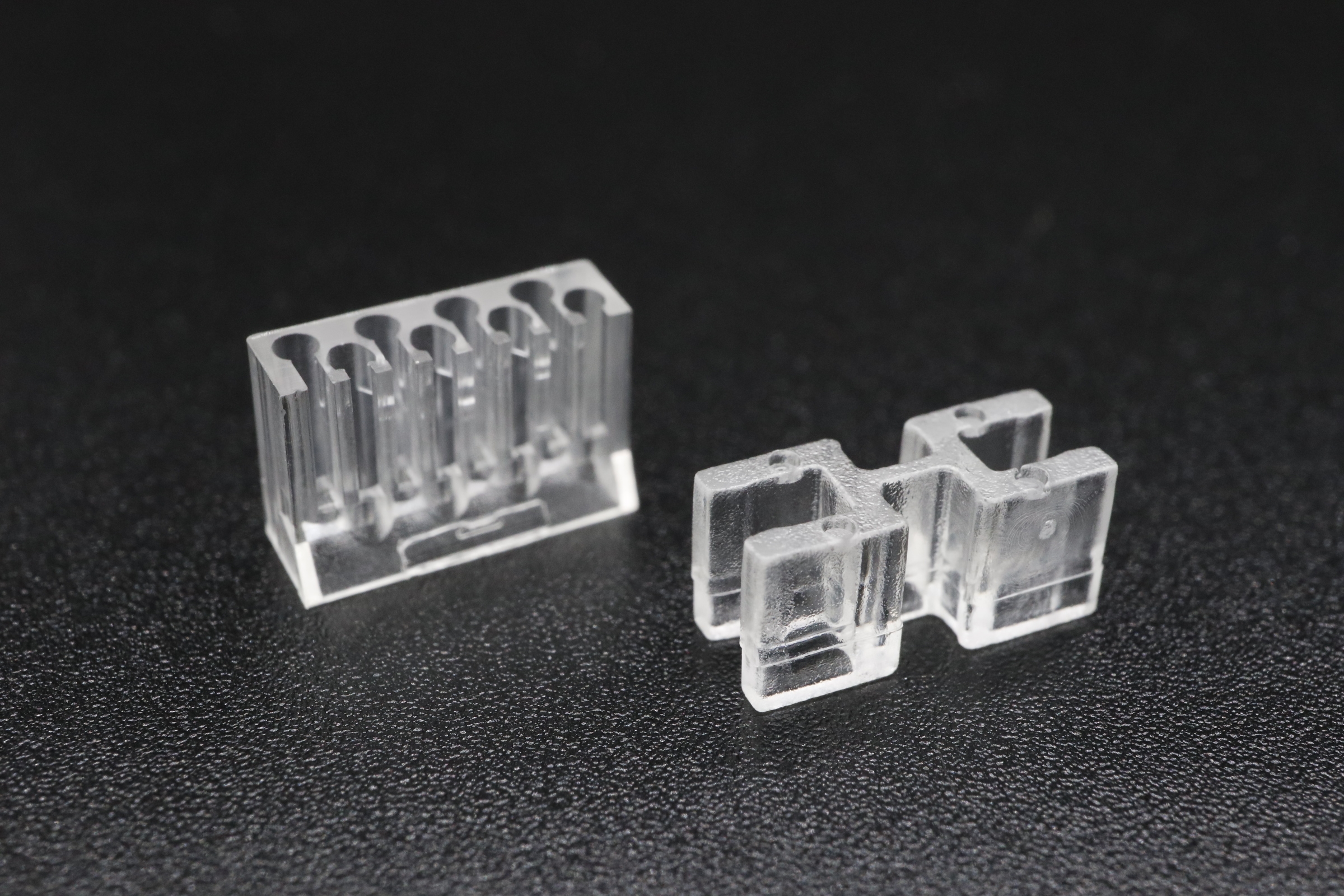

Description 8P8C-2R-V 2 layers with insert 1.14mm and divider
Cable entry hole 2R-V
Loading bar Diameter 1.14mm
Wire Insert Diameter 1.14mm
Maximum Cable O.D. Size Supported For Round Cable
Maximum conductor W/insulation O.D. Size 1.14mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories SR-032M
Related Crimping Tools PM-L2182R
