Part No. P8-042-33A

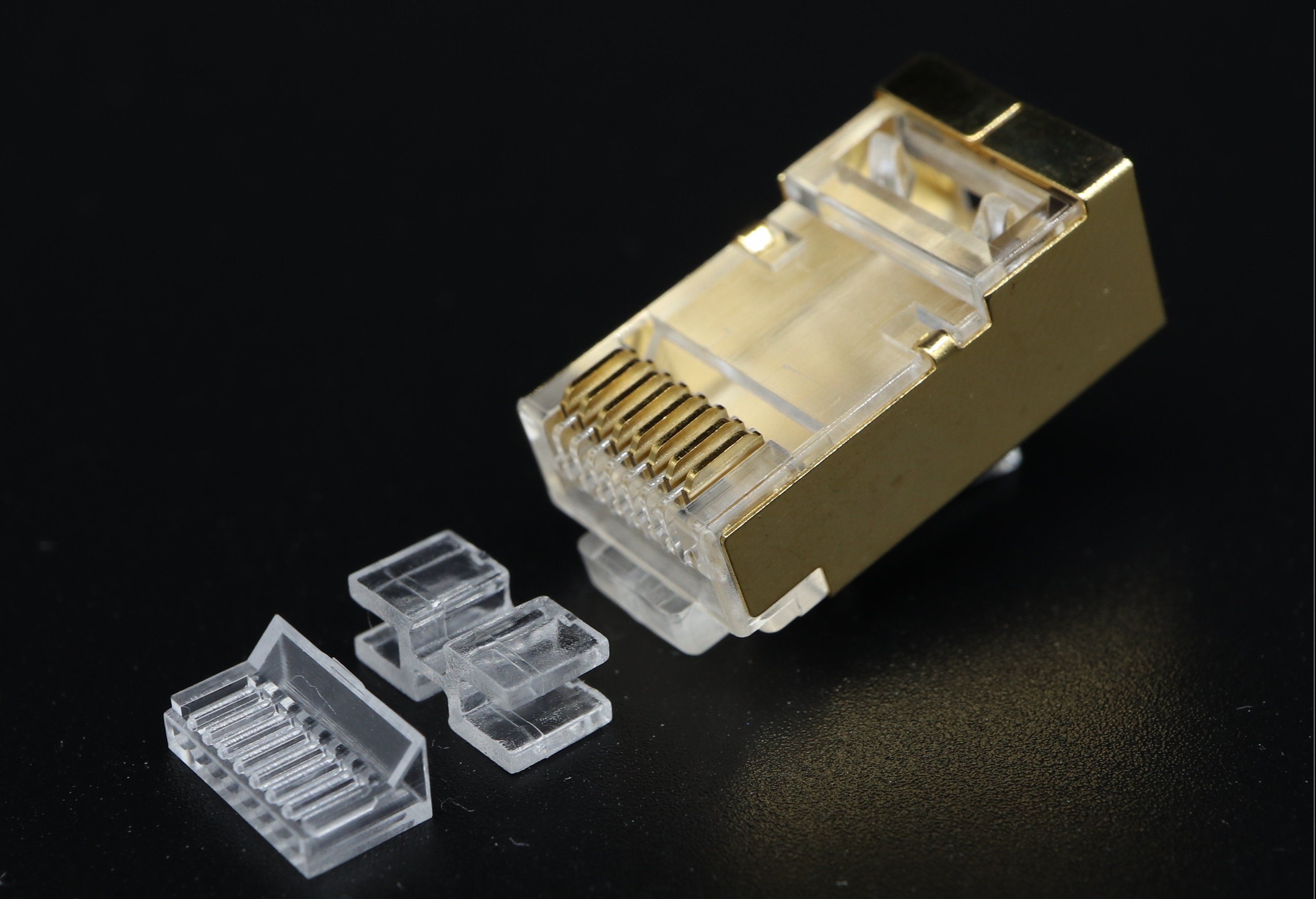

C6 8P8C-F-V STP-1.09mm Gold Plated Shell RJ45 Modular Plug
Performance Category Cat.6
Description  8P8C-F-V Gold plated shell with insert 1.09mm and divider
Cable entry hole F-V
Wire Insert Diameter 1.09mm
Loading bar Diameter 1.09mm
Maximum Cable O.D. Size Supported For Flat Cable
Maximum conductor W/insulation O.D. Size 1.09mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature  - 10℃ ~60 ℃
Storage temperature  - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories SR-032M
Related Crimping Tools PM-L2182R
