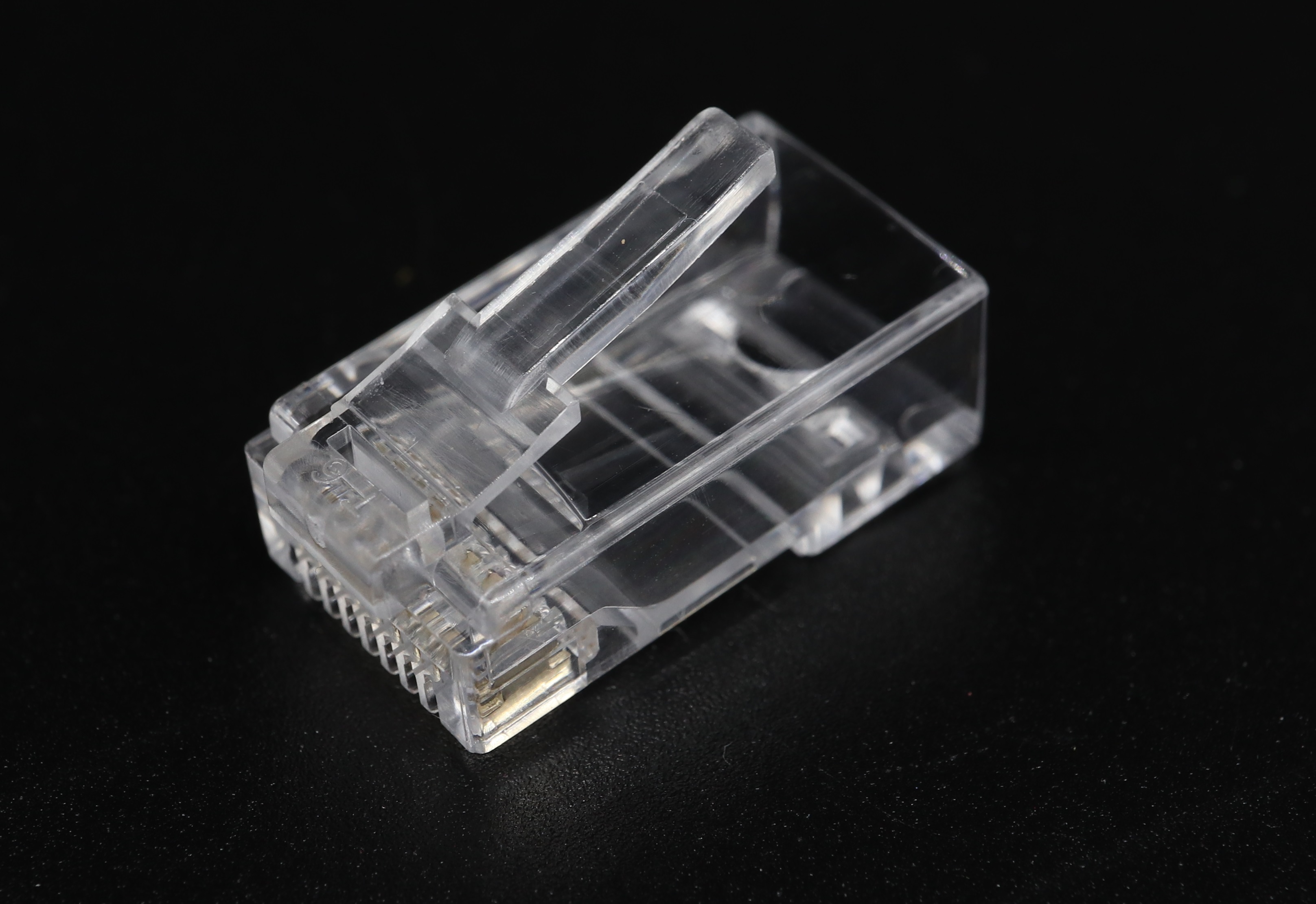

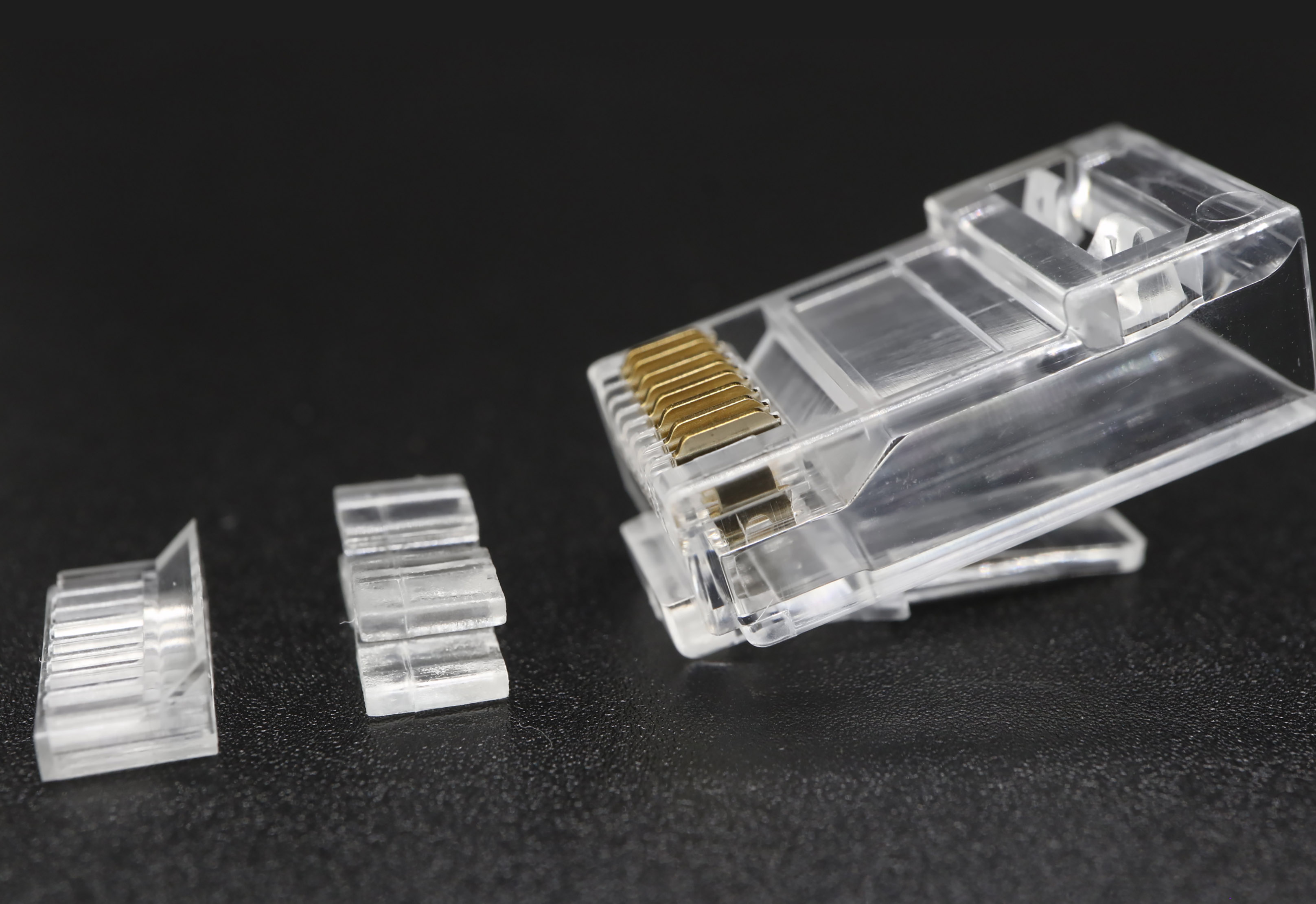

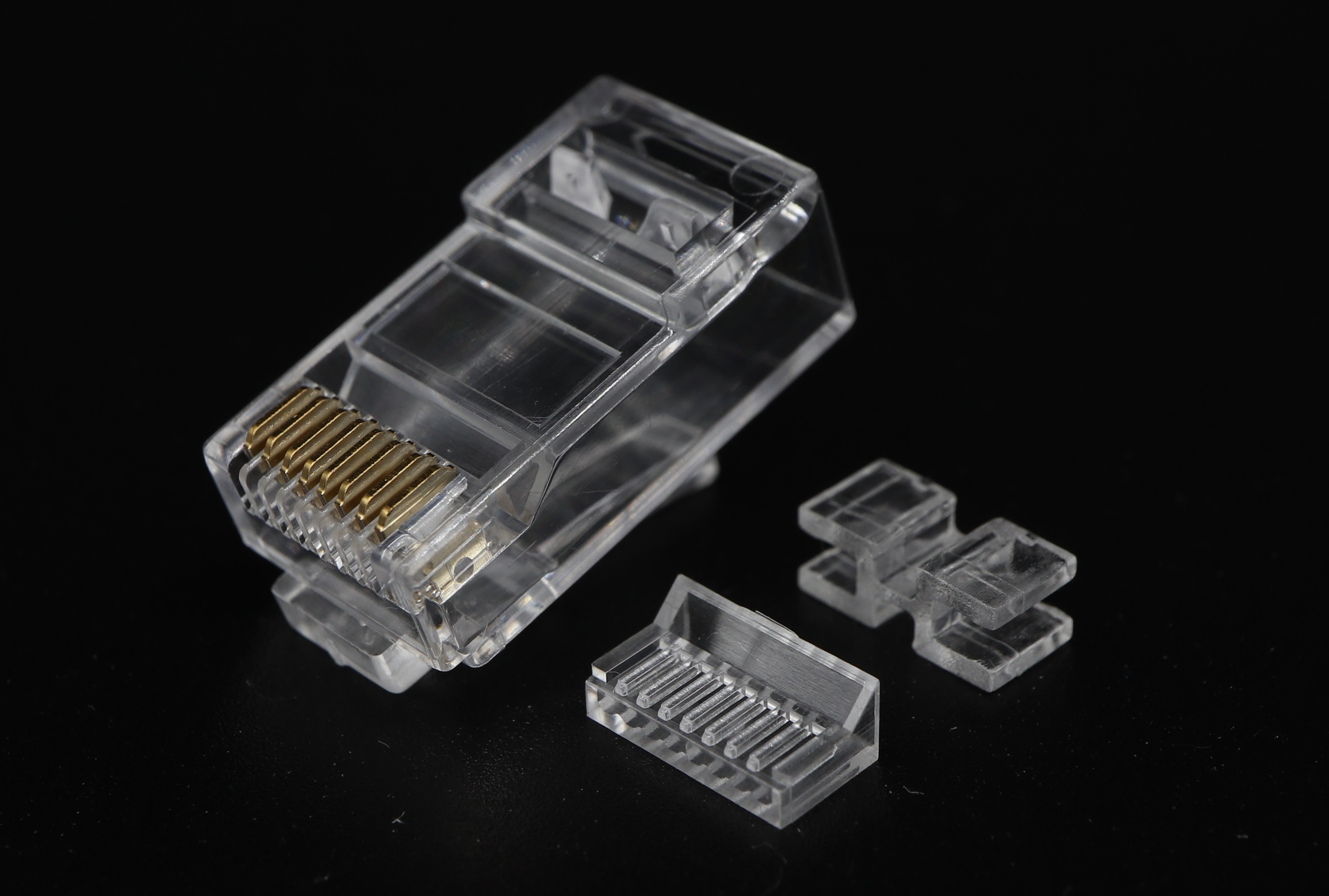

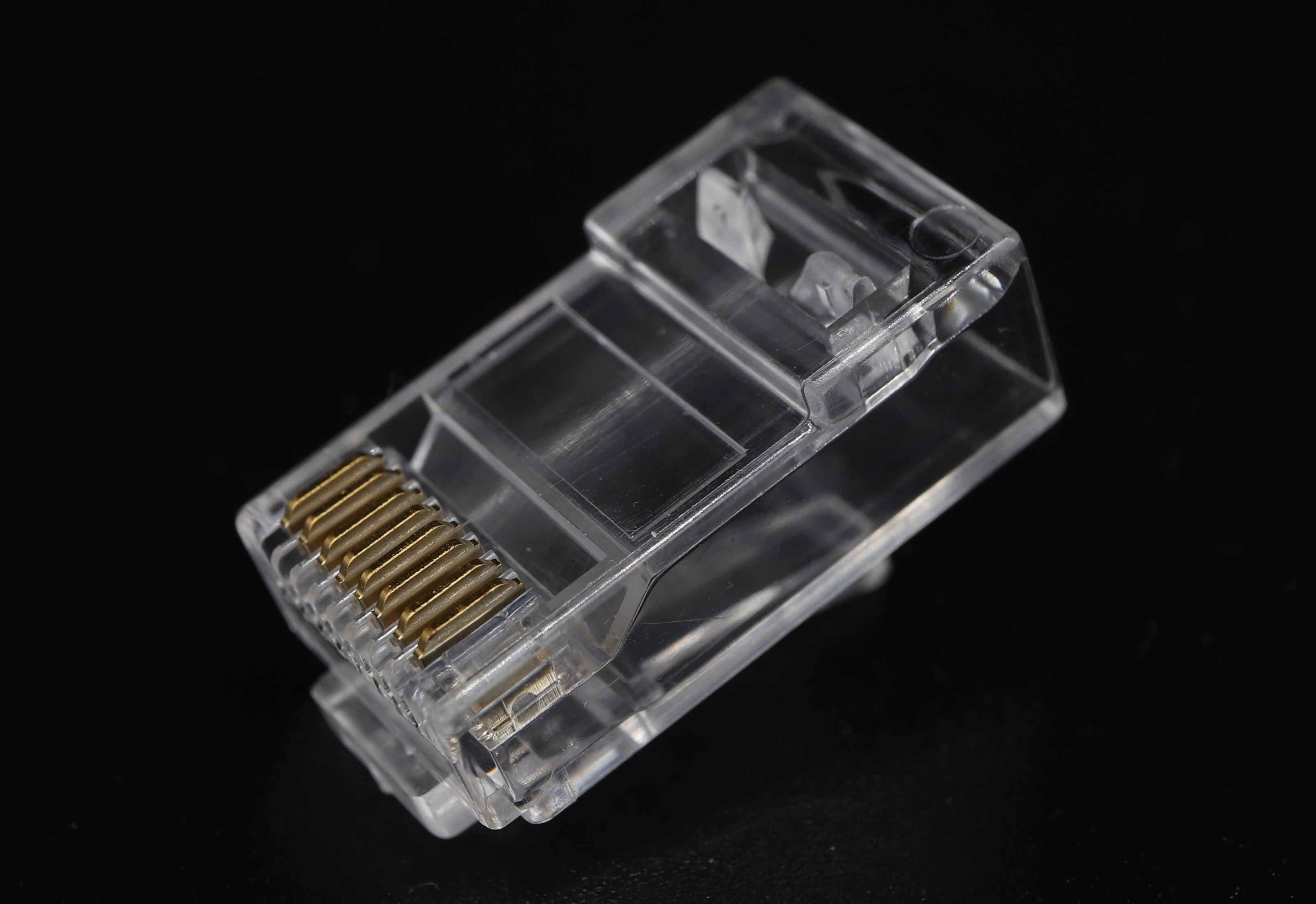

• P8-040-1 RJ45 Modular Plug Cat.6 8P8C-R-V with divider and load bar UTP
    P8-040-1 RJ45 Modular Plug Cat.6 8P8C-R-V with divider and load bar UTP P8-040-1 RJ45 Modular Plug Cat.6 8P8C-R-V with divider and load bar UTP P8-040-1 RJ45 Modular Plug Cat.6 8P8C-R-V with divider and load bar UTP

    P8-040-1 RJ45 Modular Plug Cat.6 8P8C-R-V with divider and load bar UTP

Drawing

Part No. P8-040-1
RJ45 Modular Plug Cat.6 8P8C-R-V with divider and load bar UTP
Performance Category Cat.6
Description 8P8C-R-V with insert and divider
Cable entry hole R-V
Loading bar Diameter 1.0mm
Wire Insert Diameter 1.0mm
Maximum Cable O.D. Size Supported For Round Cable
Maximum conductor W/insulation O.D. Size 1.0mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories SR-032M
Related Crimping Tools PM-L2182R
