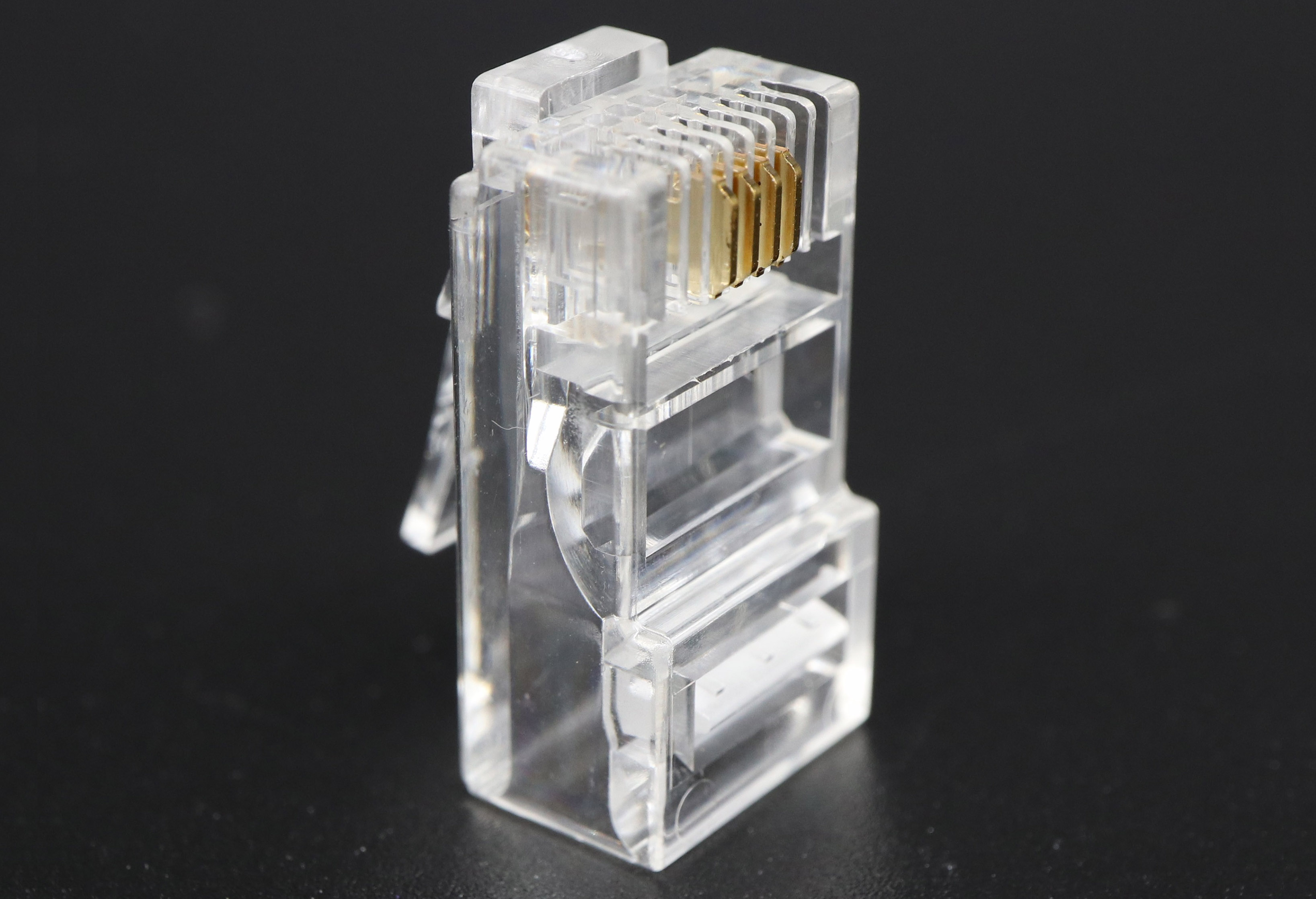

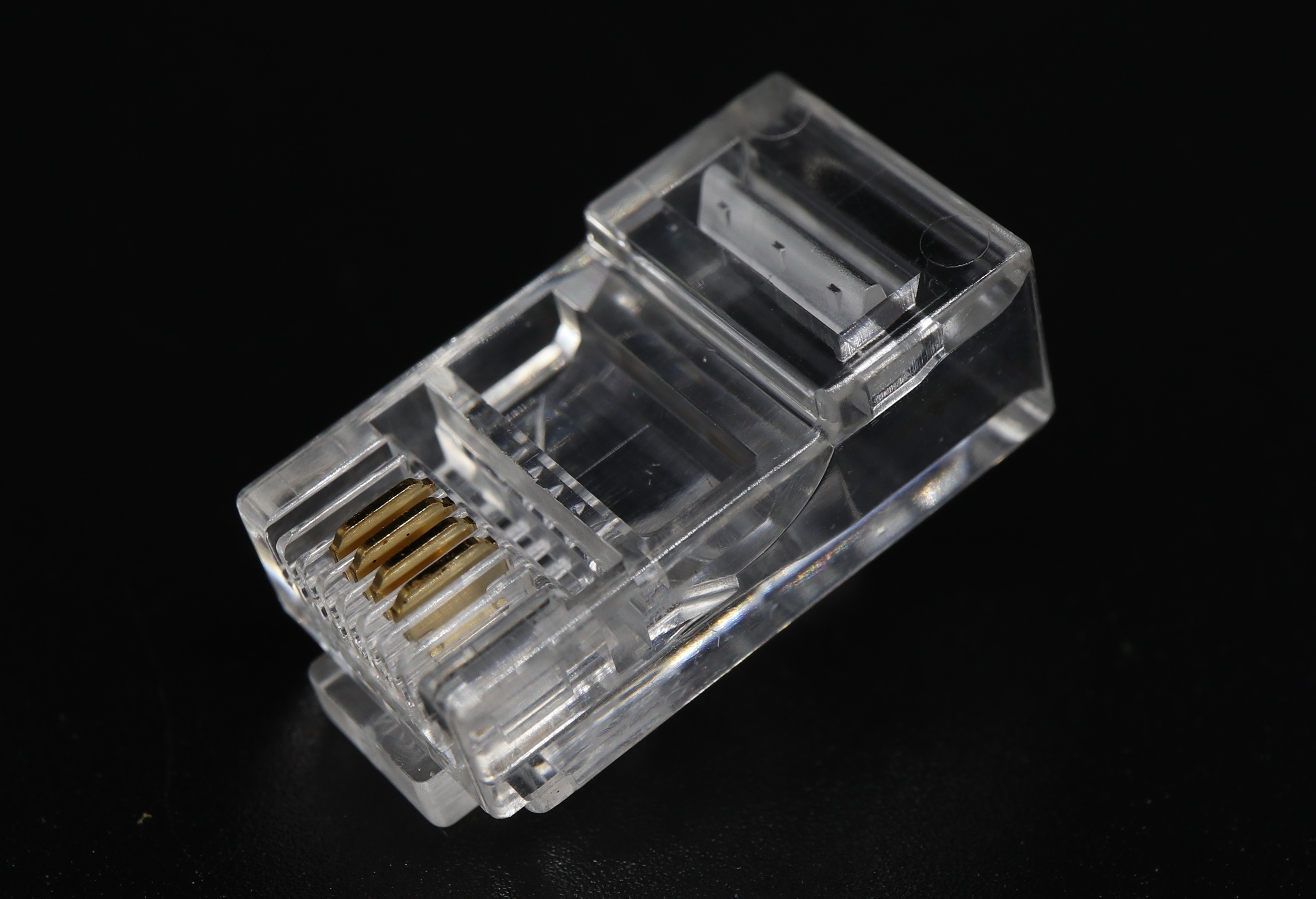

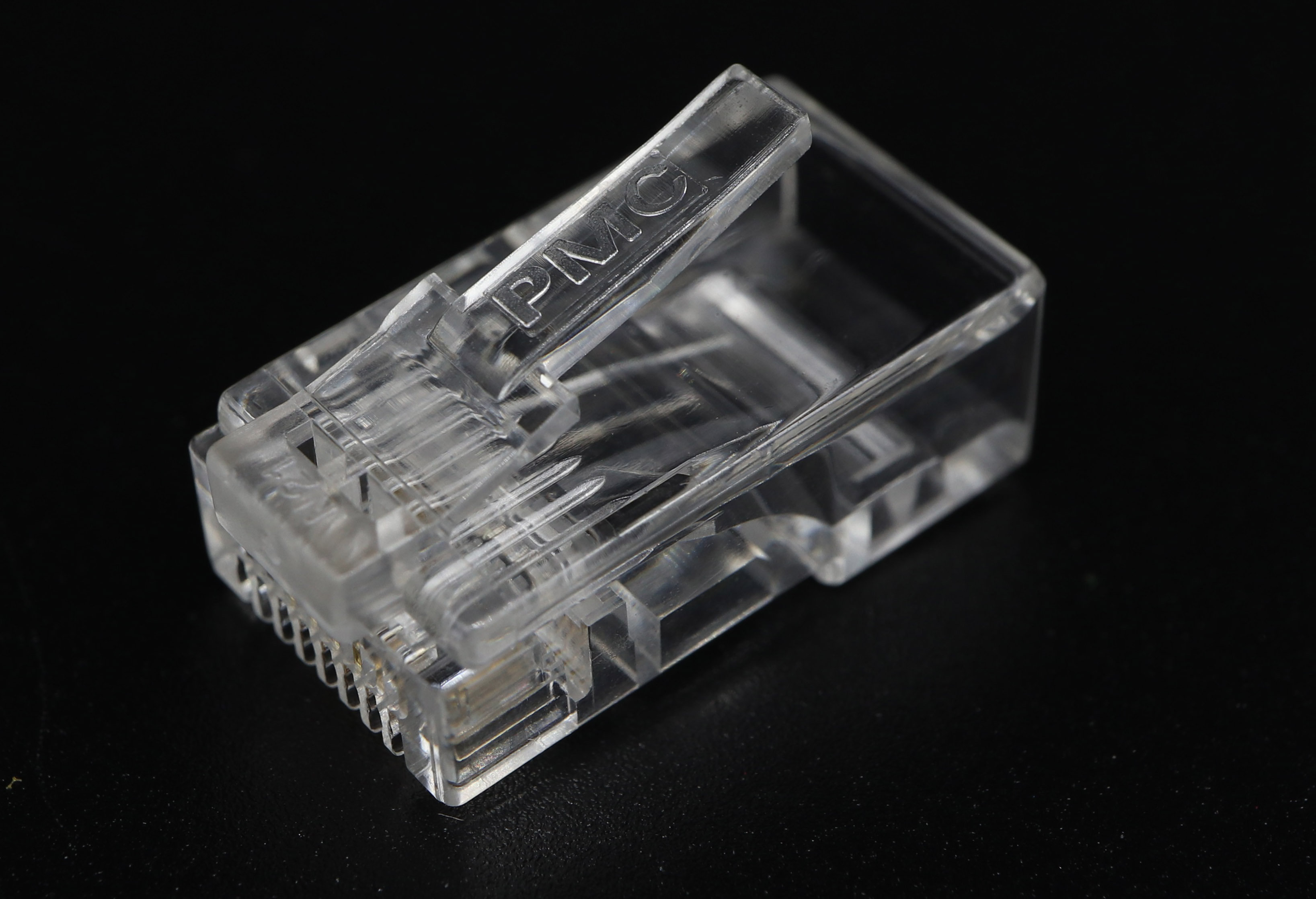

    P8-016 RJ45 Modular Plug Cat.5E 8P4C-F UTP

Drawing

Part No. P8-016
RJ45 Modular Plug Cat.5E 8P4C-F UTP
Performance Category C5E
Description 8P4C-F (3.4.5.6 pin)
Cable entry hole F
Loading bar Diameter N/A
Wire Insert Diameter 1.0mm
Maximum Cable O.D. Size Supported For Flat Cable
Maximum conductor W/insulation O.D. Size 1.0mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories SR-032R
Related Crimping Tools PM-3008R
