P8-002-4
|
8P8C-F Shielded 2 Layers (1.4mm) with Load bar
|
|
8P8C-F 銅殼 雙排二件式1.4mm支架 线孔加宽 (B2C)
|
23 AWG
|
|
|
|
P8-039-20
|
C6A-UTP 2 Layers, 3 Pieces with insert 1.14mm
|
|
8P8C-2R-V 雙排斜度2.6三件式(1.14mm)
|
24-26AWG
|
|
|
|
P8-050-1
|
8P8C-F-RV ShieldedWith 2 inserts,3pieces
|
|
8P8C-F-RV 斜度三件式銅殼含3.5支架-2 銅殼無舌片(B2R)
|
24~26 AWG
|
|
|
|
P8-063-9
|
8P8C-F 2 Layers with load bar 0.8mm
|
|
8P8C F 雙排斜度2.5二件式支架（0.8mm）3.6長片
|
28AWG
|
|
|
|
P8-064
|
Cat.6A Shielded 2 layers, 3 piece, 1 00mm insert
|
|
8P8C-F-RV 銅殼雙排斜度2.5三件式3.6長片-2 (B2F)
|
24-26AWG
|
|
|
|
P8-064-2
|
Cat.6A Shielded 2 layers, 3 piece, 1.10mm insert
|
|
8P8C-F-RV 銅殼雙排斜度2.5三件式3.6長片1.1支架-2 (B2F)
|
24-26AWG
|
|
|
P8-064-5
|

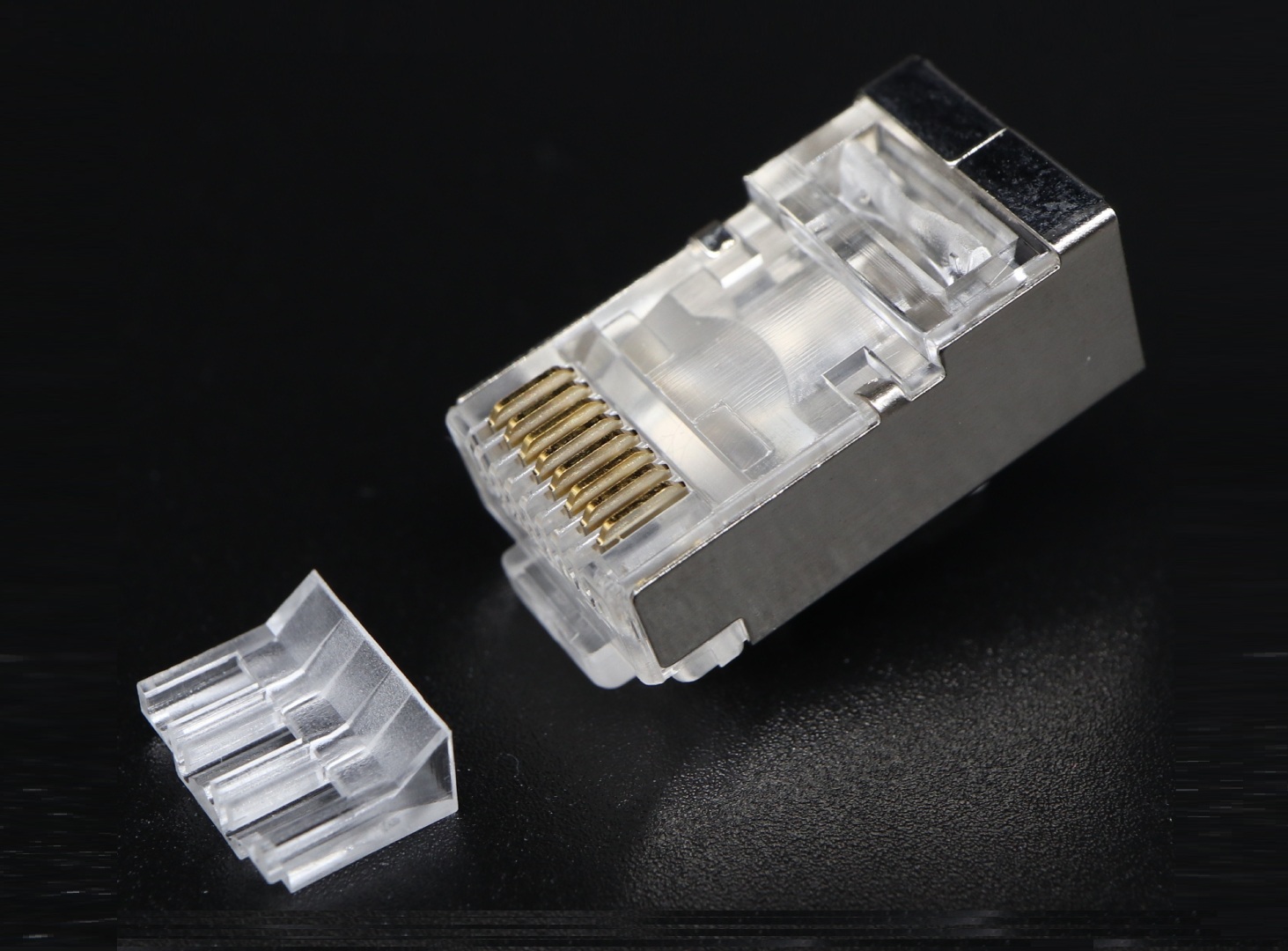

RJ45 Modular Plug Cat.6A Shielded 2 Rows 8P8C-F-RV
|
Drawing
Test
|
8P8C-F-RV Shielded 2 rows with load bar 1.0mm
|
F-RV
|
1.0mm
|
1.0mm
|
For Flat Cable
|
1.0mm
|
Solid | Stranded
|
1000pcs/bag
|
UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
|
Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
|
Copper over Nickel Plating or Copper over Gold Plating
|
- 10℃ ~60 ℃
|
- 40℃ ~ 70℃
|
Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
|
SR-032M
|
PM-3008R
|
|
|
|
P8-069
|
C6A-STP (1.4mm) OD 7.0mm
|
|
8P8C F 帶線夾銅殼雙排二件式1.4支架
|
23AWG
|
|
|
|
P8-M09
|
M8P8C-F Shielded with cable cilp, 3 Pieces
|
|
M-8P8C-F 斜度三件式(2.85)銅殼帶蝴蝶夾-2（B2M)
|
24~26 AWG
|
|
|
|
P8-M10
|
M8P8C-F Shielded 3 pieces
|
|
M-8P8C-F 銅殼斜度2.85三件式-2 (B2M-H銅殼)
|
24~26 AWG
|
|
|
|
P8-M15
|
RJ45 Modular Plug Cat.6A Shielded 2 Rows with External Ground M-8P8C-F
|
Test-1M
|
Cat.6A
|
M-8P8C-F Shielded 2 Layers with cable clip ,insert and divider
|
F
|
1.0mm
|
1.0mm
|
For Flat Cable
|
1.0mm
|
Solid | Stranded
|
500pcs/bag
|
UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
|
Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
|
- 10℃ ~60 ℃
|
- 40℃ ~ 70℃
|
Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
|
SR-044
|
PM236Q
|
|
