• C5e

  • C5e T-MOD Adapter UTP

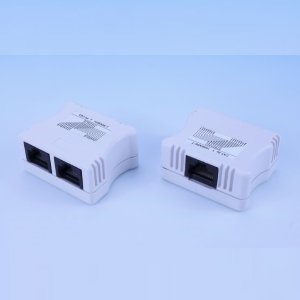

    IC-PM05-02 C5e T-MOD Adapter UTP

    Mechanical Specifications:

    - RoHS
    - Meets C5e EIA/TIA 568B Standard
    - Jack Insertion Cycle: Over 2000 Cycles(min)
    - Operation Temperature: -40 ~ +70 Degree Celsius

    Materials :

    - Body: Fireproof ABS UL-94V0
    - PCB: FR-4 / UL-94V0
    - Jack: 8P8C 50 micro inches gold plated

    Electrical Specifications:

    - Insulation Resistance: 500M ohms (min.)
    - Contact Resistance: 20m ohms (max.)
    - Current Rating: 1.5 Amps.
    - DC Resistance: 0.1 ohms (max.)
    - Withstanding Volatage: 1000 VAC RMS @ 60Hz/1min.



    4 Colors : Black, Ivory, White, Plated
