C5e
-

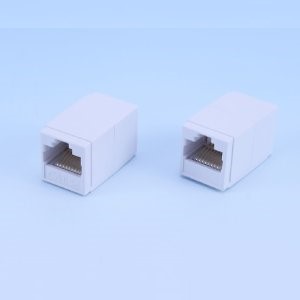

IC-PM05-01 C5e Inline Copler UTP
Mechanical Specifications:
- RoHS
- Meets C5e EIA/TIA 568B Standard
- Jack Insertion Cycle: Over 2000 Cycles(min)
- Operation Temperature: -40 ~ +70 Degree Celsius
Materials :
- Body: Fireproof ABS UL-94V0
- PCB: FR-4 / UL-94V0
- Jack: 8P8C 50 micro inches gold plated
Electrical Specifications:
- Insulation Resistance: 500M ohms (min.)
- Contact Resistance: 20m ohms (max.)
- Current Rating: 1.5 Amps.
- DC Resistance: 0.1 ohms (max.)
- Withstanding Volatage: 1000 VAC RMS @ 60Hz/1min.
10 Colors : Black, Ivory, Red, White, Blue, Orange, Yellow, Gray, Metal, Tin
-

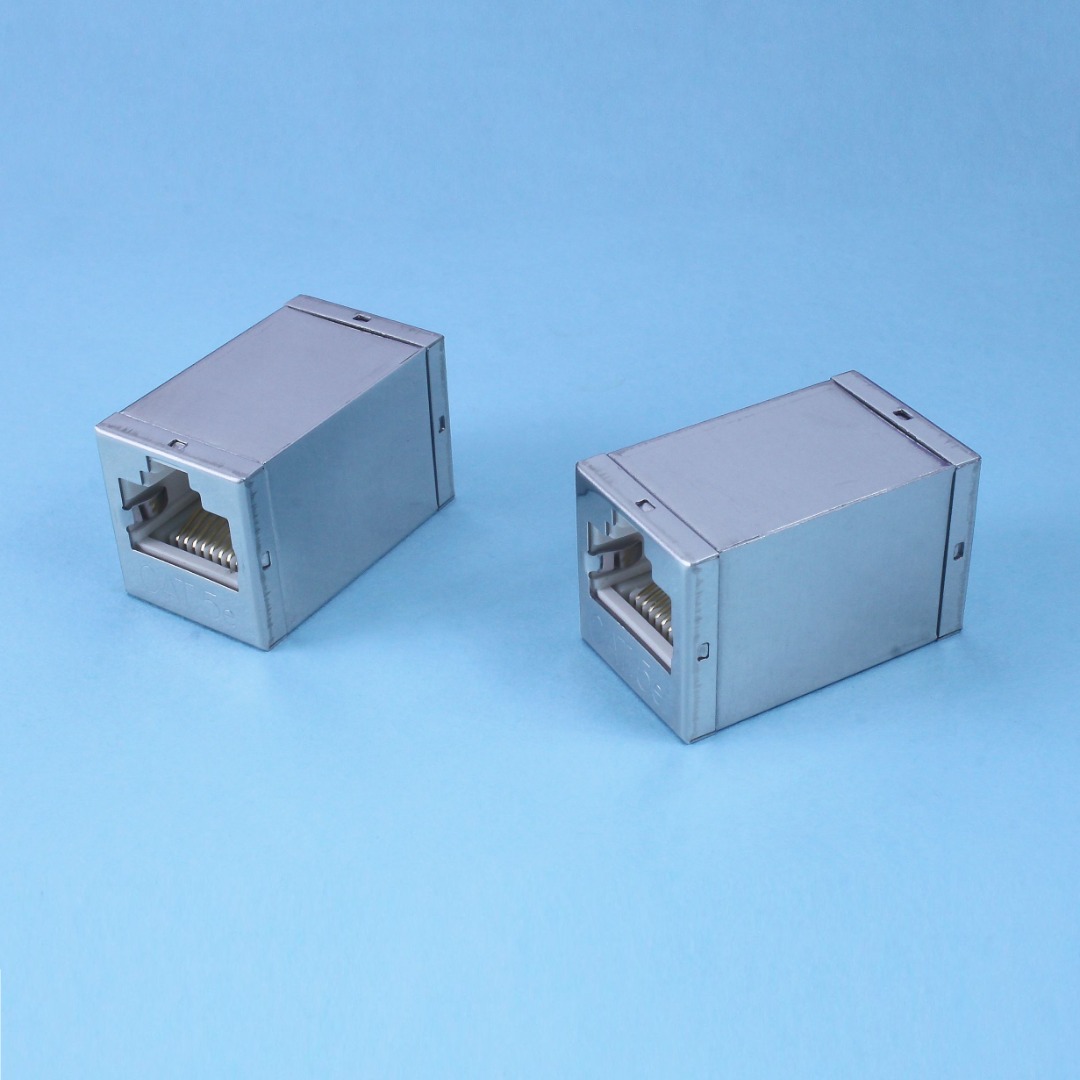

IC-PM05-03 C5e Inline Copler FTP
Mechanical Specifications:
- RoHS- Meets C5e EIA/TIA 568B Standard
- Jack Insertion Cycle: Over 2000 Cycles (min.)
- Operation Temperature: -40 ~ +70 Degree CelsiusMaterials :- Body: Fireproof ABS UL-94V0- PCB: FR-4 / UL-94V0- Jack: 8P8C 50 micro inches gold plated- Metallic Case : Metal ( 10 colors for options )Electrical Specifications:
- Insulation Resistance: 500M ohms (min.)- Contact Resistance: 20m ohms (max.)- Current Rating: 1.5 Amps.- DC Resistance: 0.1 ohms (max.)- Withstanding Volatage: 1000 VAC RMS @ 60Hz/1min.10 Colors : Black, Ivory, Red, White, Blue, Orange, Yellow, Gray, Metal, Tin
