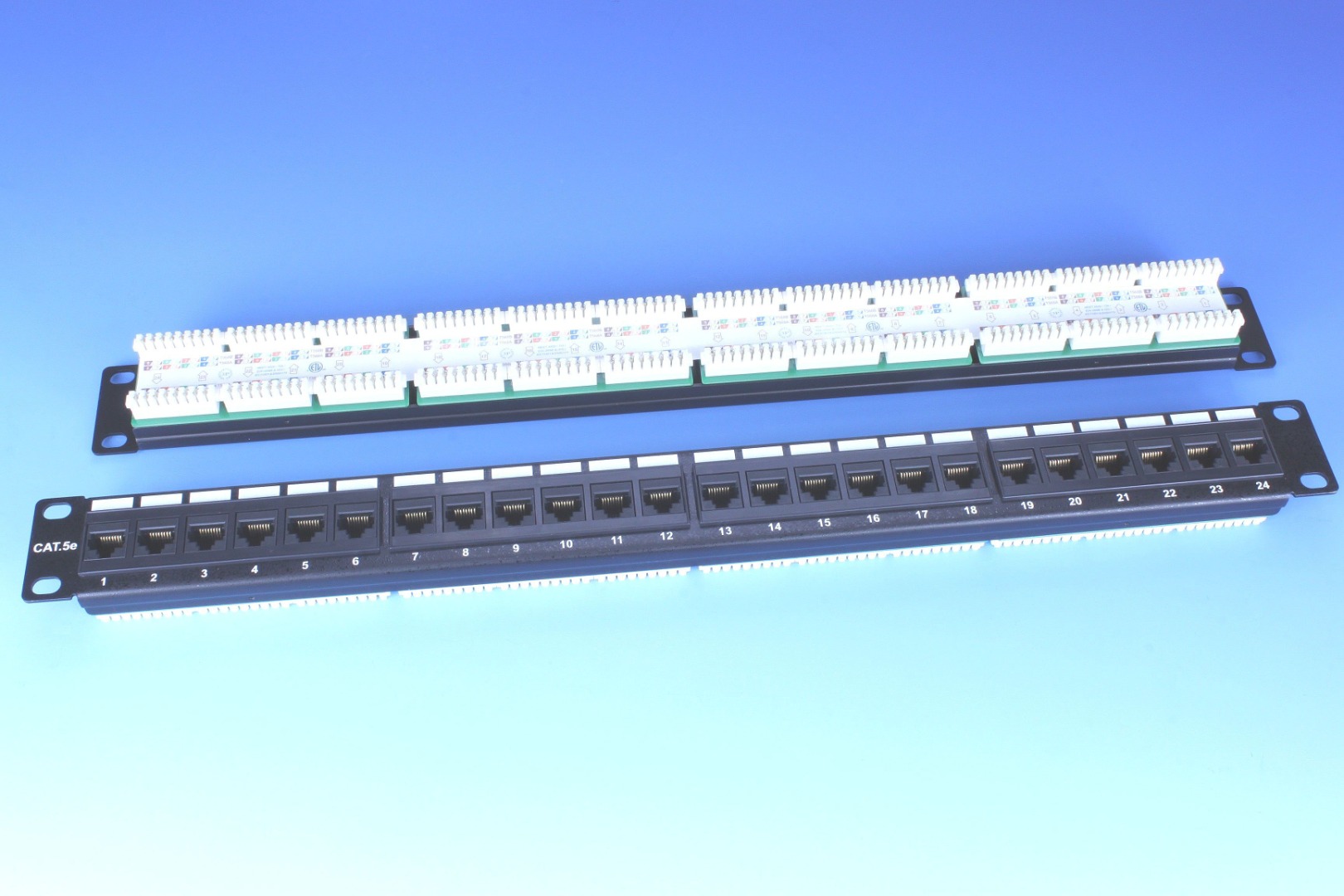

    PP-PM05-01 C5e Patch Panel 19" 1U - UTP

    C5e Horizontal 19" - 1U Patch Cord , H type, UTP, 24 ports,
    IDC : Dual, w/o cap
    Color available : Black or Ivory
    Port available :  12 / 16 / 24 / 32 /48 ports

    Mechanical Specifications:

    - RoHS
    - Meets C6e EIA/TIA 568B Standard
    - IDC Punch Down tool : Over 250 Cycles(min.)
    - Jack Insertion Cycle : Over 2000 Cycles(min.)
    - Operation Temperature : -40 ~ +70 Degree Celsius

    Materials :

    - Front Plate : Fireproof ABS UL-94V0
    - Panel : Metal (SPCC)
    - Jack : 8P8C 50 micro inches gold plated
    - PCB: FR-4 / UL-94V0
    - IDC Body : Fireproof ABS UL-94V0
    - IDC Pin : Bronze & Tinned

     IDC : For 22  -26 AWG
     For 110 or Krone  punch down tool

    Electrical Specifications:

    - Insulation Resistance : 500M ohms (min.)
    - Contact Resistance : 20m ohms (max.)
    - Current Rating : 1.5 Amps.
    - DC Resistance : 0.1 ohms (max.)
    - Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min
