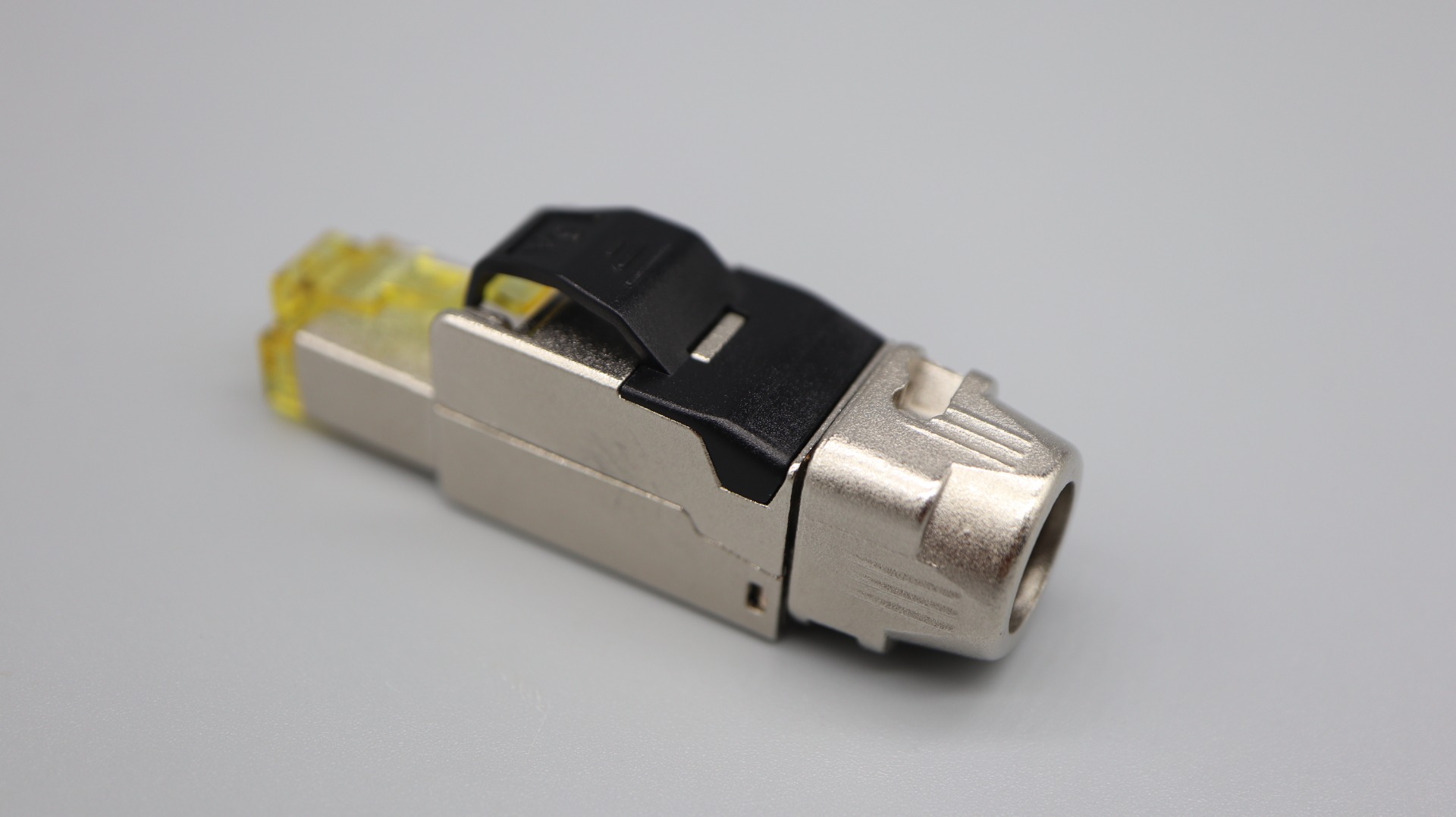

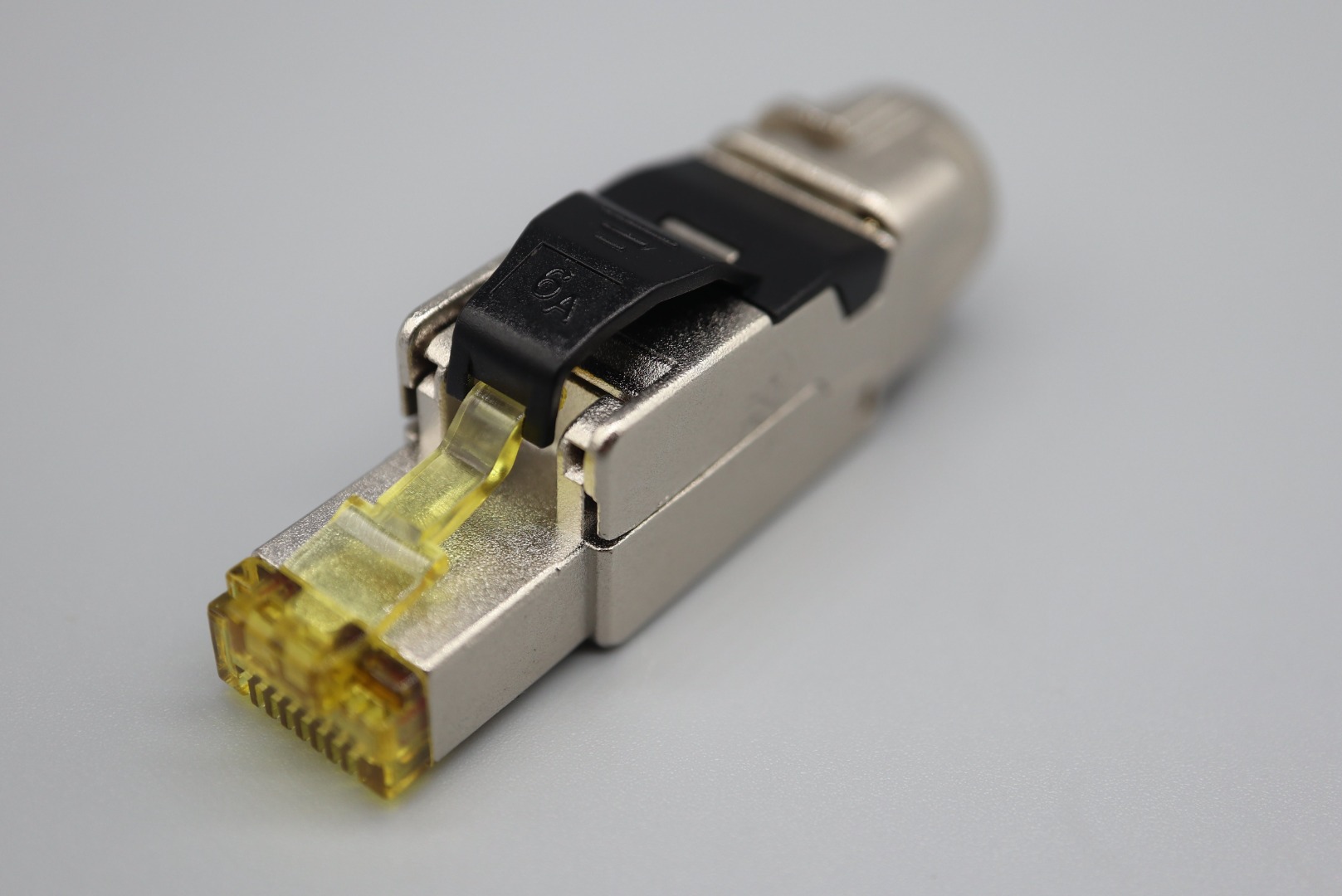

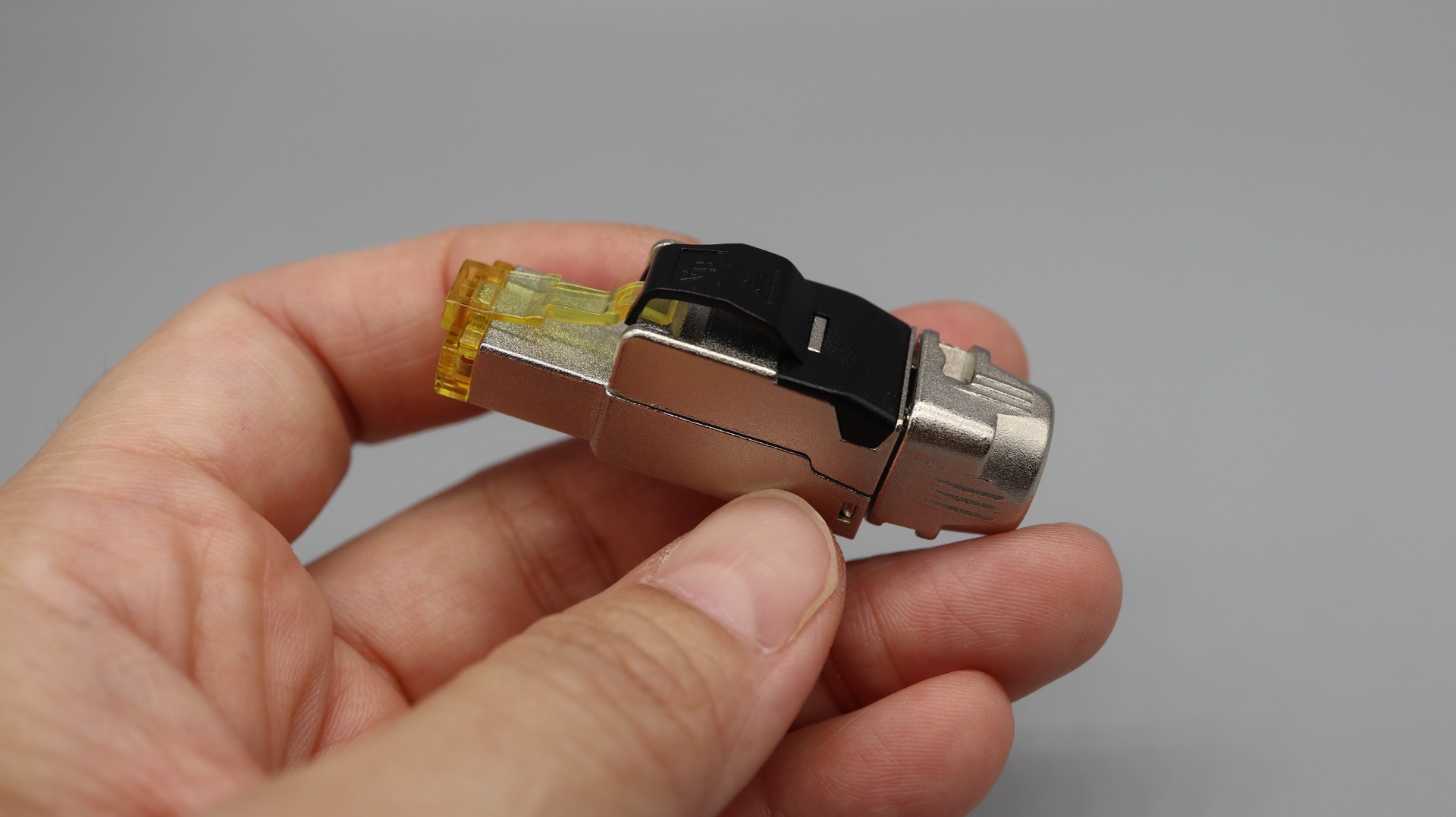

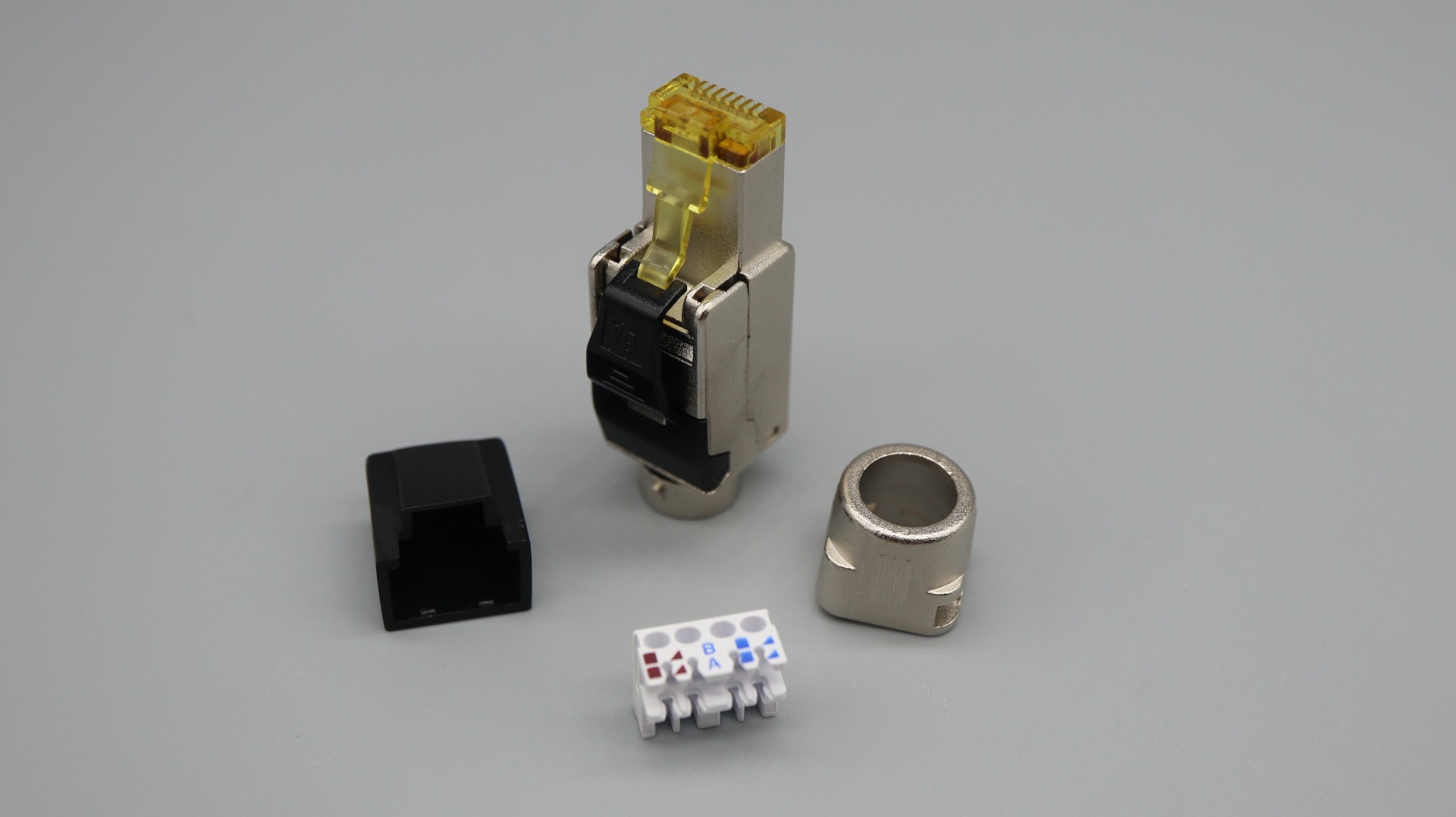

    P8-101 , P8-101-1 RJ45 Cat.6A Full Shielded Field Termination plug - Push-Rotate Boot type (Short Body)

    Features :

    ▲ Tool Free

    ▲ Performance guarantee

    ▲ Easy and quick installation, Reliable and Comfortable.

    ▲ Fully Shielded, Push-Rotate Boot type (BNC Boot Type)

    ▲ Short body Type


    Performance :

    ▲ Cat. 6A Patch Cord Component Level


    Recommended Cable Specification :

Drawing P8-101 Drawing P8-101-1 Guide

Part No. P8-101 , P8-101-1
RJ45 Cat.6A Full Shielded Field Termination plug - Push-Rotate Boot type (Short Body)
Maximum Cable O.D. Size Supported

P8-101    : 6.0~8.5mm

P8-101-1 : 6.0~8.5mm
Maximum conductor W/insulation O.D. Size

P8-101   : 23 ~ 26 AWG

P8-101-1 : 22 ~ 24 AWG
Conductor type

Solid | Stranded
Packaging Features

1 piece / bag , 50 pieces / white box
Operation Temperature

-10℃ to 60 ℃
Storage temperature

-40℃ to 70℃
Compliance

Meet IEC 60603-7 , ISO/IEC 11801, ANSI/TIA 568.2 , TIA-1096 Chapter 4 and 5 , ROHS/REACH compliant
