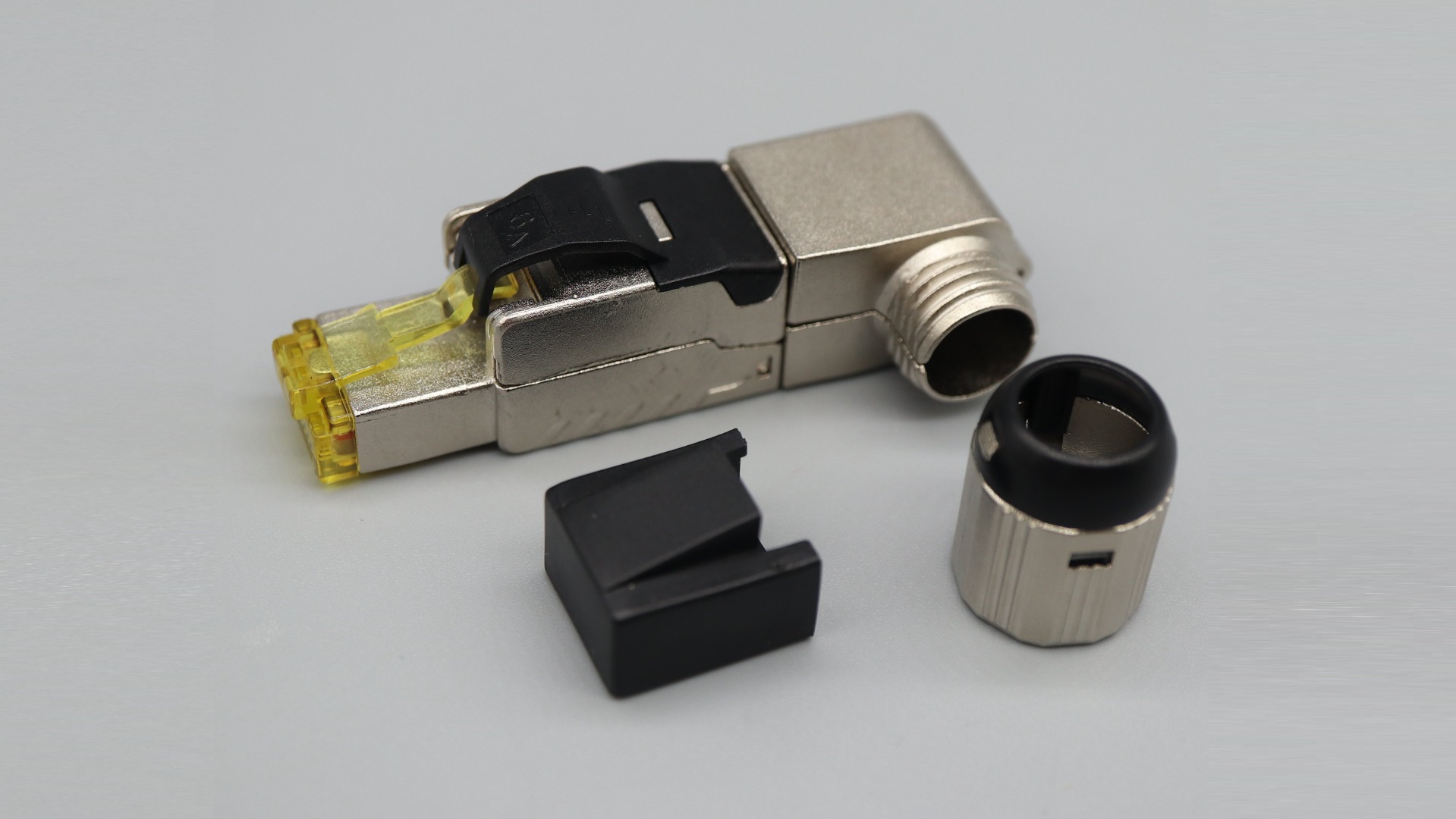

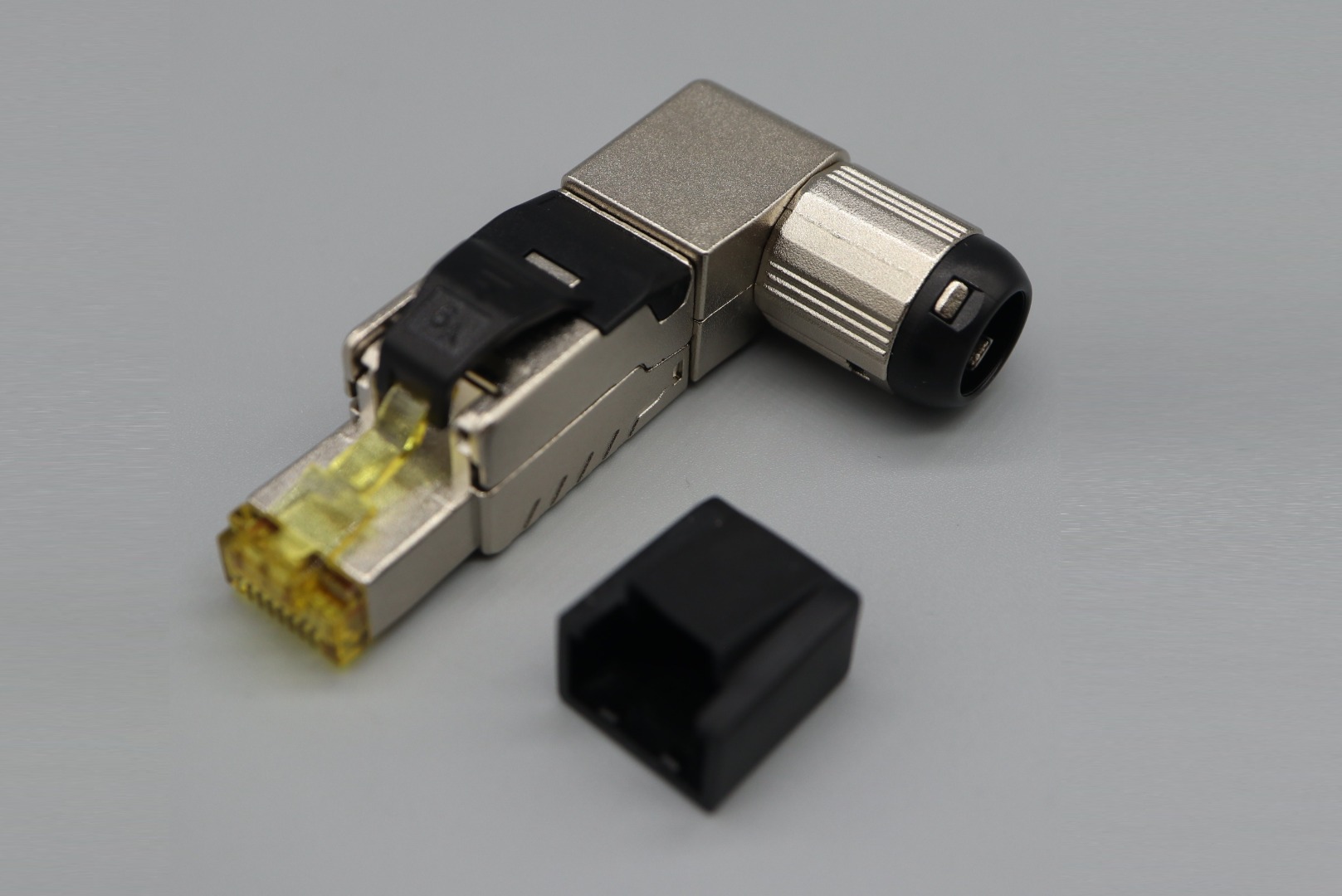

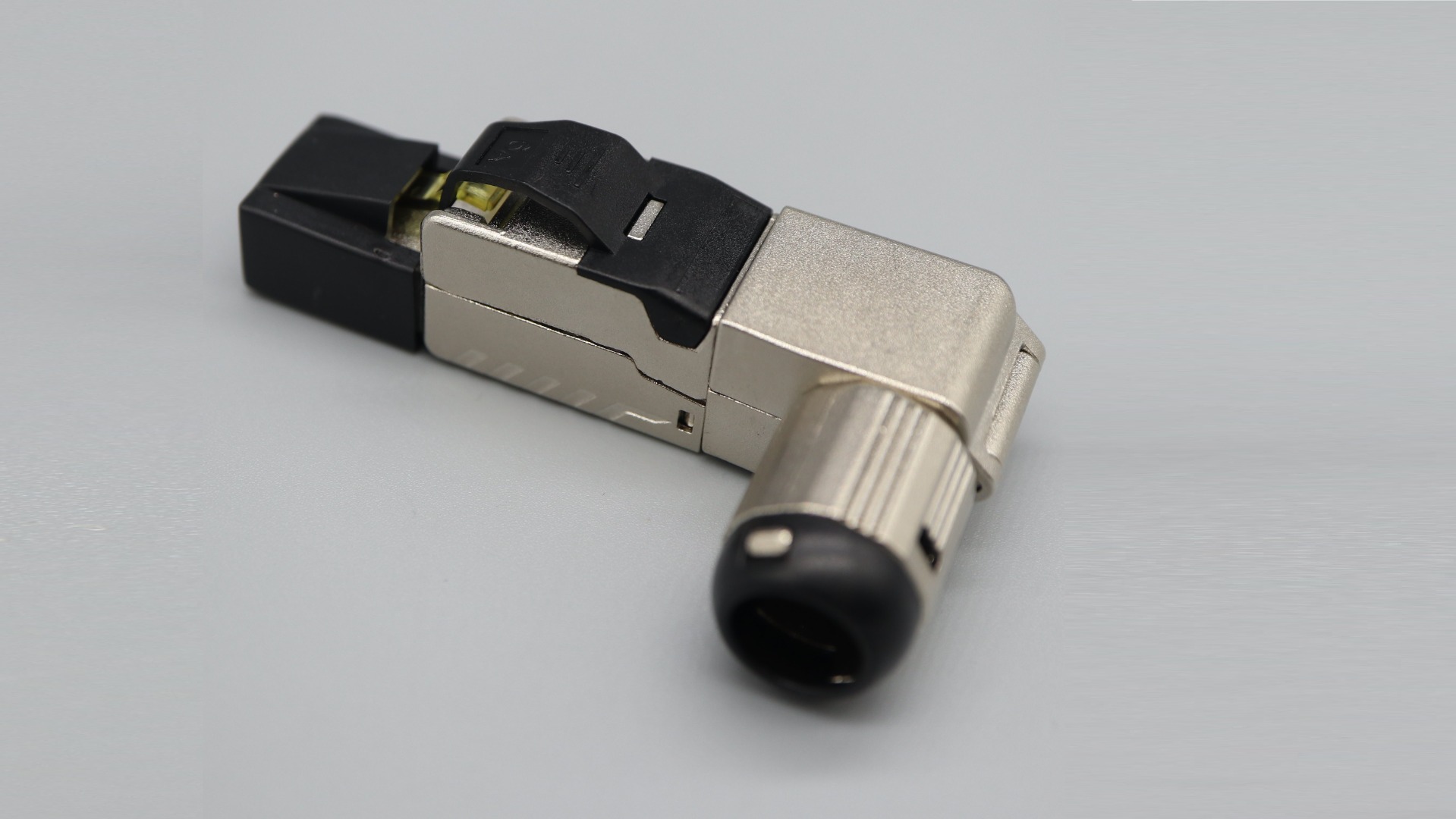

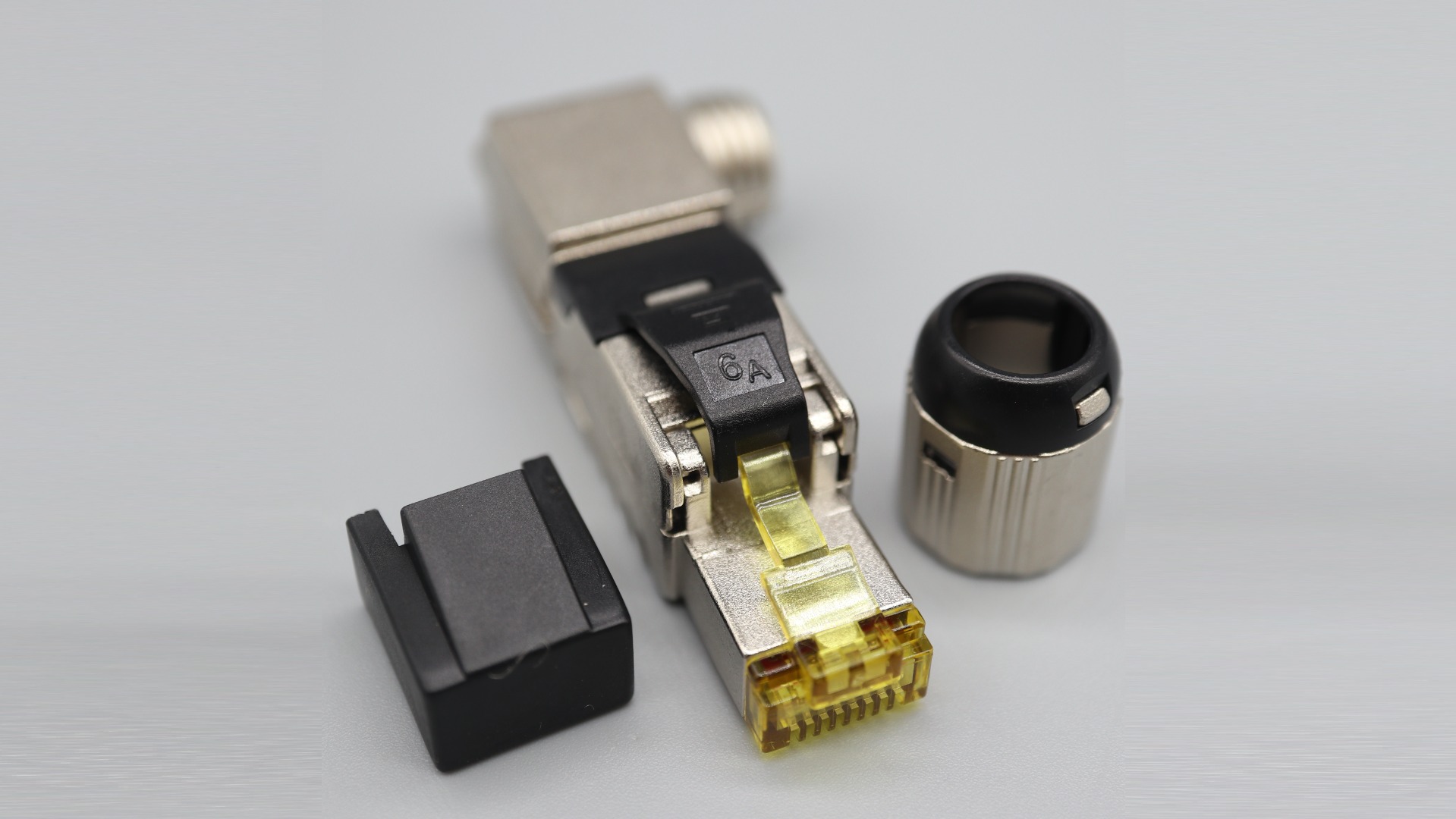

P8-084-1 , P8-084-2 RJ45 Cat.6A Full Shielded Field Termination plug - 4 DIRECTIONS - Screw-fit boot type (Short Body)
Features :
▲ Tool Free
▲ Performance guarantee
▲ Easy and quick installation, Reliable and Comfortable.
▲ Fully Shielded, Screw-fit Boot type
▲ Short body Type
▲ 4 Directions (90 degree)
Performance :
▲ Cat. 6A Patch Cord Component Level
Recommended Cable Specification :
| Part No. |
P8-084-1 , P8-084-2
RJ45 Cat.6A Full Shielded Field Termination plug - 4 DIRECTIONS - Screw-fit boot type (Short Body) |
| Maximum Cable O.D. Size Supported | P8-084-1 : 6.0~7.5mm P8-084-2 : 7.0~8.5mm |
| Maximum conductor W/insulation O.D. Size | P8-084-1: 23 ~ 26 AWG P8-084-2: 22 ~ 24 AWG |
| Conductor type | Solid | Stranded |
| Packaging Features | 1 piece / bag , 50 pieces / white box |
| Operation Temperature | -10℃ to 60 ℃ |
| Storage temperature | -40℃ to 70℃ |
| Compliance | Meet IEC 60603-7 , ISO/IEC 11801, ANSI/TIA 568.2 , TIA-1096 Chapter 4 and 5 , ROHS/REACH compliant |
