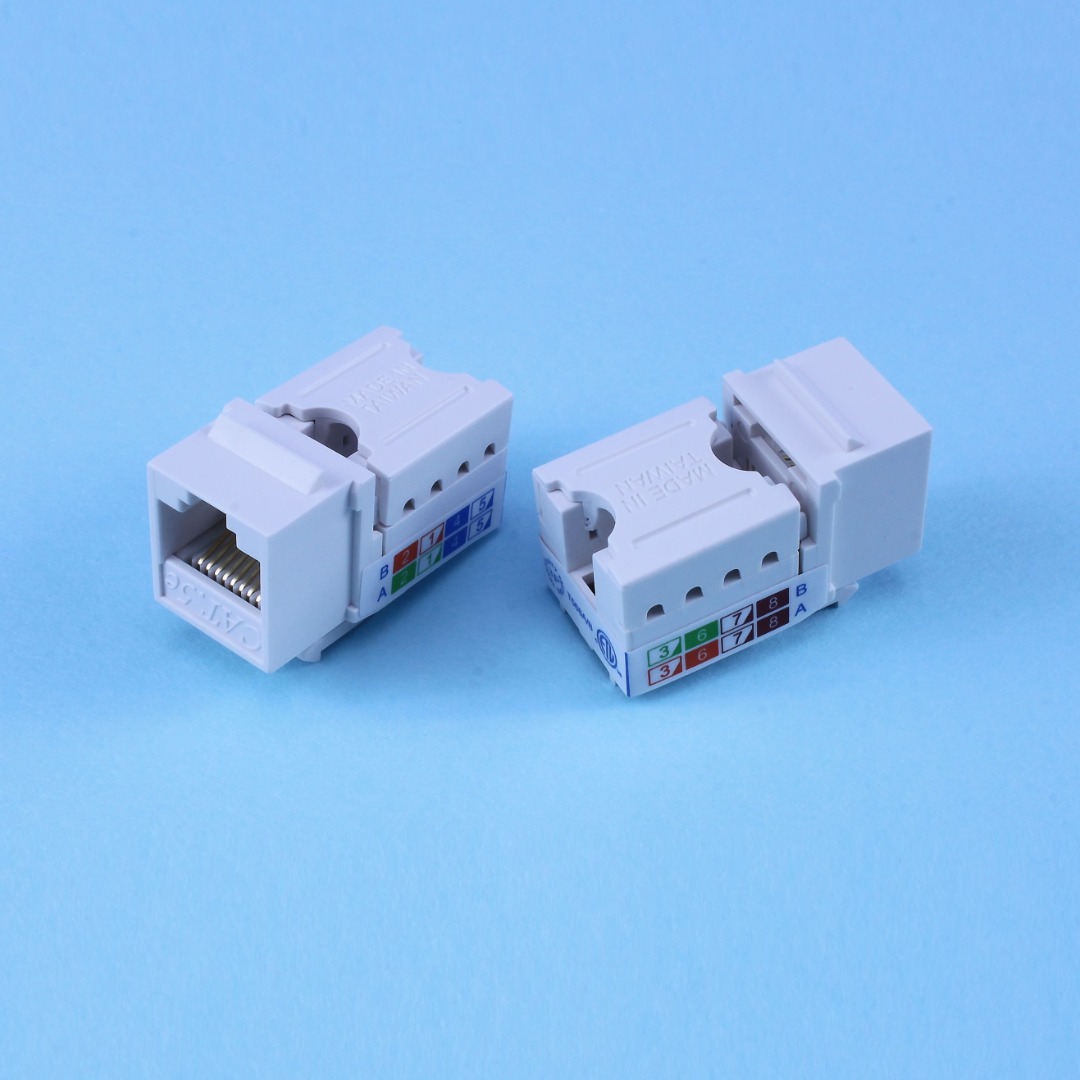

  KJ-PM05-U01 C5e Keystone Jack UTP




  Mechanical Specifications:

  - RoHS

  - Meets C5e EIA/TIA 568B Standard
  - Jack Insertion Cycle: Over 2000 Cycles(min)

  - IDC Punch Down Cycle: Over 250 Cycles(min)
  - Operation Temperature: -40 ~ +70 Degree Celsius





  Materials :



  - Body: Fireproof ABS UL-94V0

  - PCB: FR-4 / UL-94V0

  - Jack: 8P8C 50 micro inches gold plated

  - IDC Cap: Fireproof ABS UL-94V0

  - IDC Body: Fireproof ABS UL-94V0

  - IDC Pin: Bronze & Tinned



  Electrical Specifications:



  - Insulation Resistance: 500M ohms (min.)

  - Contact Resistance: 20m ohms (max.)

  - Current Rating: 1.5 Amps.

  - DC Resistance: 0.1 ohms (max.)

  - Withstanding Volatage: 1000 VAC RMS @ 60Hz/1min.



  11 Colors : Black, Ivory, Red, Green, White, Blue, Orange, Yellow, Gray, Metal, Tin



  IDC Description :

  For 22-26 Awg

  For 110 punch-down Tool
