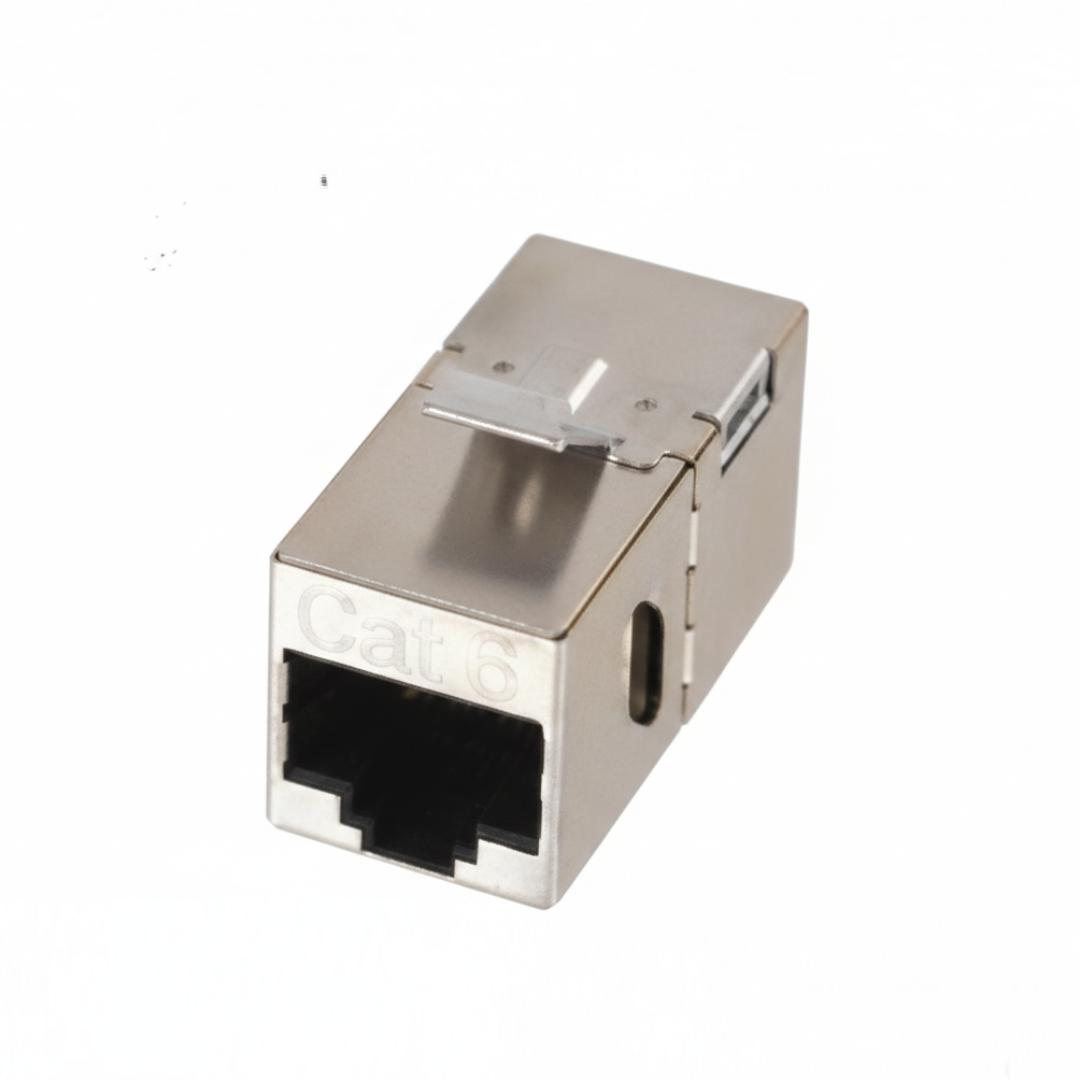

  IC-PM06-03 C6 Inline Coupler STP W/Latch




  Mechanical Specifications:

  - RoHS

  - Meets C6A ANSI/TIA 568 Standard
  - Jack Insertion Cycle: 750 Mating Cycles with FCC Compliant 8P Plug

  - Operation Temperature: -10 ~ +60 Degree Celsius



  Materials :




  - Shielded Case: Brass, Nickel Plated

  - Latch: SUS304

  - Housing: ABS, UL-94V0

  - Conact Holder: ABS, UL-94V0

  - Jack Contacts: Phosphor Bronze, 50U" gold plated



  Electrical Specifications:



  - Insulation Resistance: 500M ohms (min.)

  - Contact Resistance: 20m ohms (max.)

  - Current Rating: 1.5 Amps.

  - DC Resistance: 0.1 ohms (max.)

  - Dielectric withstanding Voltage: 1000V AC.



  Color Available: White , Black
