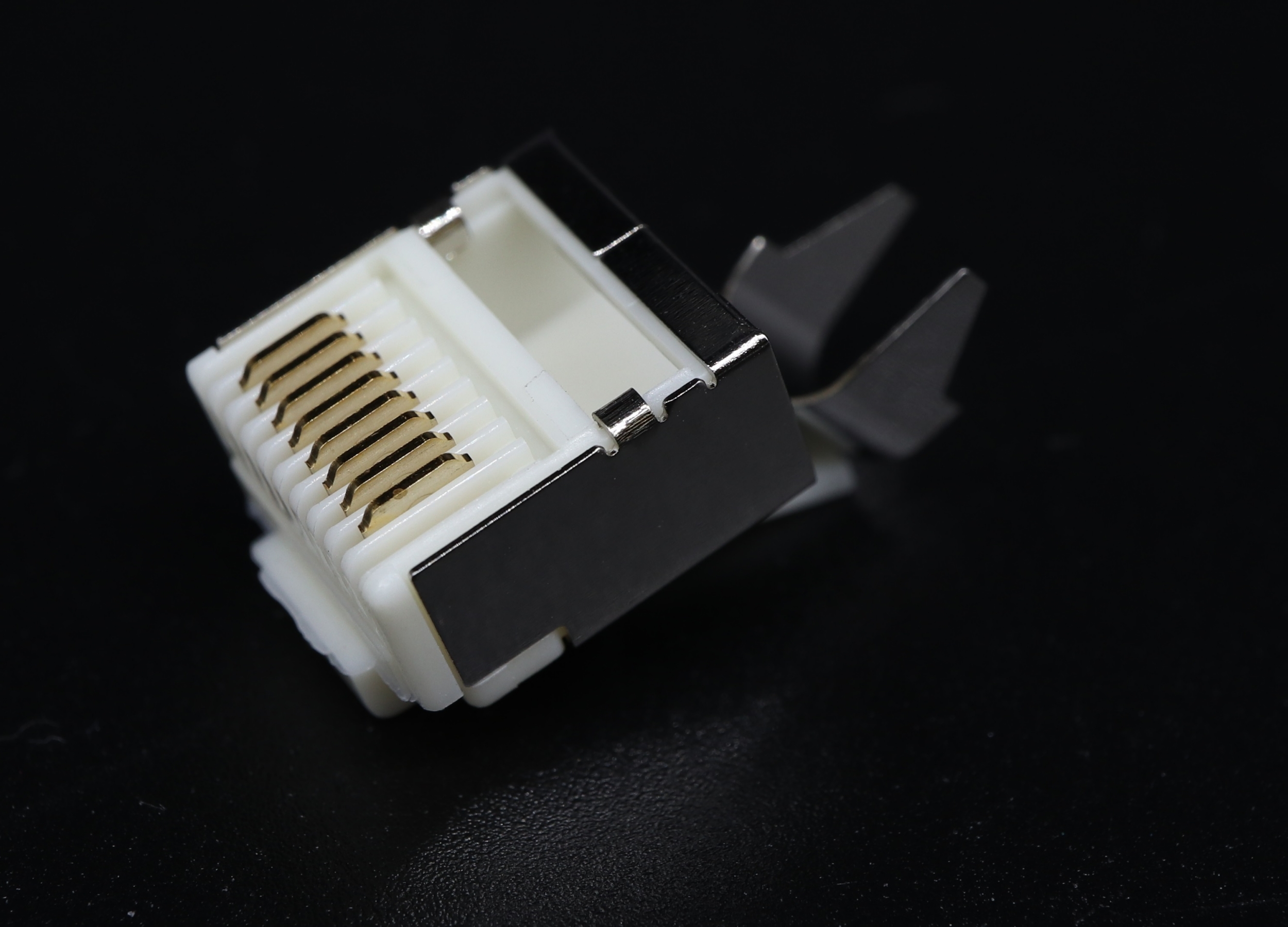

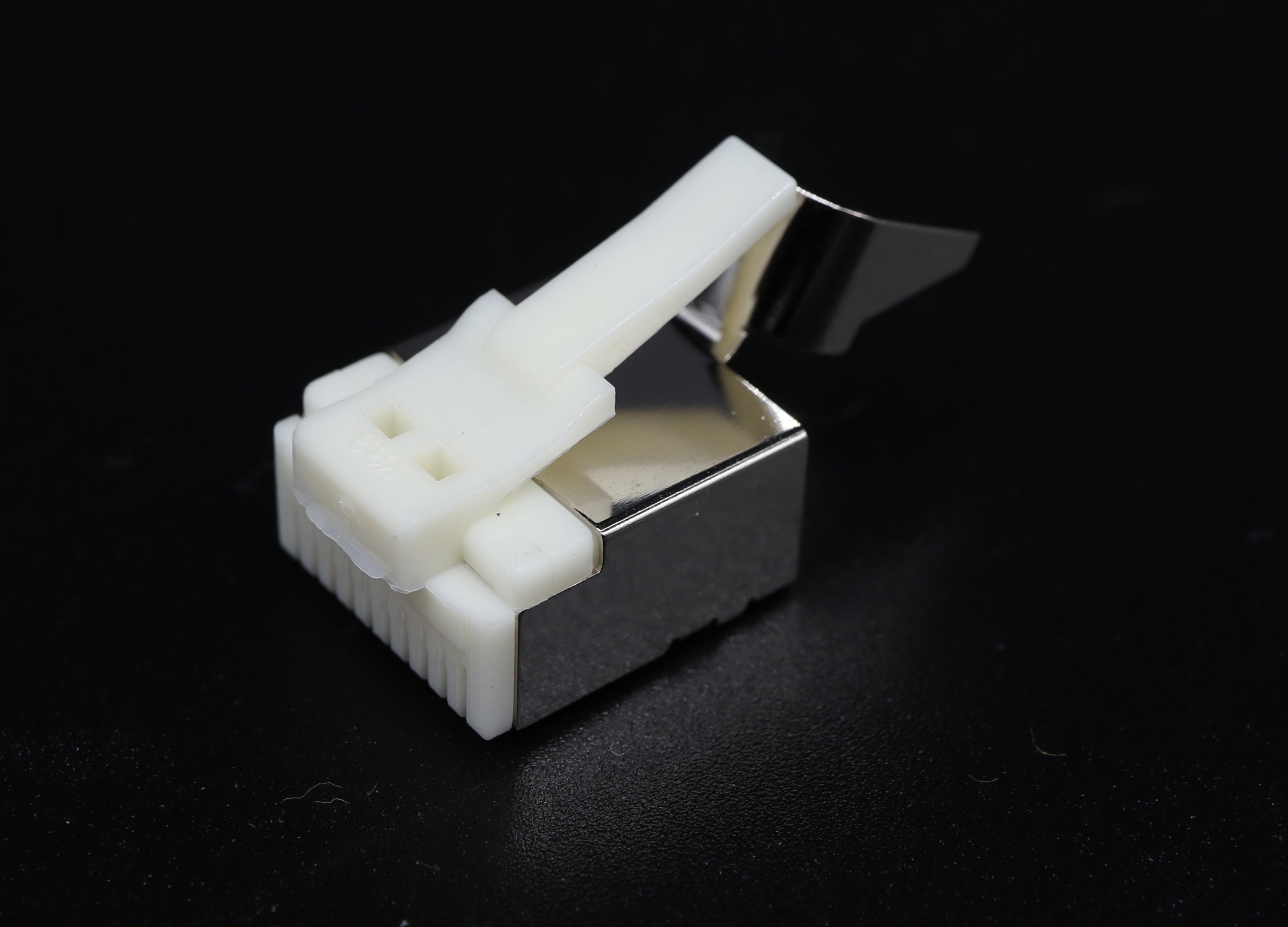

    P8-S88 RJ45 Modular Plug Cat.6A Shielded Nylon S-8P8C F-L

Drawing

Part No. P8-S88
RJ45 Modular Plug Cat.6A Shielded Nylon S-8P8C F-L
Performance Category Cat.6A

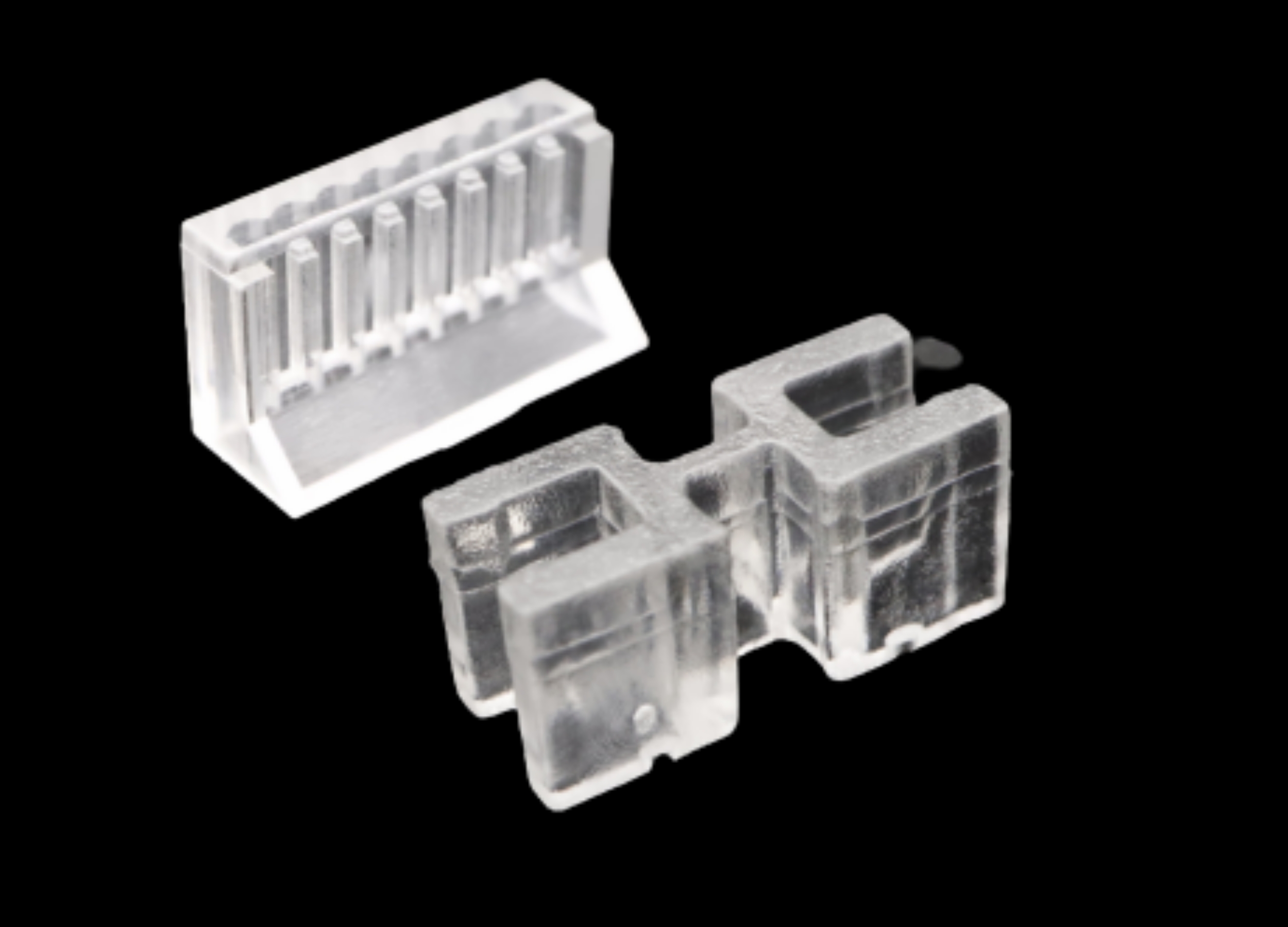

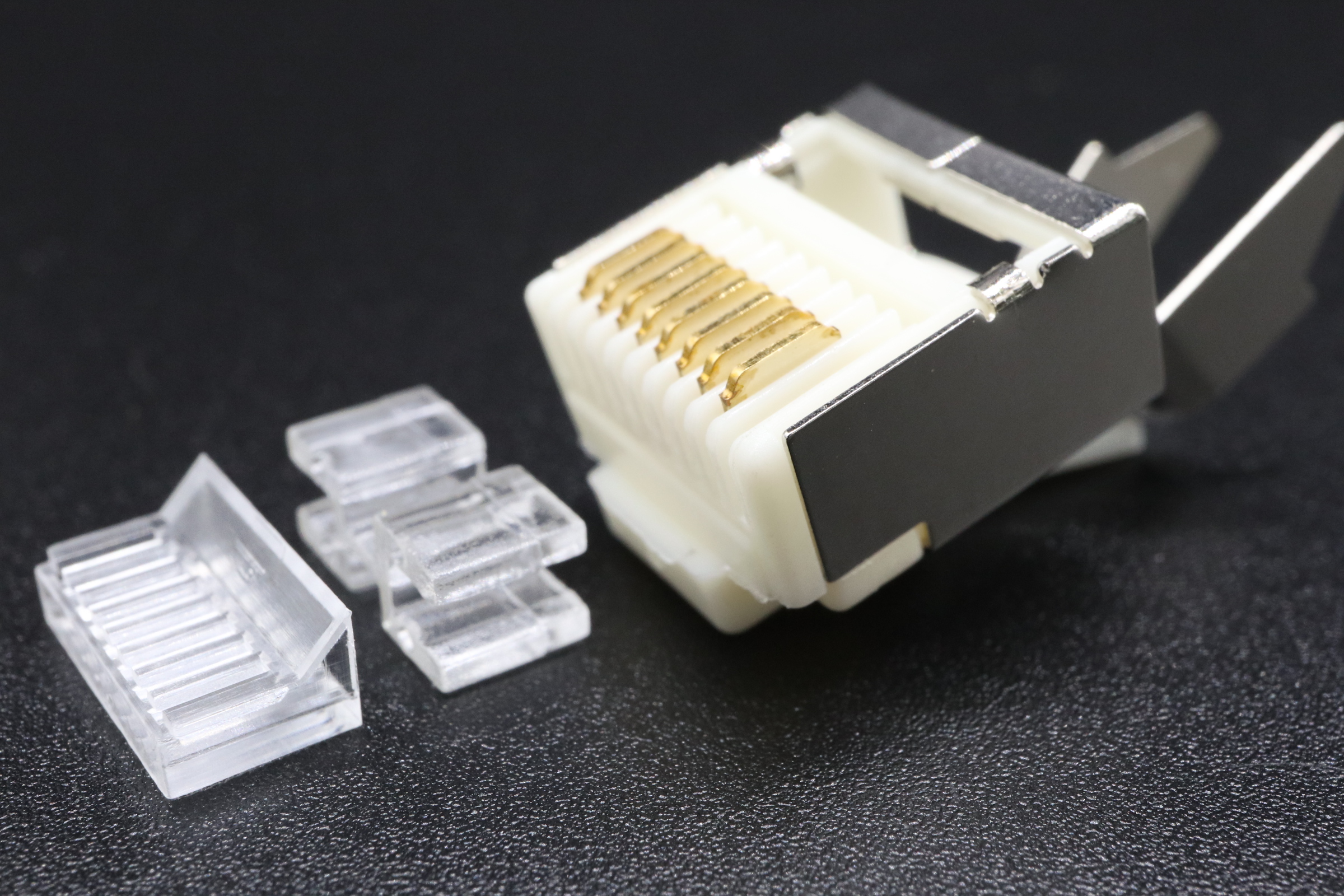

Description S-8P8C F Shielded with cable clip, insert and divider , Nylon
Cable entry hole F
Loading bar Diameter 1.0mm
Wire Insert Diameter 1.0mm
Maximum Cable O.D. Size Supported For Flat Cabe
Maximum conductor W/insulation O.D. Size 1.0mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories N/A
Related Crimping Tools LMJ-8S
