P8-039-9 +P8-I040 Extraction prevented Plug. ( PATENTED) To prevent someone extract your plug uncarefully.
| Part No. |
P8-039-9 +P8-I040
Extraction prevented Plug. ( PATENTED) To prevent someone extract your plug uncarefully. |
| Performance Category | Cat. 6 |
| Description |

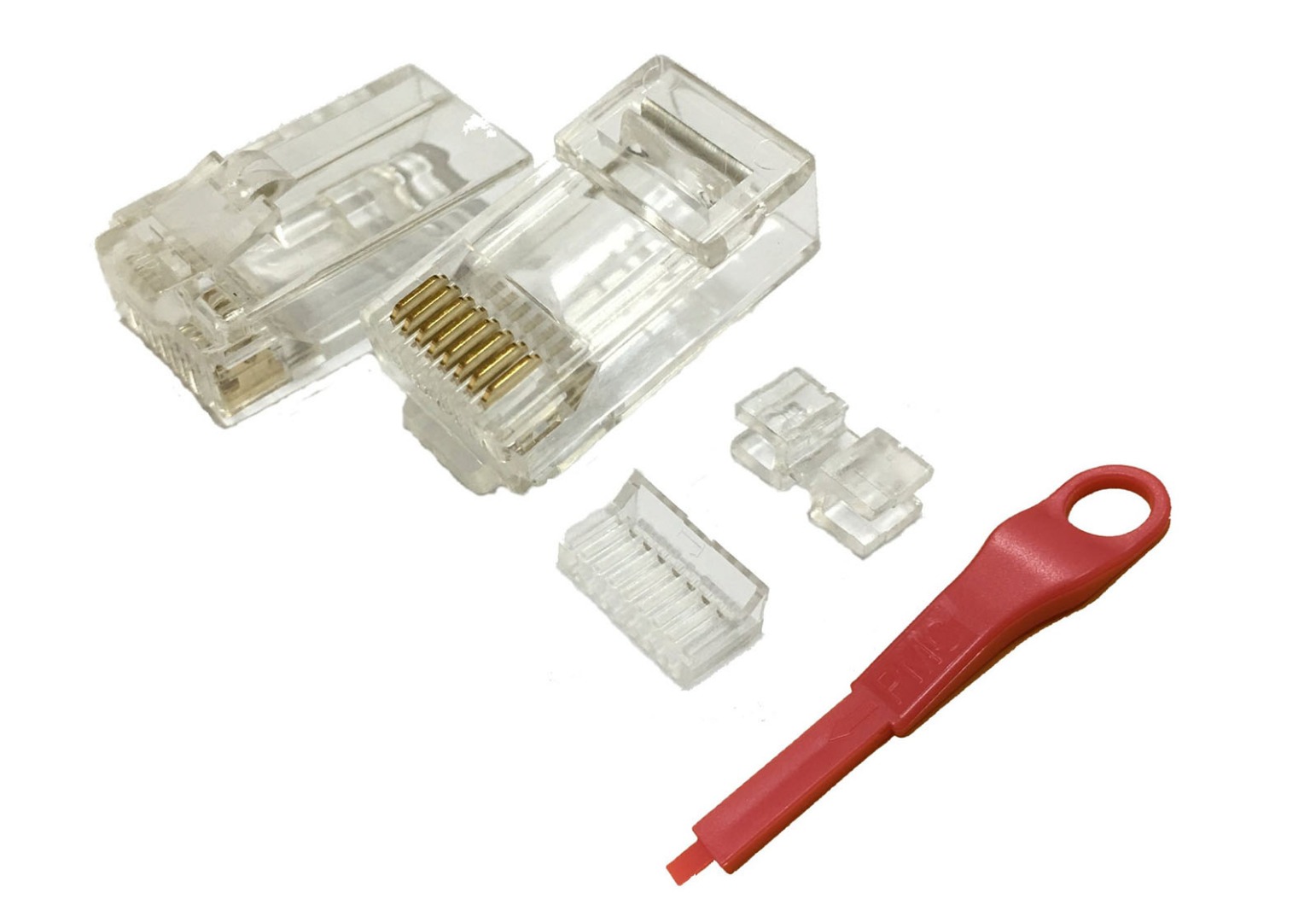

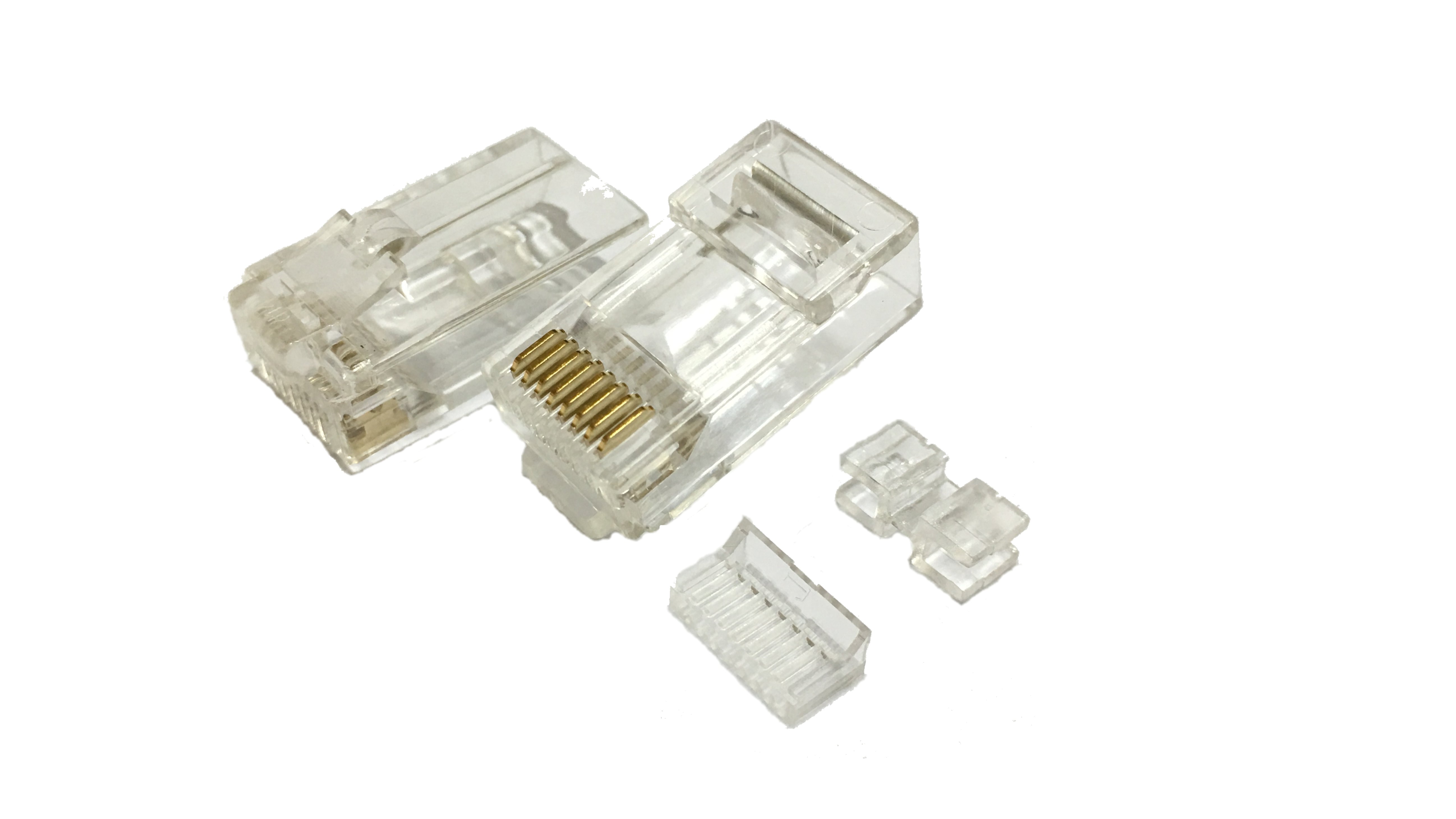

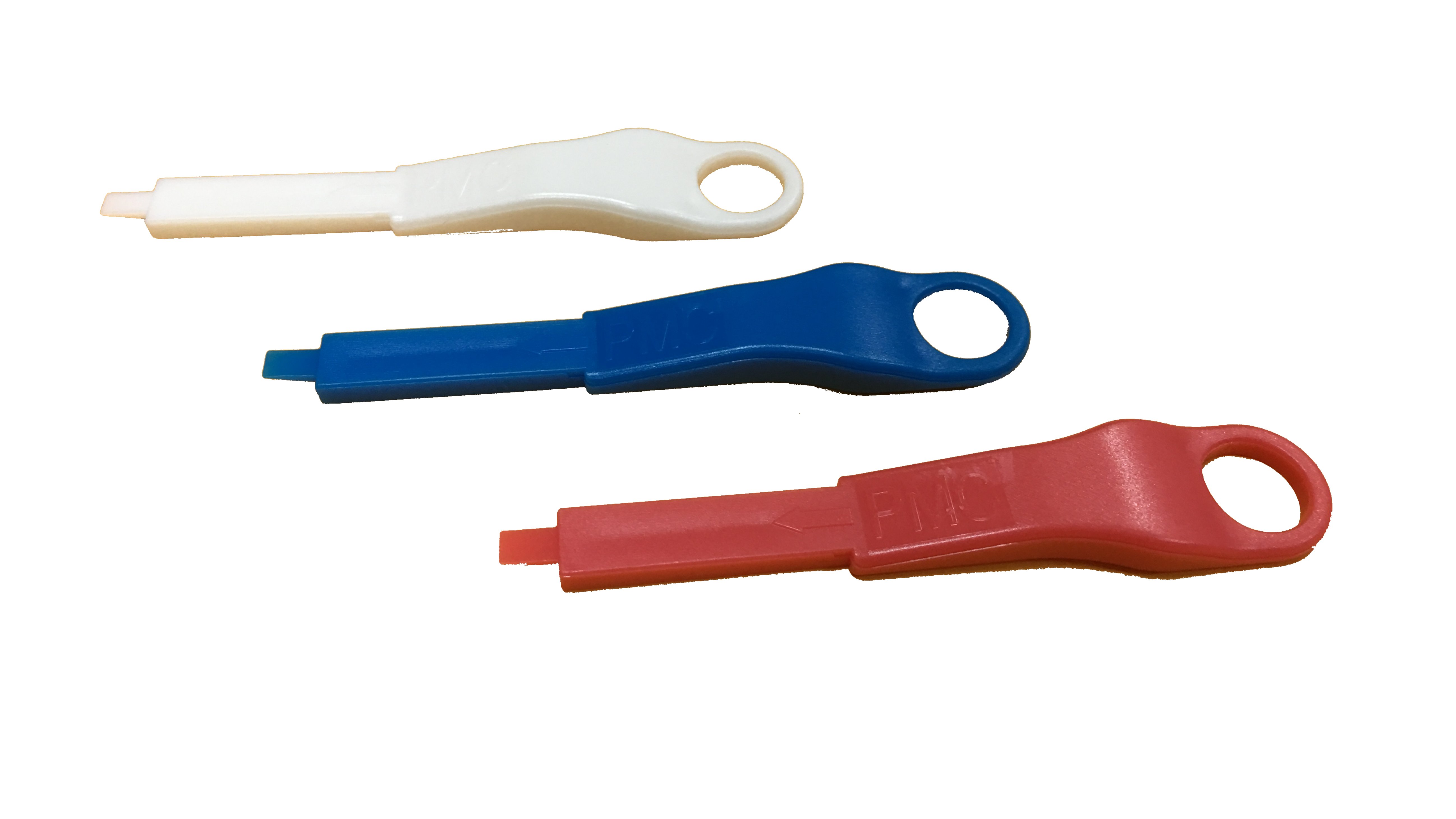

8P8C-2R-V UTP Short latch Plug, with divider and load bar + Removal tool |
| Cable entry hole | 2R-V |
| Loading bar Diameter | 1.0mm |
| Wire Insert Diameter | 1.0mm |
| Maximum Cable O.D. Size Supported | For Round Cable |
| Maximum conductor W/insulation O.D. Size | 1.0mm |
| Conductor type | Solid | Stranded |
| Packaging Features | 1000pcs/bag |
| Plug Housing Material | UL 94V-0 or 94V2 rated clear Polycarbonate (PC) |
| Contact Blades Material | Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating |
| Operation Temperature | - 10℃ ~60 ℃ |
| Storage temperature | - 40℃ ~ 70℃ |
| Compliance | Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant |
| Related Accessories | SR-032M |
| Related Crimping Tools | PM-3008R |
