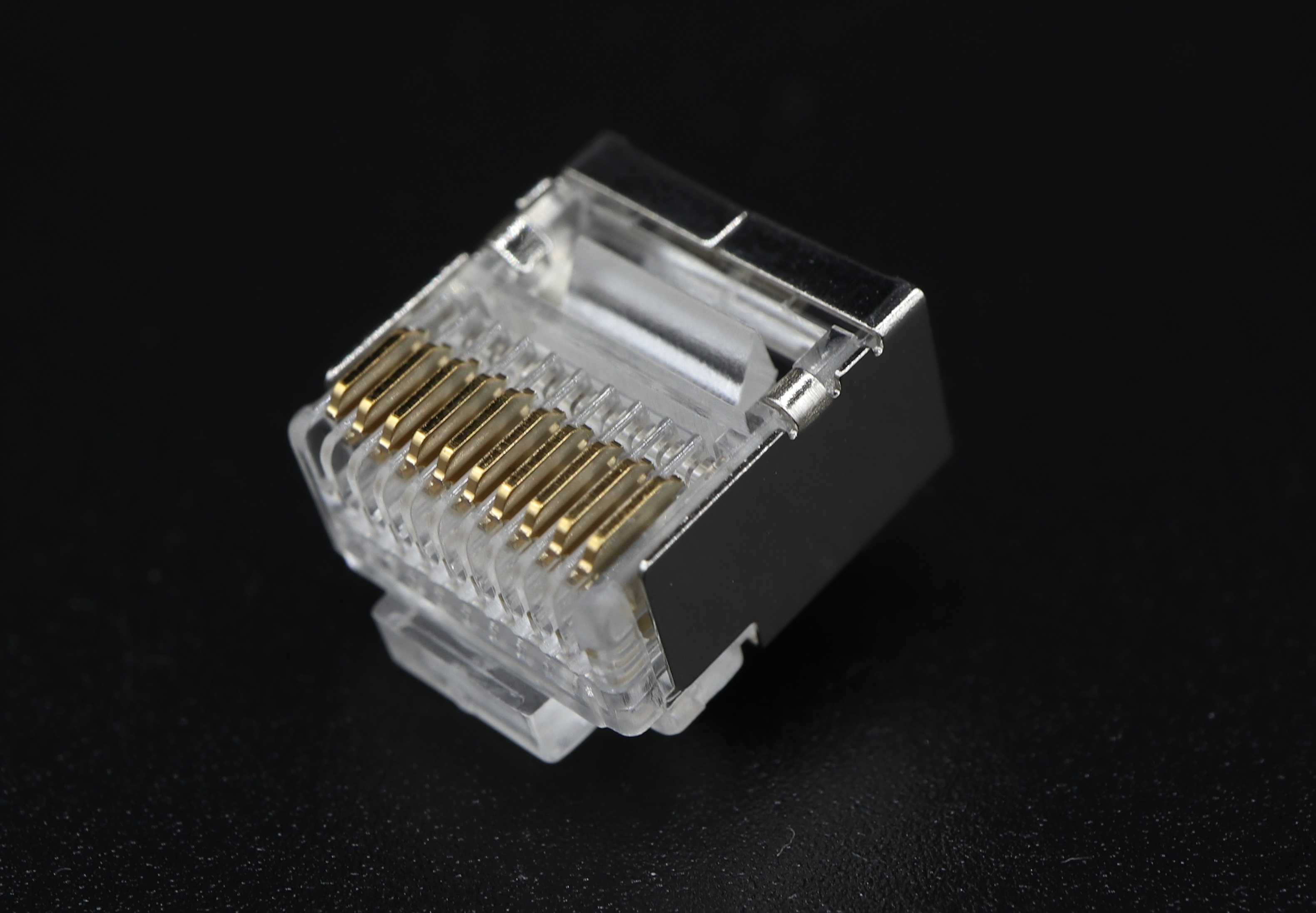

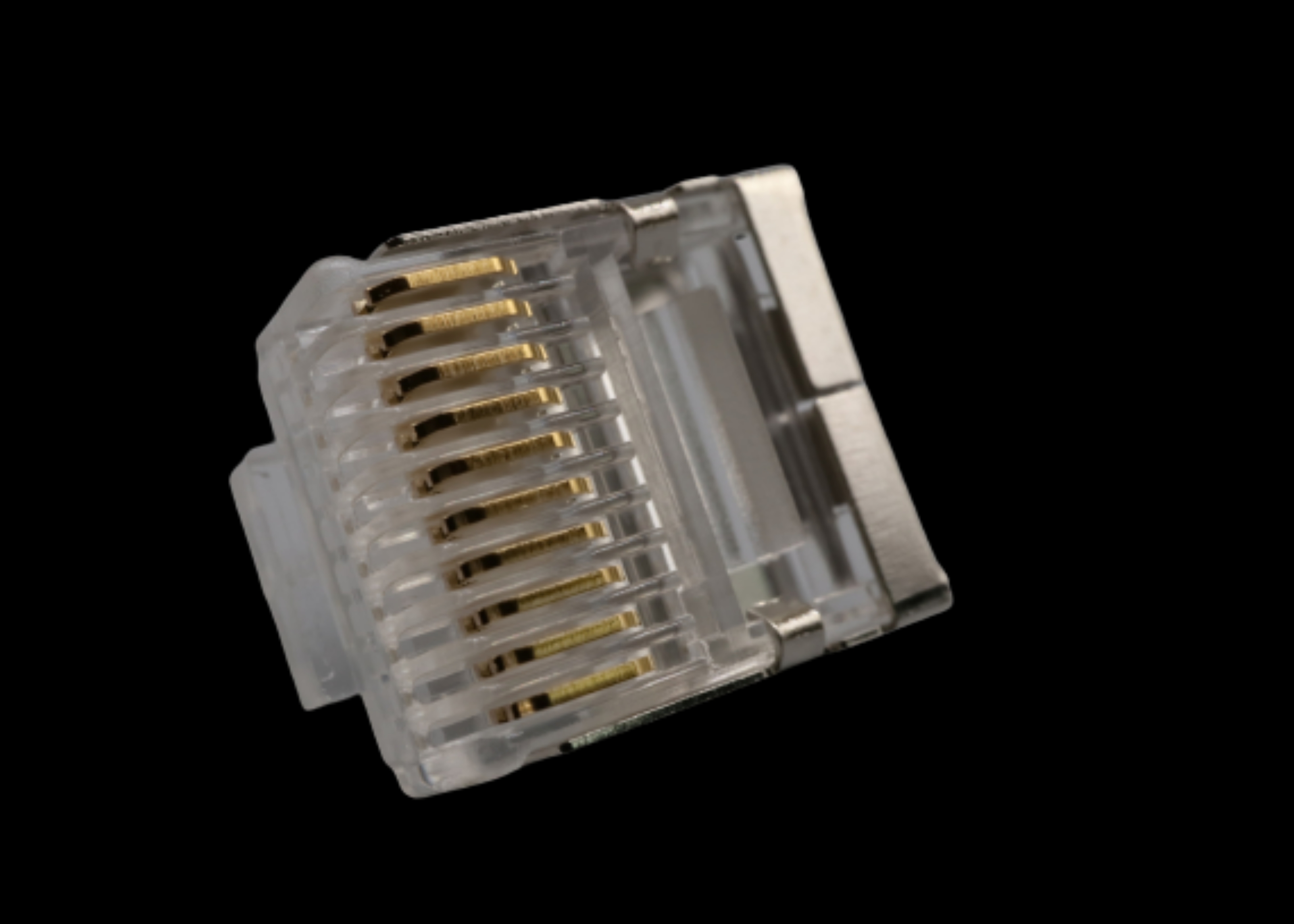

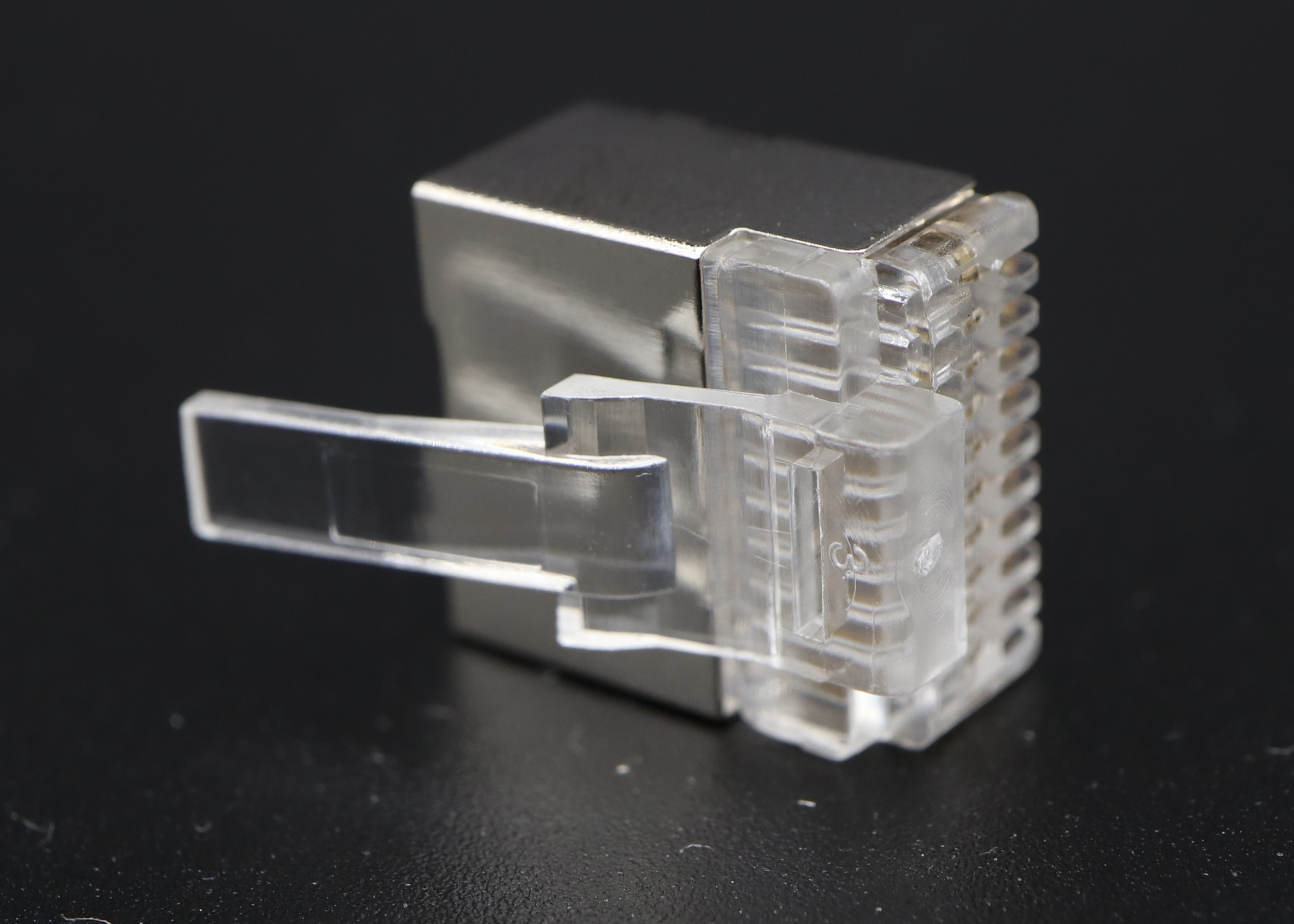

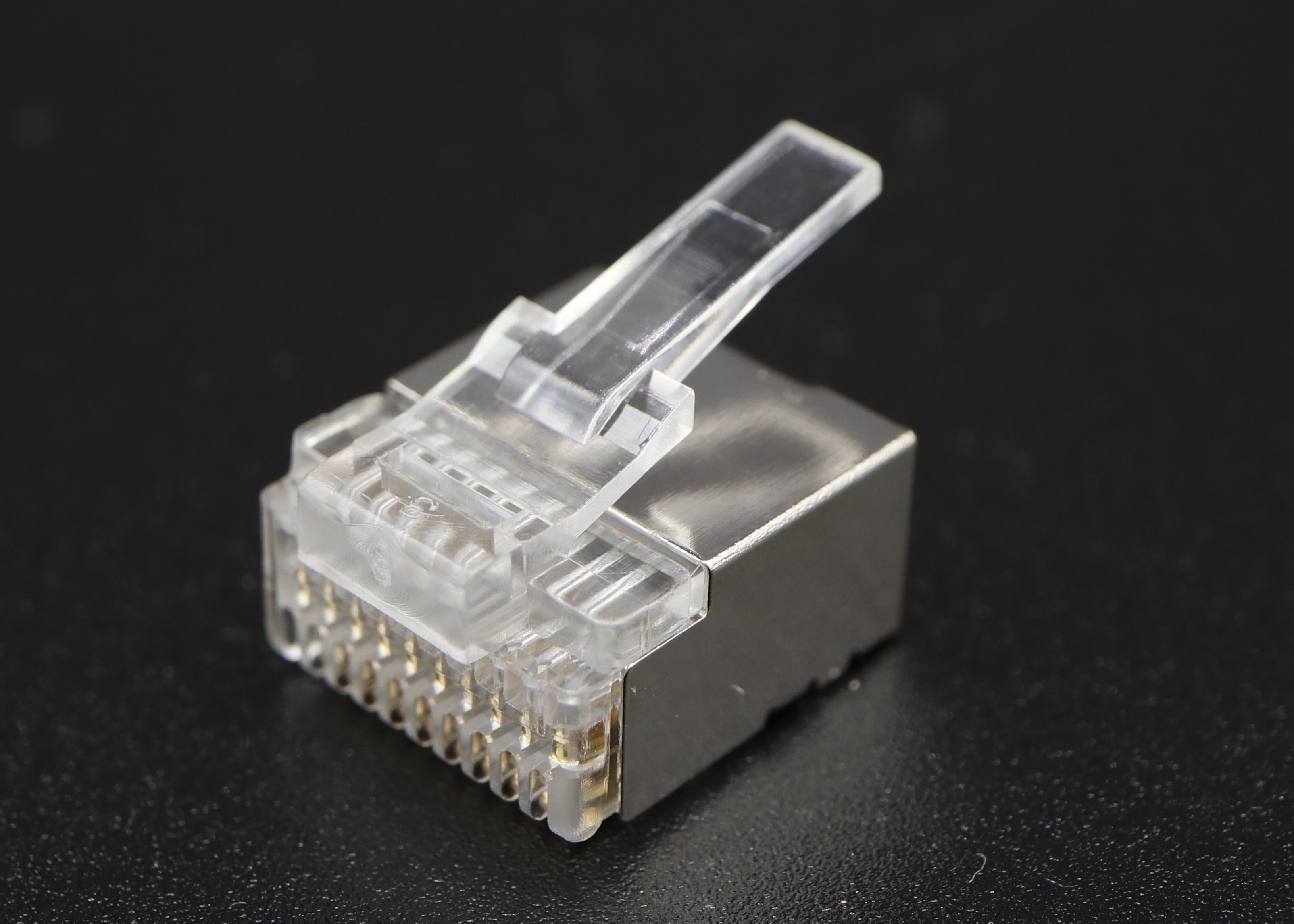

• P10-S02 RJ48 Modular Plug S-10P10C-F-L Shielded
    P10-S02 RJ48 Modular Plug S-10P10C-F-L Shielded P10-S02 RJ48 Modular Plug S-10P10C-F-L Shielded P10-S02 RJ48 Modular Plug S-10P10C-F-L Shielded

    P10-S02 RJ48 Modular Plug S-10P10C-F-L Shielded

Drawing

Part No. P10-S02
RJ48 Modular Plug S-10P10C-F-L Shielded
Performance Category N/A
Description S-10P10C-F-L Shielded
Cable entry hole F
Loading bar Diameter N/A
Wire Insert Diameter 1.0mm
Maximum Cable O.D. Size Supported For Flat Cable
Maximum conductor W/insulation O.D. Size 1.0mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories N/A
Related Crimping Tools N/A

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Part No. P10-S02
Housing Material
Contact Type
Gold Plating
Packaging Quantity
Housing Color: Clear or other colors are available.
Other Remark (OEM logo ,Small packing)
