| Part No. |
P8-S78

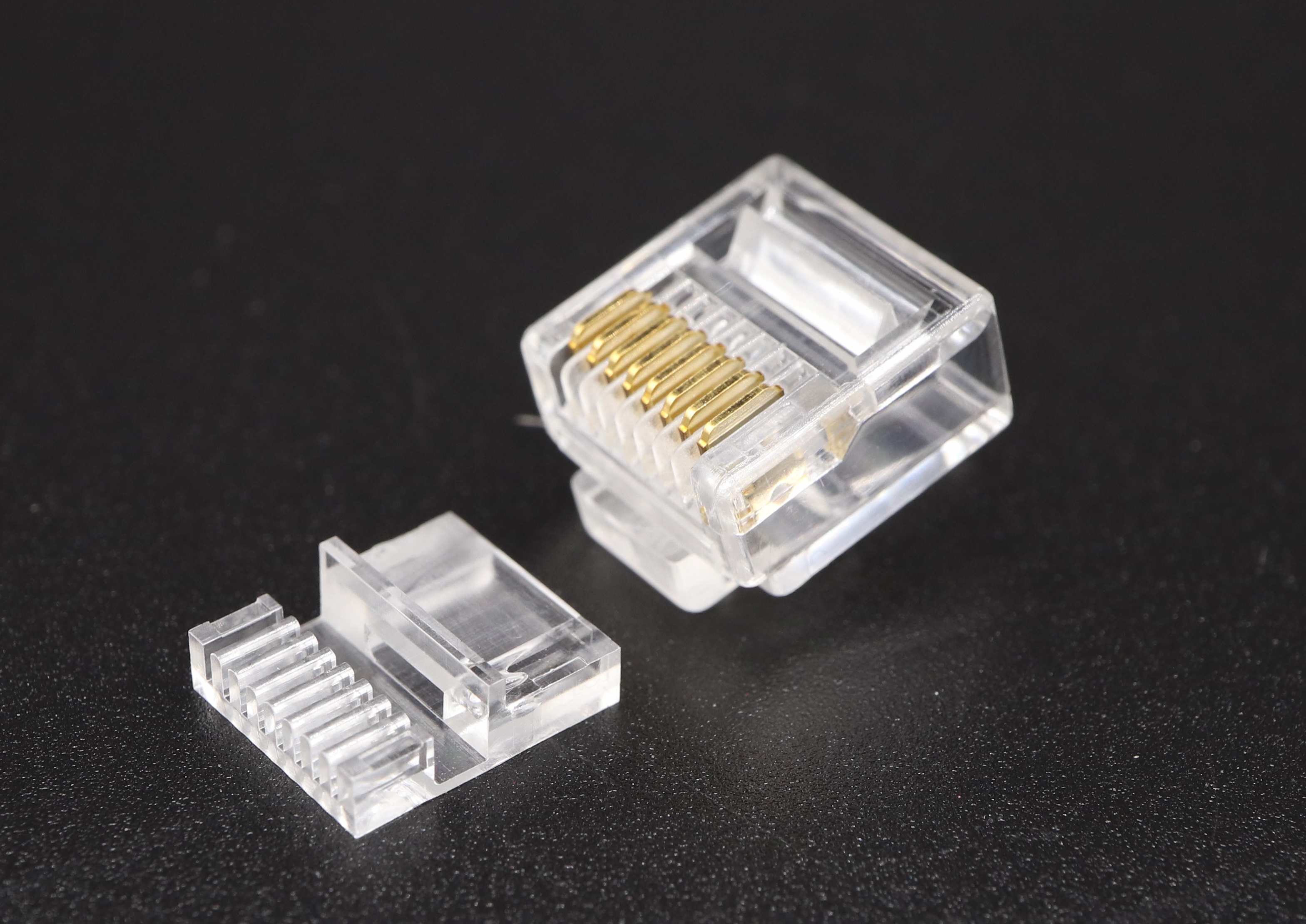

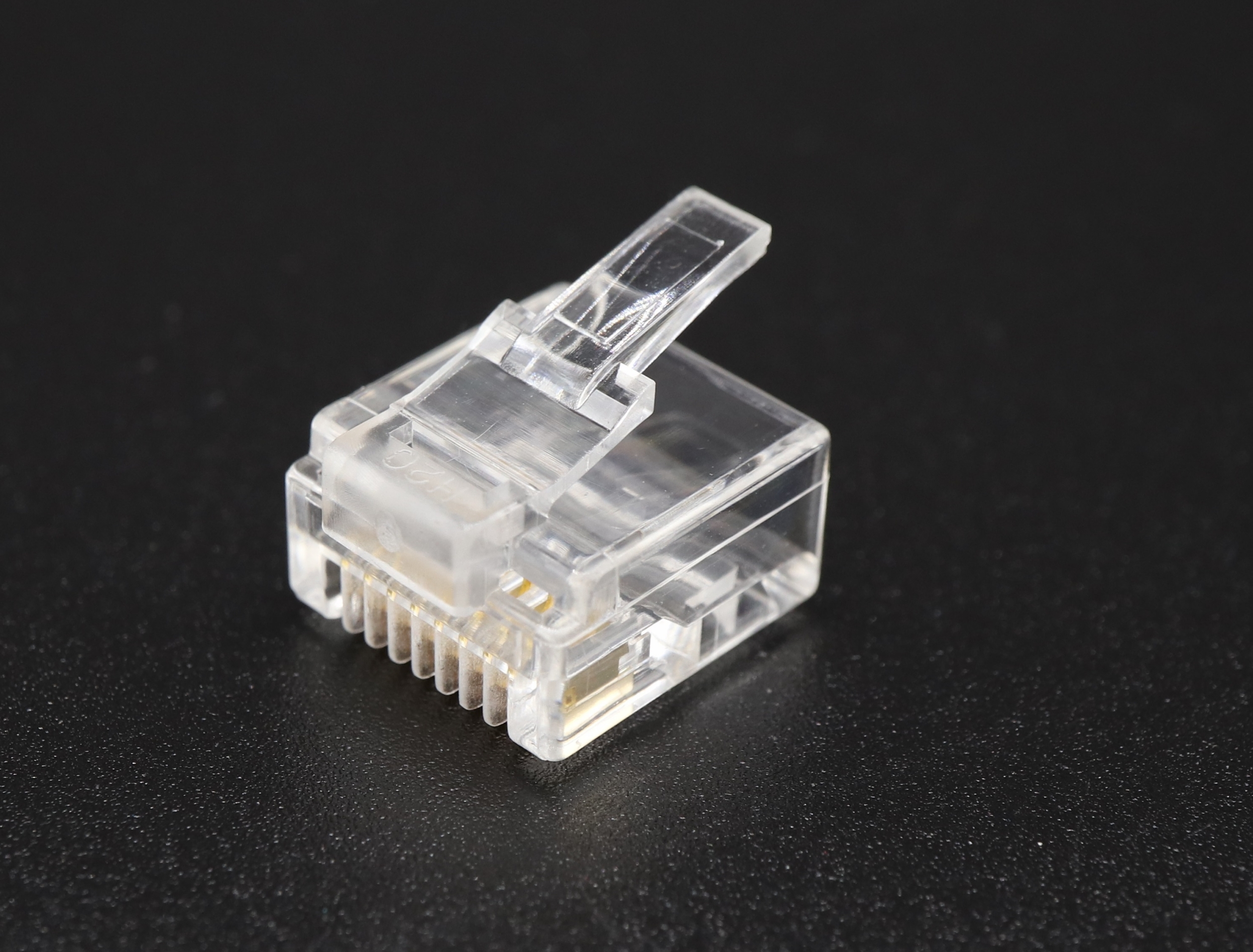

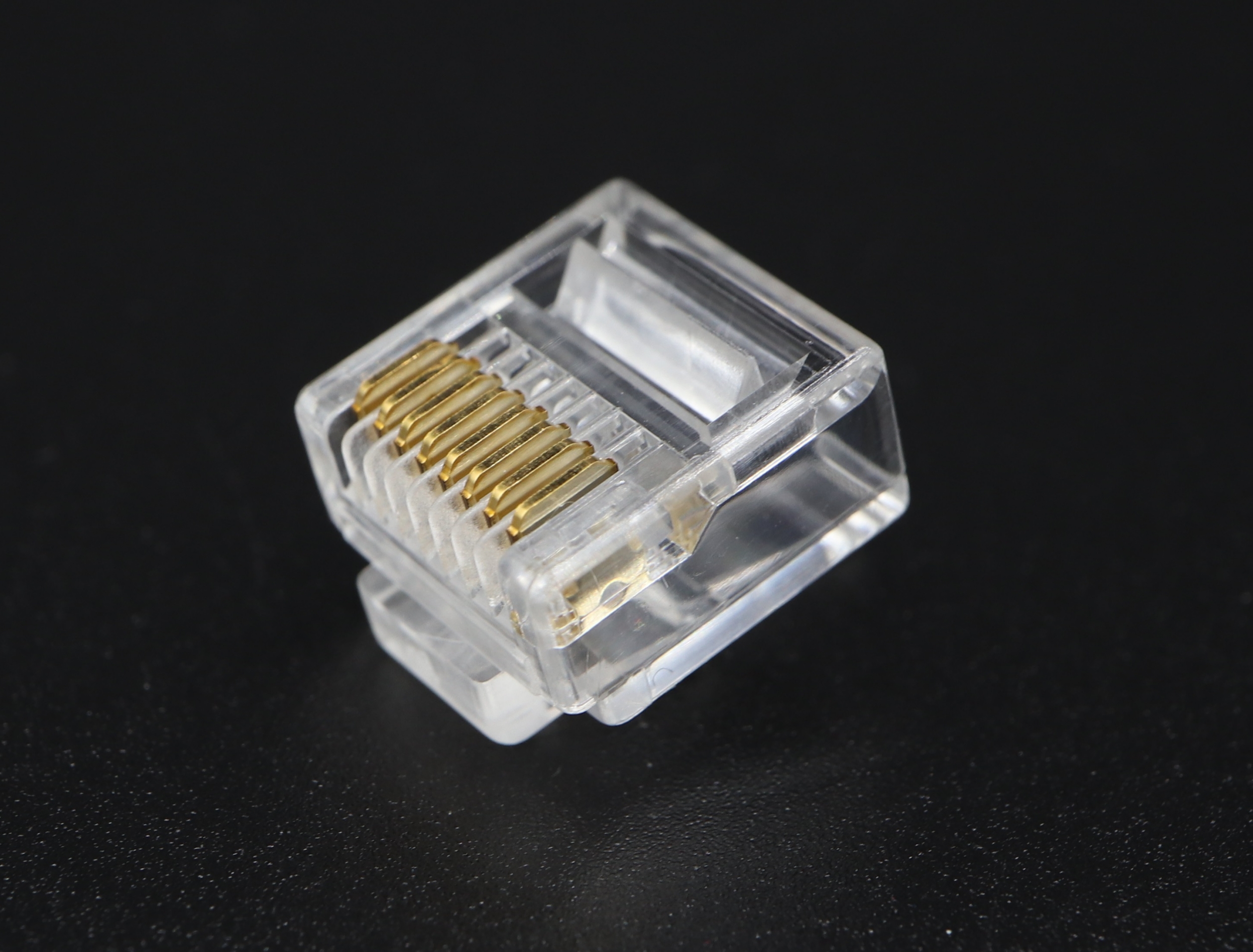

RJ45 Modular Plug Cat.6 UTP S-8P8C-F 0.6mm |
| Performance Category | Cat.6 |

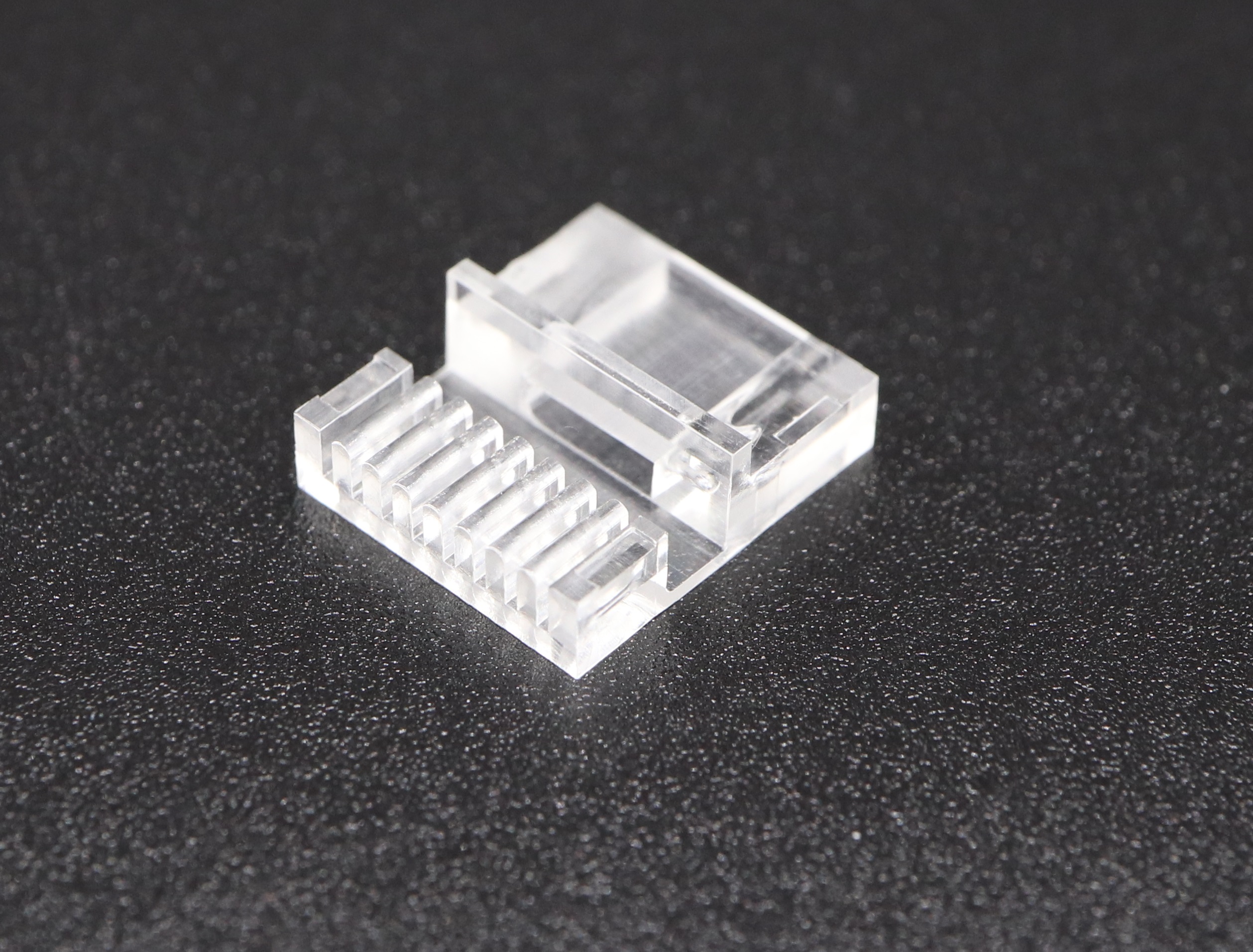

| Description | S-8P8C-F with insert 0.6mm |
| Cable entry hole | F |
| Loading bar Diameter | N/A |
| Wire Insert Diameter | 0.6mm |
| Maximum Cable O.D. Size Supported | For Flat Cable |
| Maximum conductor W/insulation O.D. Size | 0.6mm |
| Conductor type | Solid | Stranded |
| Packaging Features | 1000pcs/bag |
| Plug Housing Material | UL 94V-0 or 94V2 rated clear Polycarbonate (PC) |
| Contact Blades Material | Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating |
| Operation Temperature | - 10℃ ~60 ℃ |
| Storage temperature | - 40℃ ~ 70℃ |
| Compliance | Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant |
| Related Accessories | |
| Related Crimping Tools | N/A |
