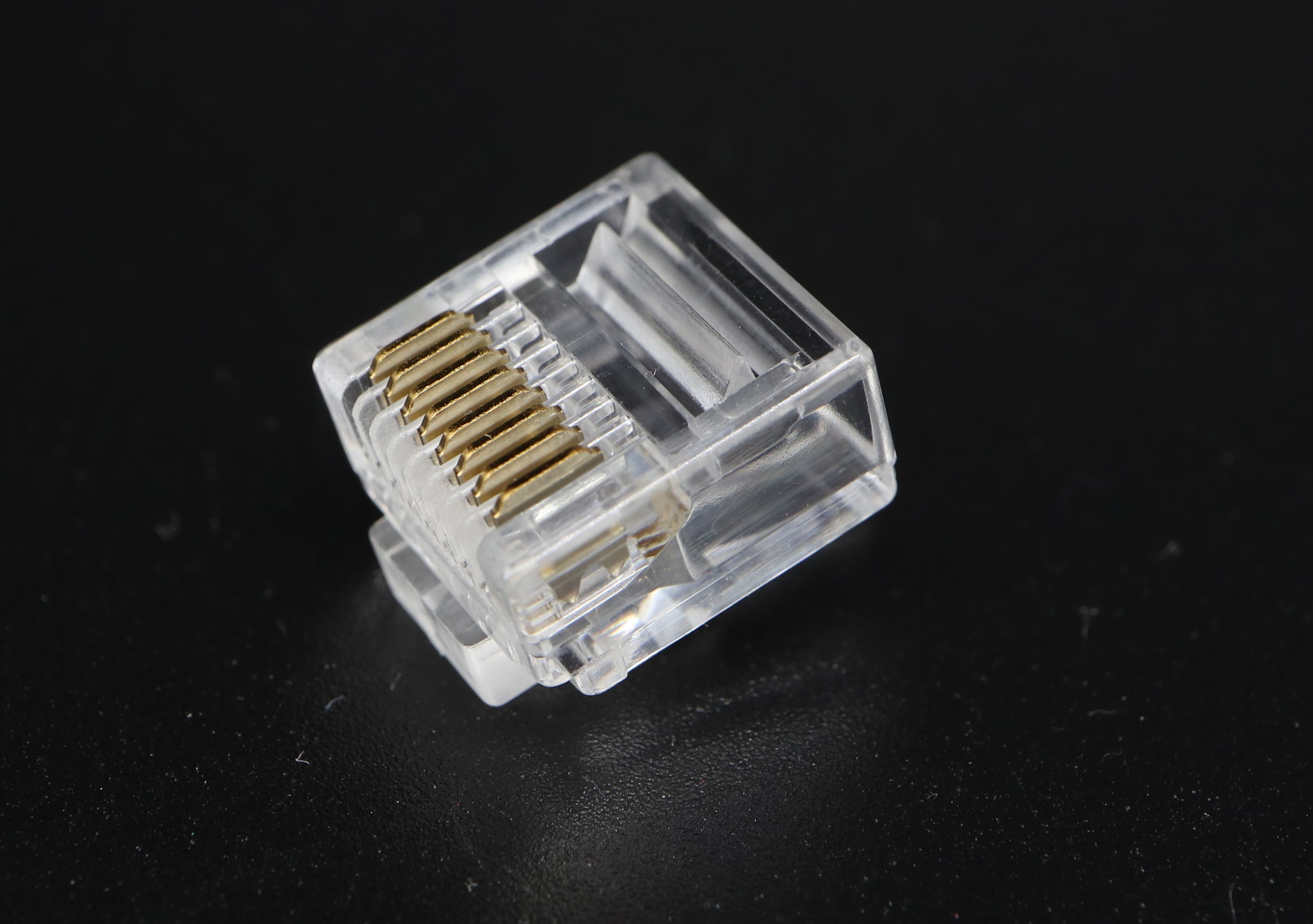

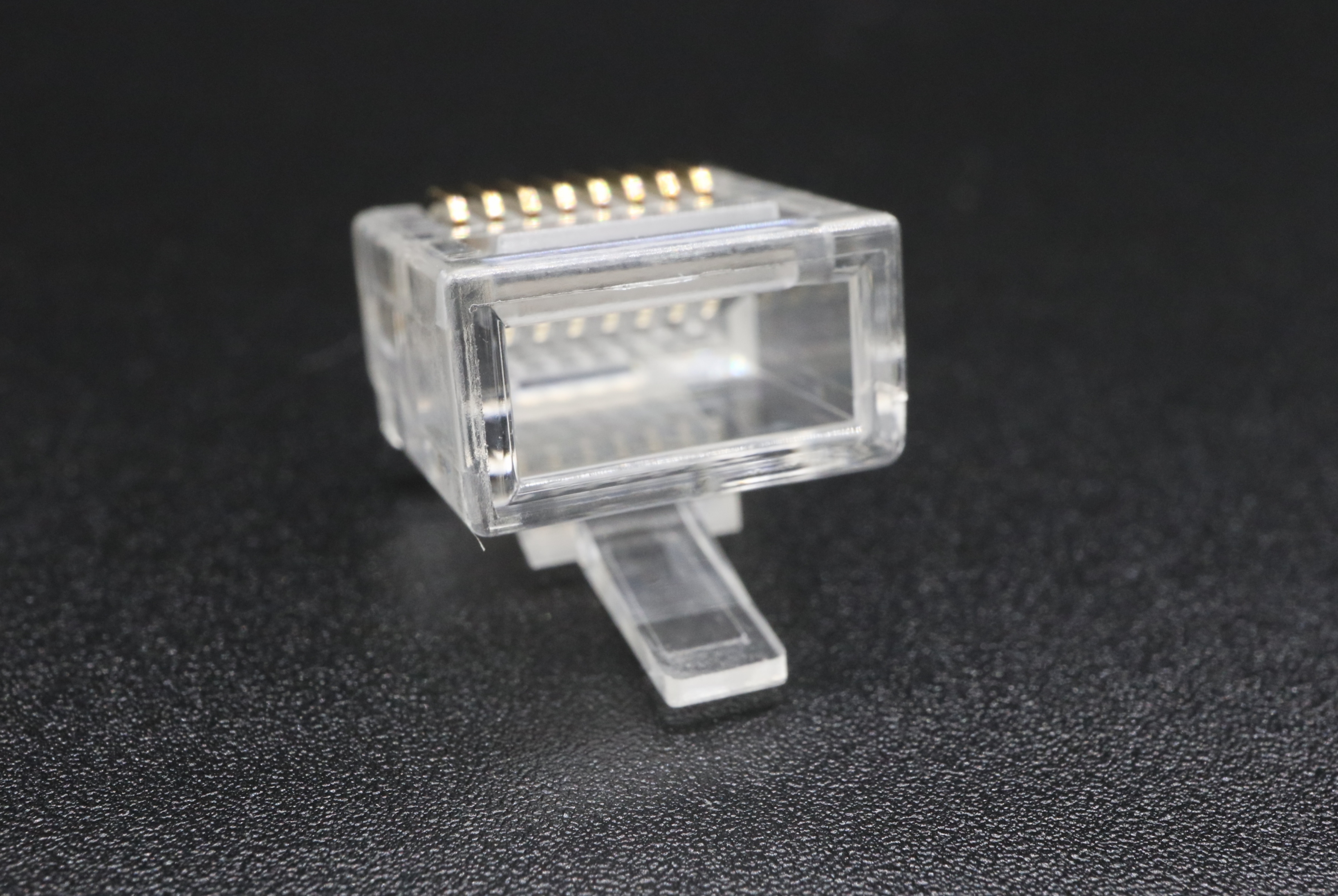

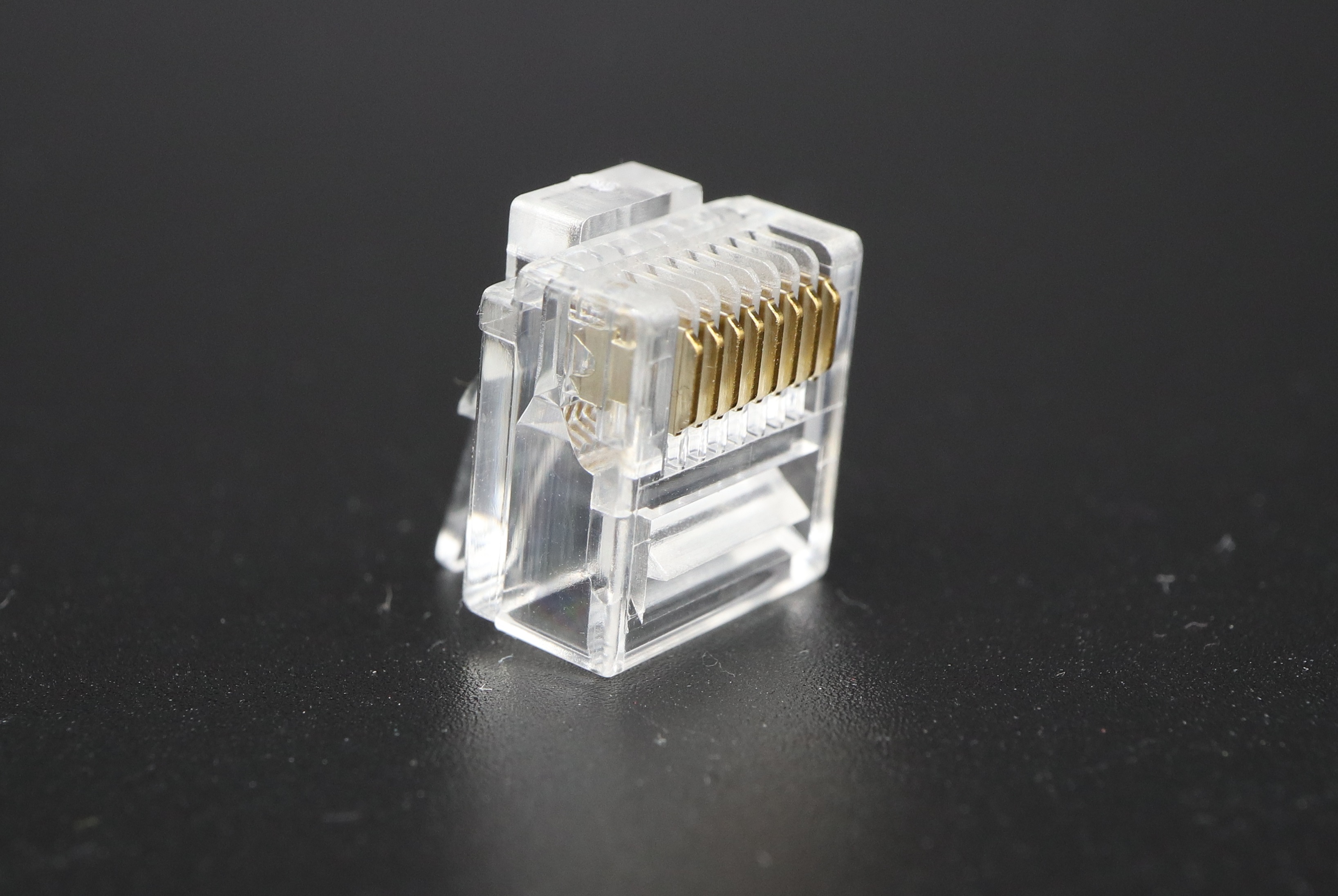

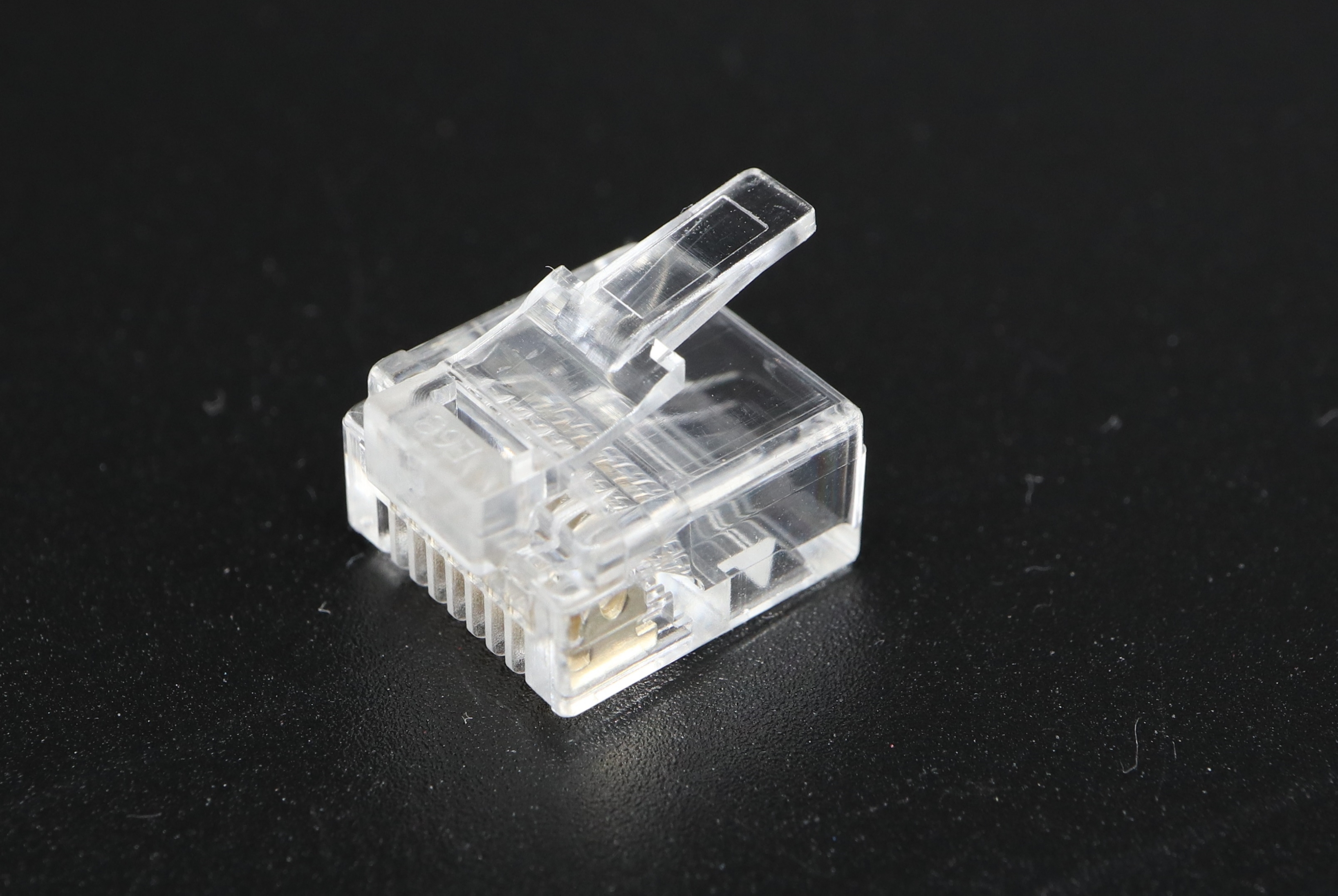

• P8-S53-4 RJ45 Modular Plug Cat.5e UTP S-8P8C-R UTP - Small strain relief
    P8-S53-4 RJ45 Modular Plug Cat.5e UTP S-8P8C-R UTP - Small strain relief P8-S53-4 RJ45 Modular Plug Cat.5e UTP S-8P8C-R UTP - Small strain relief P8-S53-4 RJ45 Modular Plug Cat.5e UTP S-8P8C-R UTP - Small strain relief

    P8-S53-4 RJ45 Modular Plug Cat.5e UTP S-8P8C-R UTP - Small strain relief

    Related Accessories : SR-031

Drawing

Part No. P8-S53-4
RJ45 Modular Plug Cat.5e UTP S-8P8C-R UTP - Small strain relief
Performance Category Cat.5E
Description S-8P8C-R Little Strain Relief
Cable entry hole R
Loading bar Diameter N/A
Wire Insert Diameter 1.0mm
Maximum Cable O.D. Size Supported For Round Cable
Maximum conductor W/insulation O.D. Size 1.0mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories SR-031
Related Crimping Tools N/A

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Part No. P8-S53-4
Housing Material
Contact Type
Gold Plating
Packaging Quantity
Housing Color: Clear or other colors are available.
