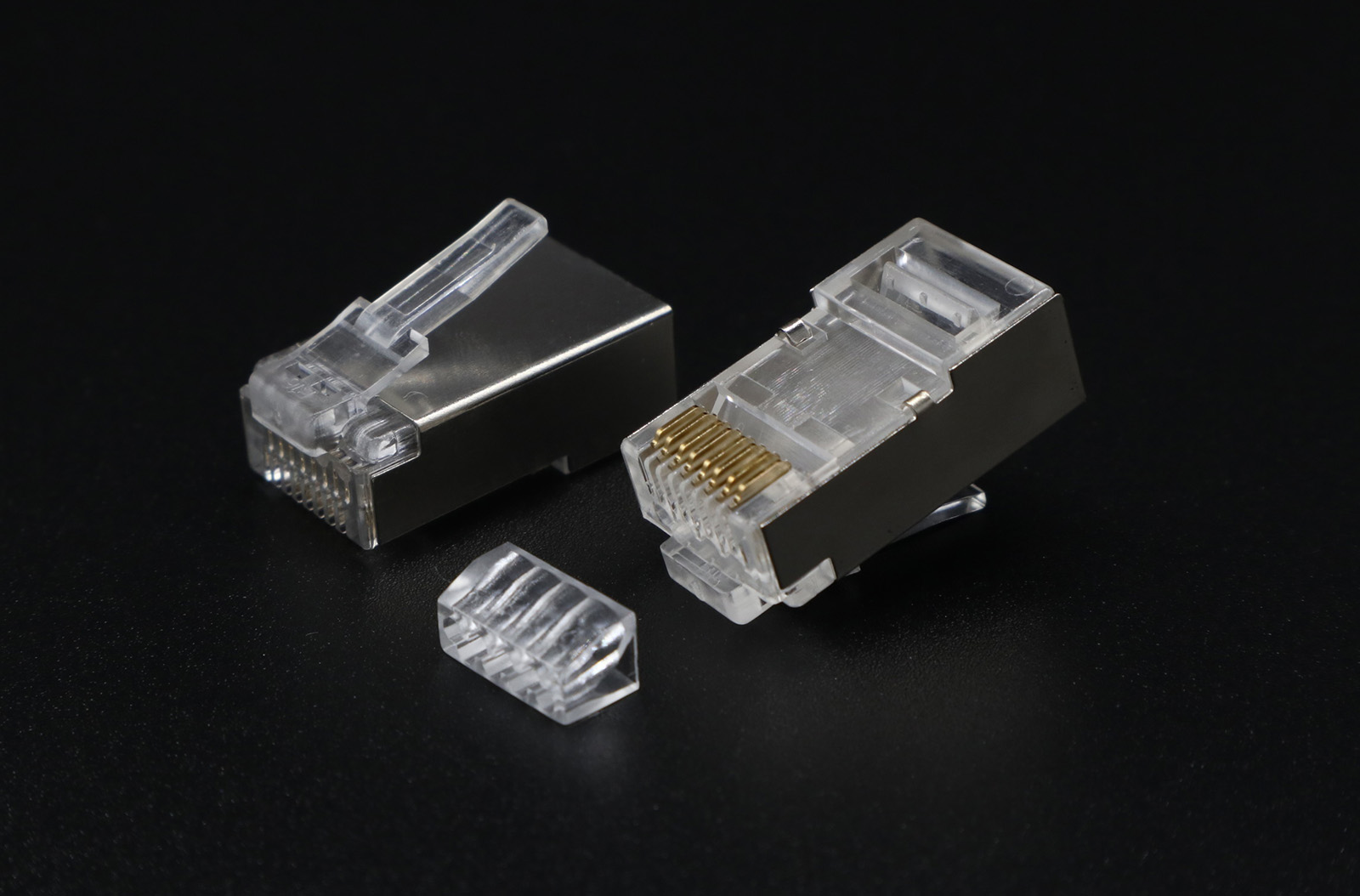

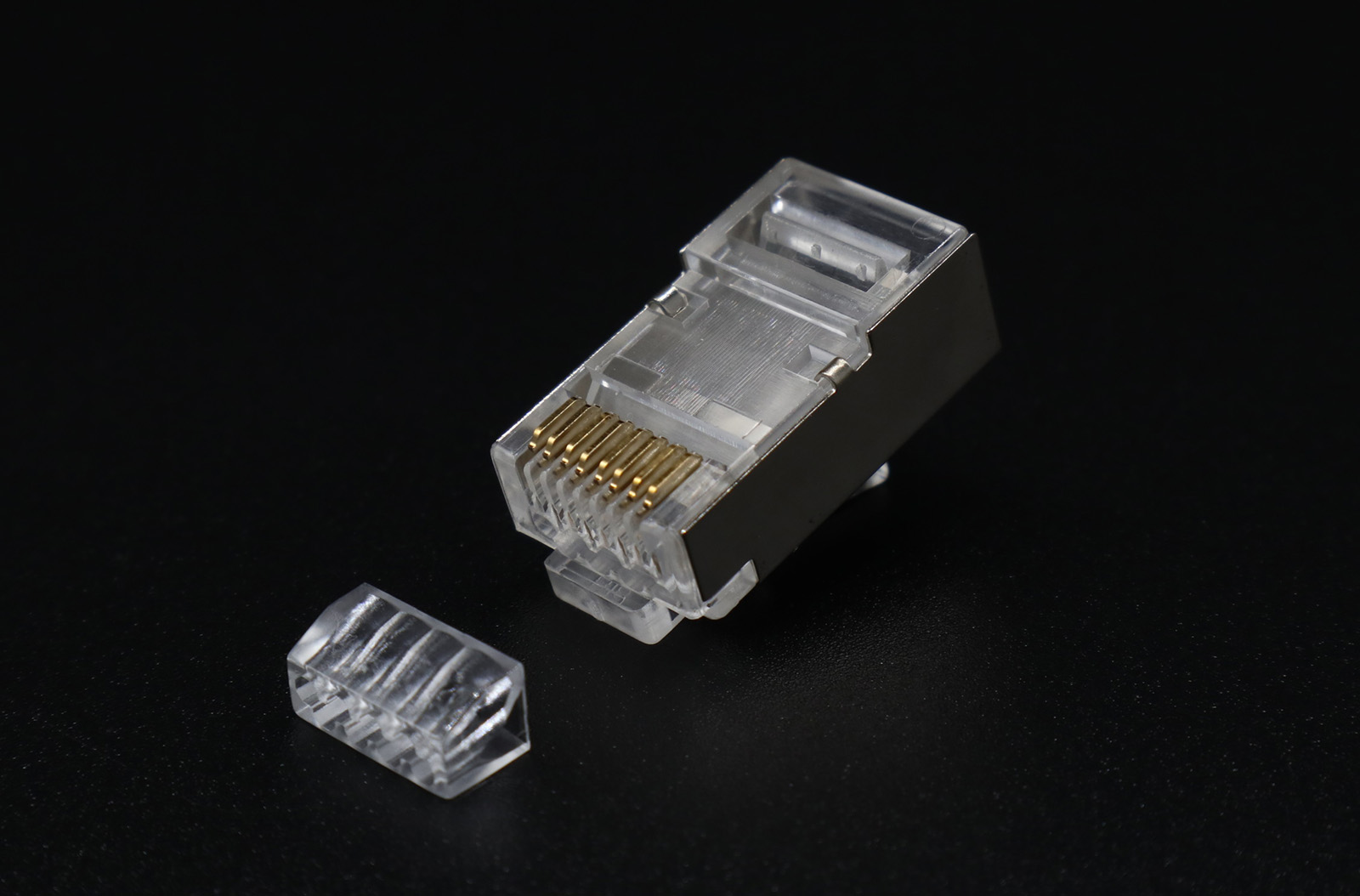

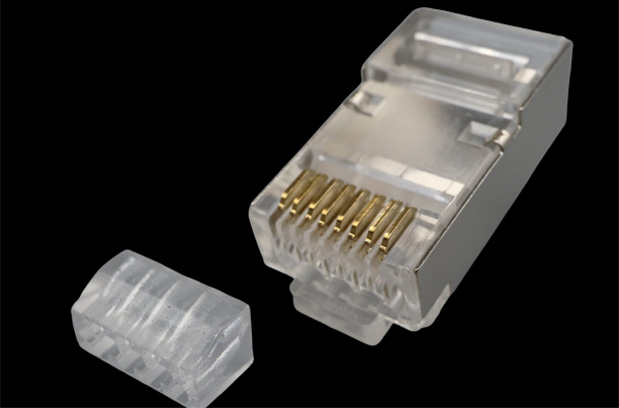

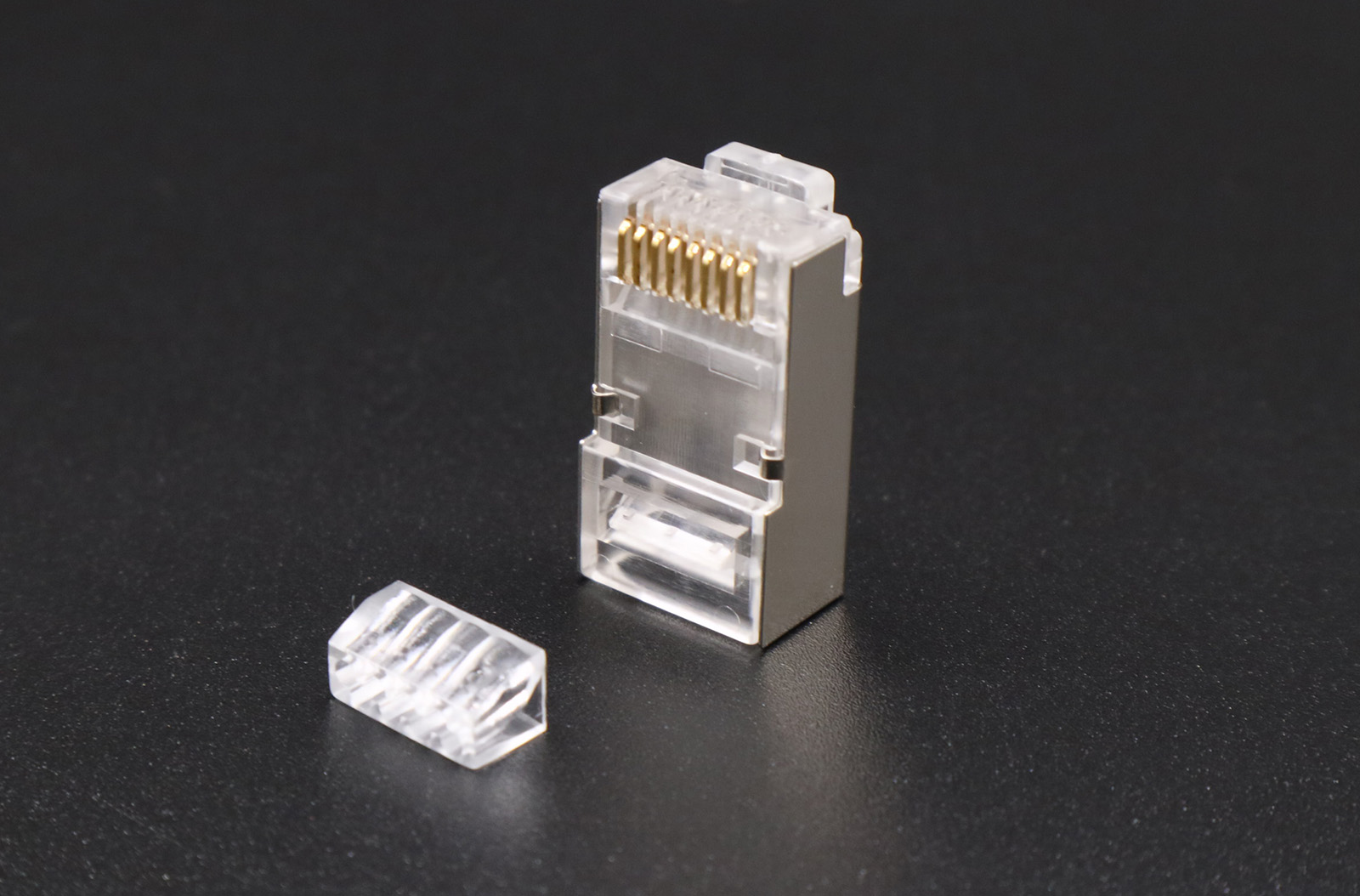

    P8-002-4 RJ45 Modular Plug Cat.6A Shielded 2 Rows 8P8C-F 1.4mm


Part No. P8-002-4
RJ45 Modular Plug Cat.6A Shielded 2 Rows 8P8C-F 1.4mm
Category C6A STP
Description 8P8C-F 2 rows Shielded with insert 1.4mm
Cable entry hole

F
Loading bar Diameter 1.40mm
Max. Cable Outer Dia. For Flat Cable
Conductor hole 1.40mm
Shielded Material Brass with nickel plated
Conductor type Solid | Stranded
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Storage temperature - 40℃ ~ 70℃
Operating Temperature -10°C to 60°C.
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Crimping Tools PM-3008R
Compatible boot SR-014-1

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Part No. P8-002-4
Housing Material
Contact Type
Gold Plating
Packaging Quantity
Housing Color: Clear or other colors are available.
Other Remark (OEM logo ,Small packing)
