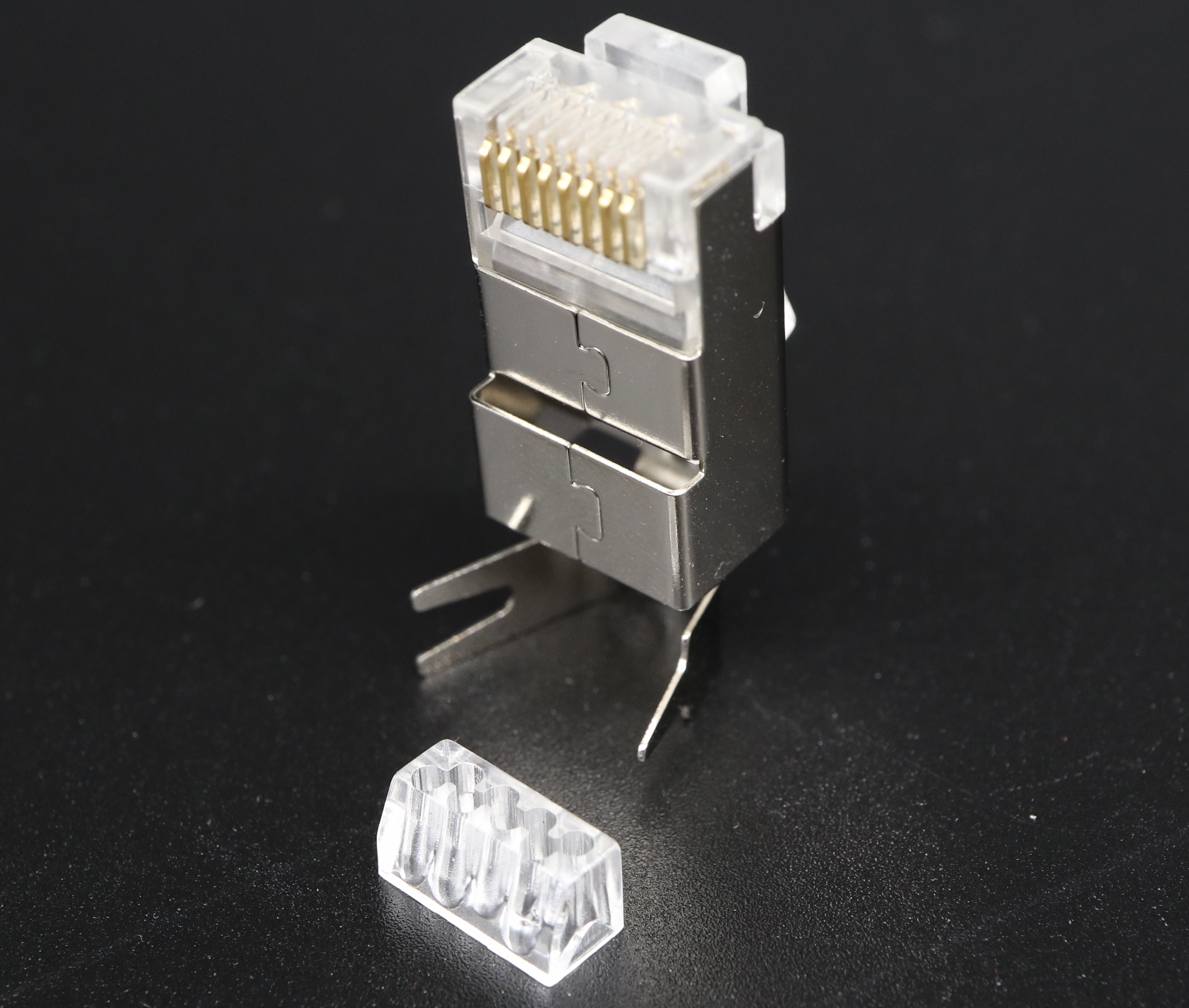

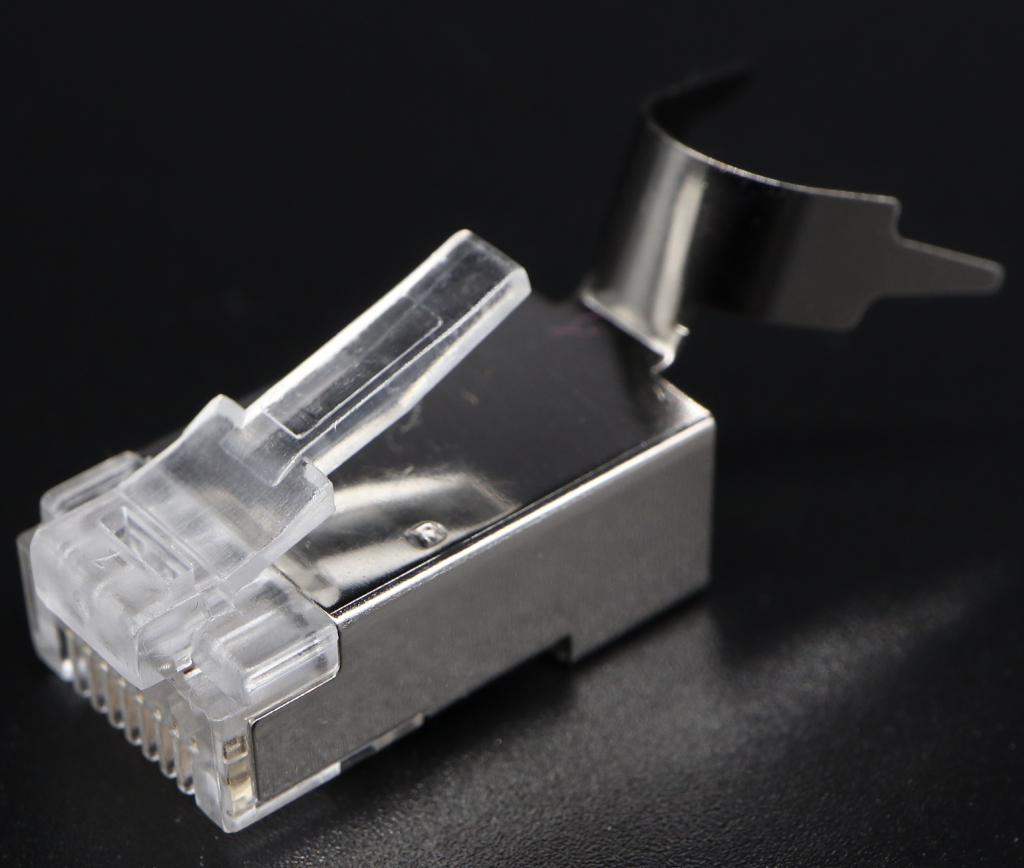

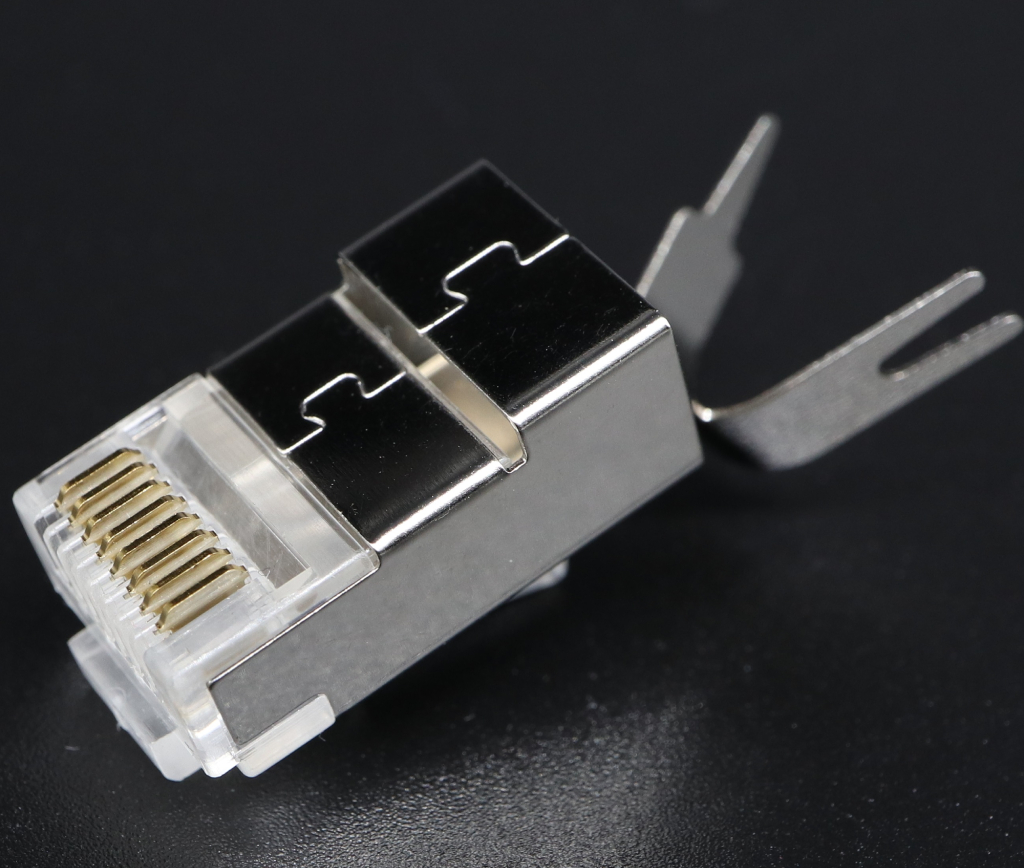

• P8-069-9 RJ45 Modular Plug Cat.6A Shielded 2 Rows 8P8C-F with External Ground 1.5 / 8.0mm
    P8-069-9 RJ45 Modular Plug Cat.6A Shielded 2 Rows 8P8C-F with External Ground 1.5 / 8.0mm P8-069-9 RJ45 Modular Plug Cat.6A Shielded 2 Rows 8P8C-F with External Ground 1.5 / 8.0mm P8-069-9 RJ45 Modular Plug Cat.6A Shielded 2 Rows 8P8C-F with External Ground 1.5 / 8.0mm

    P8-069-9 RJ45 Modular Plug Cat.6A Shielded 2 Rows 8P8C-F with External Ground 1.5 / 8.0mm

Drawing

Part No. P8-069-9
RJ45 Modular Plug Cat.6A Shielded 2 Rows 8P8C-F with External Ground 1.5 / 8.0mm
Performance Category Cat.6A
Description 8P8C-F Shielded 2 Layers with cable clip 8.0mm, wire hole 1.6mm with insert 1.5mm
Cable entry hole F
Loading bar Diameter 1.50mm
Wire Insert Diameter 1.60mm
Maximum Cable O.D. Size Supported For Flat Cable
Maximum conductor W/insulation O.D. Size 1.50mm
Conductor type Solid | Stranded
Packaging Features 500pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating

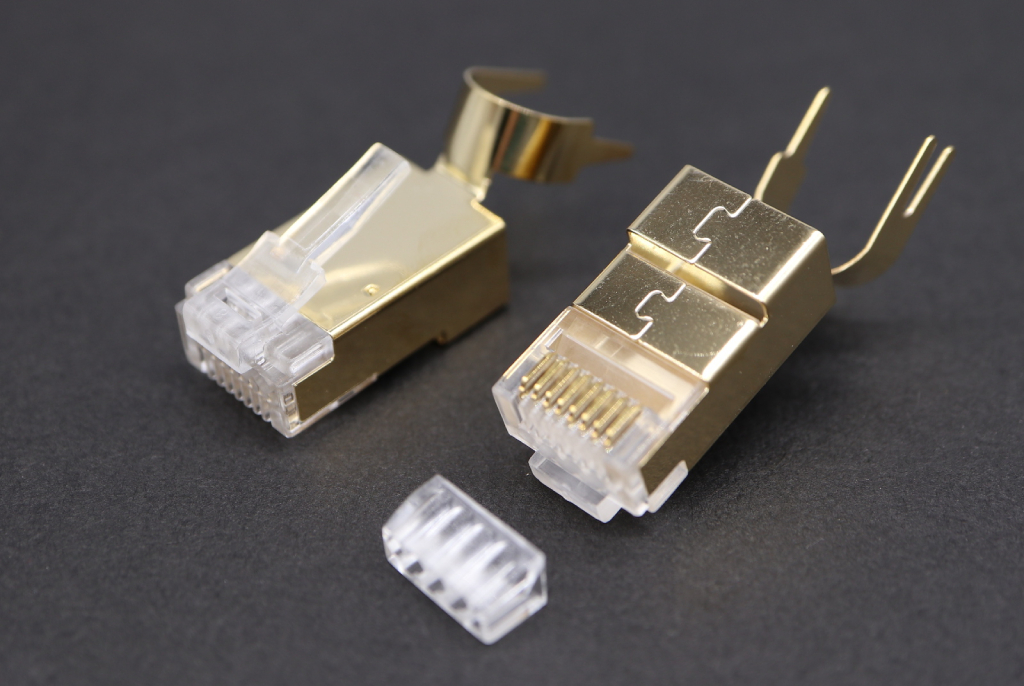

Plug Shell Material Copper over Nickel Plating or Copper over Gold Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories SR-014
Related Crimping Tools PM-236Q1D

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Part No. P8-069-9
Housing Material
Contact Type
Gold Plating
Packaging Quantity
Housing Color: Clear or other colors are available.
Other Remark (OEM logo ,Small packing)
Review required specifications
