Part No. P8-069-5

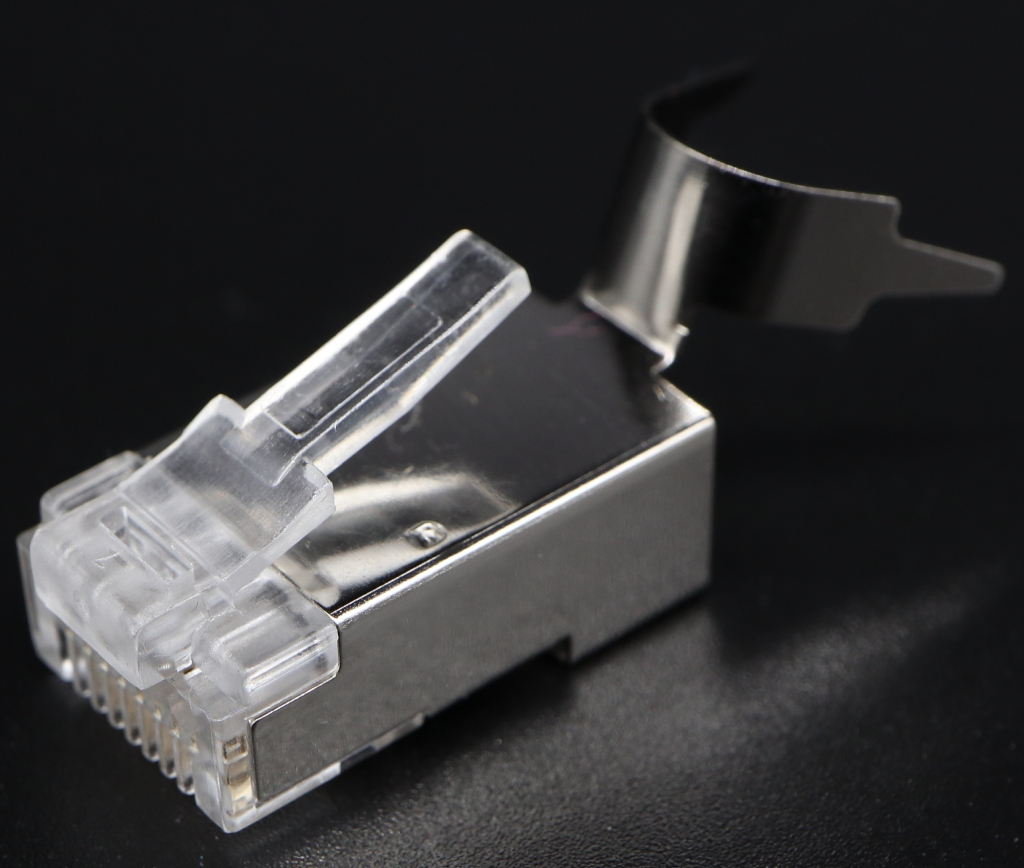

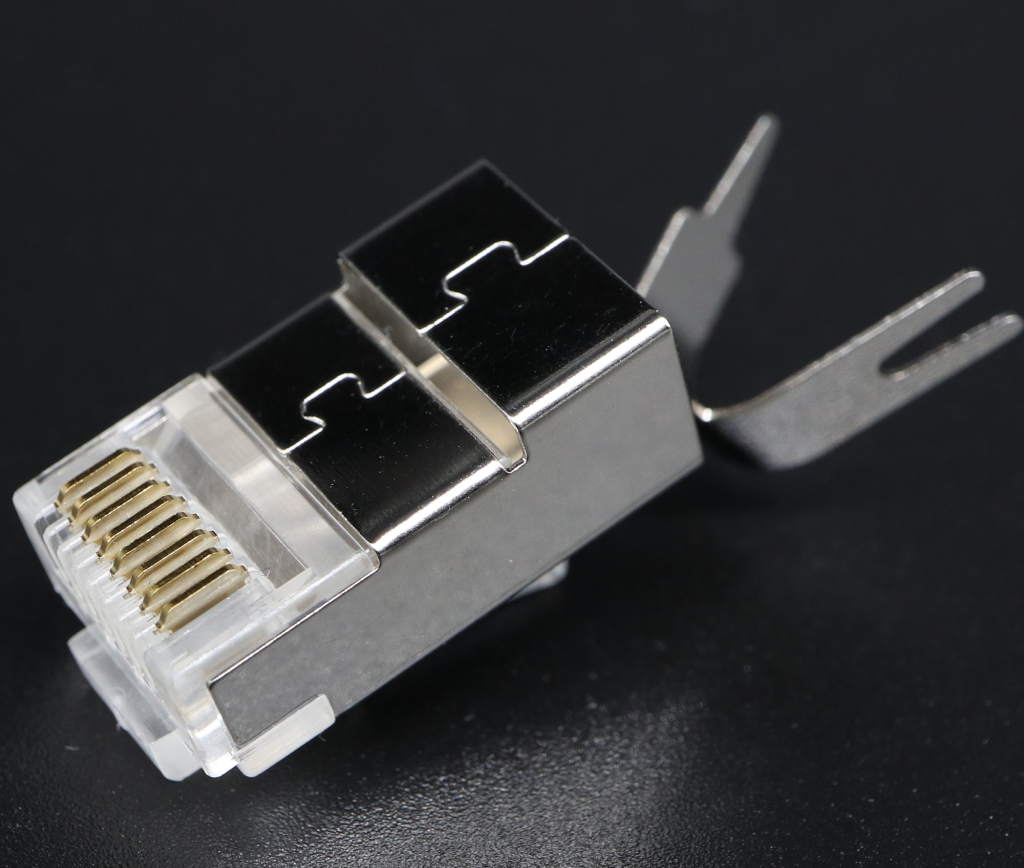

C6A 8P8C-F STP-1.5 / 8.0mm RJ45 Modular Plug
Performance Category Cat.6A

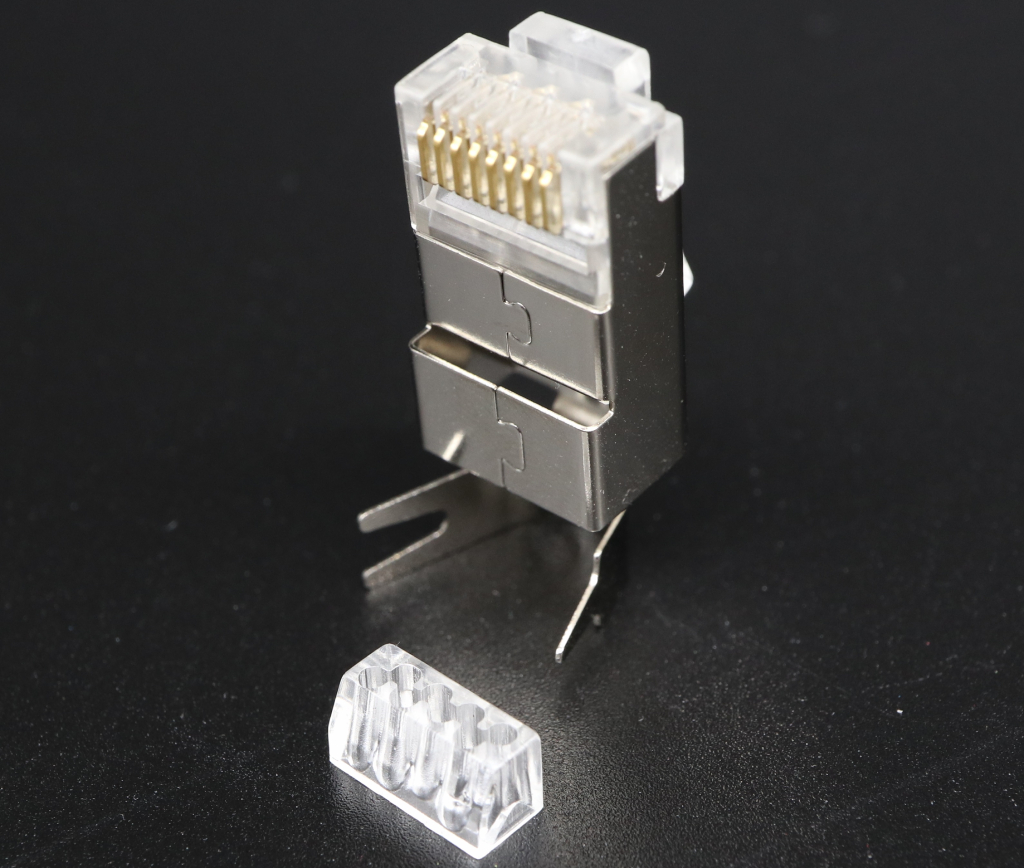

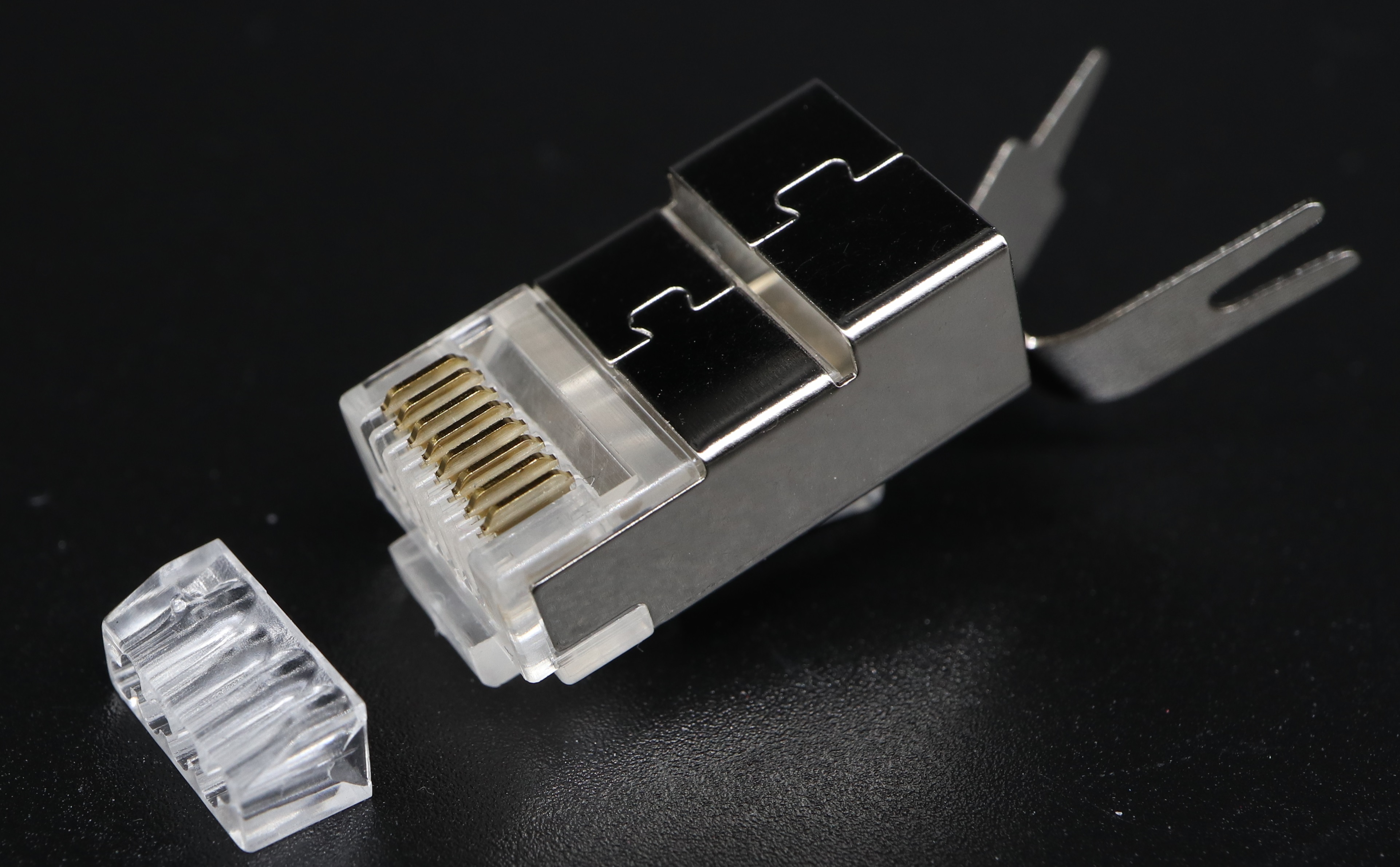

Description 8P8C-F Shielded 2 Layers with cable clip 8.0mm, insert 1.5mm
Cable entry hole F
Loading bar Diameter 1.5mm
Wire Insert Diameter 1.5mm
Maximum Cable O.D. Size Supported For Flat Cable
Maximum conductor W/insulation O.D. Size 1.5mm
Conductor type Solid | Stranded
Packaging Features 500pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories SR-014
Related Crimping Tools PM-236Q1D
