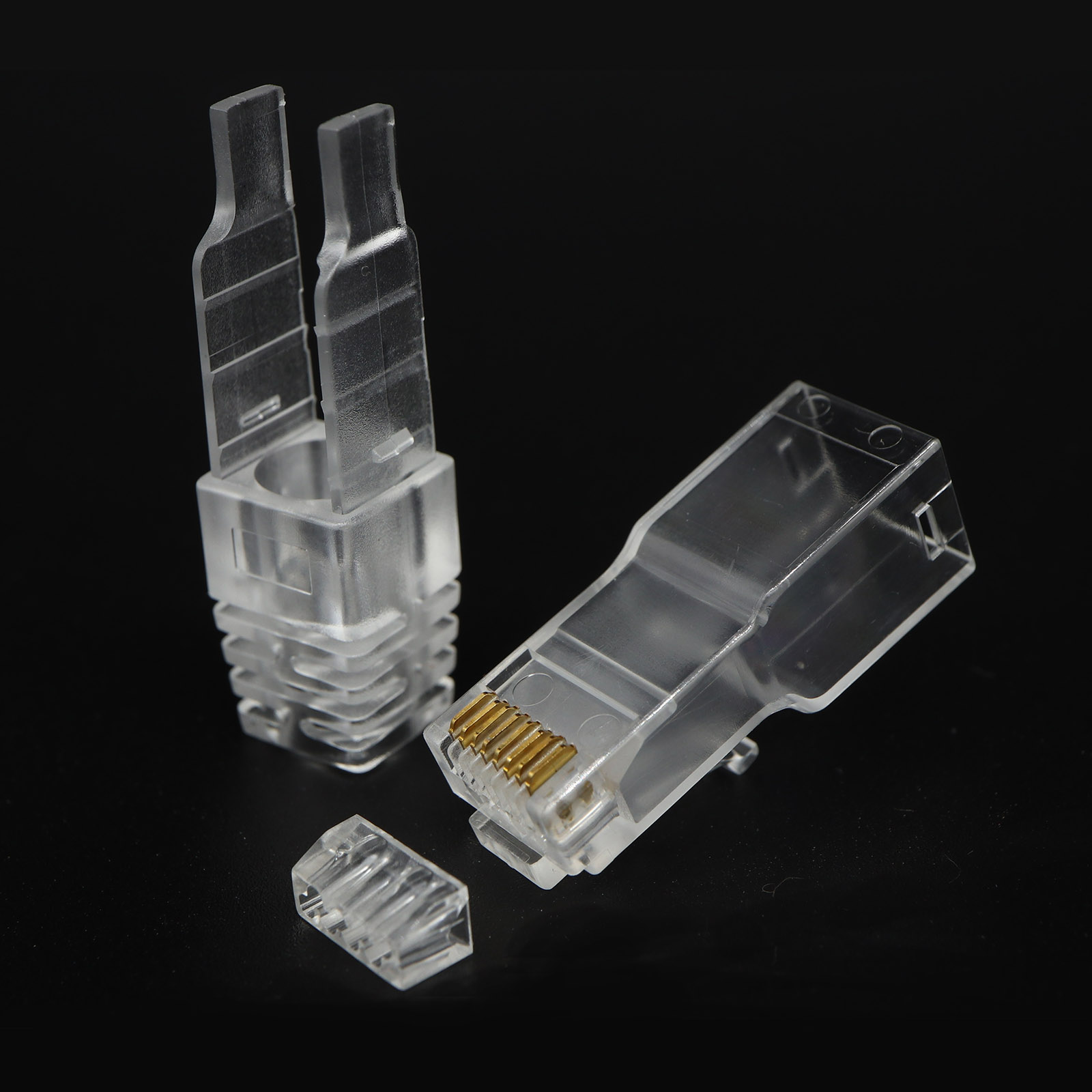

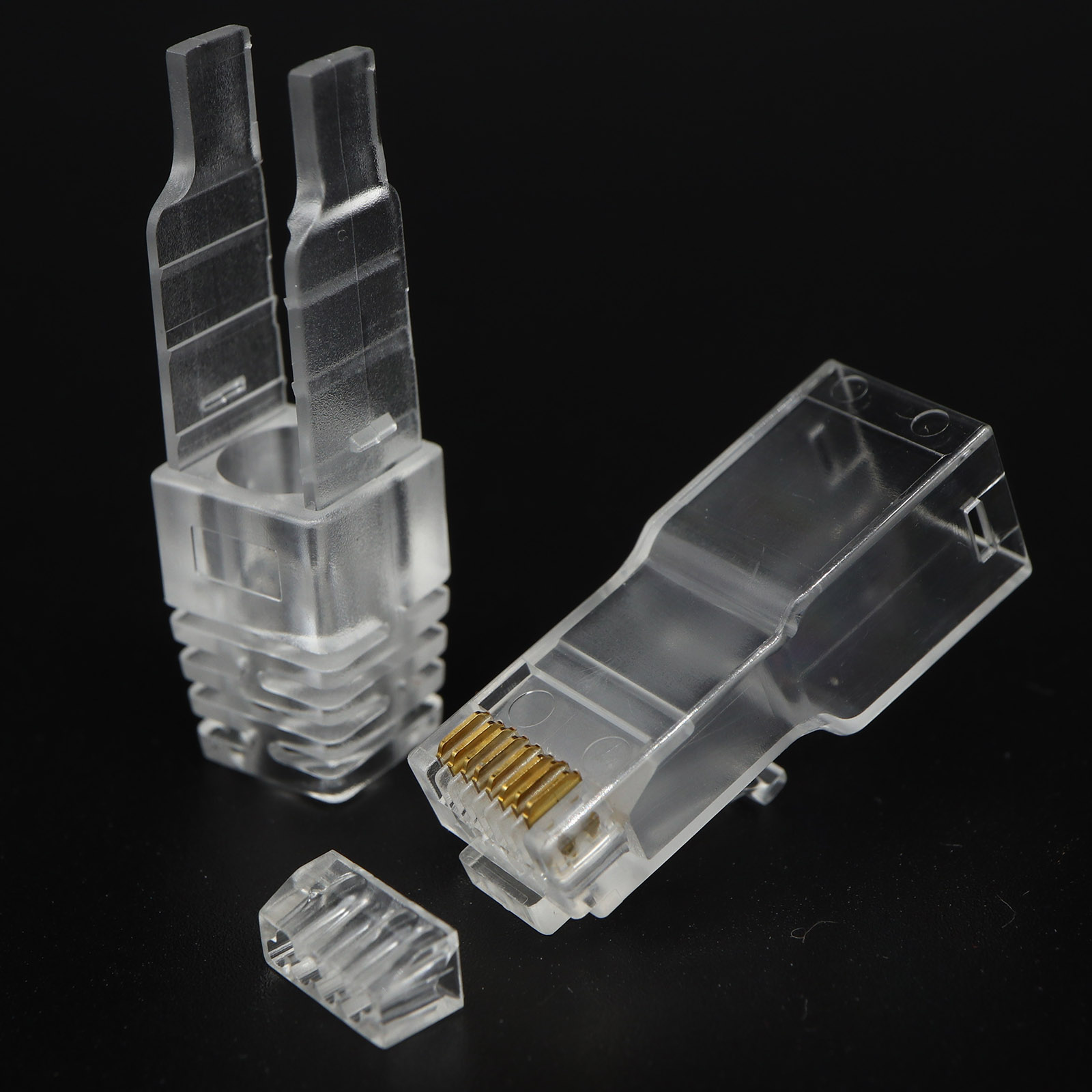

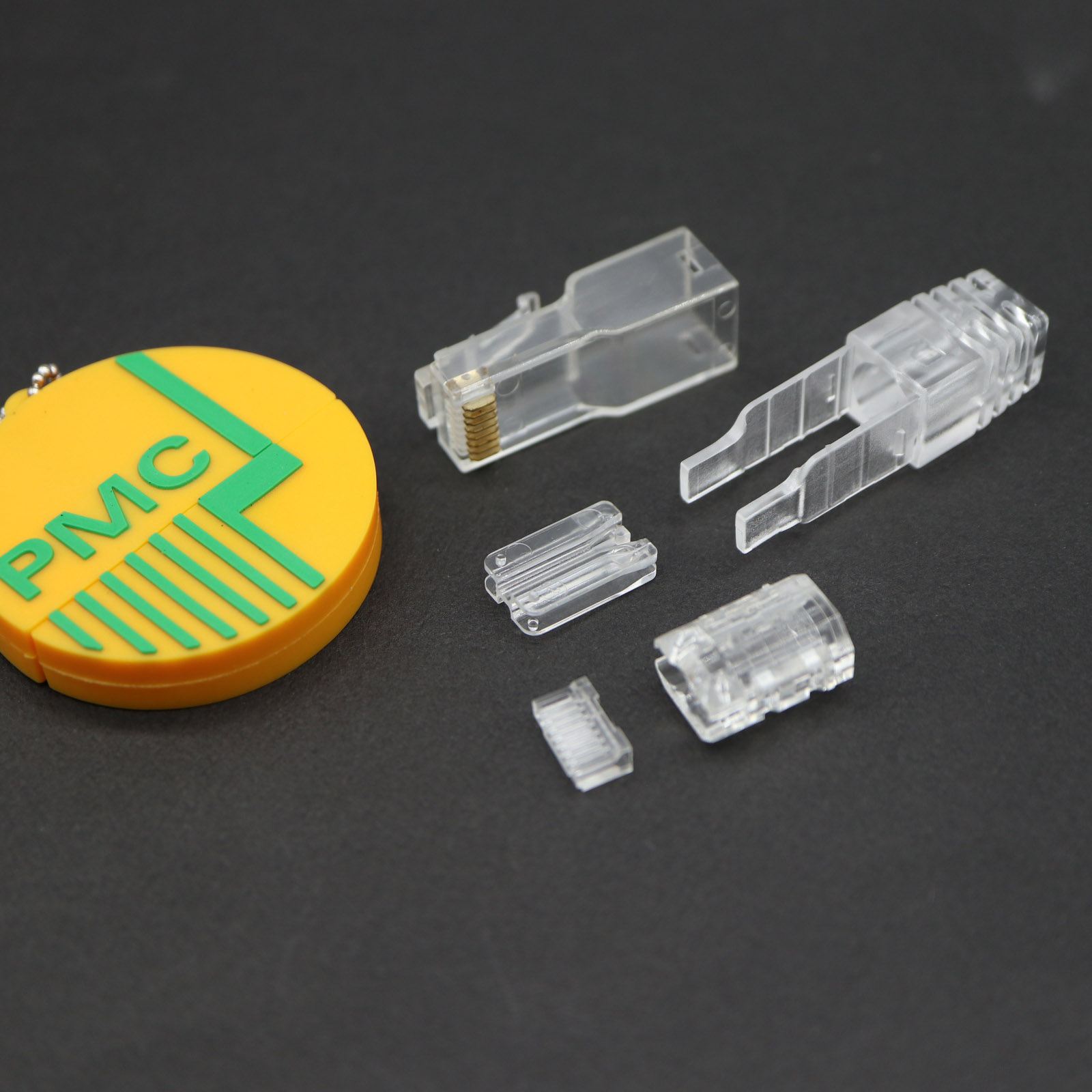

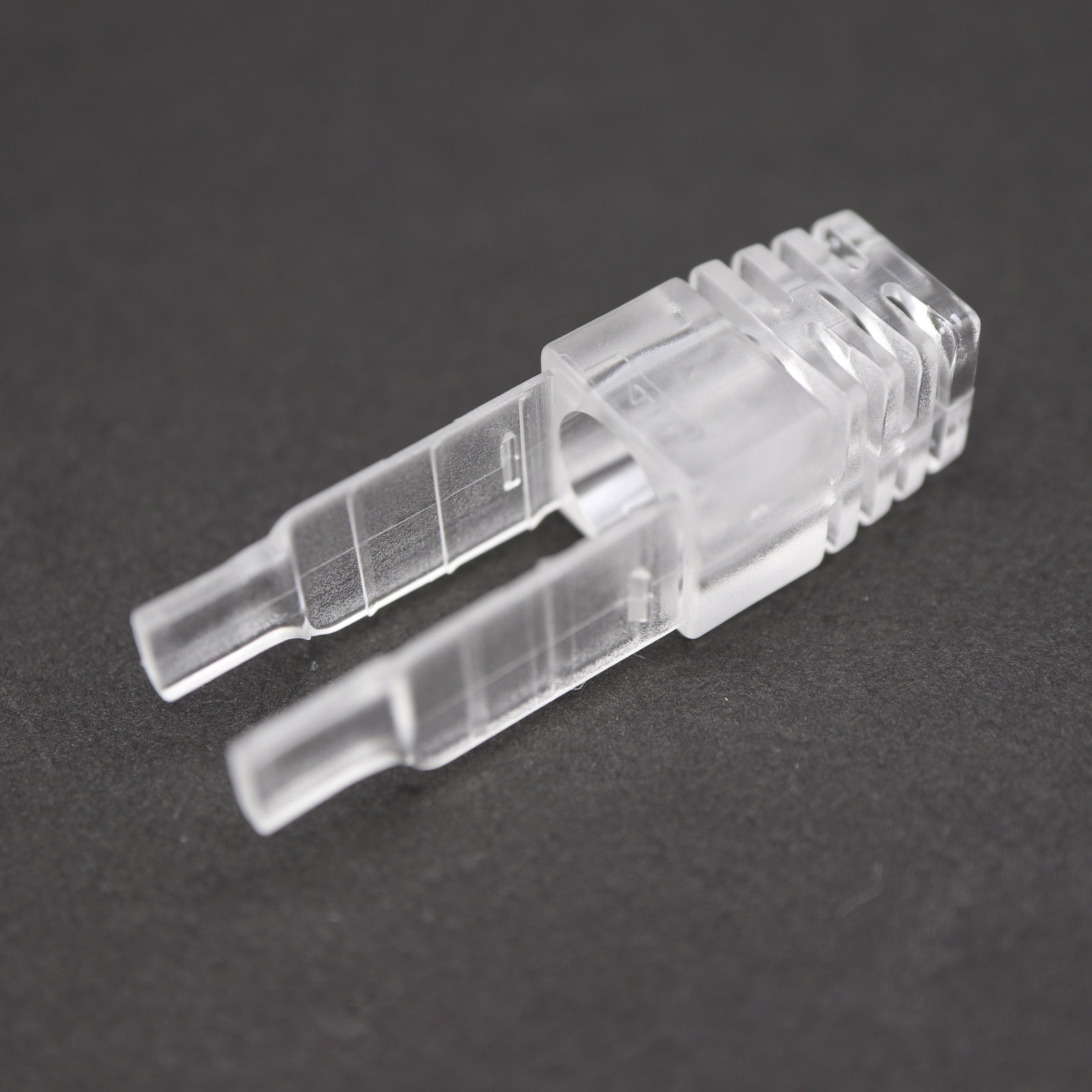

P8-054-1 RJ45 Modular Plug Cat.6A UTP 3 Rows 8P8C-F 1.2mm, with Special Boot
Features & Benefits :
For Cat.6A UTP Larger Cable
| Part No. |
P8-054-1
RJ45 Modular Plug Cat.6A UTP 3 Rows 8P8C-F 1.2mm, with Special Boot |
| Performance Category | C6A CHANNEL |
| Description | 8P8C F 3 layers wire hole 1.2mm with insert 1.4mm |
| Cable entry hole | F |
| Loading bar Diameter | 1.4mm |
| Wire Insert Diameter | 1.2mm |
| Maximum conductor W/insulation O.D. Size | For Flat Cable |
| Maximum insulation Dia. | 1.2mm |
| Conductor type | Solid | Stranded |
| Packaging Features | 500pcs/bag |
| Plug Housing Material | UL 94V-0 or 94V2 rated clear Polycarbonate (PC) |
| Contact Blades Materia | Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating |
| Operation Temperature | - 10℃ ~60 ℃ |
| Storage temperature | - 40℃ ~ 70℃ |
| Compliance | Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant |
| Related Accessories | SR-037 8.30 mm & 8.8mm |

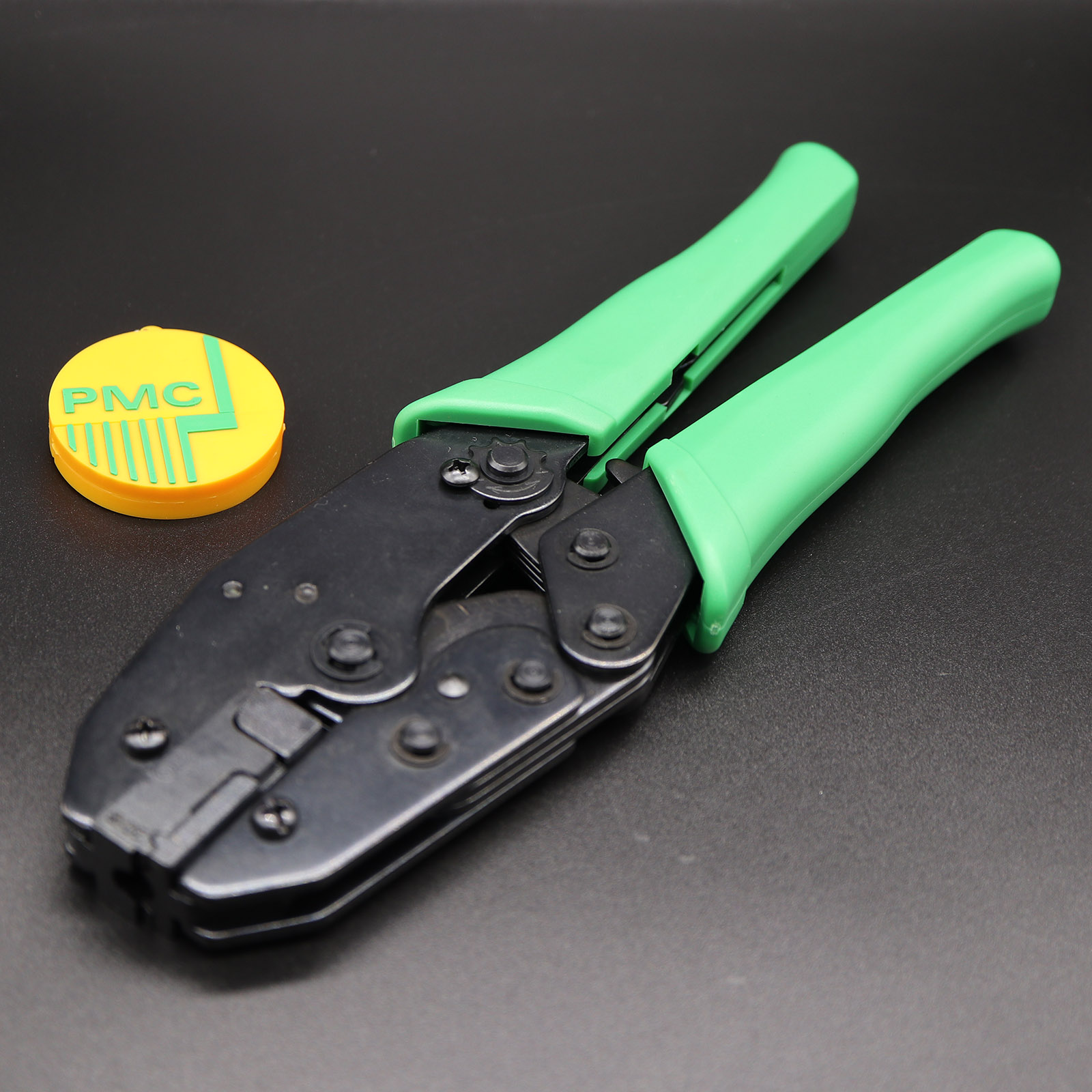

| Related Crimping Tools | PM-236Q1D-U |
| Features & Benefits | For Cat.6A UTP Larger Cable |
