Part No. P8-042-9

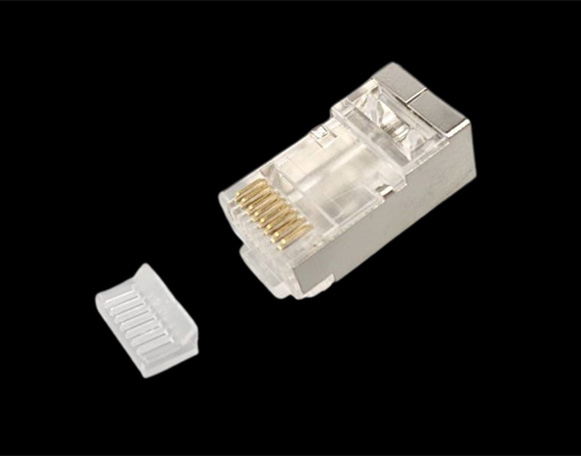

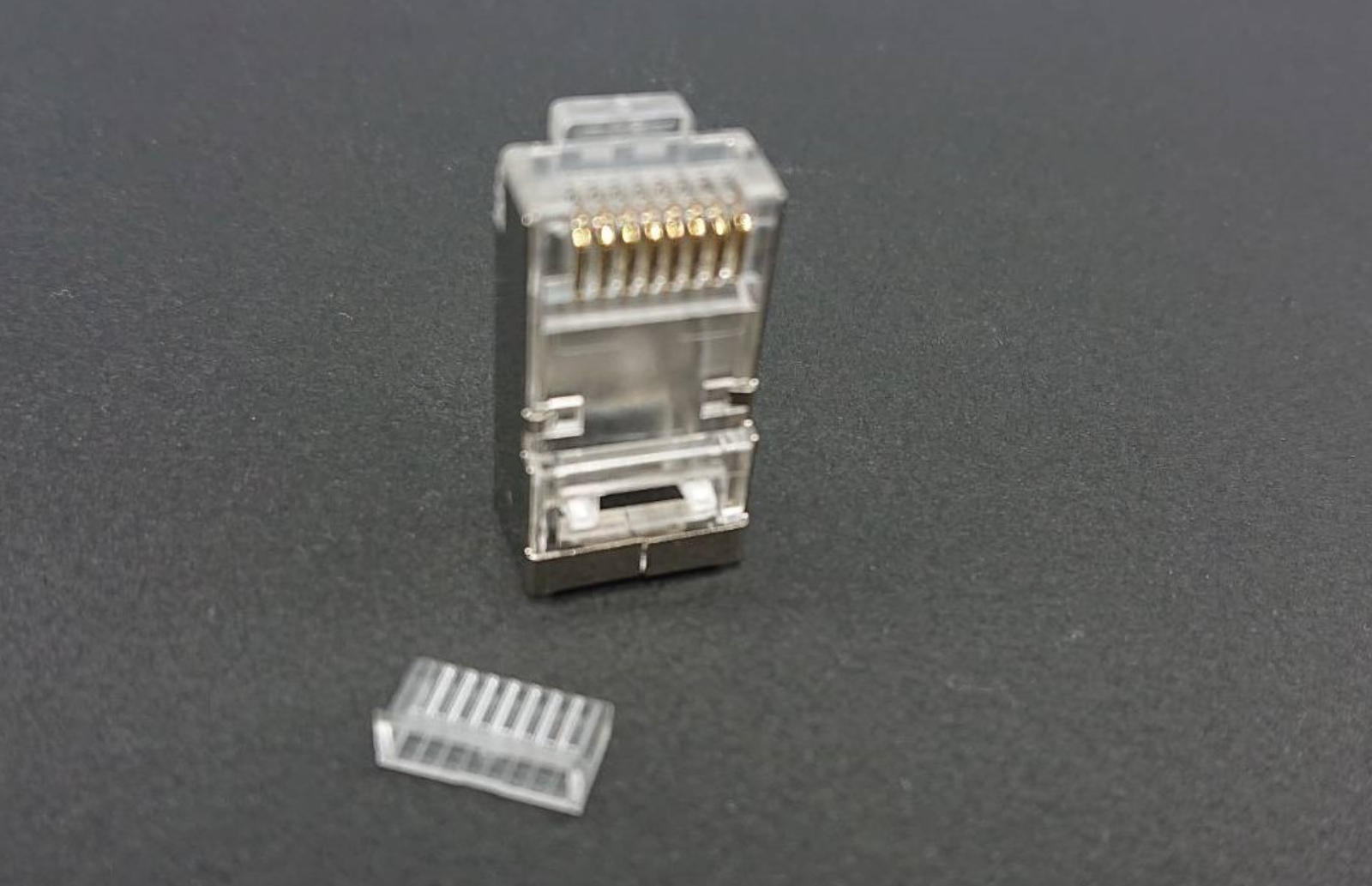

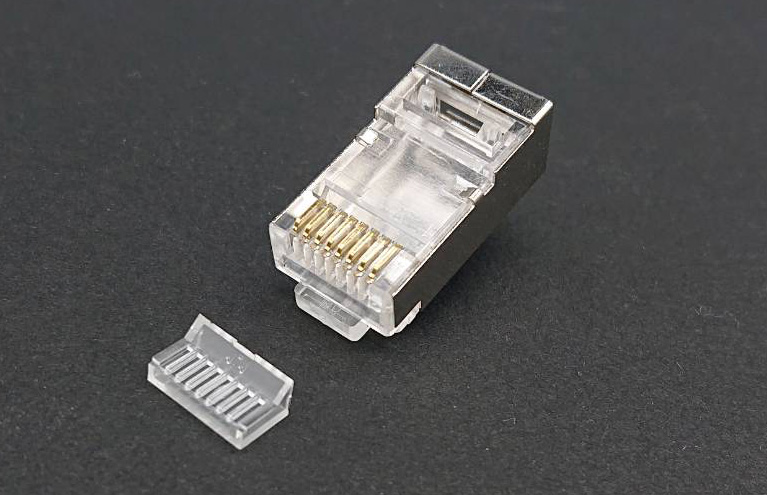

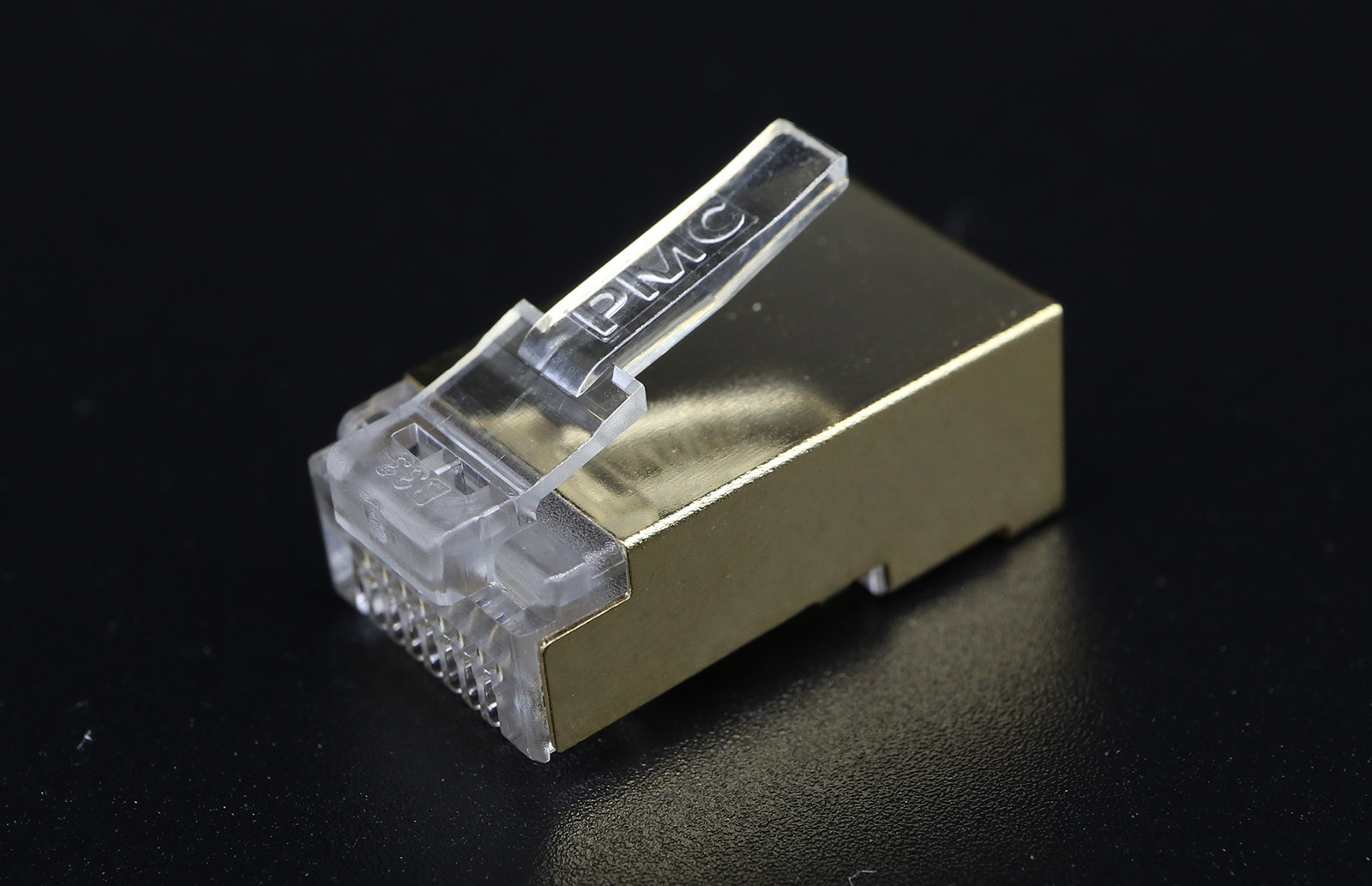

RJ45 Modular Plug Cat.6 8P8C-F Shielded
Category C6 STP
Description 8P8C-F Shielded with insert 1.0mm
Cable entry hole

F

Loading bar Diameter 1.0mm
Max. Cable Outer Dia. For Flat Cable
Maximum conductor W/insulation O.D. Size 1.0mm
Shielded Material Brass with nickel plated
Conductor type Solid | Stranded
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Storage temperature - 40℃ ~ 70℃
Operating Temperature -10°C to 60°C.
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Crimping Tools PM-3008R
Compatible boot SR-032M
