| Part No. |
P8-074-7

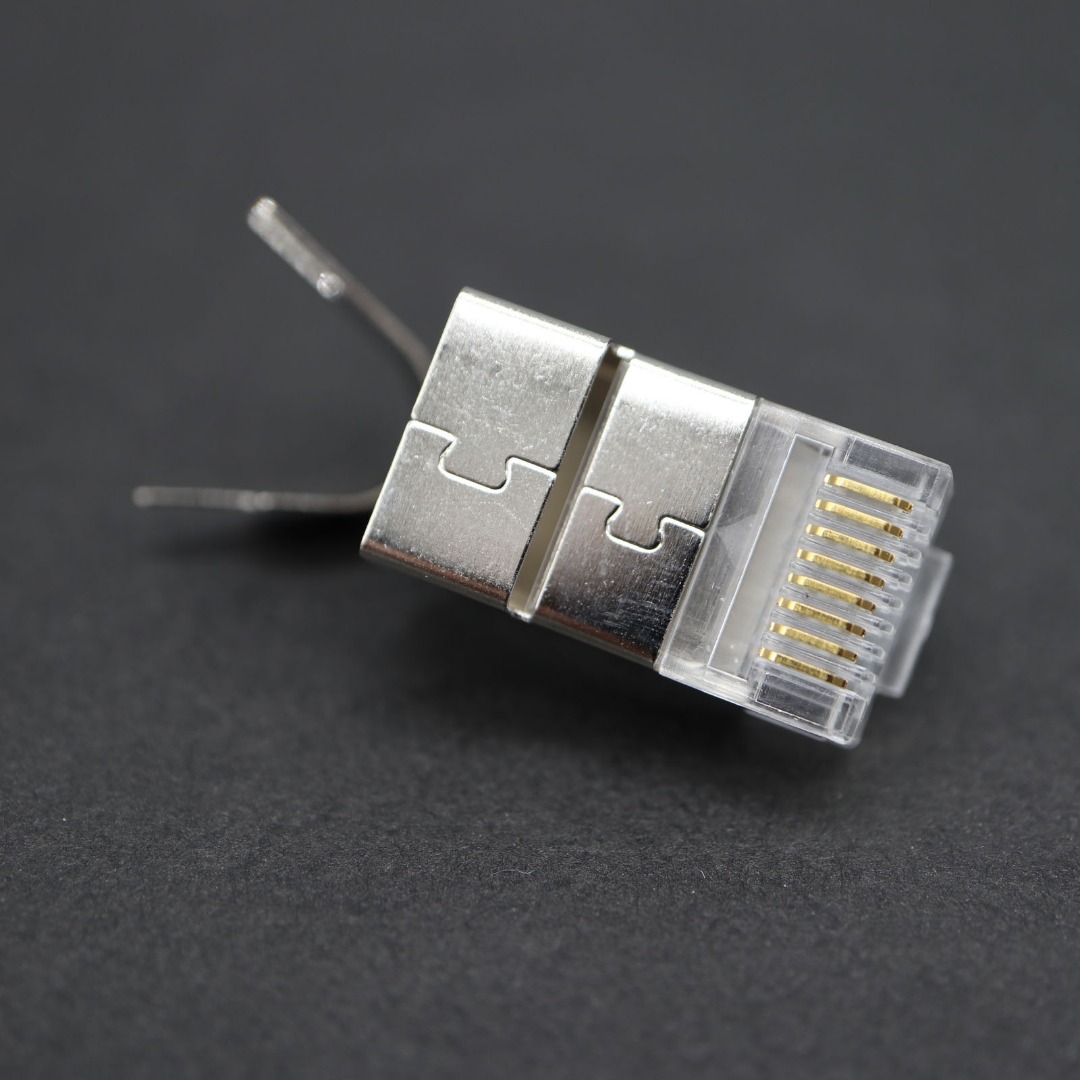

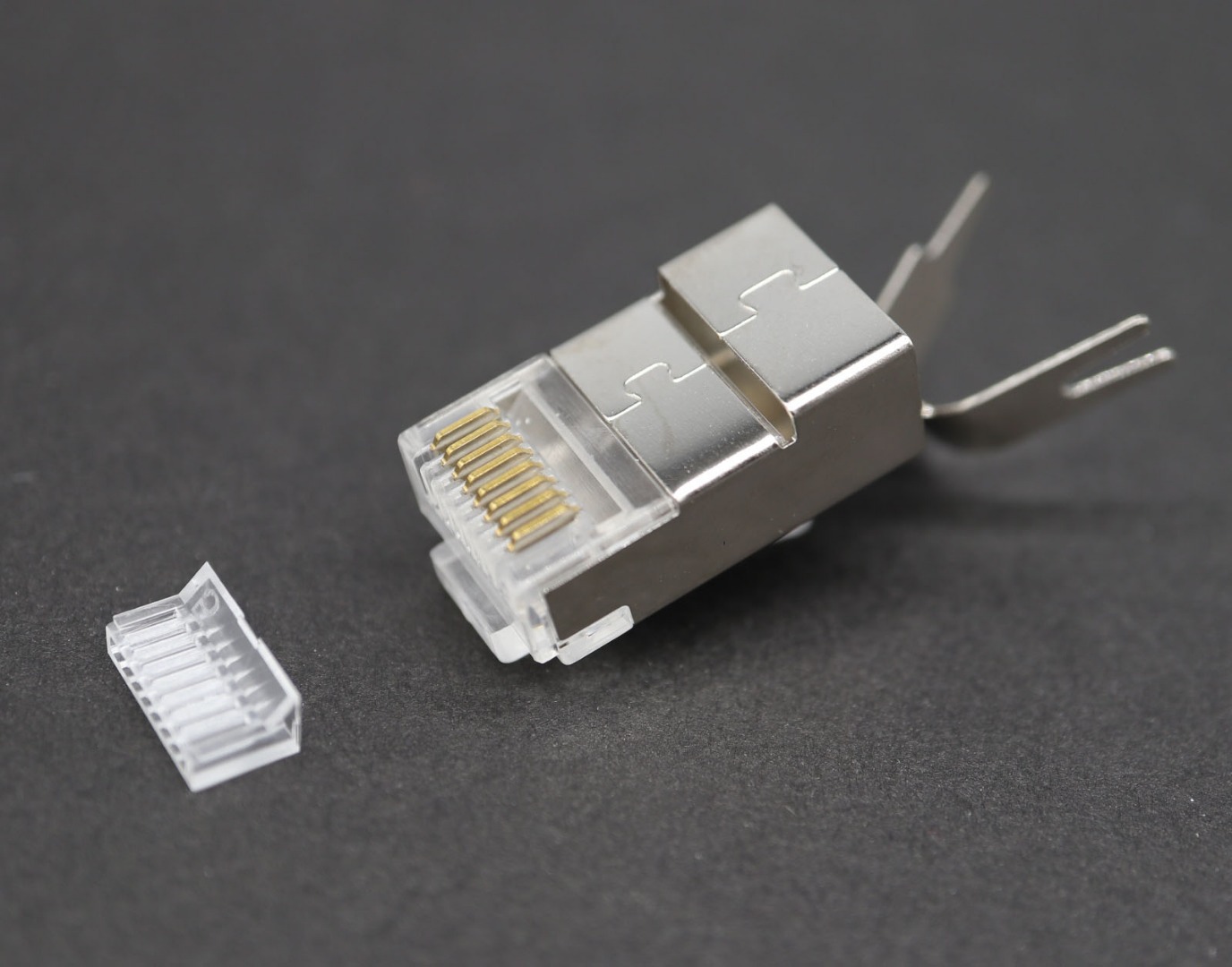

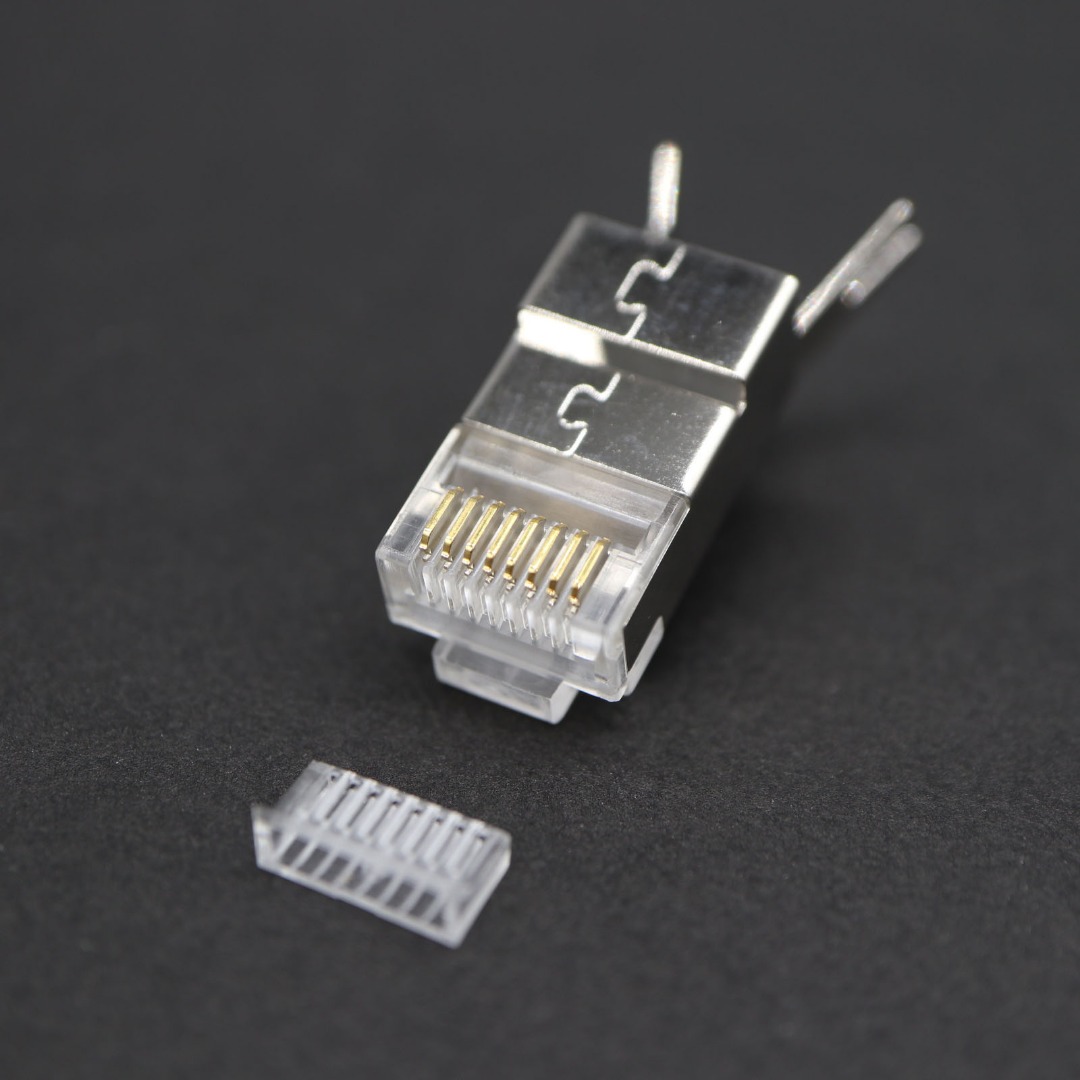

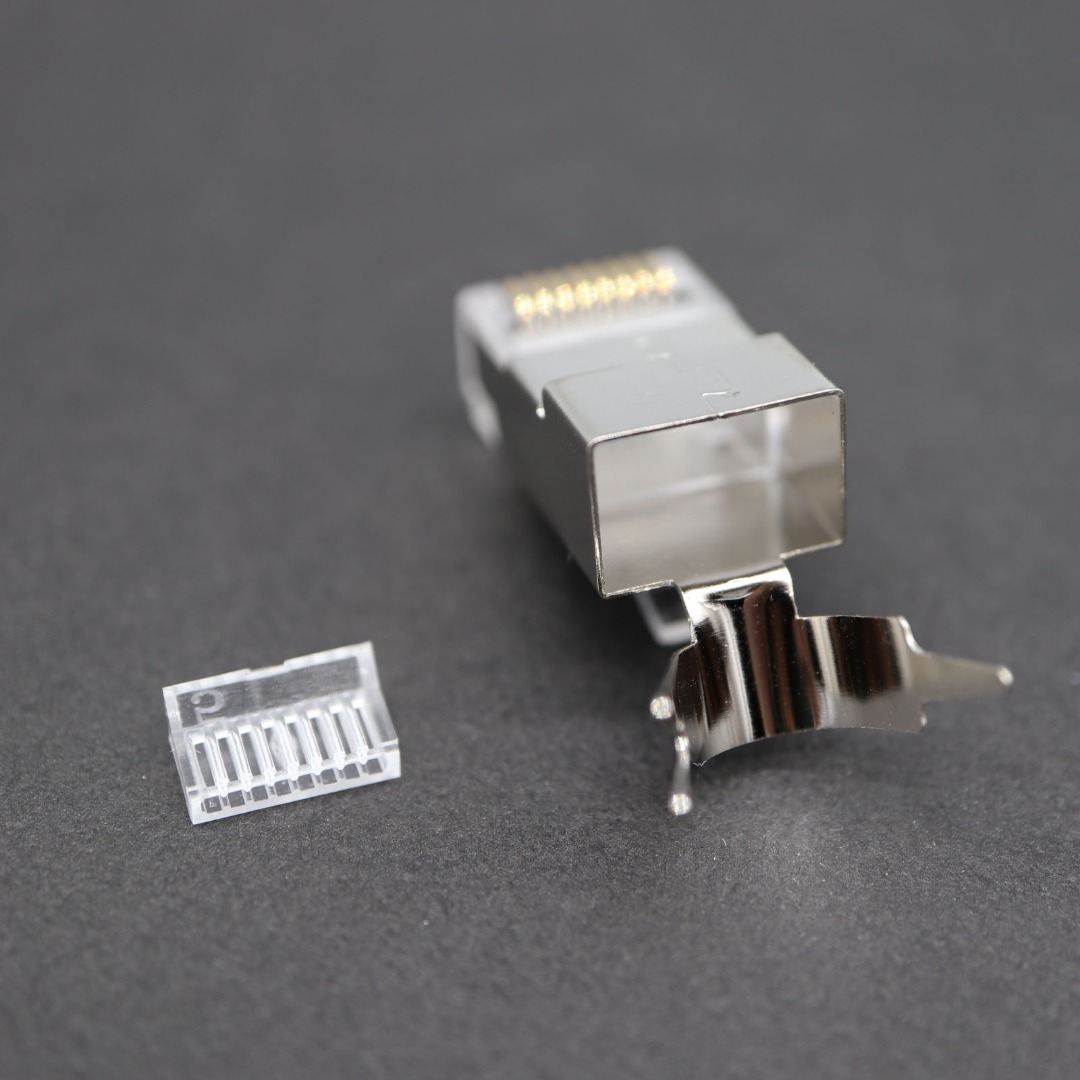

RJ45 Modular Plug Cat.6 Shielded 8P8C-F with External Ground |
| Category | C6 STP |
| Description | 8P8C-F Shielded with cable clamp 7.2±.0.5mm |
| Cable entry hole | F |
| Loading bar Diameter | 1.0mm |
| Maximum conductor W/insulation O.D. Size | 1.0mm |
| Max. Cable Outer Dia. | For Flat Cable |
| Shielded Material | Brass with nickel plated |
| Compliance | Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant |
| Plug Housing Material | UL 94V-0 or 94V2 rated clear Polycarbonate (PC) |
| Conductor type | Solid | Stranded |
| Operating Temperature | - 10°C to 60°C |
| Storage temperature | - 40℃ ~ 70℃ |
| Contact Blades Material | Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating |
| Compatible boot | SR-014-1 |
| Related Crimping Tools | PM-236Q1D 7.0mm |
