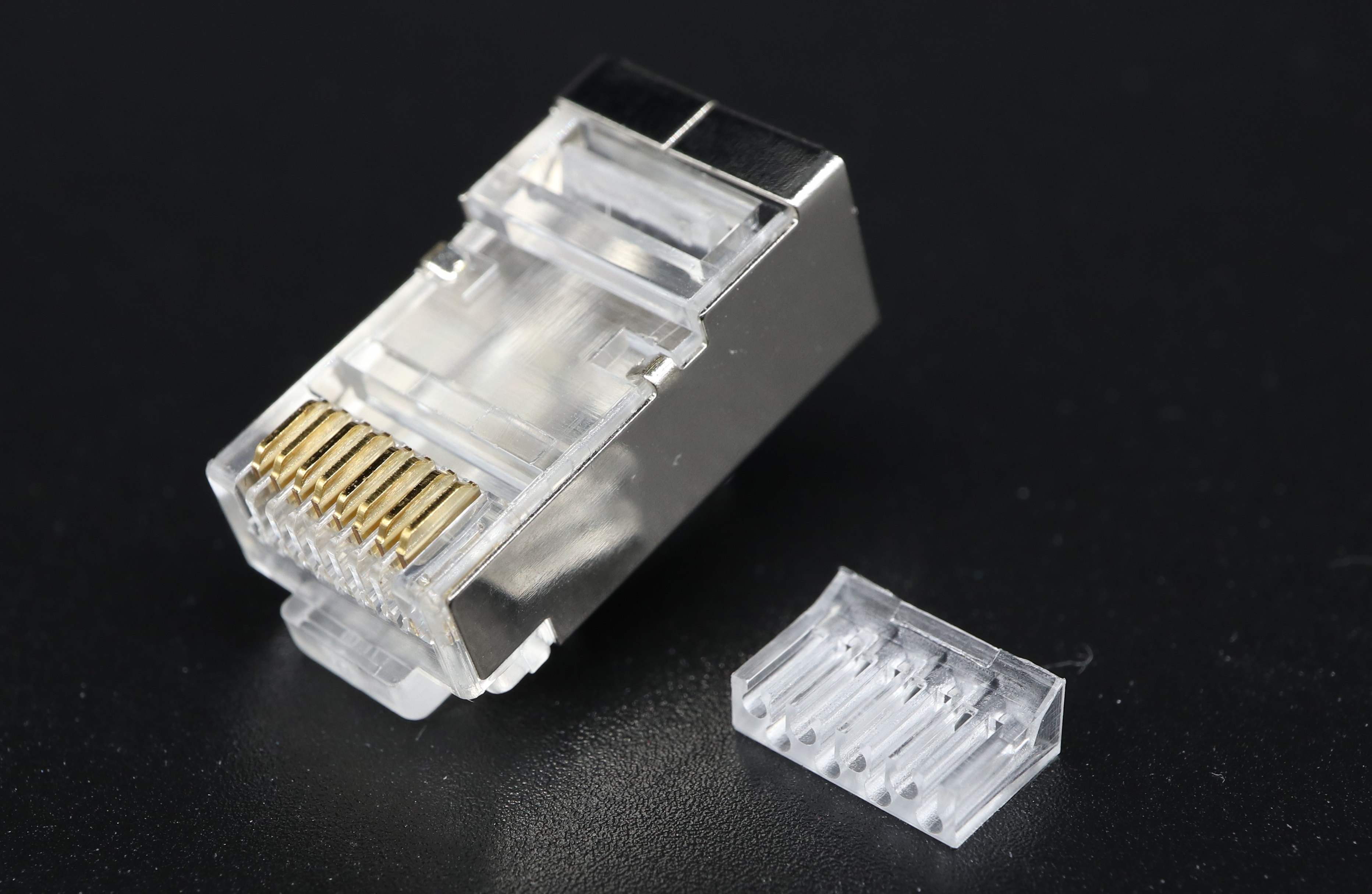

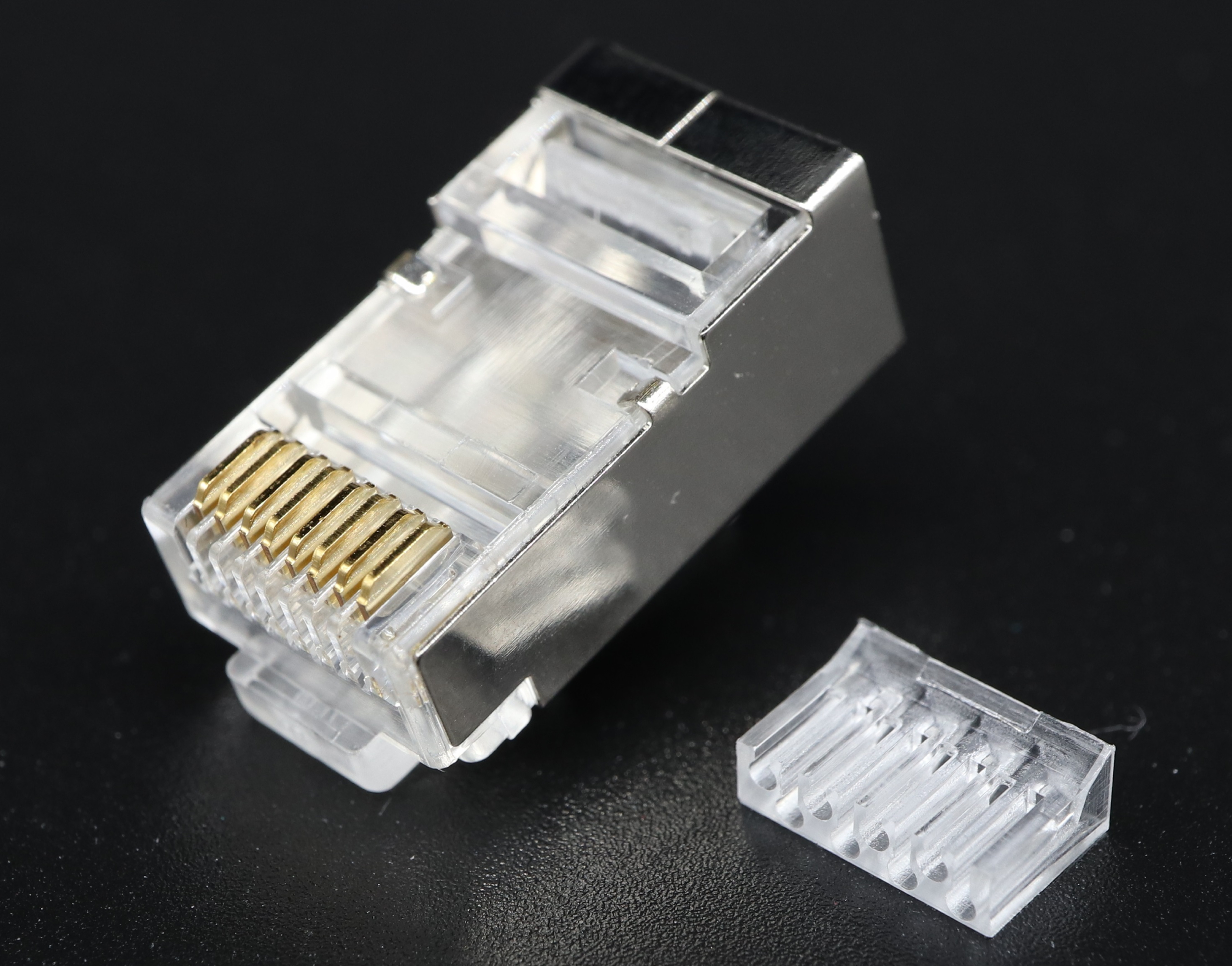

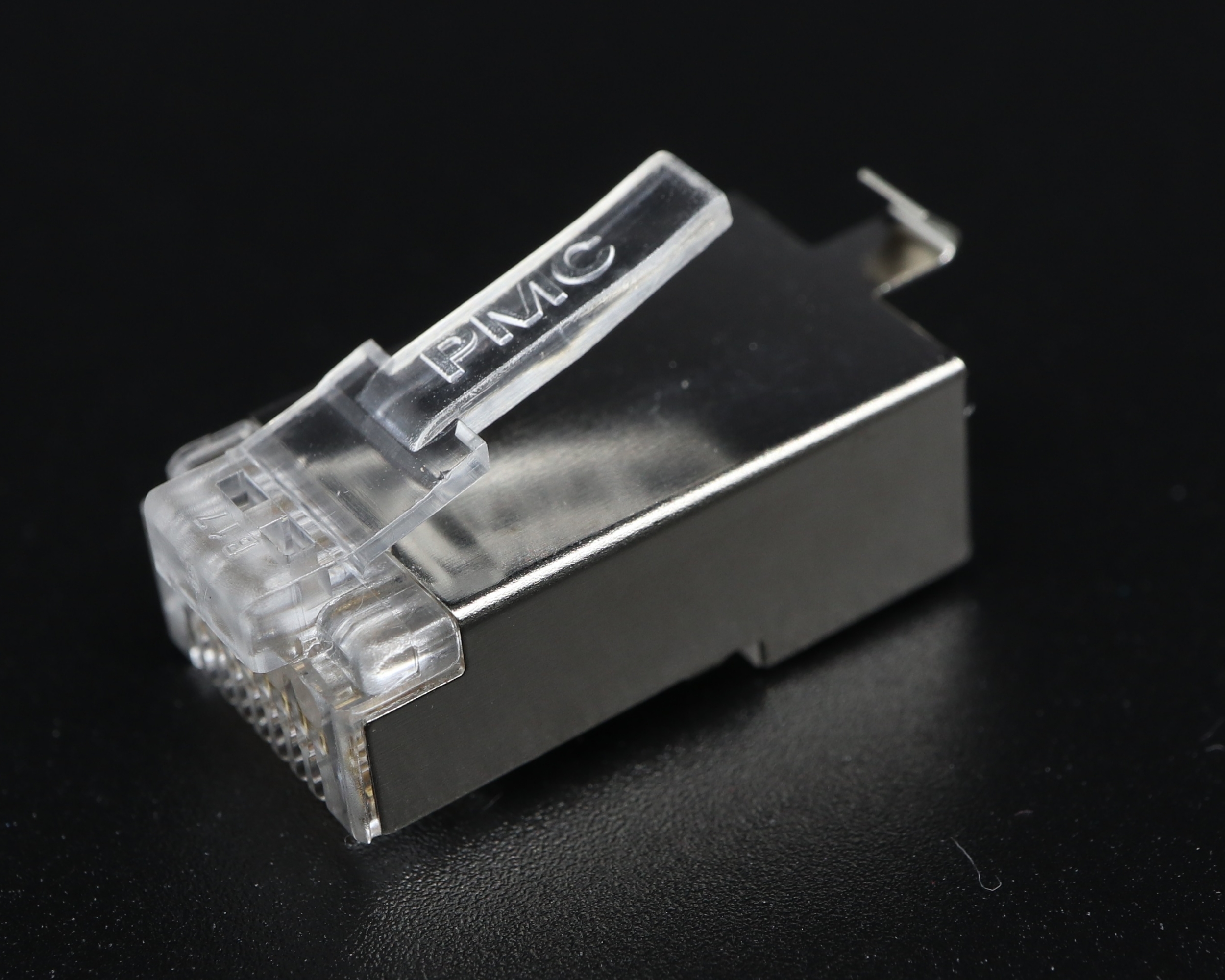

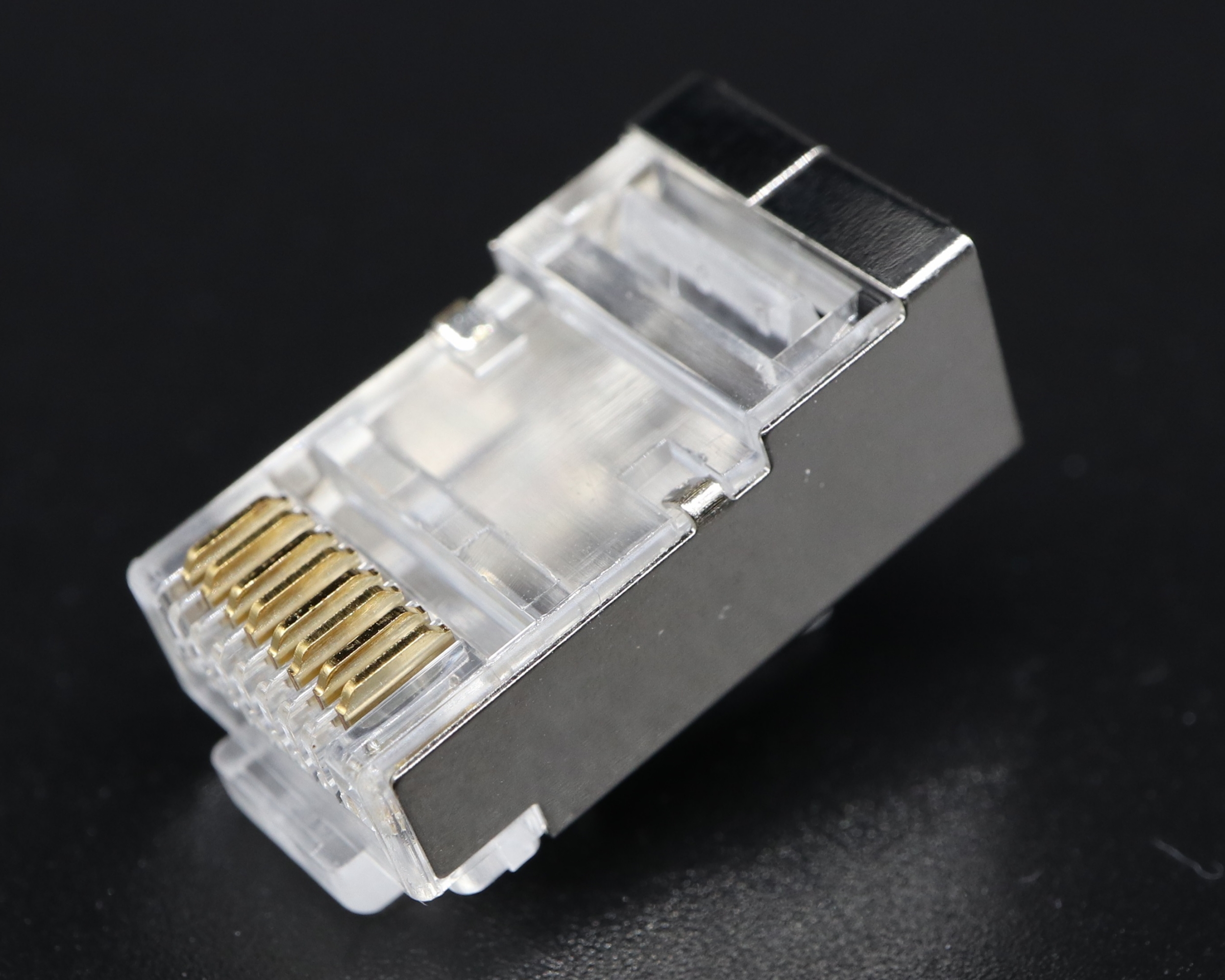

• P8-031-10 RJ45 Modular Plug Cat.6 Shielded 2 Rows 8P8C-F 1.14mm with Hook
    P8-031-10 RJ45 Modular Plug Cat.6 Shielded 2 Rows 8P8C-F 1.14mm with Hook P8-031-10 RJ45 Modular Plug Cat.6 Shielded 2 Rows 8P8C-F 1.14mm with Hook P8-031-10 RJ45 Modular Plug Cat.6 Shielded 2 Rows 8P8C-F 1.14mm with Hook

    P8-031-10 RJ45 Modular Plug Cat.6 Shielded 2 Rows 8P8C-F 1.14mm with Hook

Drawing

Part No. P8-031-10
RJ45 Modular Plug Cat.6 Shielded 2 Rows 8P8C-F 1.14mm with Hook
Performance Category Cat.6
Description 8P8C-F Shielded with hook and insert 1.14mm
Cable entry hole F
Loading bar Diameter 1.14mm

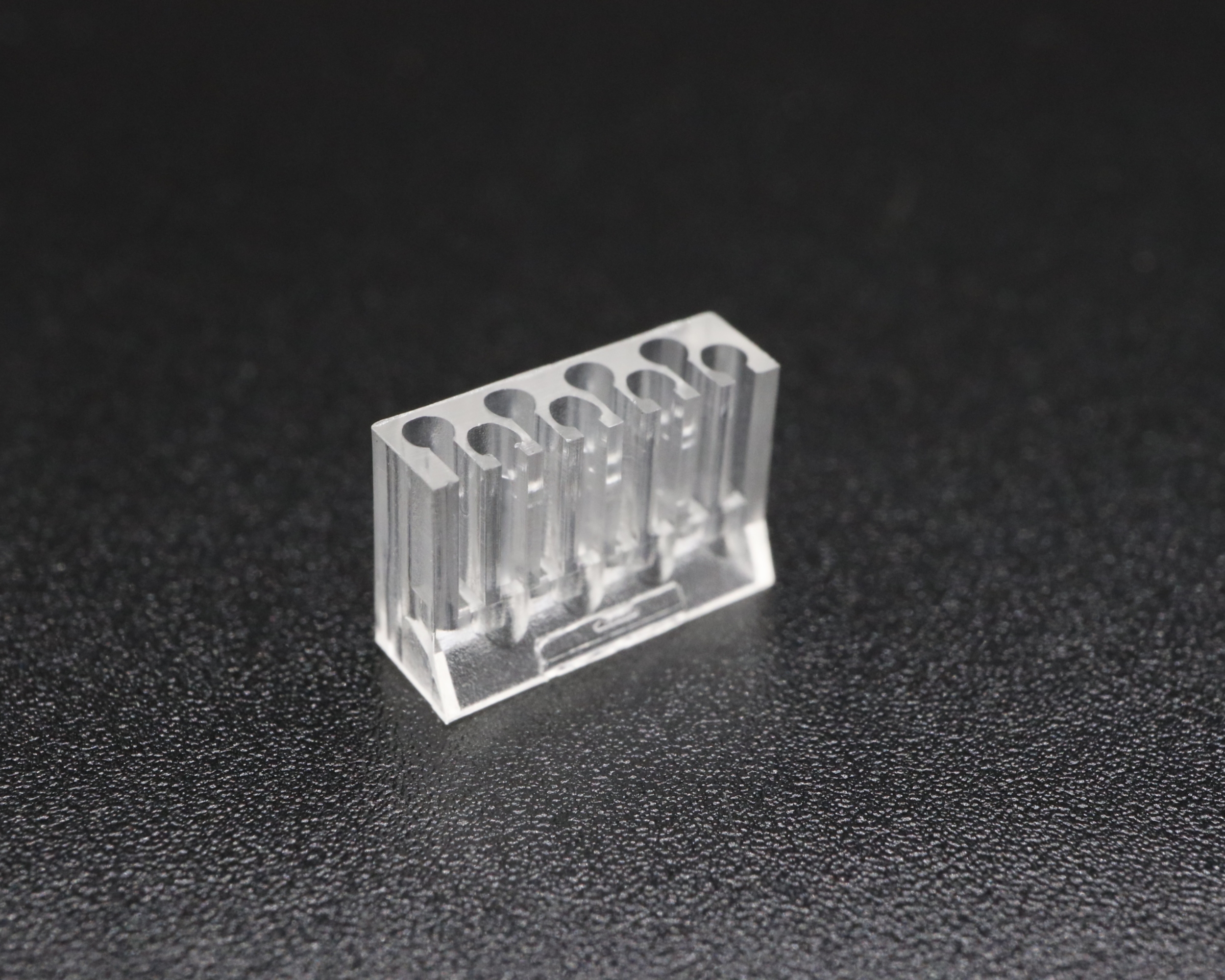

Wire Insert Diameter 1.14mm
Maximum Cable O.D. Size Supported For Flat Cable
Maximum conductor W/insulation O.D. Size 1.14mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories N/A
Related Crimping Tools N/A
