Drawing Guide

Part No. P8-070-3

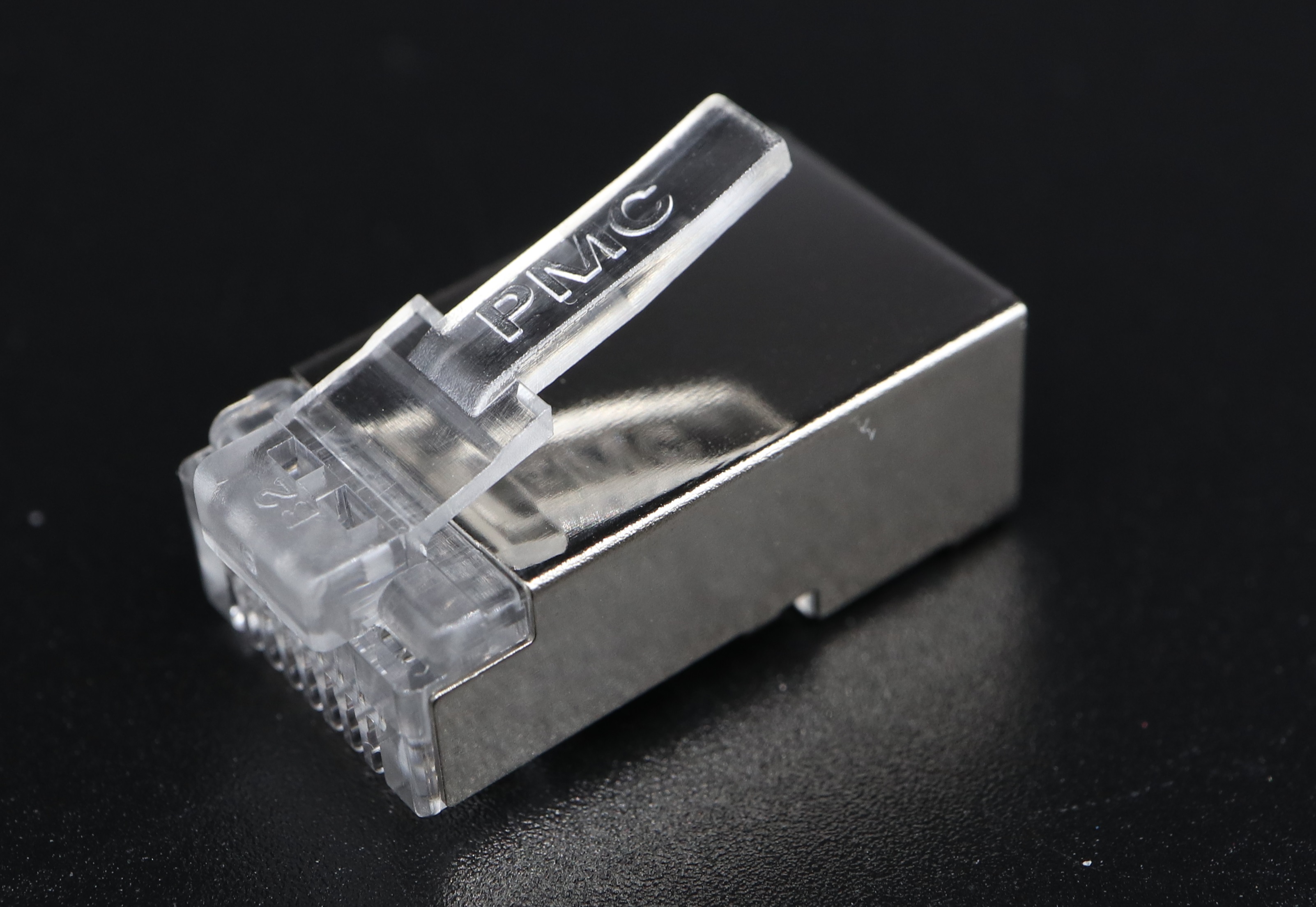

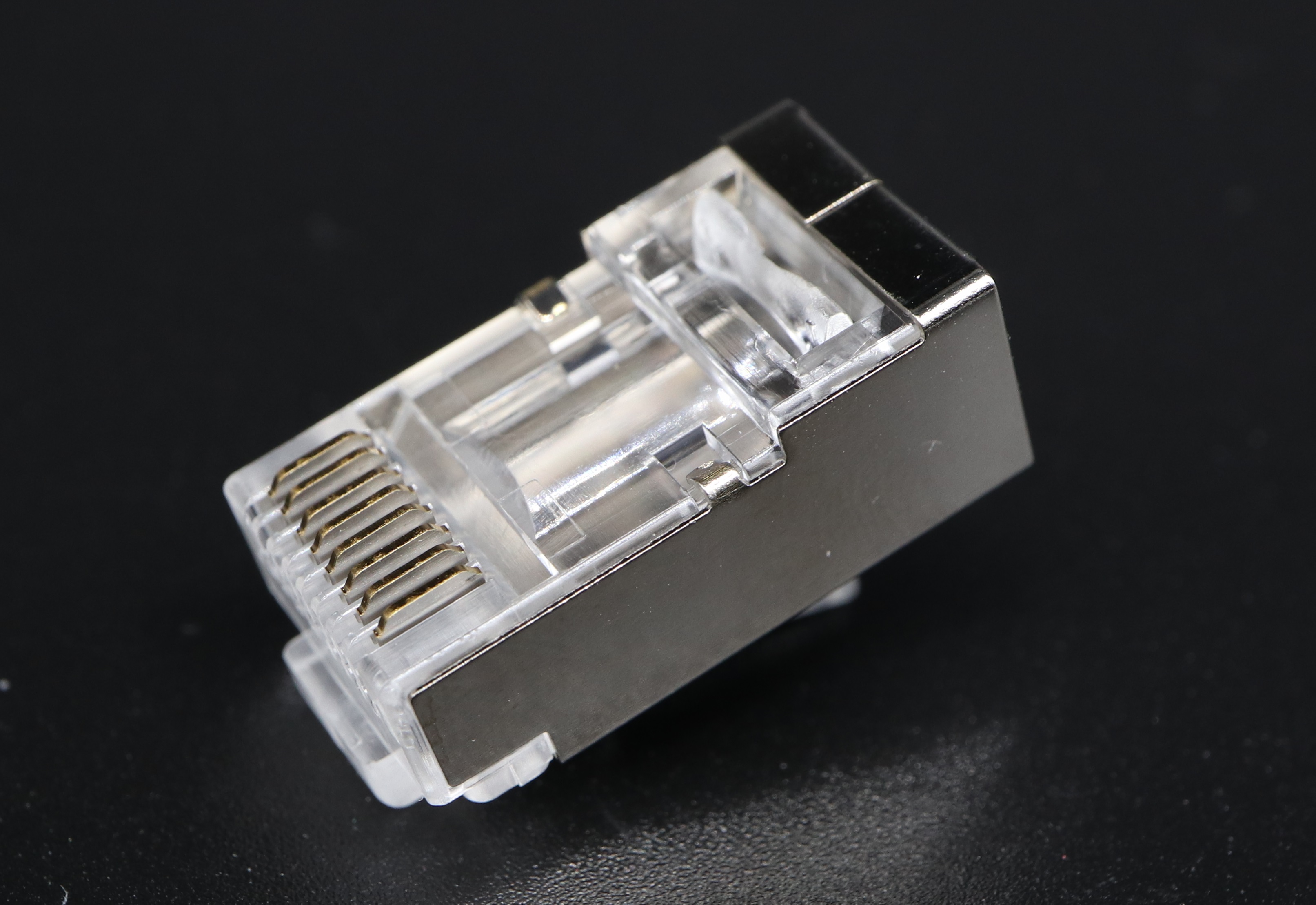

C6 STP RJ45 Modular Plug 8P8C-F-RV 0.6mm
Performance Category Cat.6

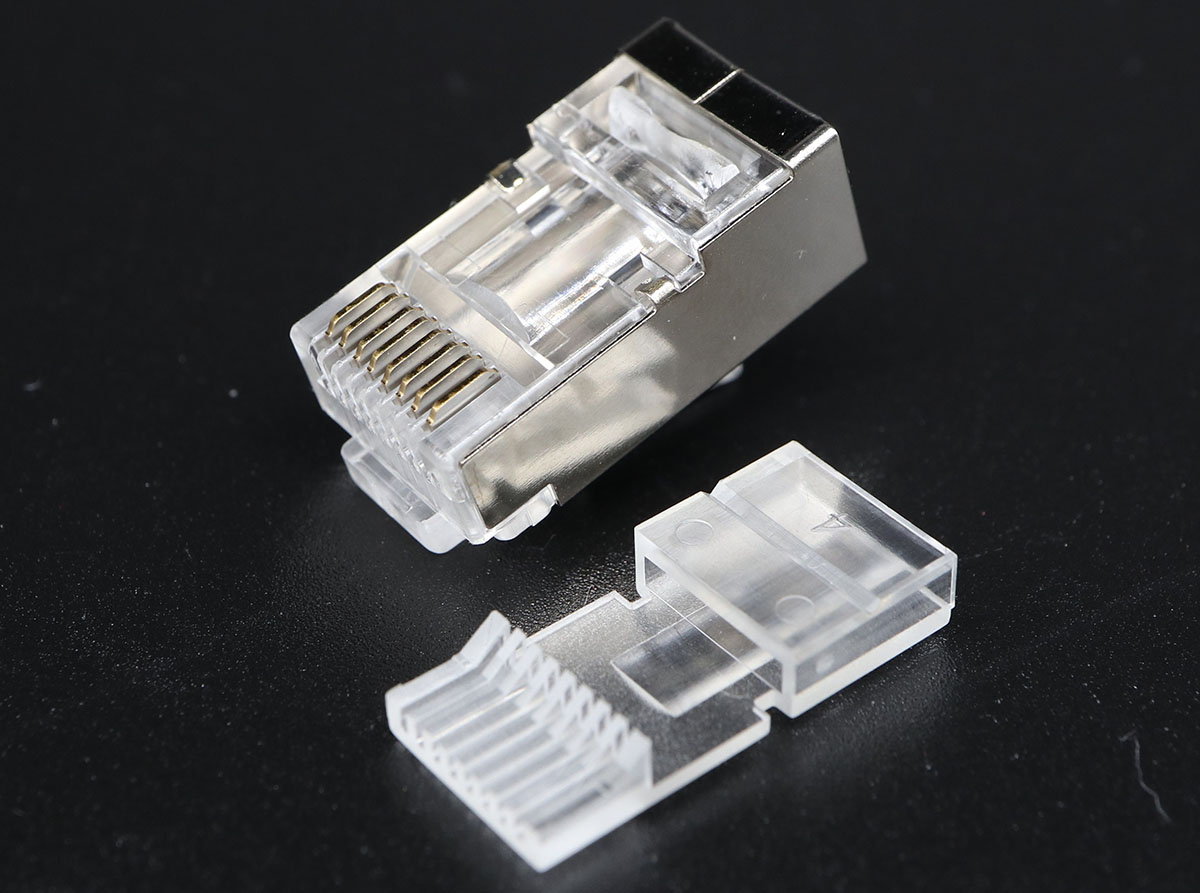

Description 8P8C-F-RV Shielded with insert 0.6mm
Cable entry hole F-RV
Loading bar Diameter 0.6mm

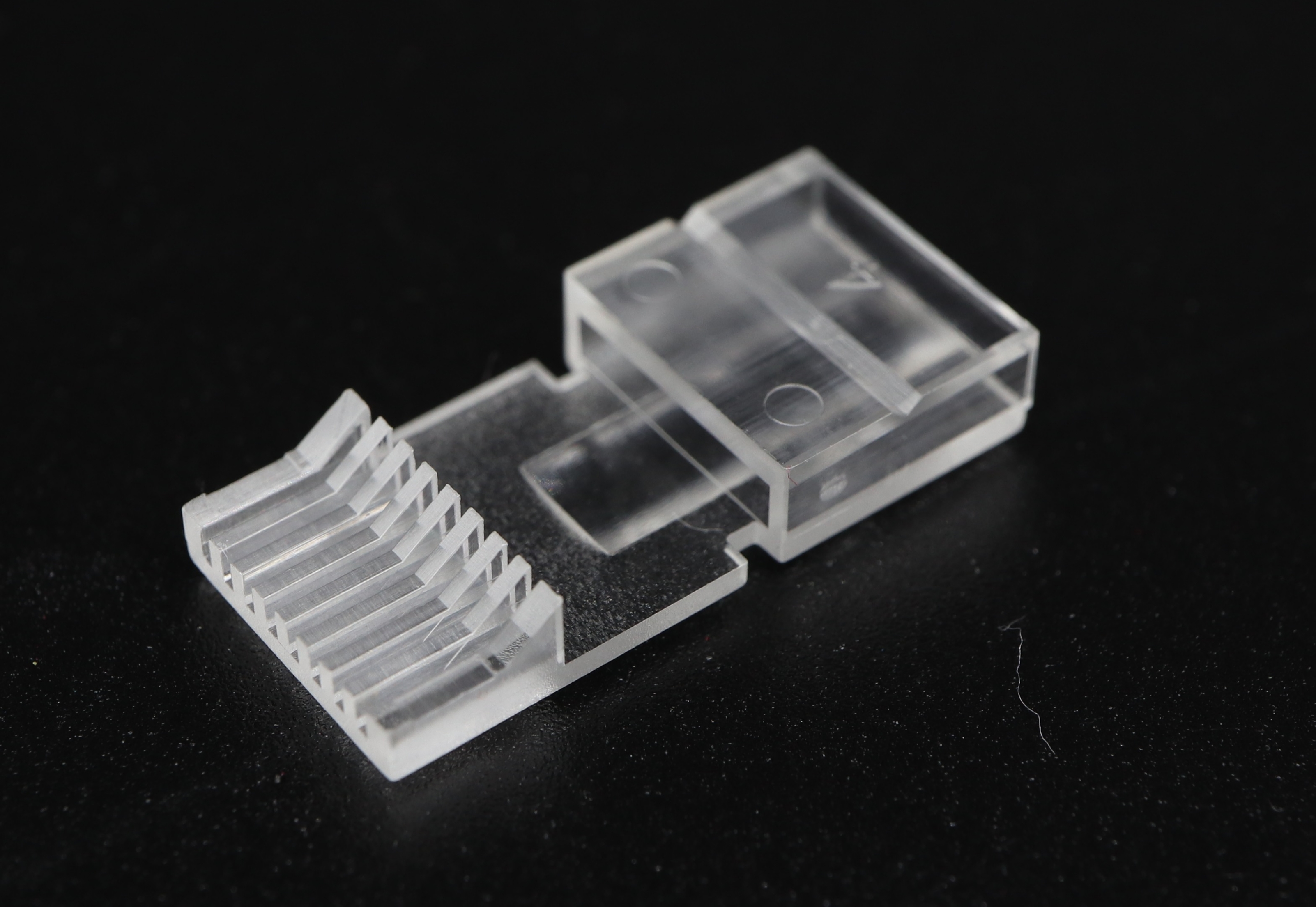

Wire Insert Diameter 0.6mm
Maximum Cable O.D. Size Supported For Flat cable
Maximum conductor W/insulation O.D. Size 0.6mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories N/A
Related Crimping Tools PM-3008R
