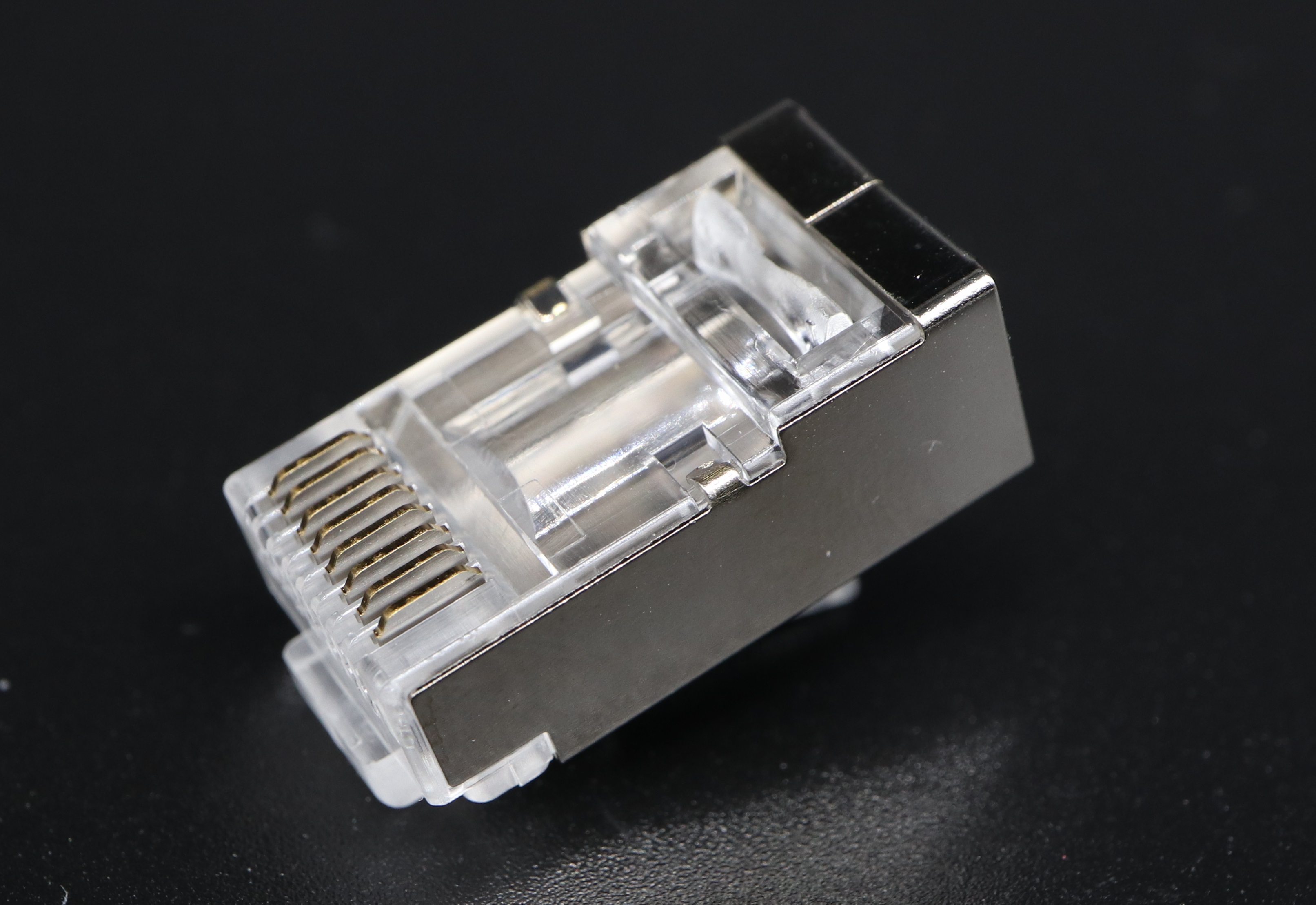

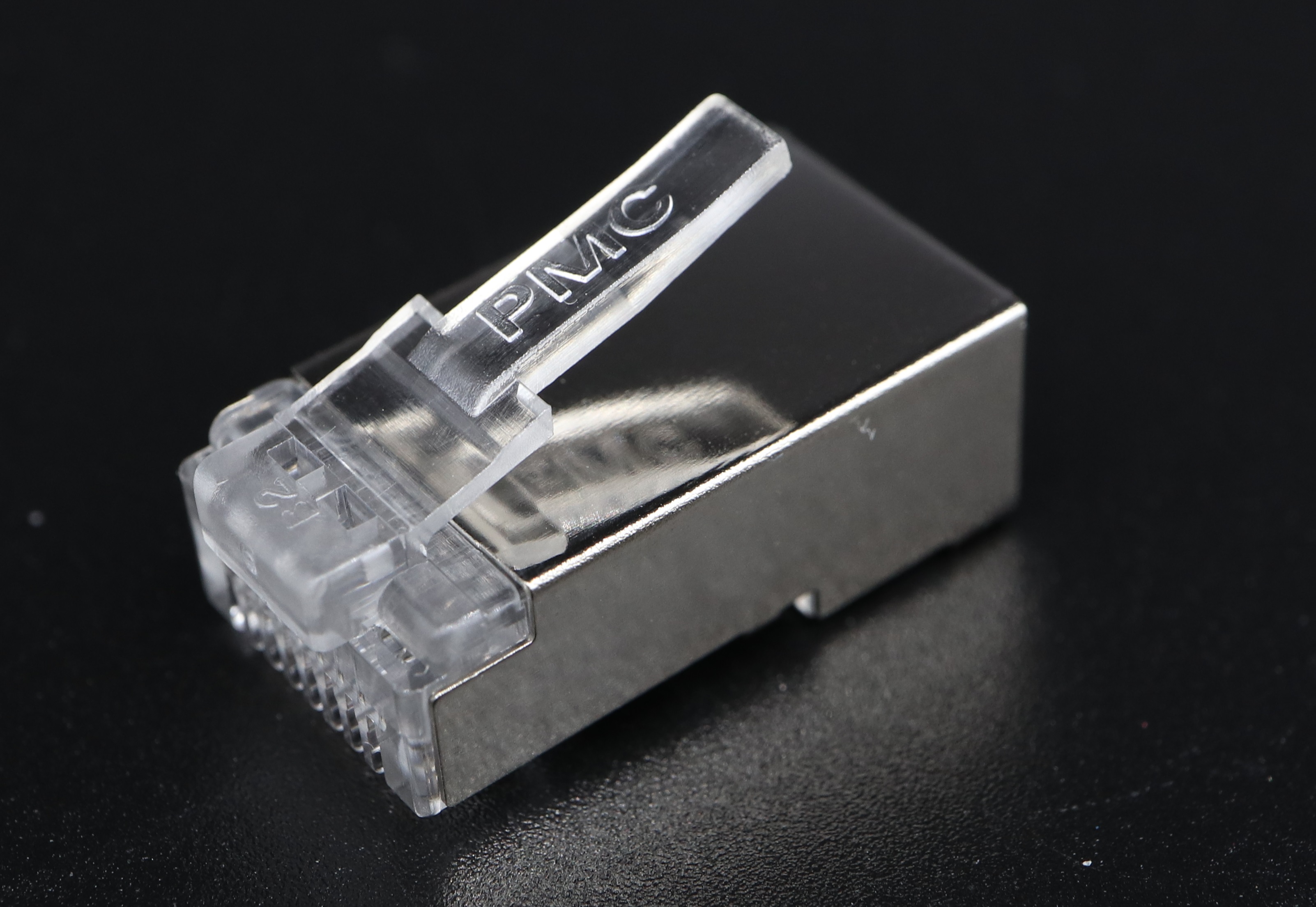

    P8-070-2 C6 8P8C-F-RV STP-0.45mm Flat Cable RJ45 Modular Plug

Drawing

Part No. P8-070-2
C6 8P8C-F-RV STP-0.45mm Flat Cable RJ45 Modular Plug
Performance Category Cat.6

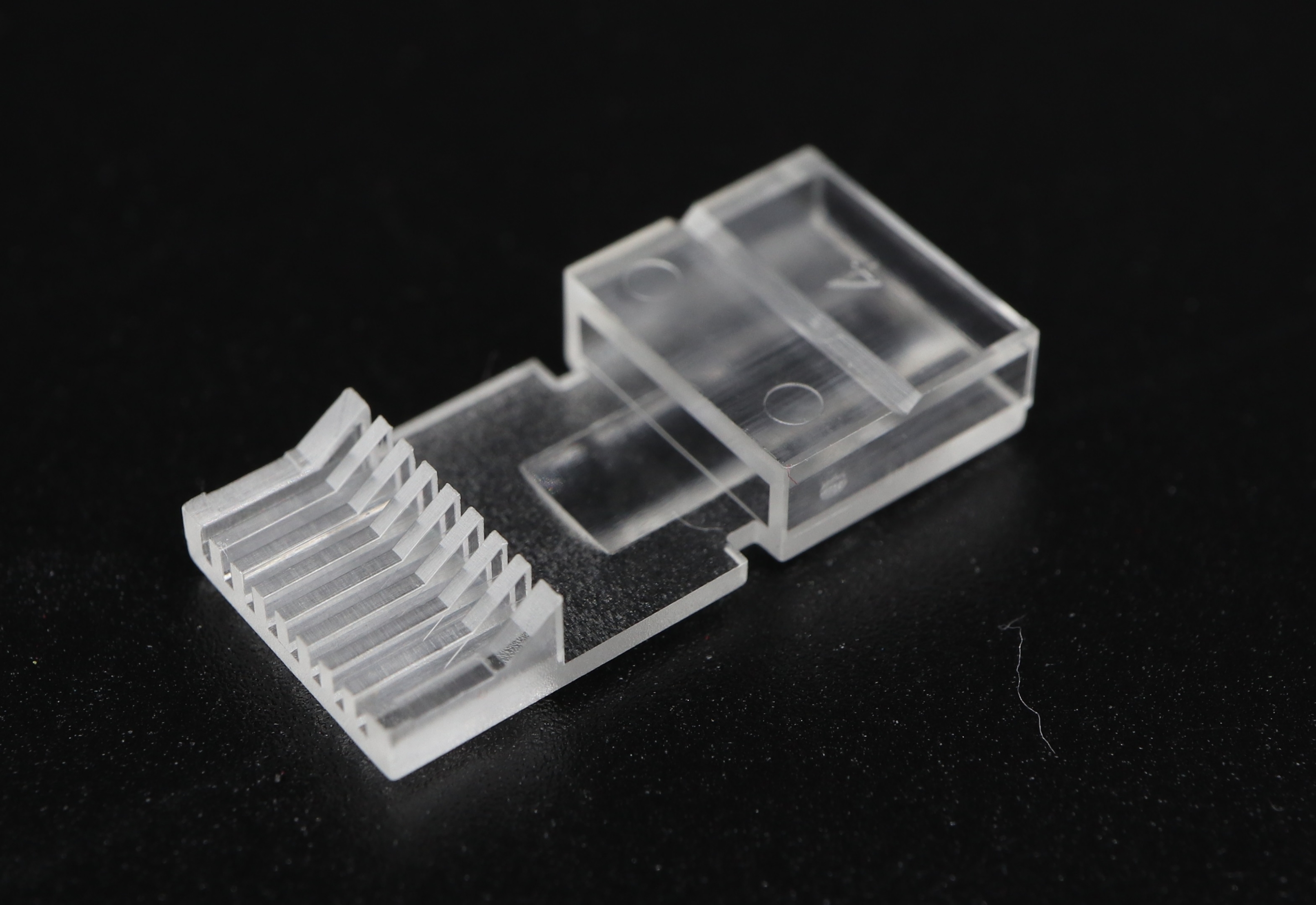

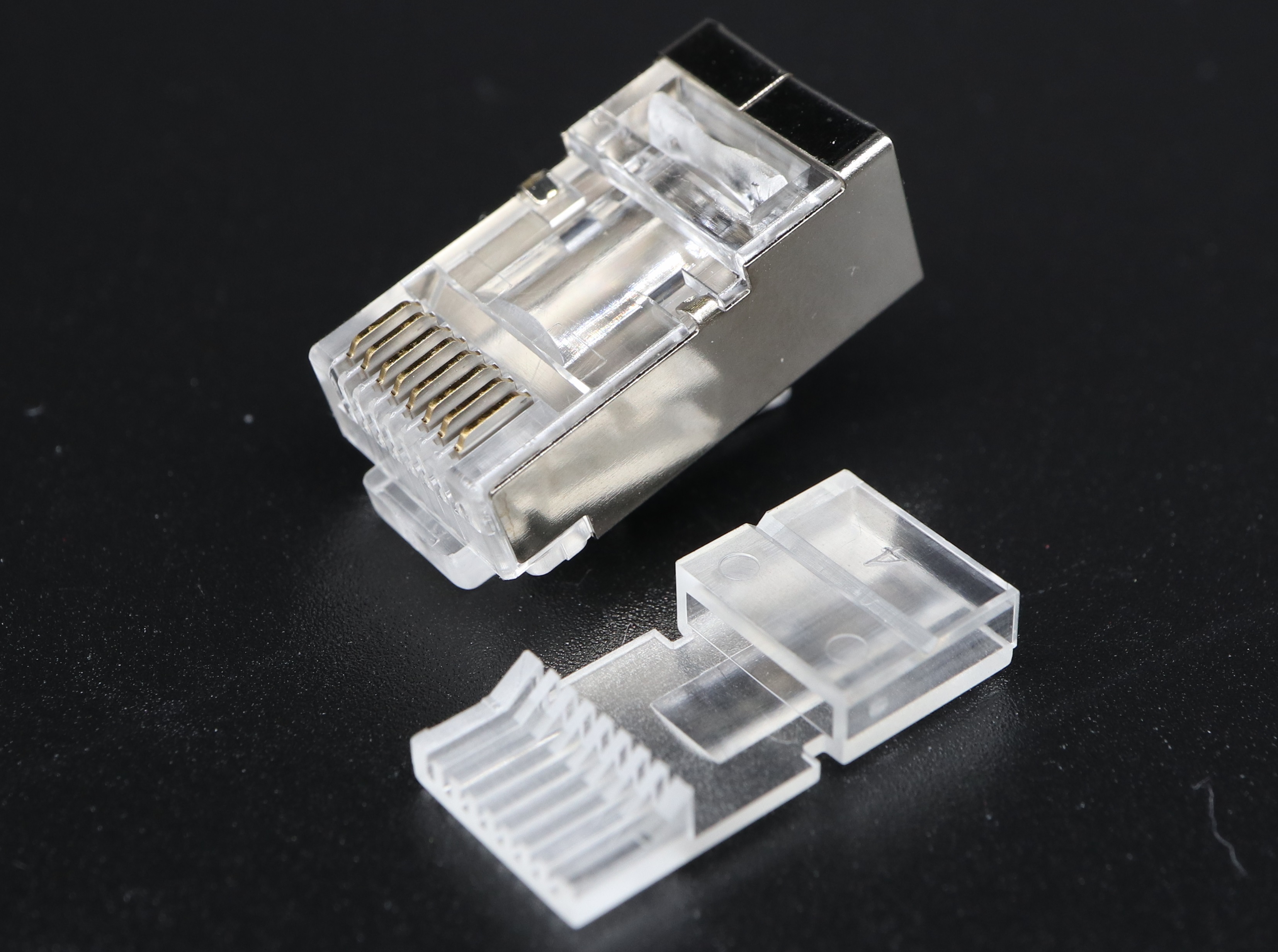

Description 8P8C-F-RV Shielded with insert 0.45mm
Cable entry hole F for super flat cable
Loading bar Diameter 0.45mm
Wire Insert Diameter 0.45mm
Maximum Cable O.D. Size Supported For flat cable
Maximum conductor W/insulation O.D. Size 0.45mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories N/A
Related Crimping Tools PM-L2182R
