Part No. P8-039-21

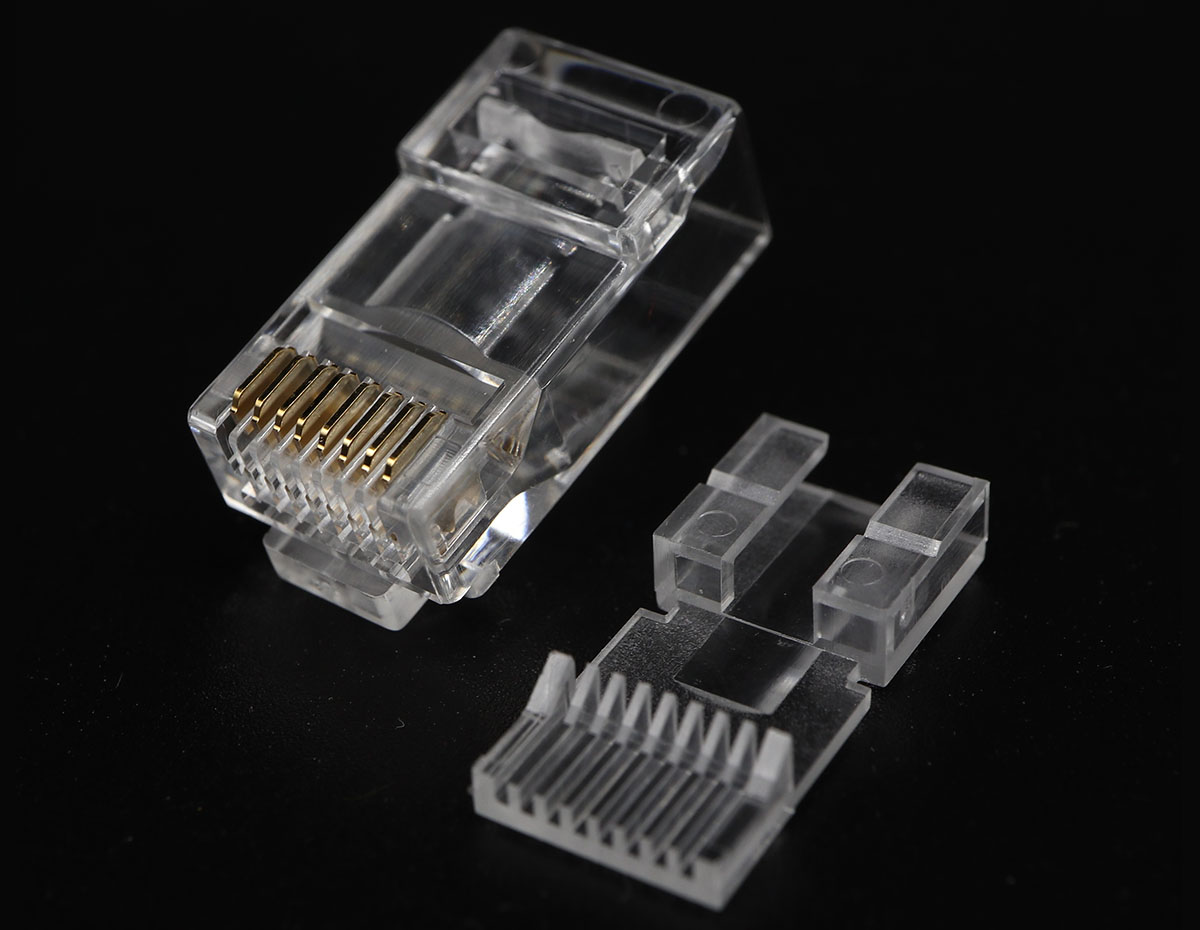

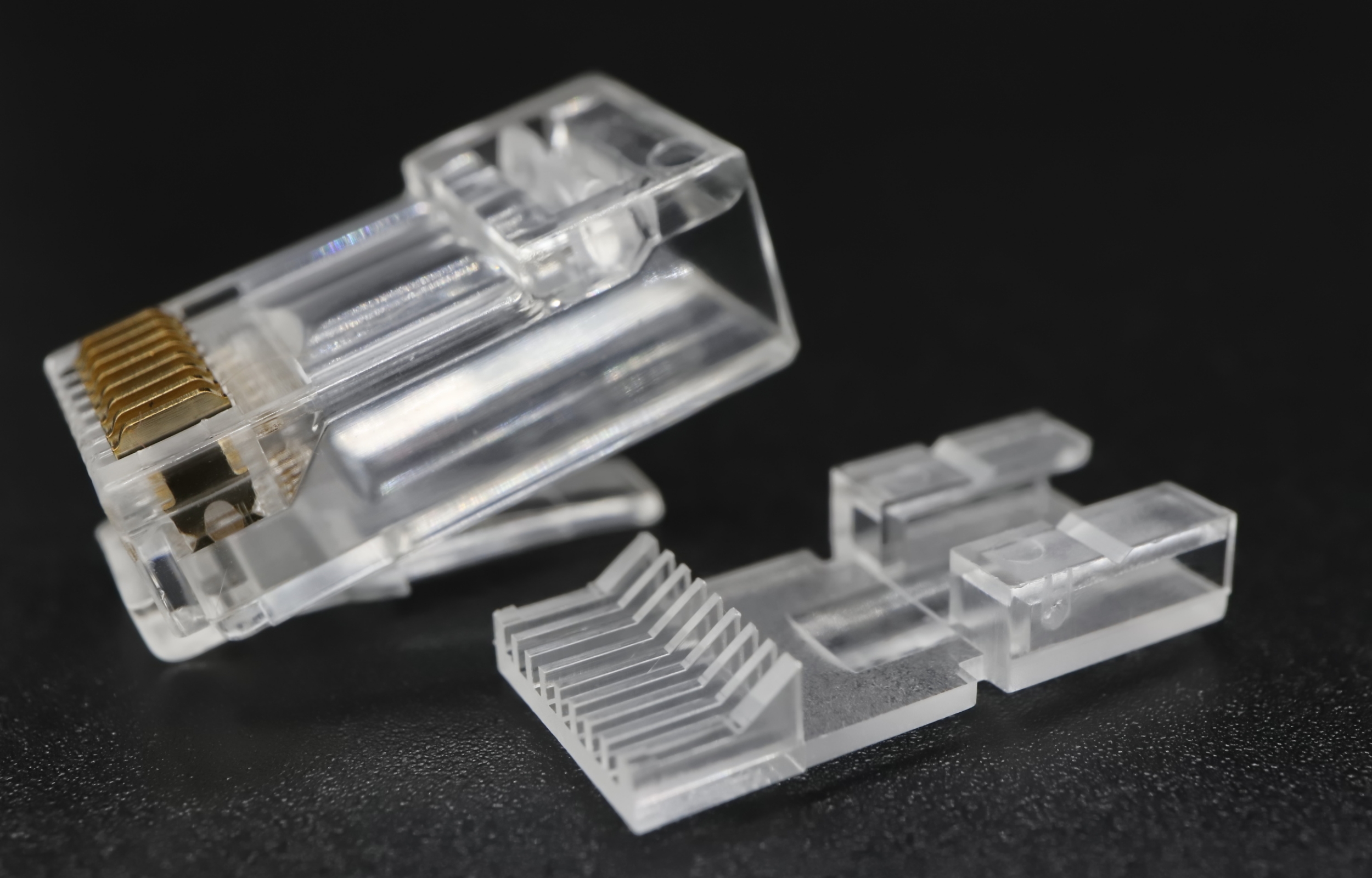

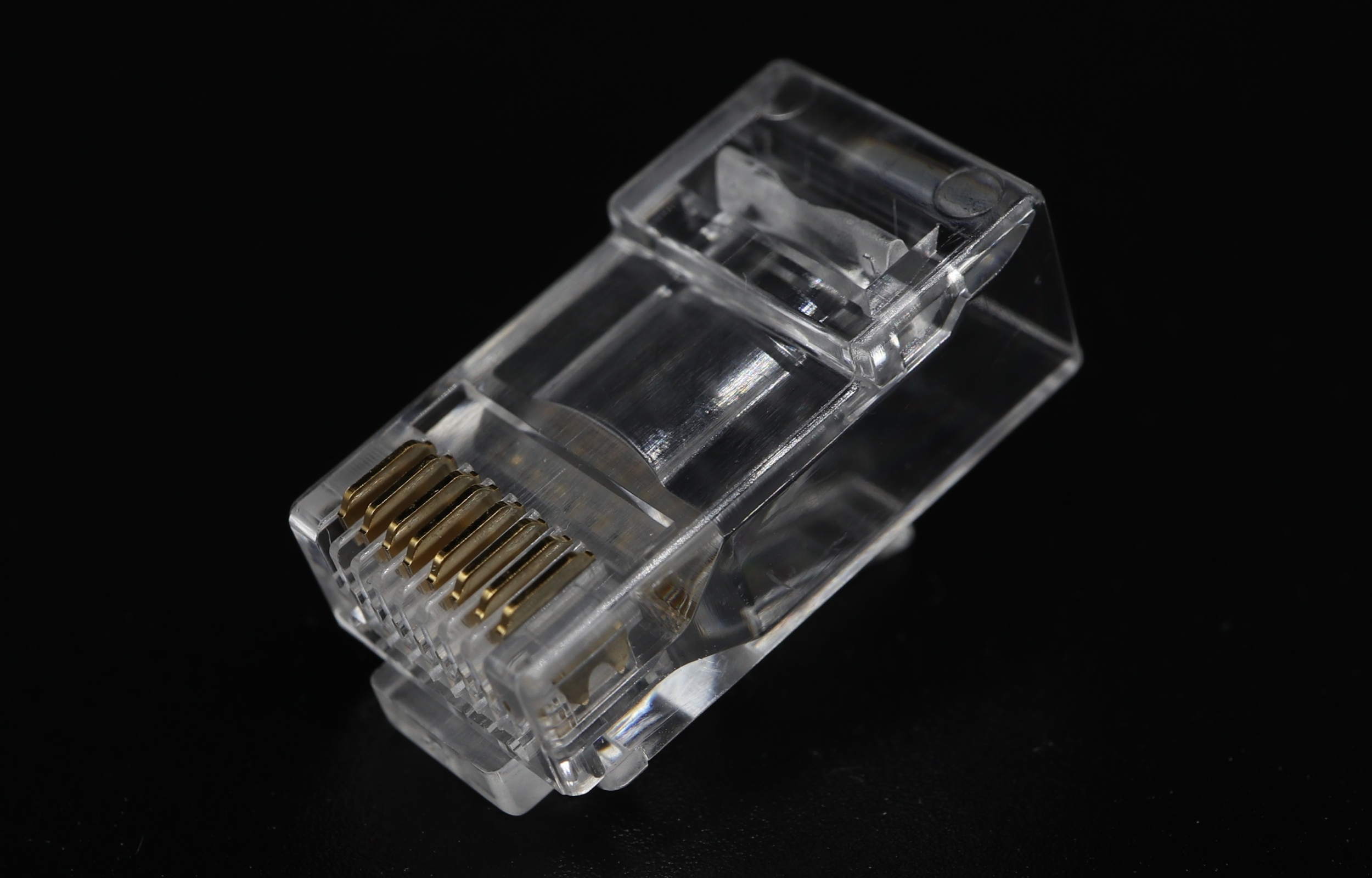

RJ45 Modular Plug Cat.6 8P8C-2R-V with load bar 0.6mm UTP
Performance Category Cat.6
Description 8P8C-2R-V with insert 0.6mm, for cable OD 3.8mm
Cable entry hole 2R-V

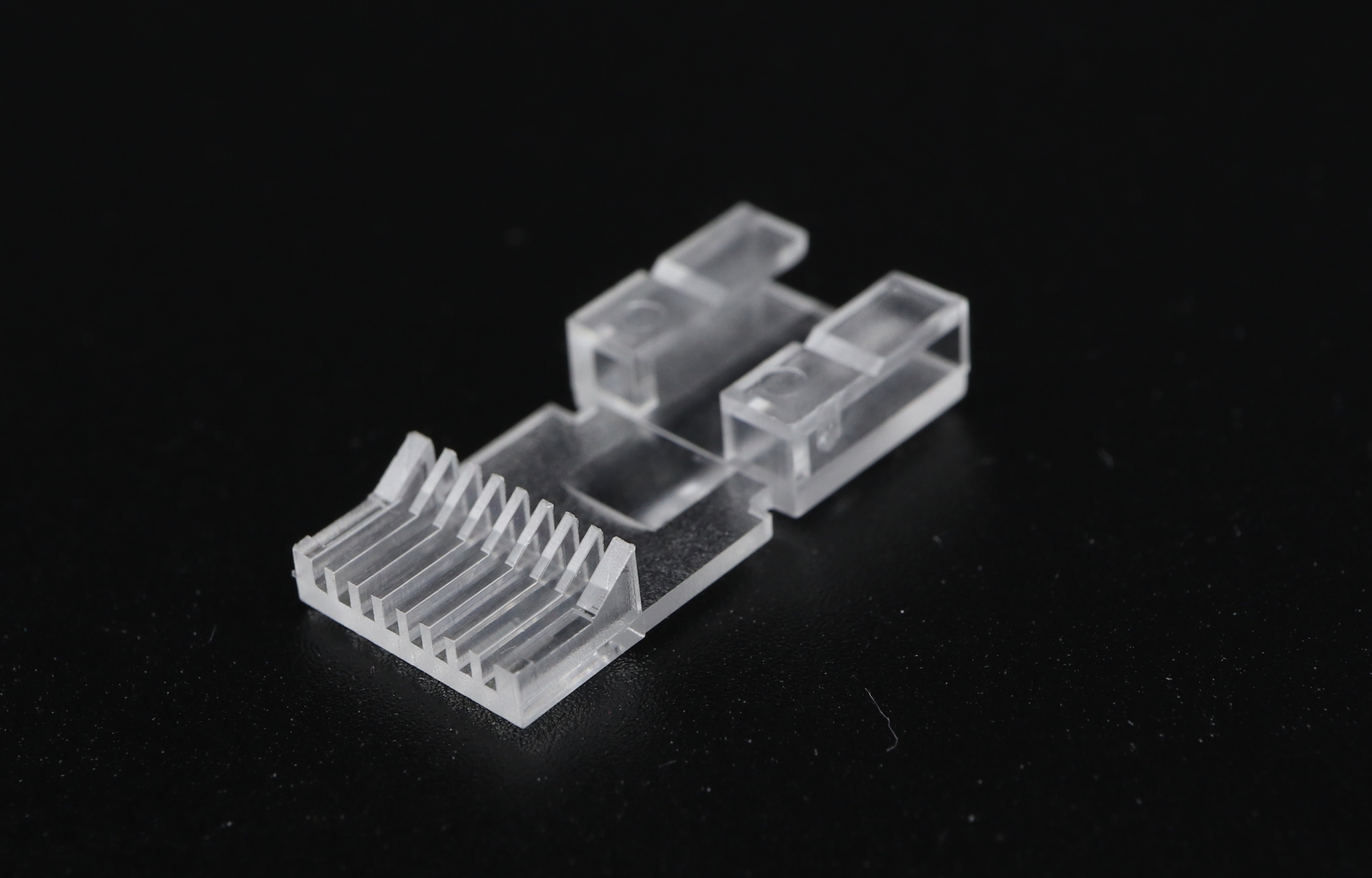

Loading bar Diameter 0.6mm
Wire Insert Diameter 0.6mm
Maximum Cable O.D. Size Supported 3.8mm
Maximum conductor W/insulation O.D. Size 0.6mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories N/A
Related Crimping Tools N/A
