    P8-061 RJ45 Modular Plug Cat.6 8P8C-F with divider and load bar UTP - Molding Use (Patented)

Drawing Guide

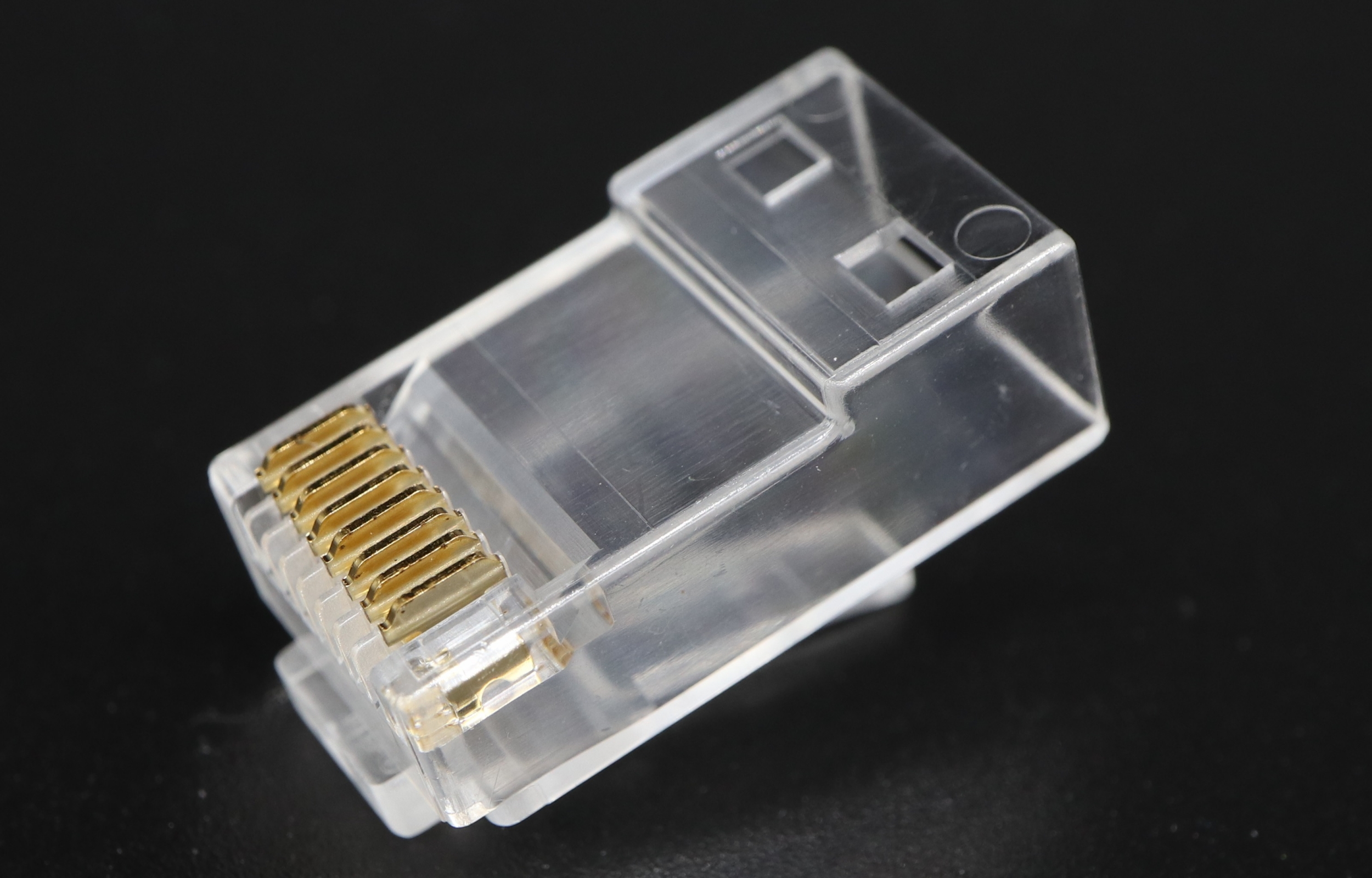

Part No. P8-061
RJ45 Modular Plug Cat.6 8P8C-F with divider and load bar UTP - Molding Use (Patented)
Performance Category Cat.6

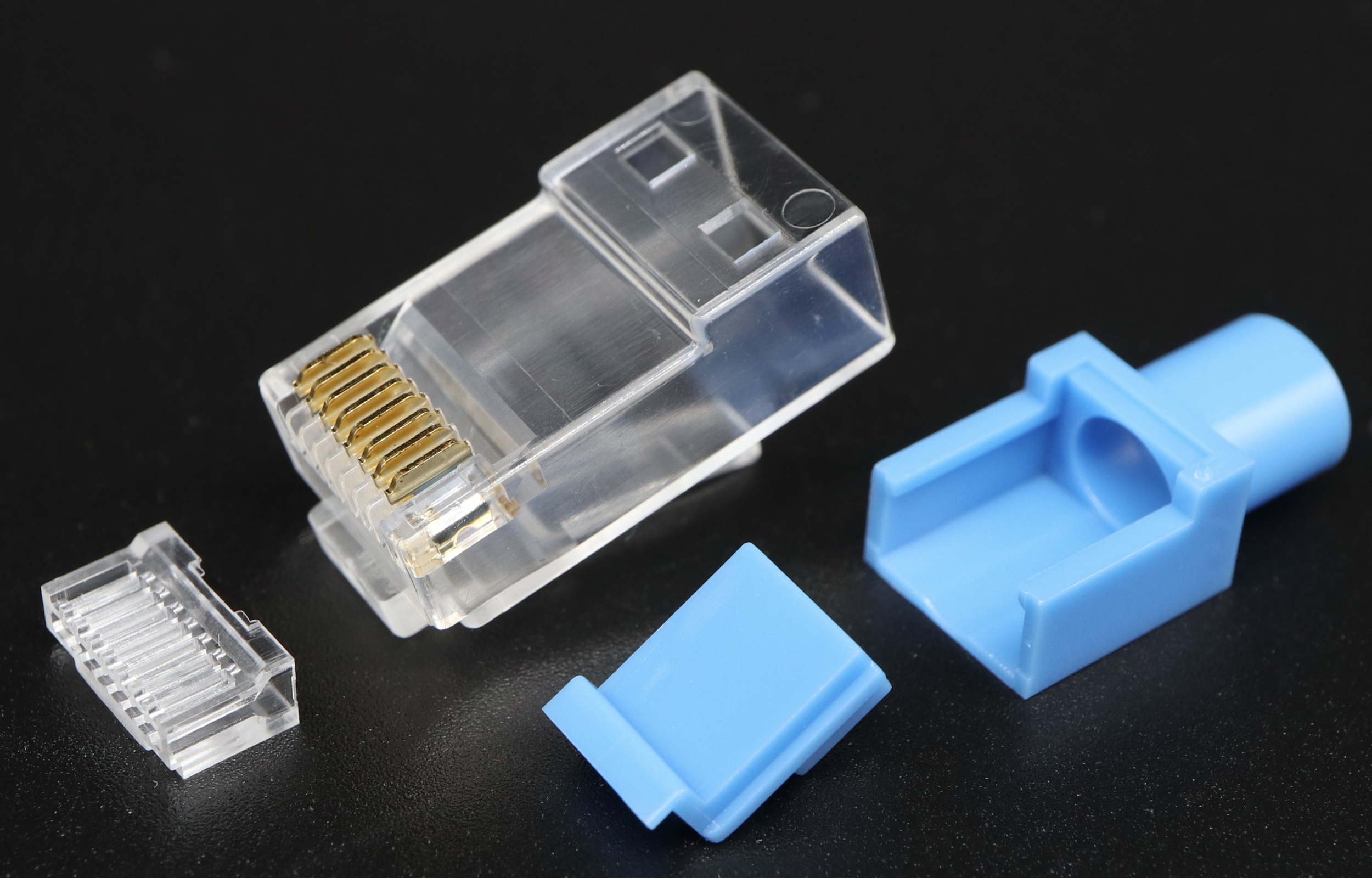

Description 8P8C-F with insert and divider for Molding
Cable entry hole F
Loading bar Diameter 1.0mm
Wire Insert Diameter 1.0mm
Maximum Cable O.D. Size Supported For Flat Cable
Maximum conductor W/insulation O.D. Size 1.0mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories SR-001
Related Crimping Tools PM-3008R (Need to exchange die of tool)
