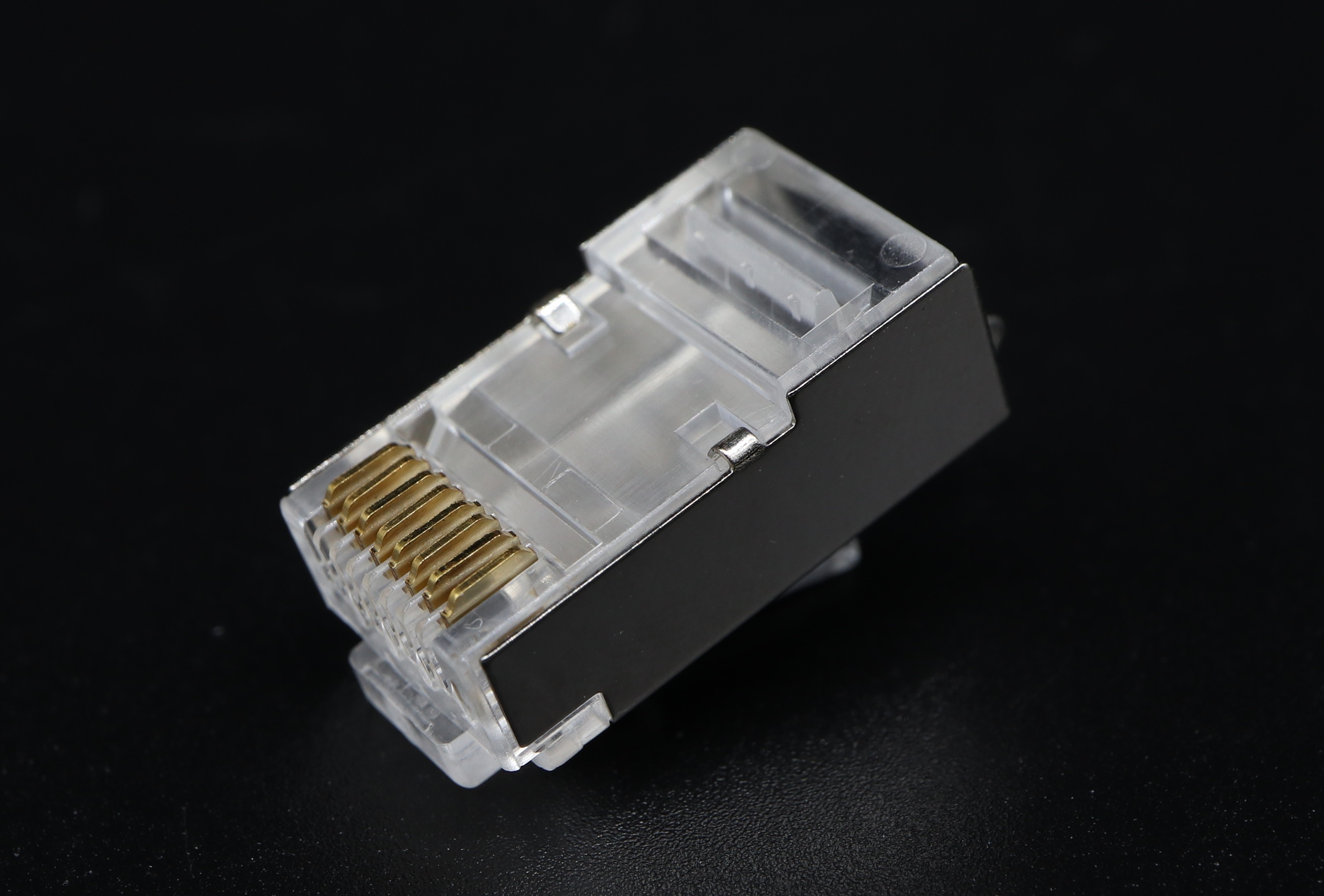

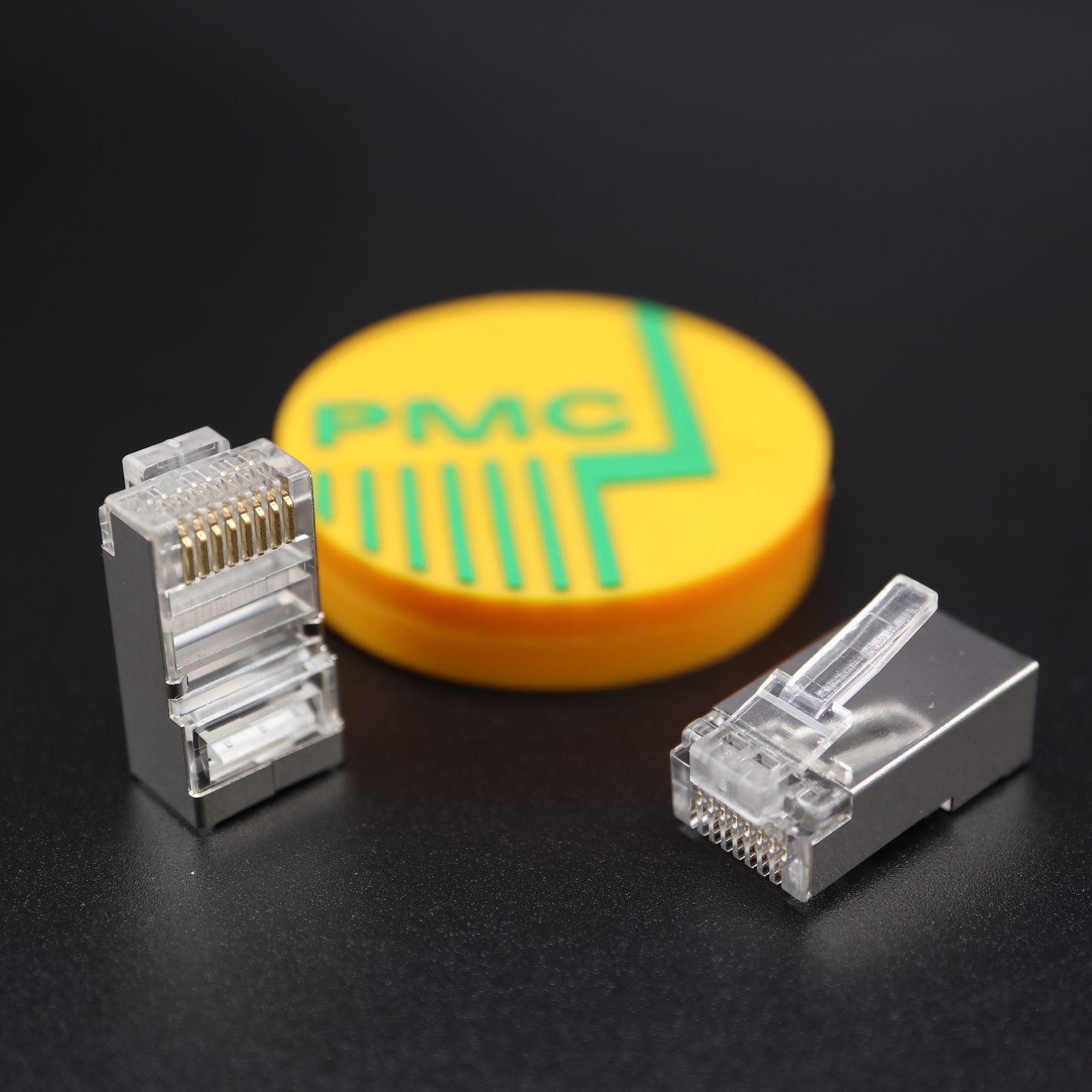

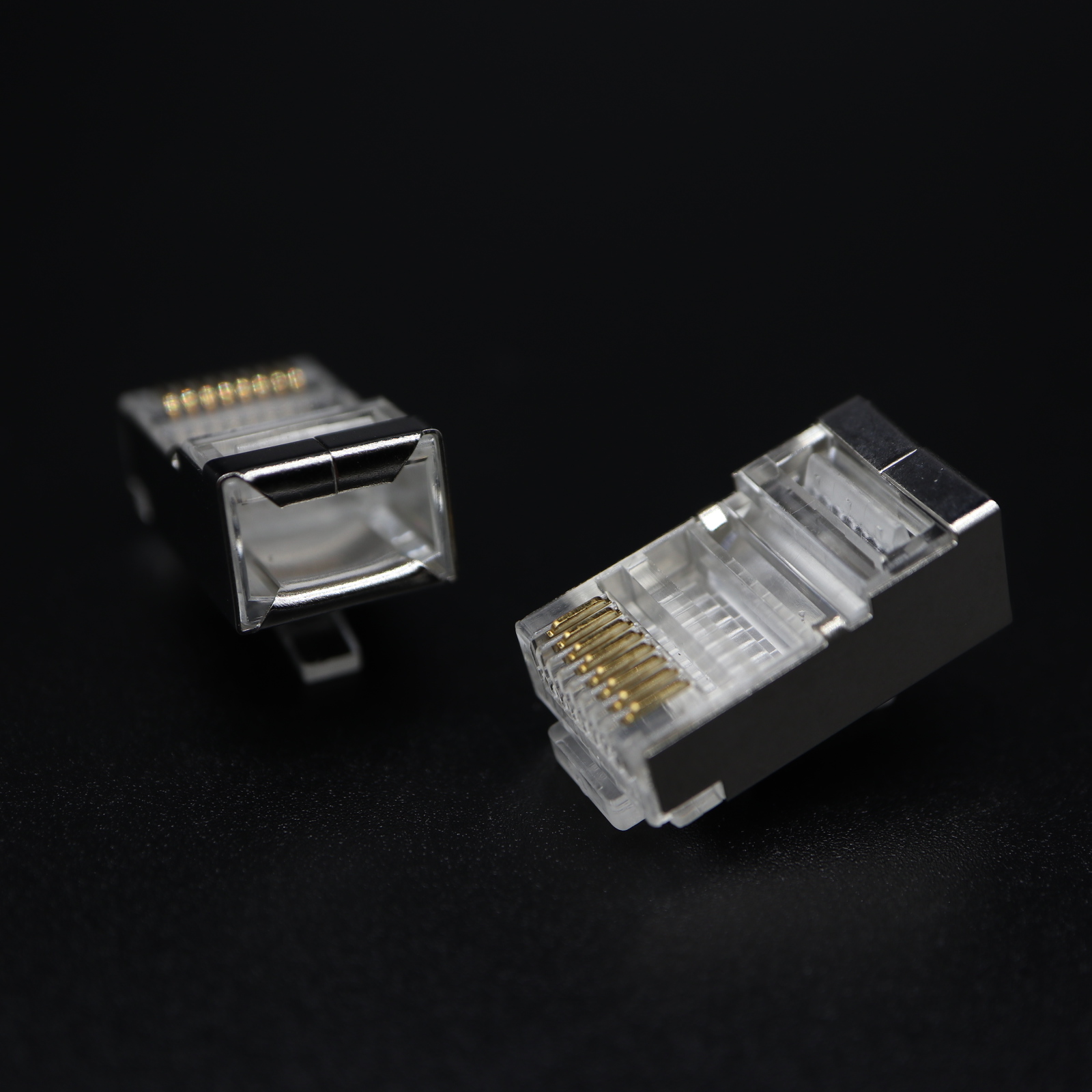

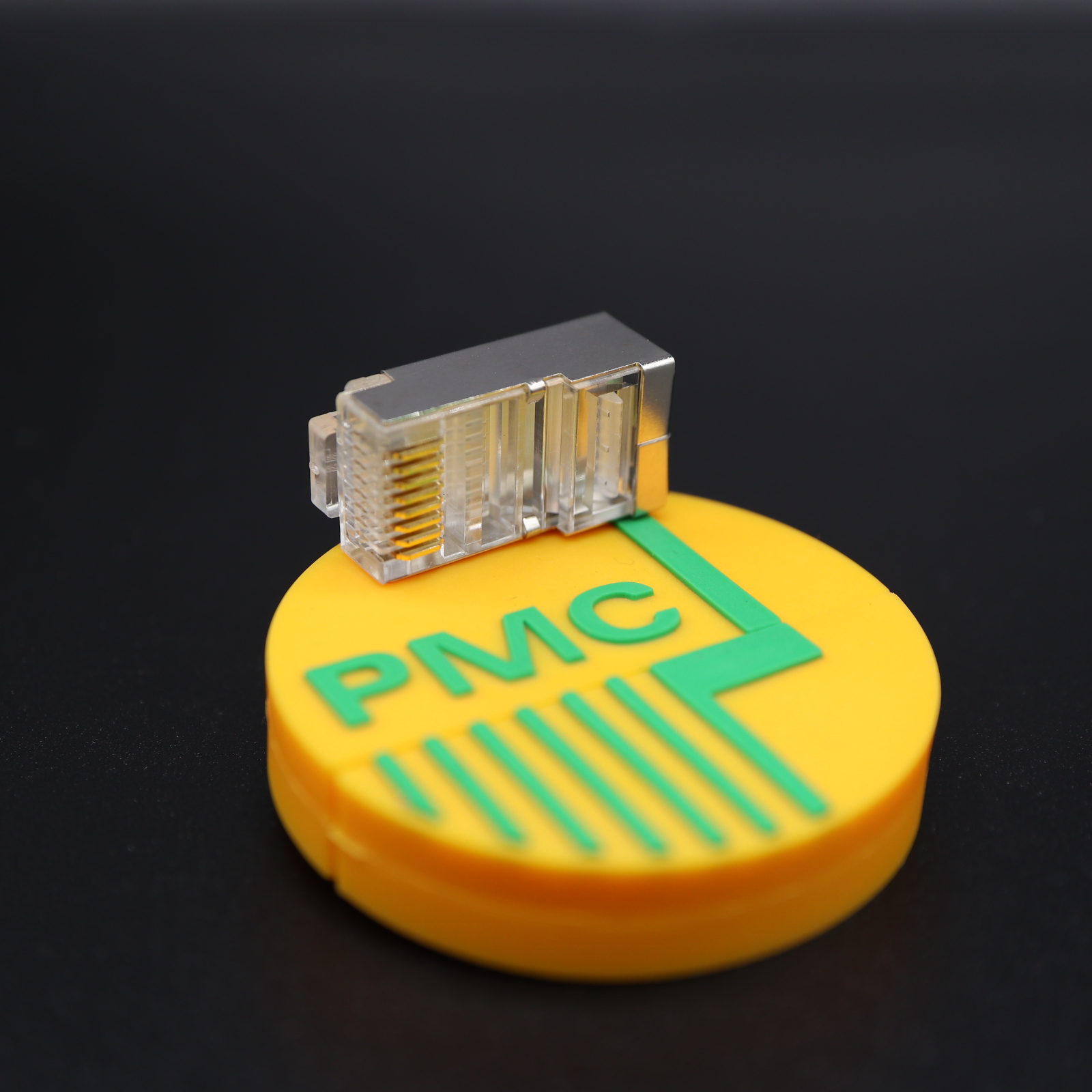

• P8-005-7 RJ45 Modular Plug Cat.5E 8P8C-R Shielded 1.2mm
    P8-005-7 RJ45 Modular Plug Cat.5E 8P8C-R Shielded 1.2mm P8-005-7 RJ45 Modular Plug Cat.5E 8P8C-R Shielded 1.2mm P8-005-7 RJ45 Modular Plug Cat.5E 8P8C-R Shielded 1.2mm

    P8-005-7 RJ45 Modular Plug Cat.5E 8P8C-R Shielded 1.2mm

Drawing

Part No. P8-005-7
RJ45 Modular Plug Cat.5E 8P8C-R Shielded 1.2mm
Performance Category Cat.5E
Description 8P8C-R Shielded with 1.2mm
Cable entry hole R
Loading bar Diameter N/A
Wire Insert Diameter 1.2mm
Maximum Cable O.D. Size Supported For Round Cable
Maximum conductor W/insulation O.D. Size 1.2mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories SR-008
Related Crimping Tools PM-L2182R
