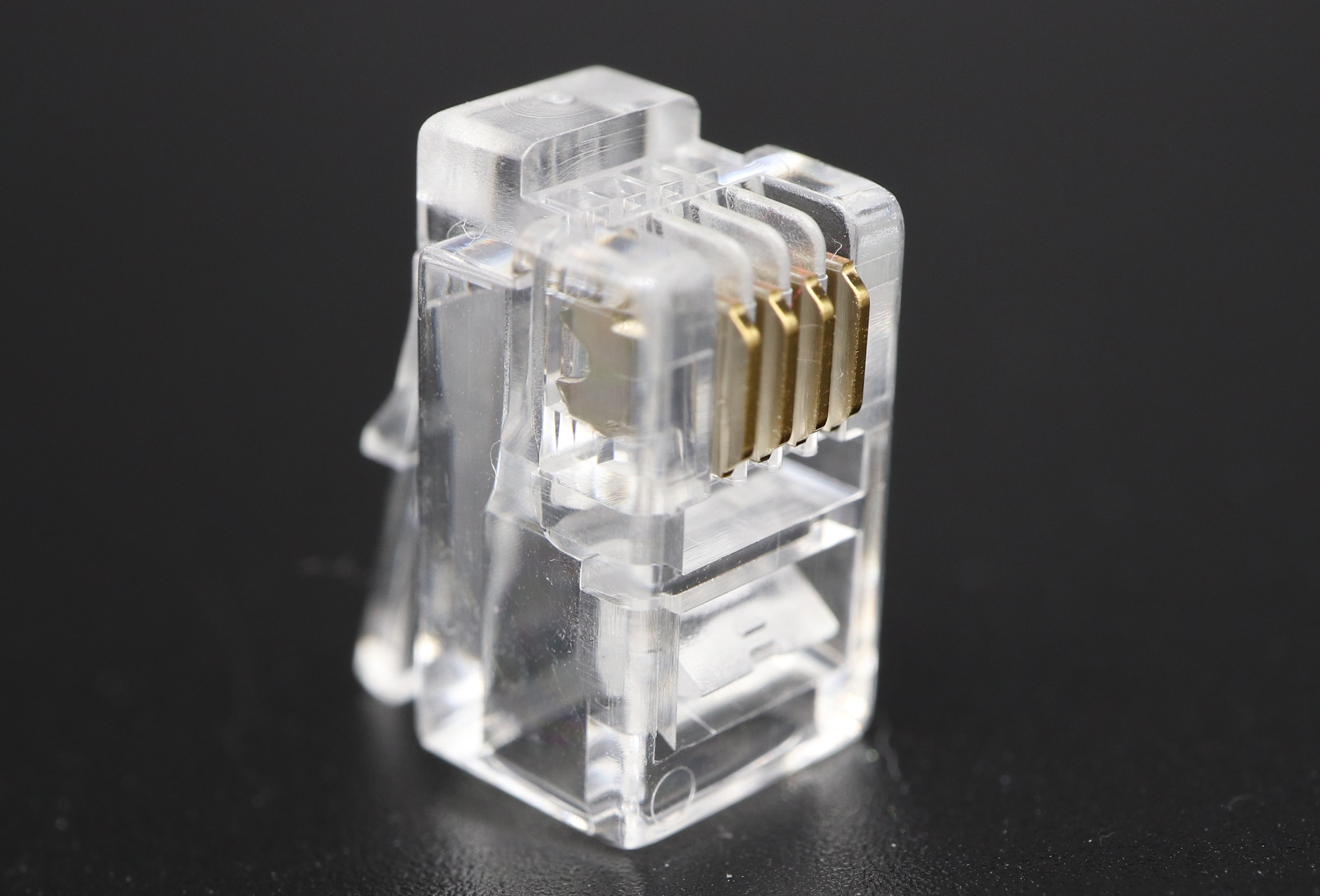

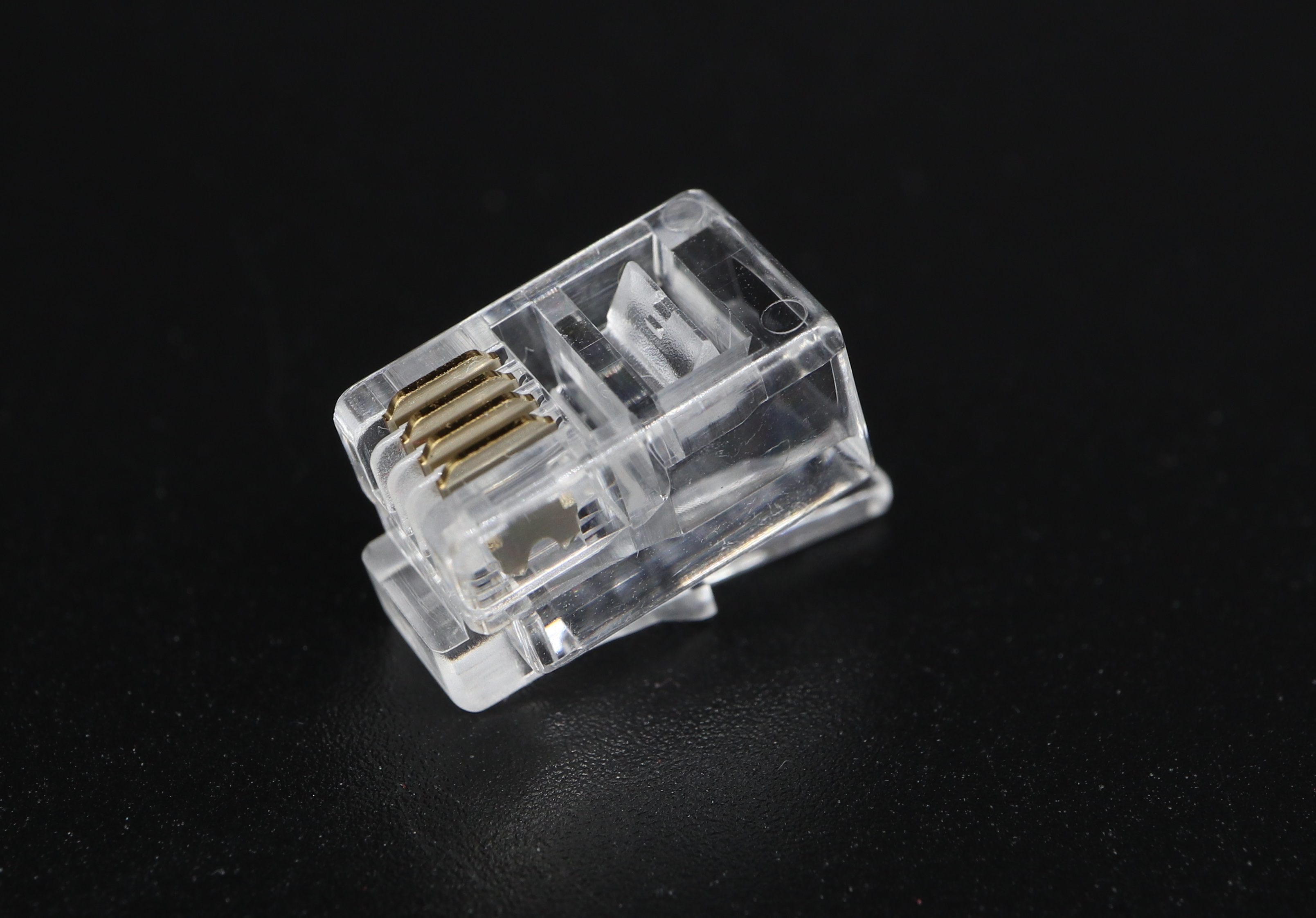

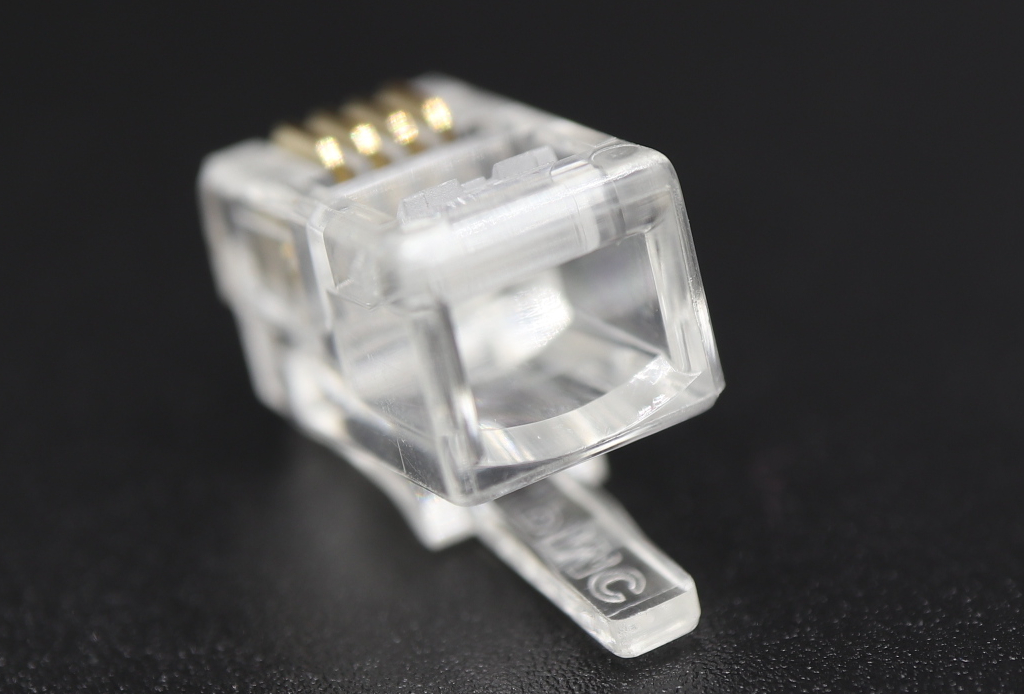

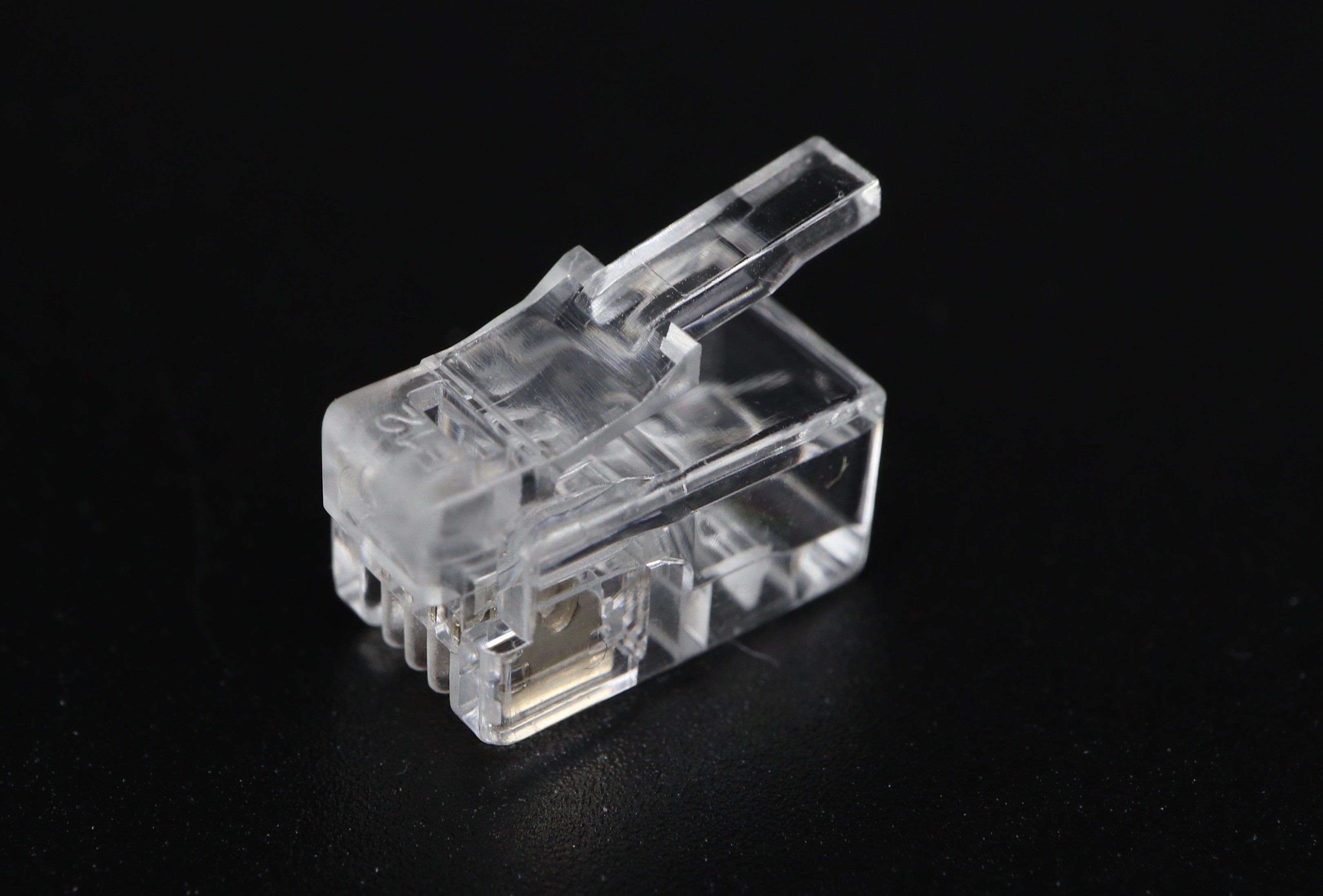

    P4-002 RJ9 Modular Plug 4P4C-R

Drawing

Part No. P4-002
RJ9 Modular Plug 4P4C-R
Performance Category N/A
Description 4P4C-R
Cable entry hole R
Loading bar Diameter N/A
Wire Insert Diameter 1.0mm
Maximum Cable O.D. Size Supported For Round cable.
Maximum conductor W/insulation O.D. Size 1.0mm
Conductor type Solid | Stranded
Packaging Features 1000pcs/bag
Plug Housing Material UL 94V-0 or 94V2 rated clear Polycarbonate (PC)
Contact Blades Material Brass Alloy (Fu", 3u", 6u" ) or Phosphor Bronze (15u",30u",50u") , selective Gold over Nickel Plating
Operation Temperature - 10℃ ~60 ℃
Storage temperature - 40℃ ~ 70℃
Compliance Meet FCC CFR 47 part 68 and IEC 60603-7 reliability test , UL Certified & ROHS compliant
Related Accessories N/A
Related Crimping Tools PM-2008AR

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Part No. P4-002
Housing Material
Contact Type
Gold Plating
Packaging Quantity
Housing Color: Clear or other colors are available.
Other Remark (OEM logo ,Small packing)
