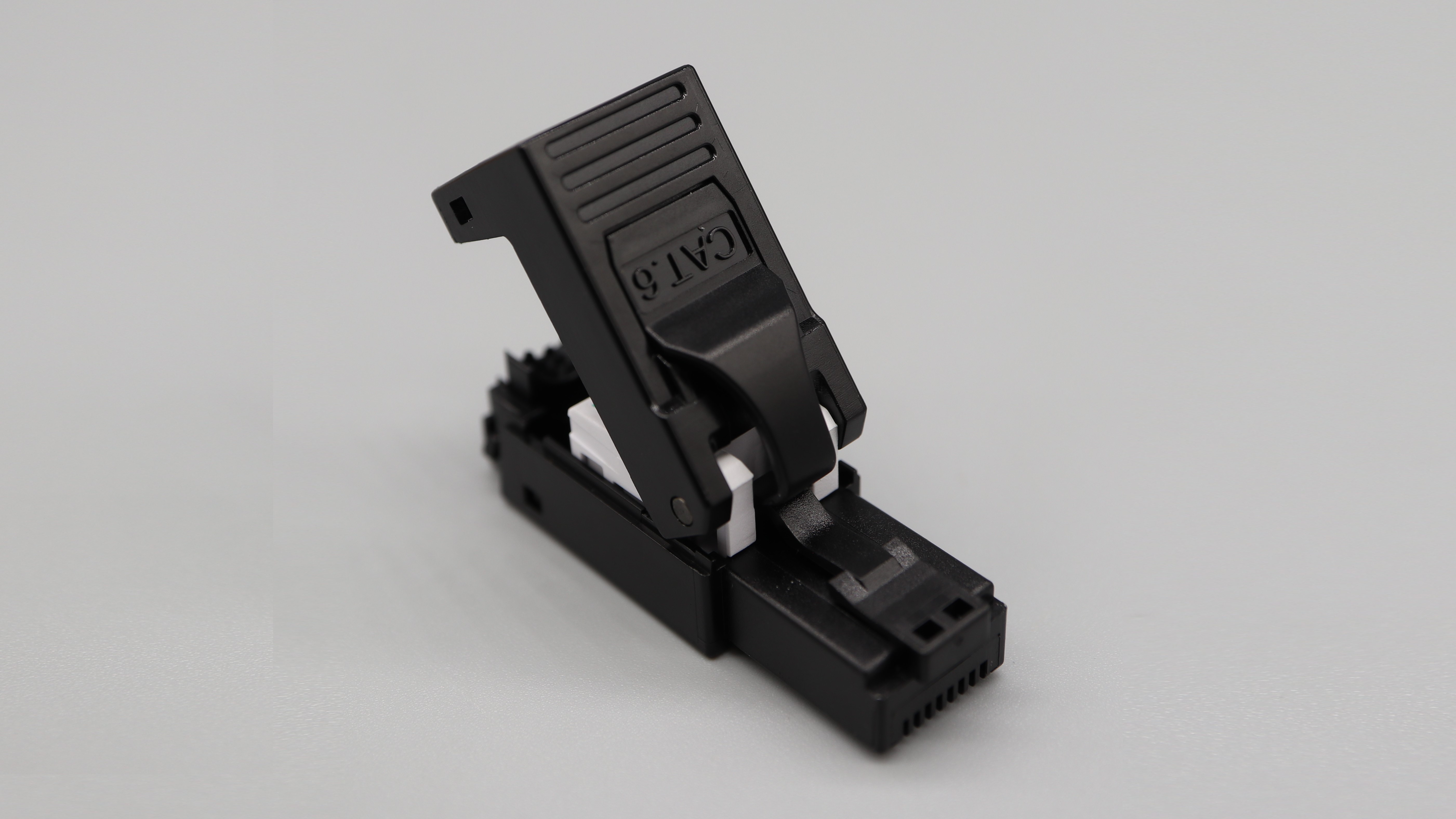

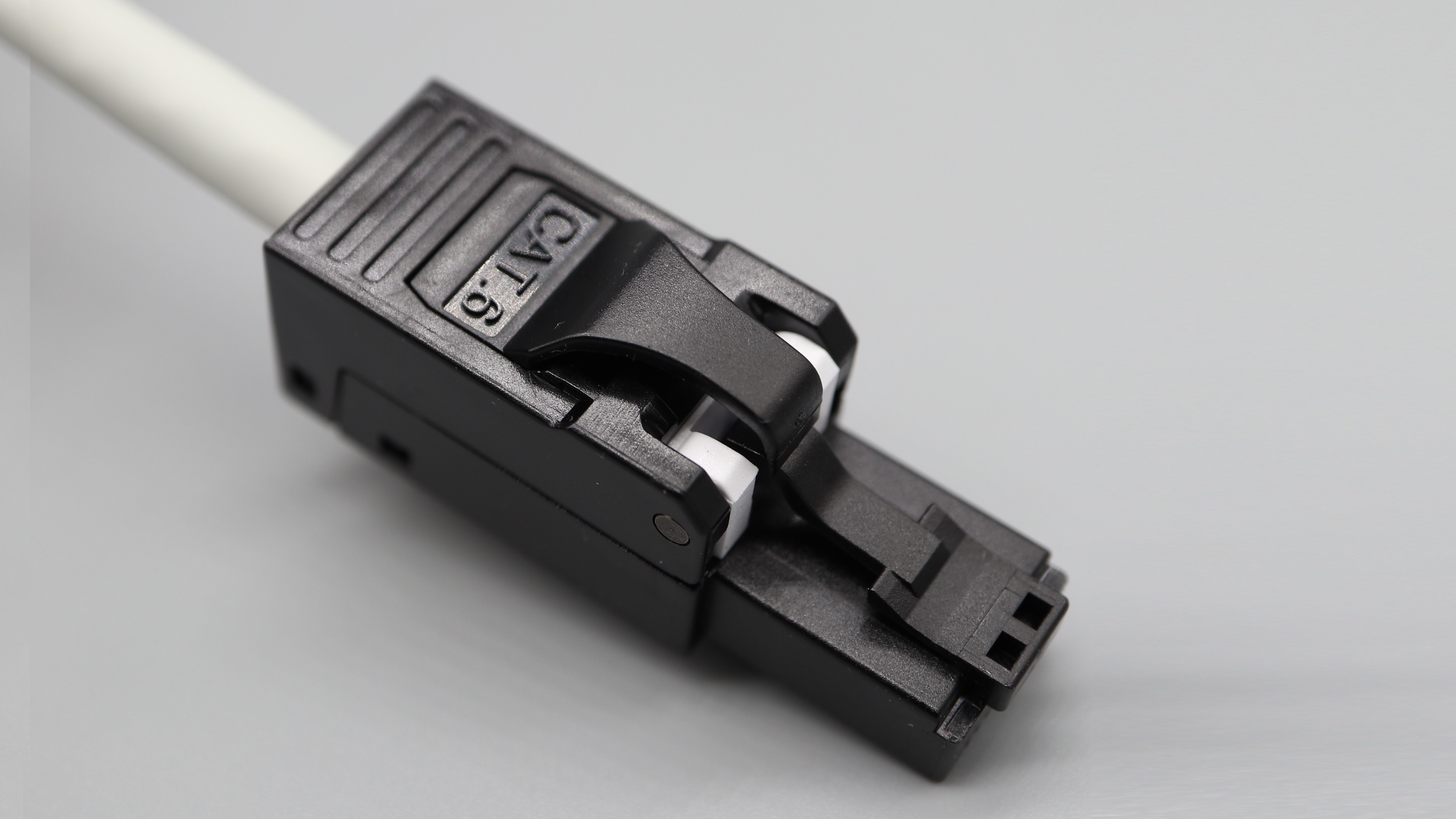

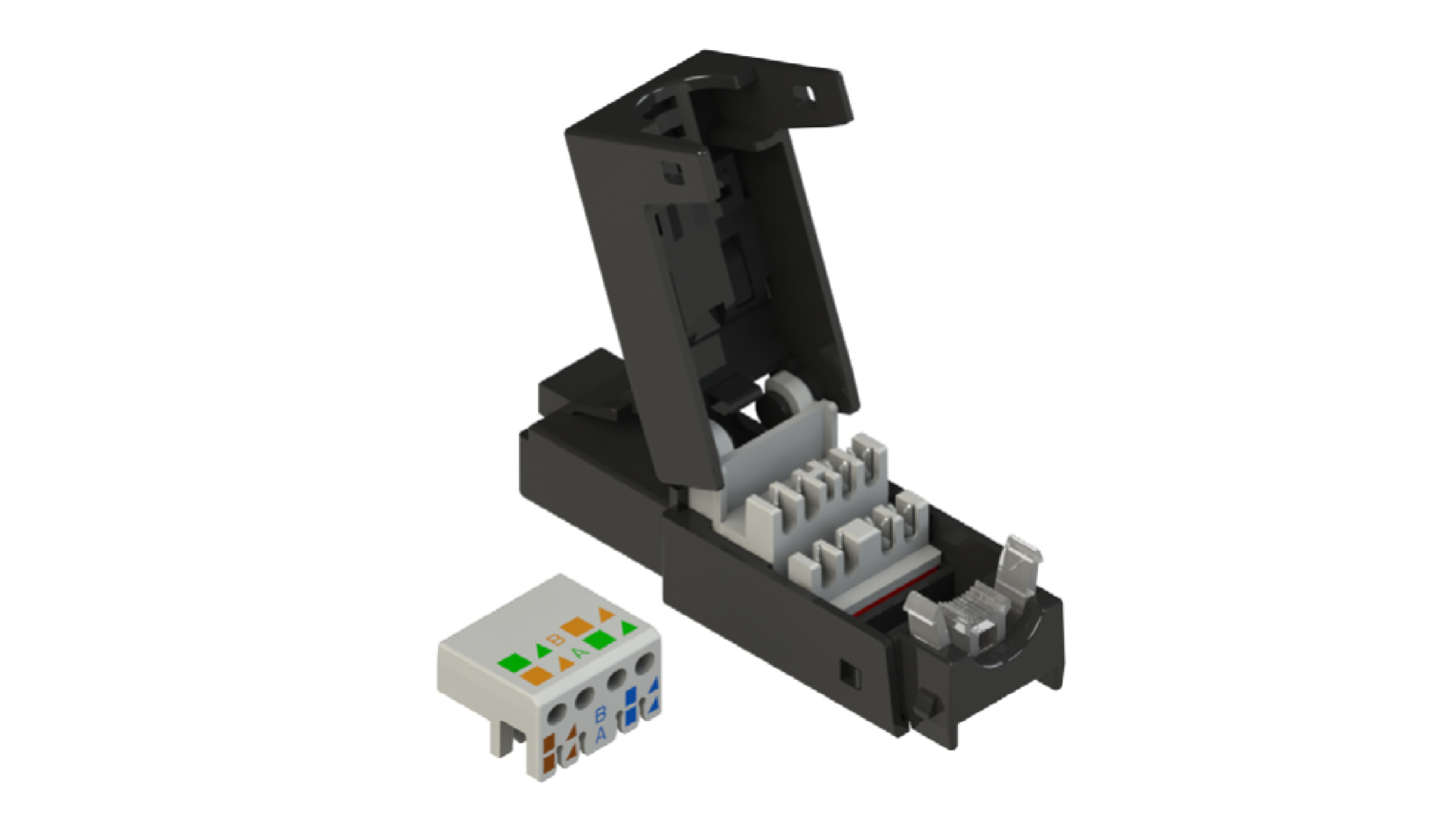

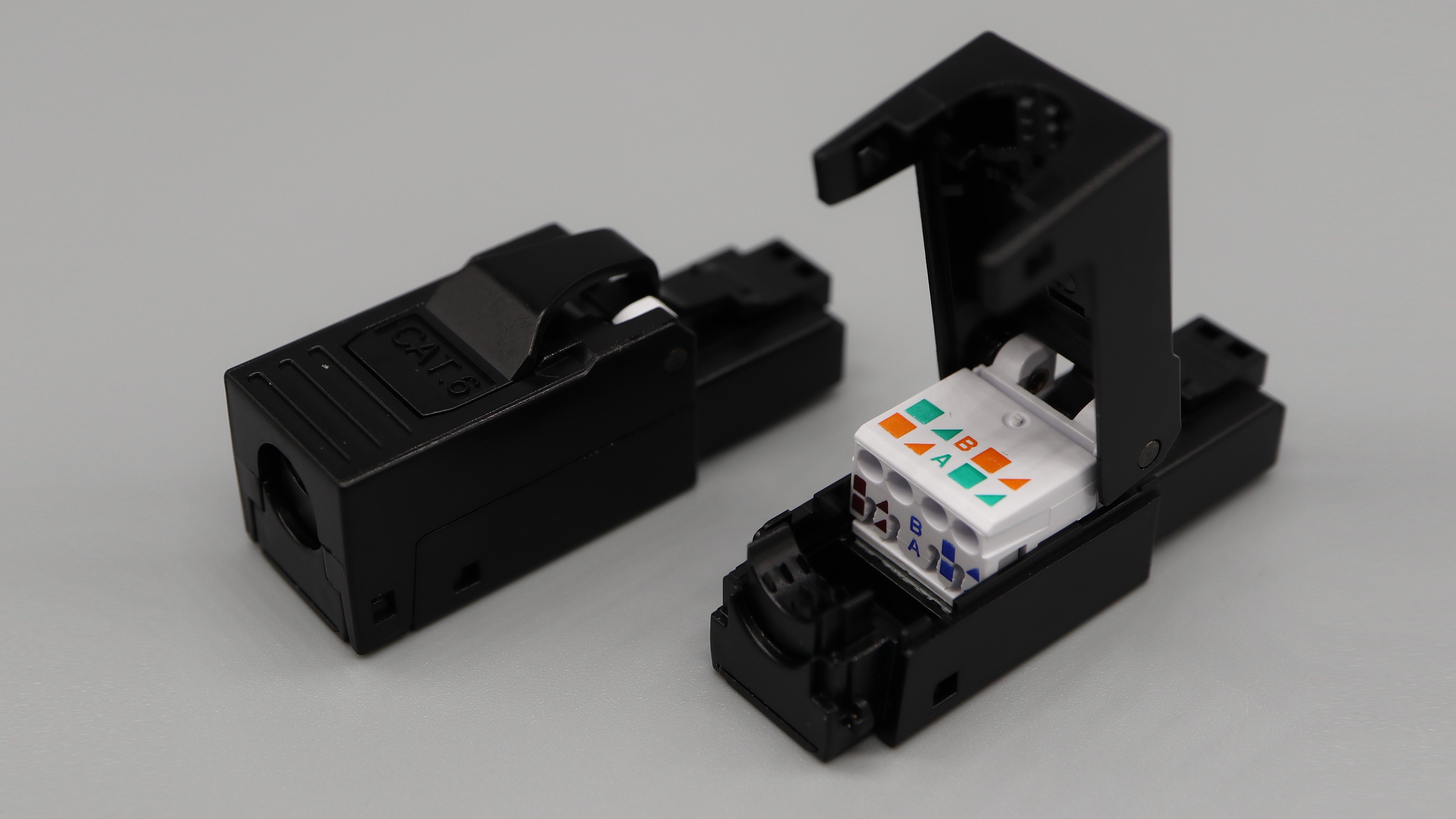

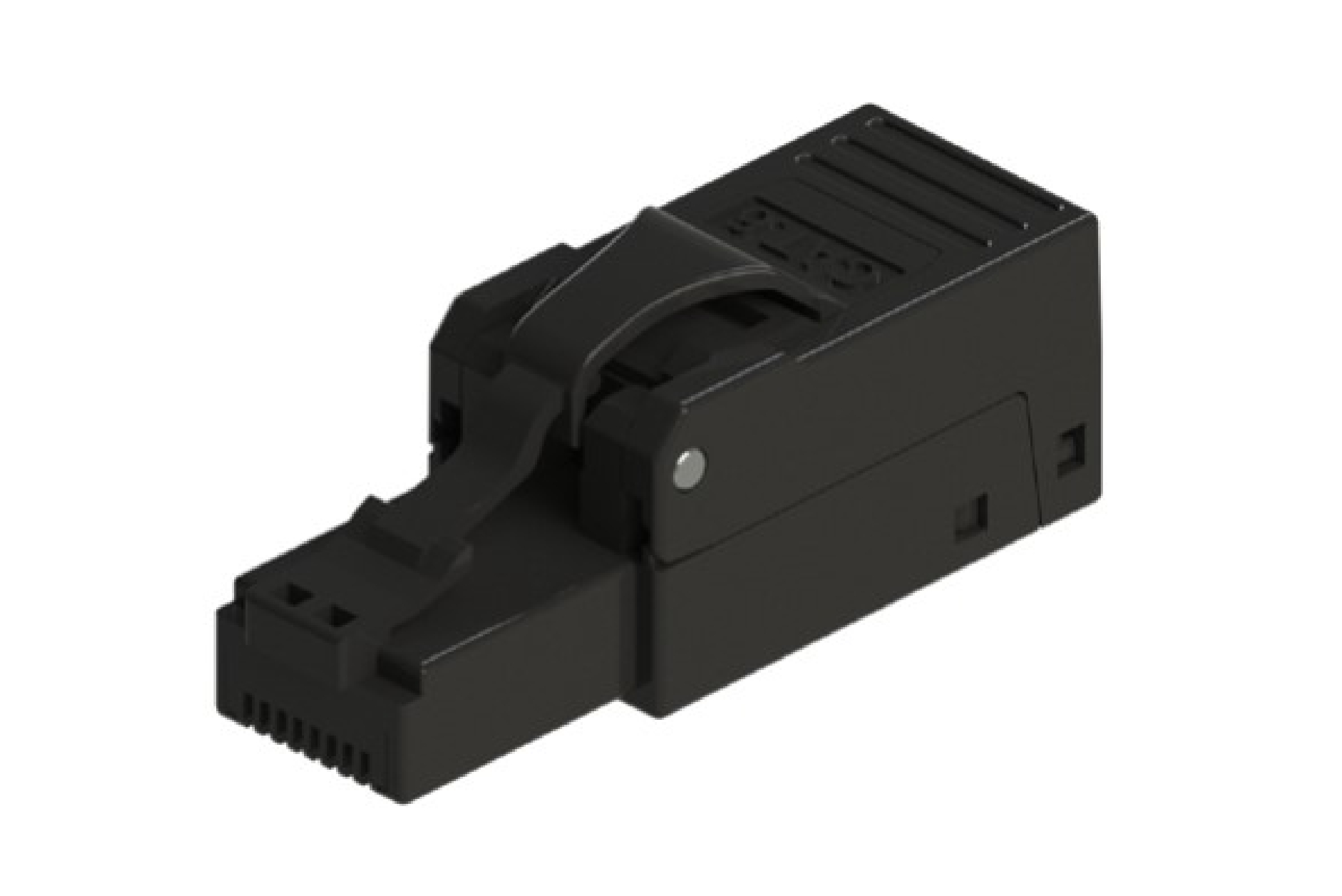

• P8-099 RJ45 Cat.6 UTP Field Termination plug
    P8-099 RJ45 Cat.6 UTP Field Termination plug P8-099 RJ45 Cat.6 UTP Field Termination plug P8-099 RJ45 Cat.6 UTP Field Termination plug

    P8-099 RJ45 Cat.6 UTP Field Termination plug


    Features :



    ▲ Extreme performance by PCB compensation design for Hyper-Scale and Edge Data Center

    ▲ Easy field termination, T568A & B wiring

    ▲ Power over HDBaseT™ (PoH) applications up to 100 W

    ▲ Design to support Ethernet at rates up to 10 Gbps over distances up to 55 meters

    ▲ Up to 90 meters Modular Plug Terminated Link (MPTL) applications

    ▲ Design to support CAT. 6 patch cord component-rated

    Drawing Guide Test

Part No. P8-099
RJ45 Cat.6 UTP Field Termination plug
Maximum Cable O.D. Size Supported 4.4 ~ 6.8 mm
Maximum conductor W/insulation O.D. Size 23 ~ 26 Awg
Conductor type Solid | Stranded
Packaging Features 1 piece / bag , 50 pieces / white box
Operation Temperature -10℃ to 60 ℃
Storage temperature -40℃ to 70℃
Compliance Meet IEC 60603-7 , ISO/IEC 11801, ANSI/TIA 568. 2-D , TIA-1096 Chapter 4 and 5 , ROHS/REACH compliant
