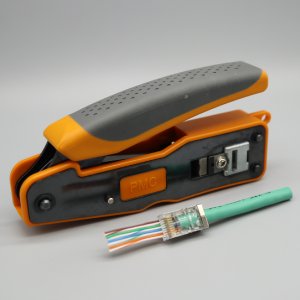

• PM-6068 RJ45 Pass Through CUTS-CRIMPS Tool
    PM-6068 RJ45 Pass Through CUTS-CRIMPS Tool PM-6068 RJ45 Pass Through CUTS-CRIMPS Tool PM-6068 RJ45 Pass Through CUTS-CRIMPS Tool PM-6068 RJ45 Pass Through CUTS-CRIMPS Tool PM-6068 RJ45 Pass Through CUTS-CRIMPS Tool PM-6068 RJ45 Pass Through CUTS-CRIMPS Tool

    PM-6068 RJ45 Pass Through CUTS-CRIMPS Tool



    ~~ Light and Handy ~~

    Can be used by both professionals and unskilled home-users.

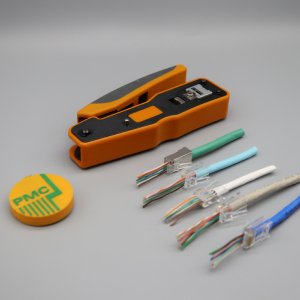

         ◼️New Crimp Tool is widely compatible with all PMC

            ✔️Pass-Thru 8P RJ45 Cat6A / Cat6/Cat.5e plugs for insulation O.D. 0.70 to 1.20mm.
                Crimps & Trims Plug Master Pass-Thru connectors ( UTP P8-007-47, P8-007-48 ,
                P8-071-2, P8-071-4 , STP P8-005-27, P8-005-24, P8-020-15, P8-020-16,P8-020-19,
                and Arc latch UTP P8-029-3,P8-029-5 ) onto paired-conductor cables (round
                STP/UTP cables) .

          ◼️Also used for standard (non-Pass-Thru) connectors.

          ✔️To crimp large diameter Pass-Thru plugs P8-069-15 & P8-069-16 1.4mm, and
               standard RJ45 ,please choose the Professional Tool PM-3008R （New version) .



          ◼️ROHS / RAECH compliant



    Features

        ◼️The handle comes with two-color TPR material. It has the resilience and good wear
             resistance of general rubber, excellent slip resistance and shock absorption, but softness
             and comfort are superior to rubber.

        ◼️The body is made of S45C Medium carbon steel, ensuring high strength, excellent quality,
             and a long-lasting service life.

        ◼️The blades can cleanly cut the wire without leaving any excess edge.

        ◼️The positioning point design ensures that the PLUG is pushed to the bottom
             before crimping to avoid errors.

        ◼️Release Button ” to make you take out the Patch Cord easily after crimping .

             View the Video



    WARNING: PMC FAST-EASY-PASS THROUGH RJ45 connectors and crimp tools are designed to work as a system.
    TOOL #PM-3008R is NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty.
    Plug Master is not responsible for any unintended uses of its products.


    Specification
