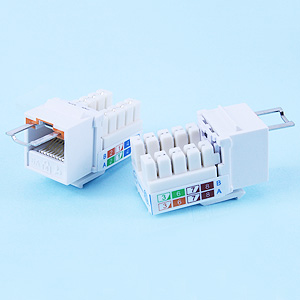

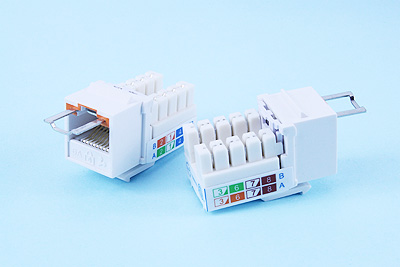

KJ-PM06L-02 C6 Keystone Jack UTP

Mechanical Specifications:

- ROHS

- Meets C6 EIA/TIA 568B Standard
- Jack Insertion Cycle: Over 2000 Cycles
- Operation Temperature: -40 ~ +70 Degree Celsius

Materials :

- Body: Fireproof ABS UL-94V0

- PCB: FR-4 / UL-94V0

- Jack: 8P8C 50 micro inches gold plated

– IDC Body: Fireproof of ABS UL-94V0

– IDC Pin: Phosphor Bronze & Tinned

- Lock bar: Metal (SPCC)

Electrical Specifications:

- Insulation Resistance: 500M ohms (min.)

- Contact Resistance: 20m ohms (max.)

- Current Rating: 1.5 Amps.

- DC Resistance: 0.1 ohms (max.)

- Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.

IDC Description:

For 22-26 Awg

For 110 punch-down Tool
